Save $387

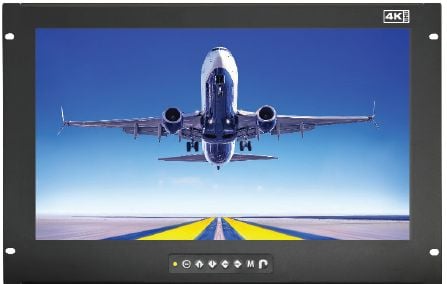

7U 19" 4K Rackmount LCD Panel
DisplayPort 1.2 + HDMI 1.4 + HDMI 2.0 with Speakers
Special Price
from $1,908.00
Regular Price
from $2,295.00
17% OFF
Part
rmp-161-19K
Product Information
- Supports 4K, 1920 X 1200 & 1920 X 1080 Resolutions
- Video Input - DP 1.2 & HDMI 1.4 + HDMI 2.0 Dual Stereo Speakers
- Optional Input - HDMI 2.0 / HDCP 2.2, SDI Input
- Touchscreen - Resistive or 10 Point Multi-Touch
- TAA Compliant
| Console Port | Video Input - Display Port 1.2 + HDMI 1.4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LCD Panel | Panel Size (diagonal) - 18.4" Native Resolution - 3840 X 2160 Brightness (cd/m2) - 300 Contrast Ratio - 1000 : 1 Colors - 1.07B Viewing Angle(L/R/U/D) - 85/85/85/85 Response time (ms) - 15 Dot pitch (mm) - .1065 Display area (mm) - 408.98H X 230.04V Surface Treatment - Anti-glare Surface Hardness - 3H Backlight type - LED MTBF (hrs) - 30,000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Specification | Product Specification
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Specification
| LCD Panel Video Specs | |
|---|---|
| Video input | Display port 1.2 + HDMI 1.4 + HDMI 2.0 |
| Video Option | ||
|---|---|---|
| Digital Input Option | HDMI / SDI |
HDMI 2.0 / HDCP 2.2 |
| LCD Panel | |
|---|---|
| Panel Size (diagonal) | 18.4" |
| Native resolution | 3840 x 2160 |
| Brightness(cd/m²) | 300 |
| Contrast ratio (typ.) | 1000 :1 |
| Max Color | 1.07B |
| Contrast angle(L/R/U/D) | 85/85/85/85 |
| Responsive time(ms) | 15 |
| Dot pitch (mm) | 0.1065 |
| Display area (mm) | 409.98H x 230.04V |
| Surface treatment | Anti- glare |
| Surface hardness | 3H |
| Backlight type | LED |
| MTBF(hrs) | 30,000 |
| Power | ||
|---|---|---|
| Input | Input Auto-sensing 100 to 240 VAC, 50/60Hz | |
| Consumption (console / K/M) |
Screen on | Max. 40W |
| Power saving mode | Max. 2W | |
| Power button on | Max. 1W | |
| Physical | ||
|---|---|---|

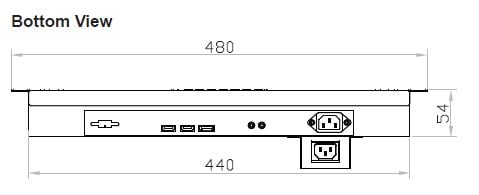

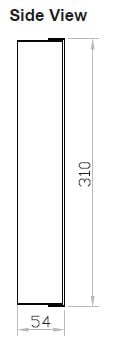

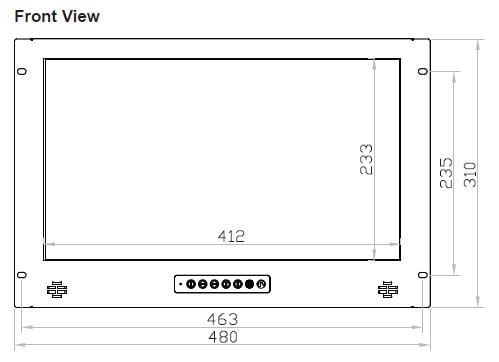

| Product (W x D X H) |
Millimeters | 480 x 58 x 310mm |
| Inches | 18.9 X 2.3 X 12.2 inch | |
| Packing (W x D X H) |
Millimeters Inches |
529 x 124 x 451mm 20.8 x 4.9 x 17.8 inch |
| Net weight |
KGs | 5.8 kg |
| LBS | 12.8 lb | |
| Gross weight |
KGs | 7.9 kg |
| LBS | 17.4 lb | |
| Environment | |
|---|---|
| Operating temp. | 0 to 55°C degree |
| Strorage temp | -20 to 60°C degree |
| Operating humidity | 20~90%, non-condensing |
| Storage humidity | 5 ~90%, non-condensing |
| Operating alttiude | 16,000 ft |
| Non-operating attude | 40,000 ft |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 10~300Hz .5G RMS randon vibration |
| Compliance | |
|---|---|
| EMC | FCC & CE certifiled |
| Safety | CE/ LVD certified |
| Environment | RoHS3 / REACH / WEEEcompliant |
