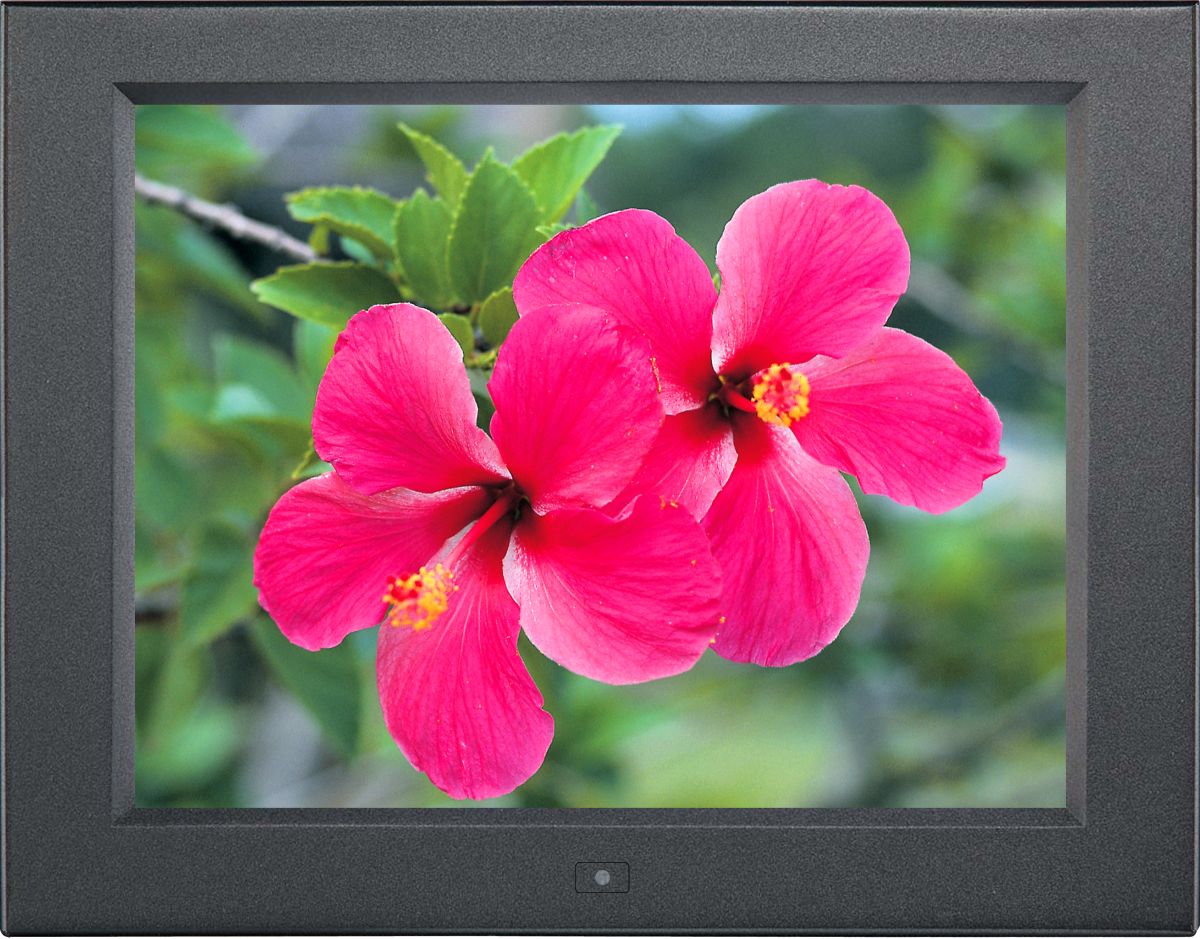

10.4" Rugged LCD Aluminum Frame, 800 X 600 - Industrial LCD Panel (Part# LCD-AP10)
Special Price
from $674.00
Regular Price
from $808.75
VGA Input - Optional BNC & S-Video, + Audio + Remote Controller, DVI, HDMI
3MM Protective Glass - Optional NEMA4/IP65 LED Display Panel
Optional - Resistive or Capacitive Touchscreen
Auto-sensing 100 to 240 VAC, 50/60Hz - Optional 12VDC / 24VDC / 48VDC / 125VDC
More Information
| Product Specification |
Product Specification
| LCD Panel Video Specs |
|---|
| Video input |
VGA |
| Video Option |
|---|
| Analog / Digital |
Composite / DVI / HDMI |
S-Video (4-pin) + Composite (BNC) + Audio
+ Remote Controller - HTSC & PAL
DVI-D Single Link, HDMI 1.3 / HDCP 1.3
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
10.4" |
| Native resolution |
800 x 600 |
| Brightness(cd/m²) |
230 |
| Contrast ratio (typ.) |
500 :1 |
| Max Color |
262 K |
| Contrast angle(L/R/U/D) |
80/80/60/70 |
| Responsive time(ms) |
35 |
| Dot pitch (mm) |
0.213 |
| Display area (mm) |
211.2H x 158.4V |
| Surface treatment |
Anti-glare |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
30,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 14W |
| Power saving mode |
Max. 4W |
| Power button on |
Max. 1W |

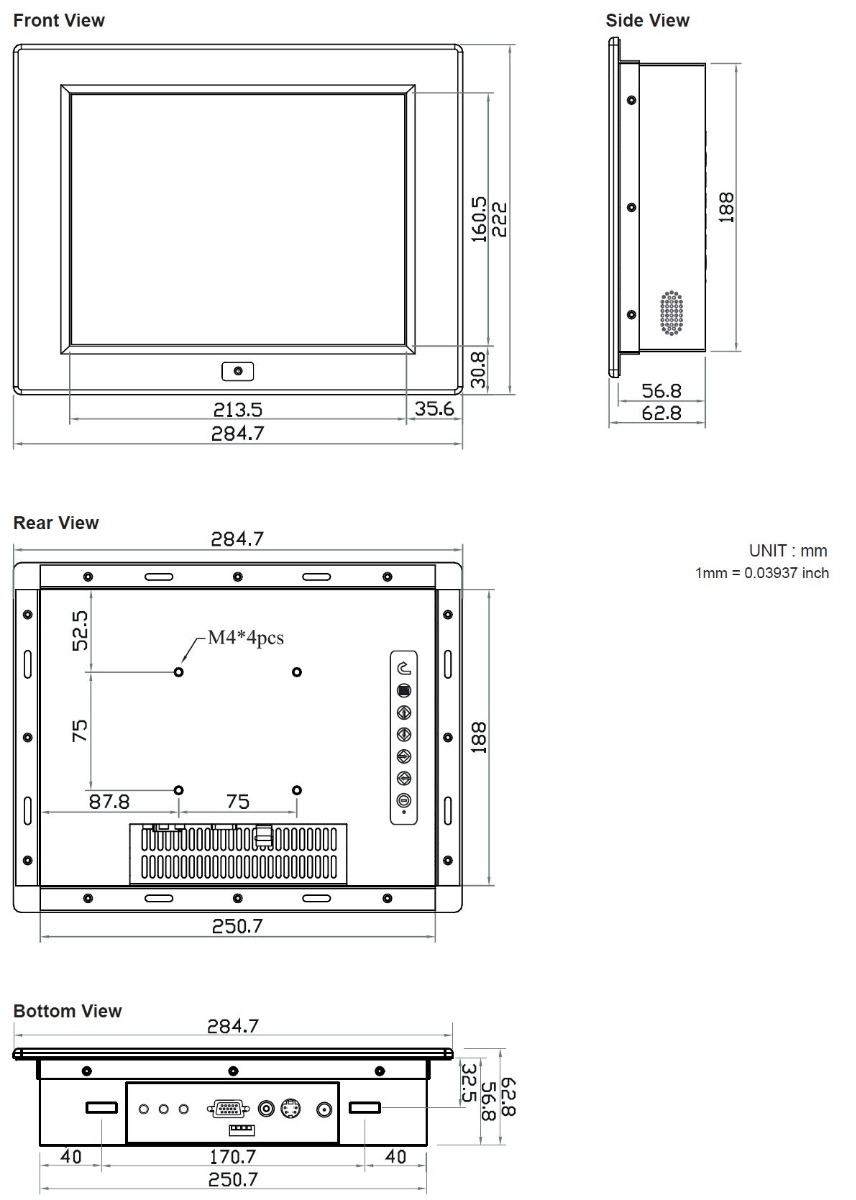

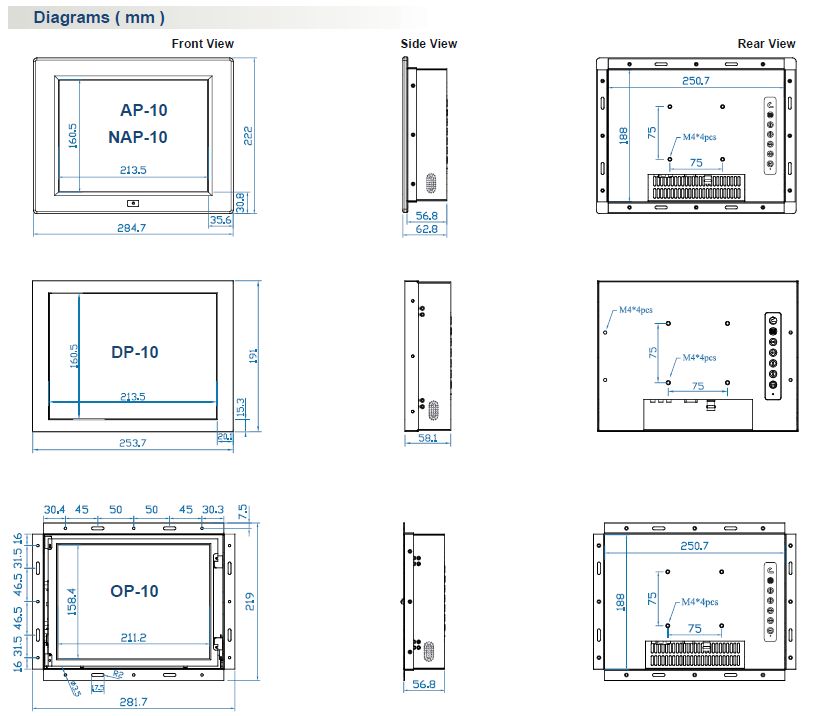

| Physical LCD Frame |
|---|
Product
(W x D X H) |
Millimeters |
284.7 x 62.8 x 222mm |
| Inches |
11.2 X 2.5 X 8.7 inch |
Packing
(W x D X H) |
Millimeters
Inches |
515 x 117 x 429mm
20.3 x 4.6 x 16.9 inch |
Net
weight |
KGs |
2.6 kg |
| LBS |
5.7 lb |
Gross
weight |
KGs |
4.6 kg |
| LBS |
10.1 lb |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|

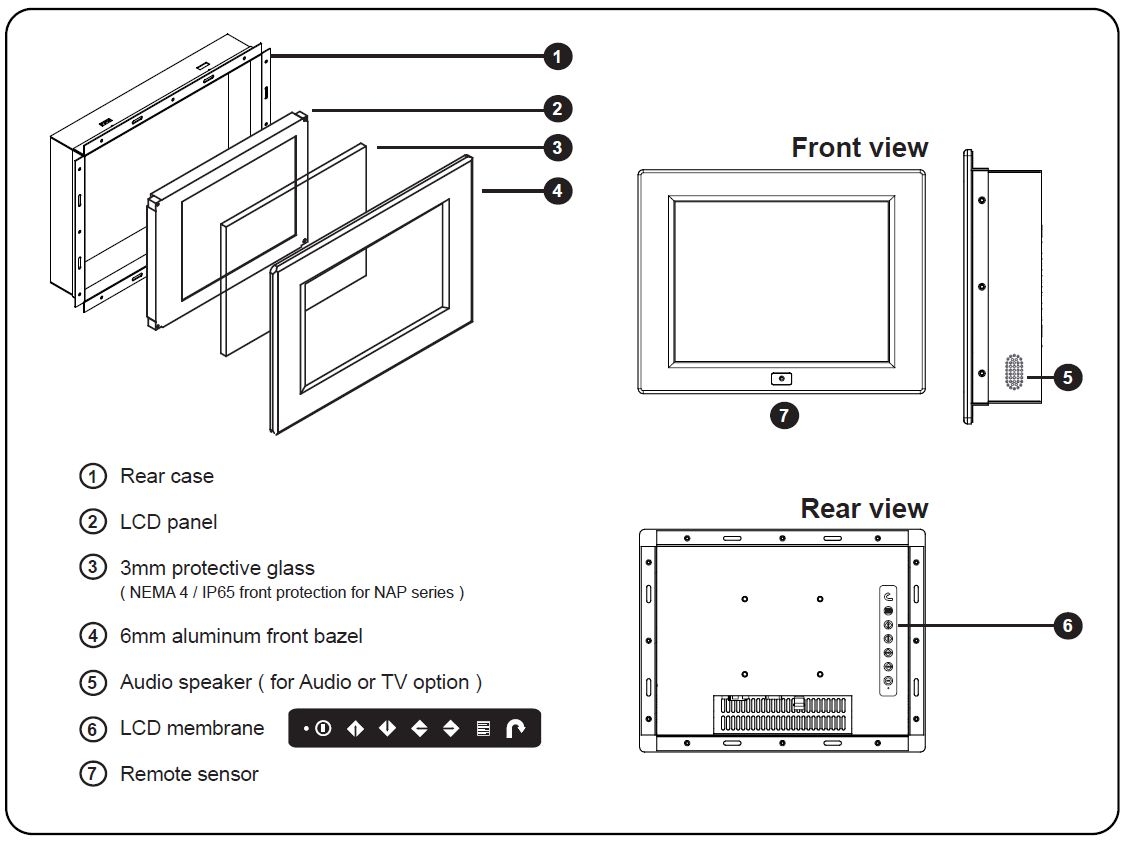

10.4" Industrial LCD Features

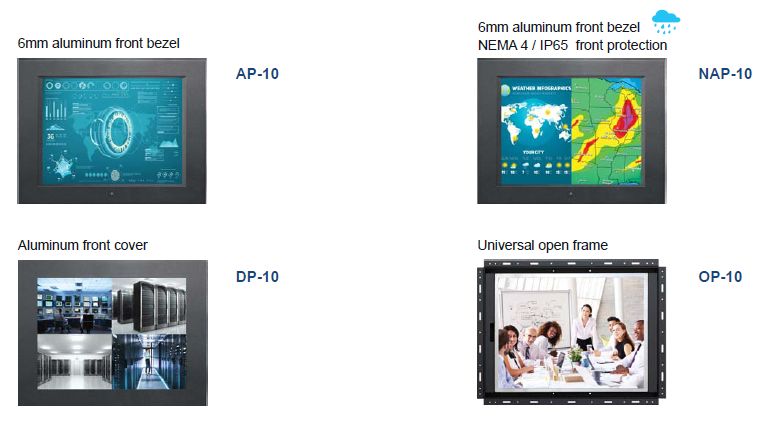

Industrial LCD Panel Options -
- Video: BNC & S-Video
- Audio: Add integrated speakers
- Touchscreen: Resistive or Capacitive
- Tuner: TV - PAL or NTSC Remote Controller
