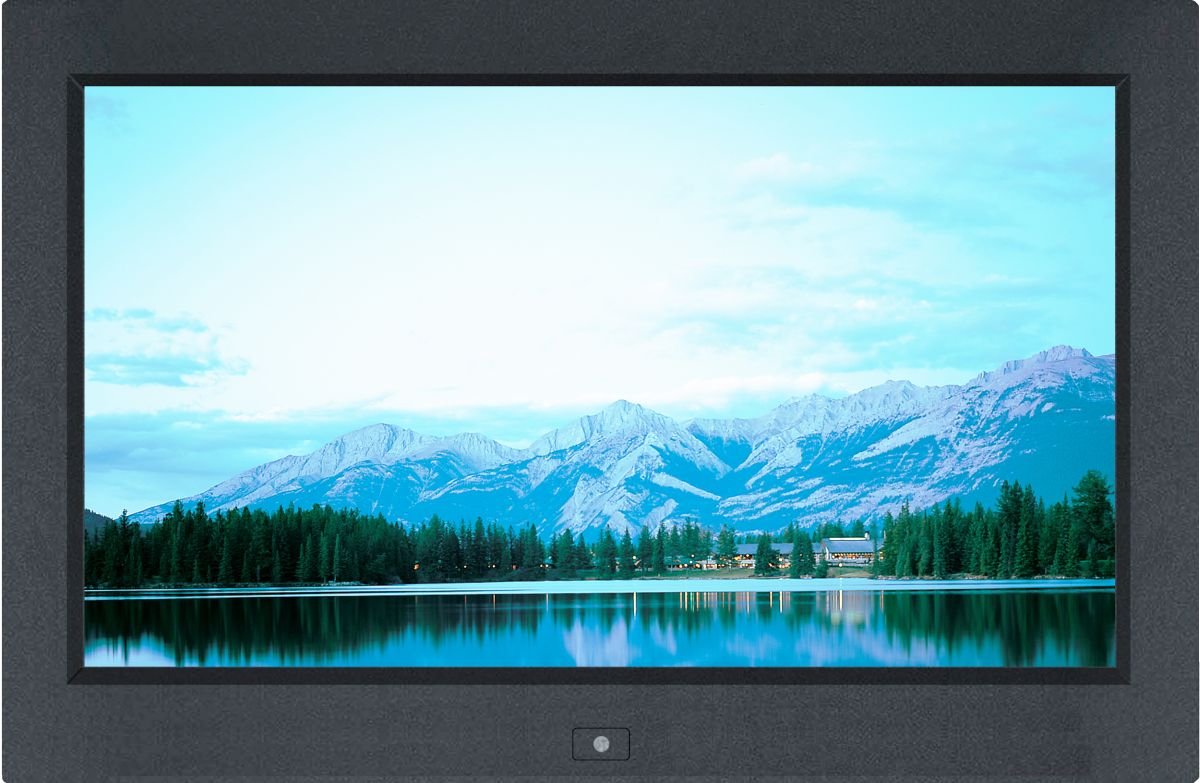

15" Rugged 1920 X 1080 LCD Aluminum Frame - Industrial LCD Panel (Part# LCD-AP-F15)
Special Price
from $1,097.00
Regular Price
from $1,246.25
- VGA + HDMI Input - Optional DVI-D DP BNC & S-Video + Audio
- 3MM Protective Glass - Optional NEMA4/IP65 LED Display Panel
- Optional - Resistive or 10 Point MultTouch Capacitive Touchscreen
- Auto-sensing 100 to 240 VAC, 50/60Hz - Optional 12VDC / 24VDC / 48VDC / 125VDC
More Information
| Product Specification |
Product Specification
| LCD Panel Video Specs |
|---|
| Video input |
VGA + DVI-D single link |
| Video Option |
|---|
| Digital / Analog |
HDMI / SDI / Composite |
HDMI 1.3 / HDCP 1.3
3G / HD / SD-SDI Broadcast Grade Input
S-Video (4-pin) + Composite (BNC)
NTSC & PAL
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
15.6" |
| Native resolution |
1920 x 1080 |
| Brightness(cd/m²) |
400 |
| Contrast ratio (typ.) |
700:1 |
| Max Color |
16.7 M, 8-bit |
| Contrast angle(L/R/U/D) |
80/80/70/70 |
| Responsive time(ms) |
16 |
| Dot pitch (mm) |
0.17925 |
| Display area (mm) |
344.16H x 193.59V |
| Surface treatment |
Anti- glare. Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
50,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 25W |
| Power saving mode |
Max. 4W |
| Power button on |
Max. 1W |

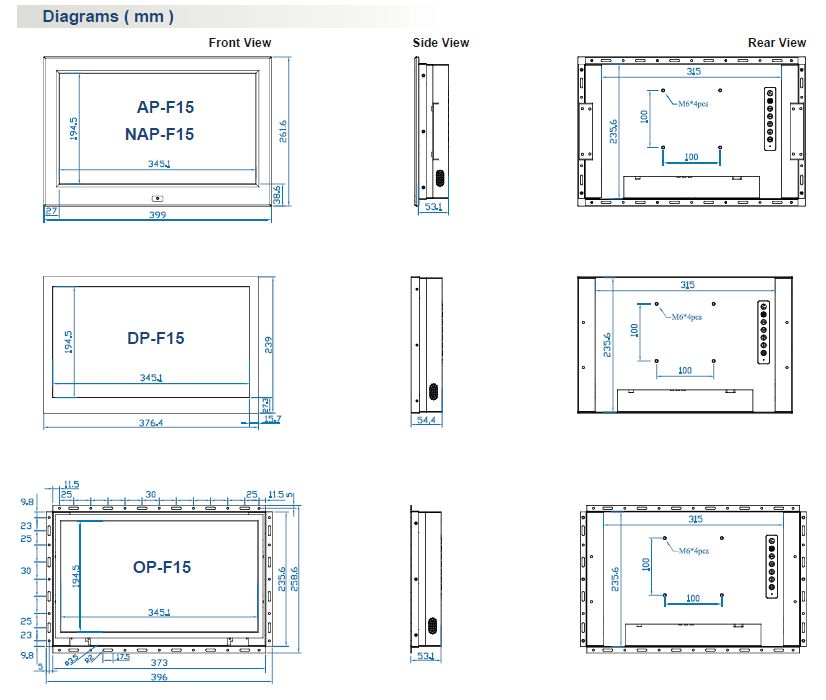

| Physical |
|---|
Product
(W x D X H) |
Millimeters |
399 x 53.1 x 258.6mm |
| Inches |
15.7 X 2.1 X 10.3 inch |
Packing
(W x D X H) |
Millimeters
Inches |
615 x 113 x 523mm
24.2 x 4.4 x 20.6 inch |
Net
weight |
KGs |
4.7 kg |
| LBS |
10.3 lb |
Gross
weight |
KGs |
7.3 kg |
| LBS |
16.1 lb |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|
Service Temporarily Unavailable
The server is temporarily unable to service your request due to maintenance downtime or capacity problems.
Please try again later.
15" High Resolution Industrial LCD Display Features

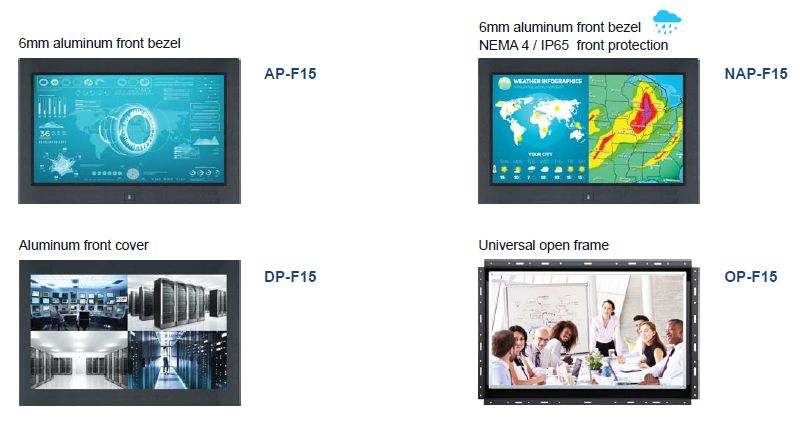

Industrial LCD Panel Options -
- Video Input: DVI-D DP BNC & S-Video + Audio + Remote Controller
- Screen Protection:Protective Glass
- Broadcast: 3G / HD / SD-SDI Broadcast-grade input
- Multi-Display: Multi-display control
- Power:12VDC, 24VDC, 48VDC
- Industrial Touch Screen Monitor: Resistive or Capacitive or MULTI-TOUCH
- Connector:Lockable DC Jack, Lockable USB Jack
- MIL-type Connector:MIL-type DC lockable jack, MIL-type VGA lockable jack
Product Specification
| LCD Panel Video Specs |
|---|
| Video input |
VGA + DVI-D single link |
| Video Option |
|---|
| Digital / Analog |
HDMI / SDI / Composite |
HDMI 1.3 / HDCP 1.3
3G / HD / SD-SDI Broadcast Grade Input
S-Video (4-pin) + Composite (BNC)
NTSC & PAL
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
15.6" |
| Native resolution |
1920 x 1080 |
| Brightness(cd/m²) |
400 |
| Contrast ratio (typ.) |
700:1 |
| Max Color |
16.7 M, 8-bit |
| Contrast angle(L/R/U/D) |
80/80/70/70 |
| Responsive time(ms) |
16 |
| Dot pitch (mm) |
0.17925 |
| Display area (mm) |
344.16H x 193.59V |
| Surface treatment |
Anti- glare. Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
50,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 25W |
| Power saving mode |
Max. 4W |
| Power button on |
Max. 1W |
| Physical |
|---|
Product
(W x D X H) |
Millimeters |
399 x 53.1 x 258.6mm |
| Inches |
15.7 X 2.1 X 10.3 inch |
Packing
(W x D X H) |
Millimeters
Inches |
615 x 113 x 523mm
24.2 x 4.4 x 20.6 inch |
Net
weight |
KGs |
4.7 kg |
| LBS |
10.3 lb |
Gross
weight |
KGs |
7.3 kg |
| LBS |
16.1 lb |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
