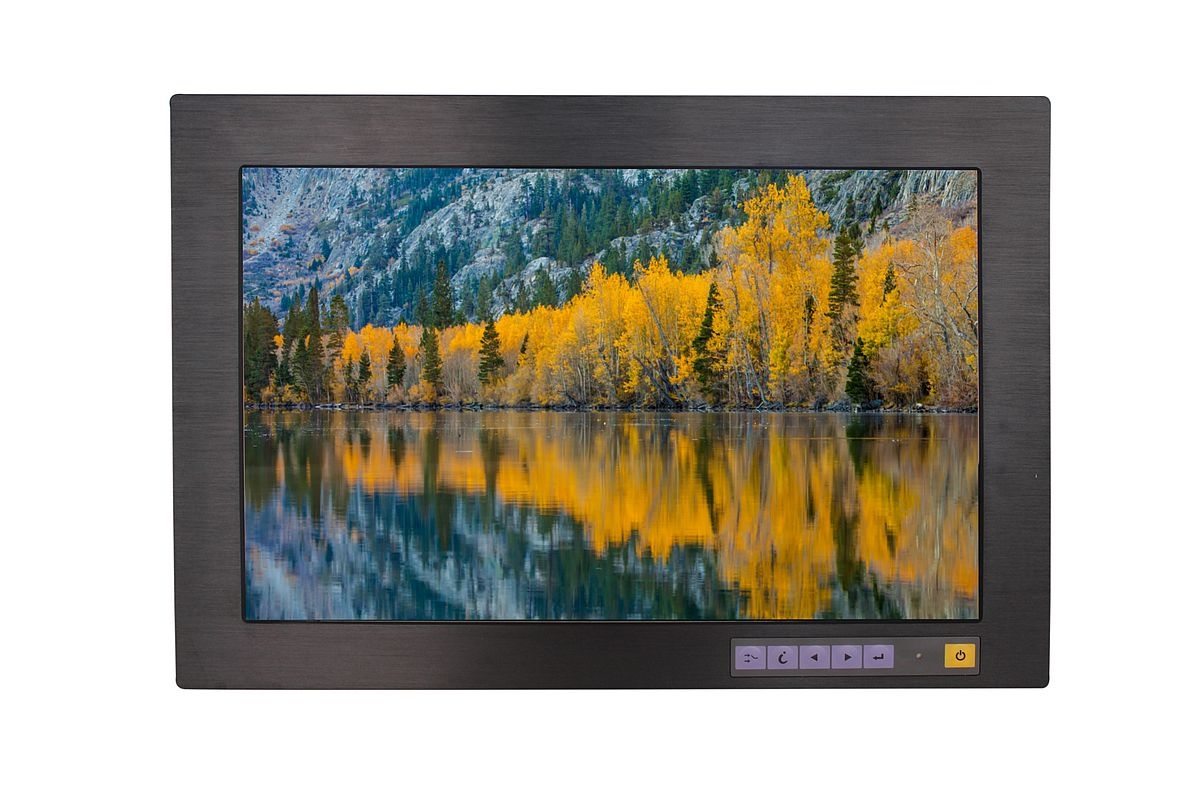

15" Rugged 1920 X 1080 LCD Aluminum Frame - Industrial LCD Panel (Part# LCD-AP-F15A)
Special Price
from $939.00
Regular Price
from $1,279.00
- VGA & DVI-D Input - Optional HDMI + Display Port
- NEMA4/IP65 LED Display Panel
- Optional - Resistive or 10 Point MultTouch Capacitive Touchscreen
- Auto-sensing 100 to 240 VAC, 50/60Hz - Optional 9V~36V DC Power
More Information
| Product Specification |
Product Specification
| LCD Panel Video Specs |
|---|
| Video input |
VGA + DVI-D single link |
| Video Option |
|---|
| Digital / Analog |
HDMI / SDI / Composite |
HDMI 1.3 / HDCP 1.3
3G / HD / SD-SDI Broadcast Grade Input
S-Video (4-pin) + Composite (BNC)
NTSC & PAL
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
15.6" |
| Native resolution |
1920 x 1080 |
| Brightness(cd/m²) |
400 |
| Contrast ratio (typ.) |
700:1 |
| Max Color |
16.7 M, 8-bit |
| Contrast angle(L/R/U/D) |
80/80/70/70 |
| Responsive time(ms) |
16 |
| Dot pitch (mm) |
0.17925 |
| Display area (mm) |
344.16H x 193.59V |
| Surface treatment |
Anti- glare. Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
50,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 25W |
| Power saving mode |
Max. 4W |
| Power button on |
Max. 1W |
| Physical |
|---|
Product
(W x D X H) |
Millimeters |
399 x 53.1 x 258.6mm |
| Inches |
15.7 X 2.1 X 10.3 inch |
Packing
(W x D X H) |
Millimeters
Inches |
615 x 113 x 523mm
24.2 x 4.4 x 20.6 inch |
Net
weight |
KGs |
4.7 kg |
| LBS |
10.3 lb |
Gross
weight |
KGs |
7.3 kg |
| LBS |
16.1 lb |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|
15" High Resolution Industrial LCD Display Features
- 15" LCD with 1920 X 1080 Resolution, VGA + DVI-D Input
- Rugged Construction against external impact
- 6mm Aluminum Front Bezel
- Includes NEMA4/IP65 Protection
Industrial LCD Panel Options -
- Video Input: HDMI or Display Port
- Screen Protection:Protective Glass
- Broadcast: 3G / HD / SD-SDI Broadcast-grade input
- Power: 9V~36V DC Power
- Industrial Touch Screen Monitor: Resistive or Capacitive or MULTI-TOUCH
- Connector:Lockable DC Jack, Lockable USB Jack
- MIL-type Connector:MIL-type DC lockable jack, MIL-type VGA lockable jack
