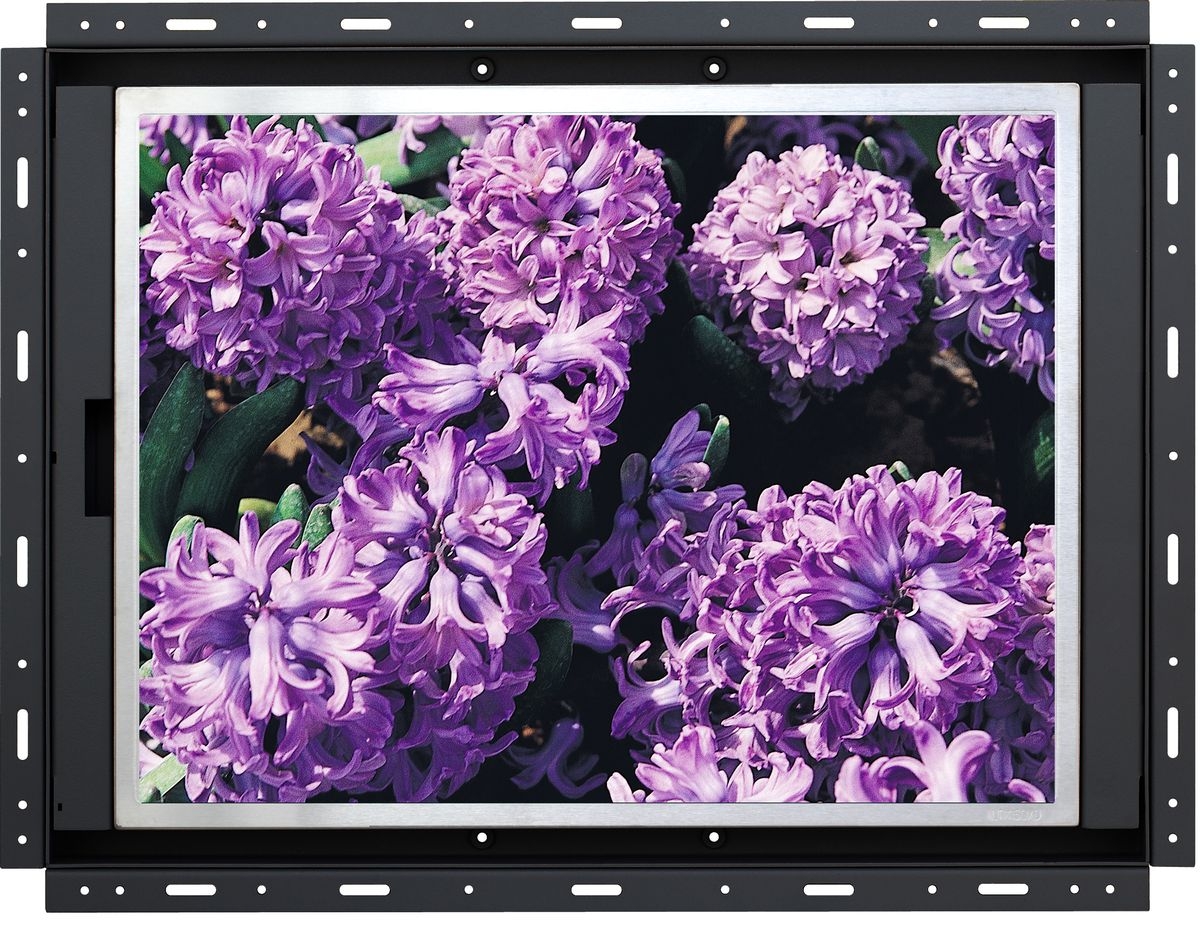

15" Rugged LCD, 1024 X 768 Universal Open Frame LCD Panel (Part# LCD-OP15)
Special Price
from $638.00
Regular Price
from $797.50
VGA Input - Optional BNC & S-Video, + Audio + Remote Controller, DVI, HDMI
3MM Protective Glass - Optional NEMA4/IP65 LED Display Panel
Optional - Resistive or Capacitive Touchscreen
Auto-sensing 100 to 240 VAC, 50/60Hz - Optional 12VDC / 24VDC / 48VDC / 125VDC
More Information
| Product Specification |
Product Specification
| LCD Panel Video Specs |
|---|
| Video input |
VGA |
| Video Option |
|---|
| Digital / Analog |
HDMI / DVI / Composite |
HDMI 1.3 / HDCP 1.3
S-Video (4-pin) + Composite (BNC)
NTSC & PAL
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
15" |
| Native resolution |
1024 x 768 |
| Brightness(cd/m²) |
250 |
| Contrast ratio (typ.) |
700:1 |
| Max Color |
16.2 M |
| Contrast angle(L/R/U/D) |
75/75/75/60 |
| Responsive time(ms) |
8 |
| Dot pitch (mm) |
0.297 |
| Display area (mm) |
304.12H x 228.09V |
| Surface treatment |
Haze 25% |
| Surface hardness |
3H |
| Backlight type |
CCFL |
| MTBF(hrs) |
30,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 22W |
| Power saving mode |
Max. 4W |
| Power button on |
Max. 1W |

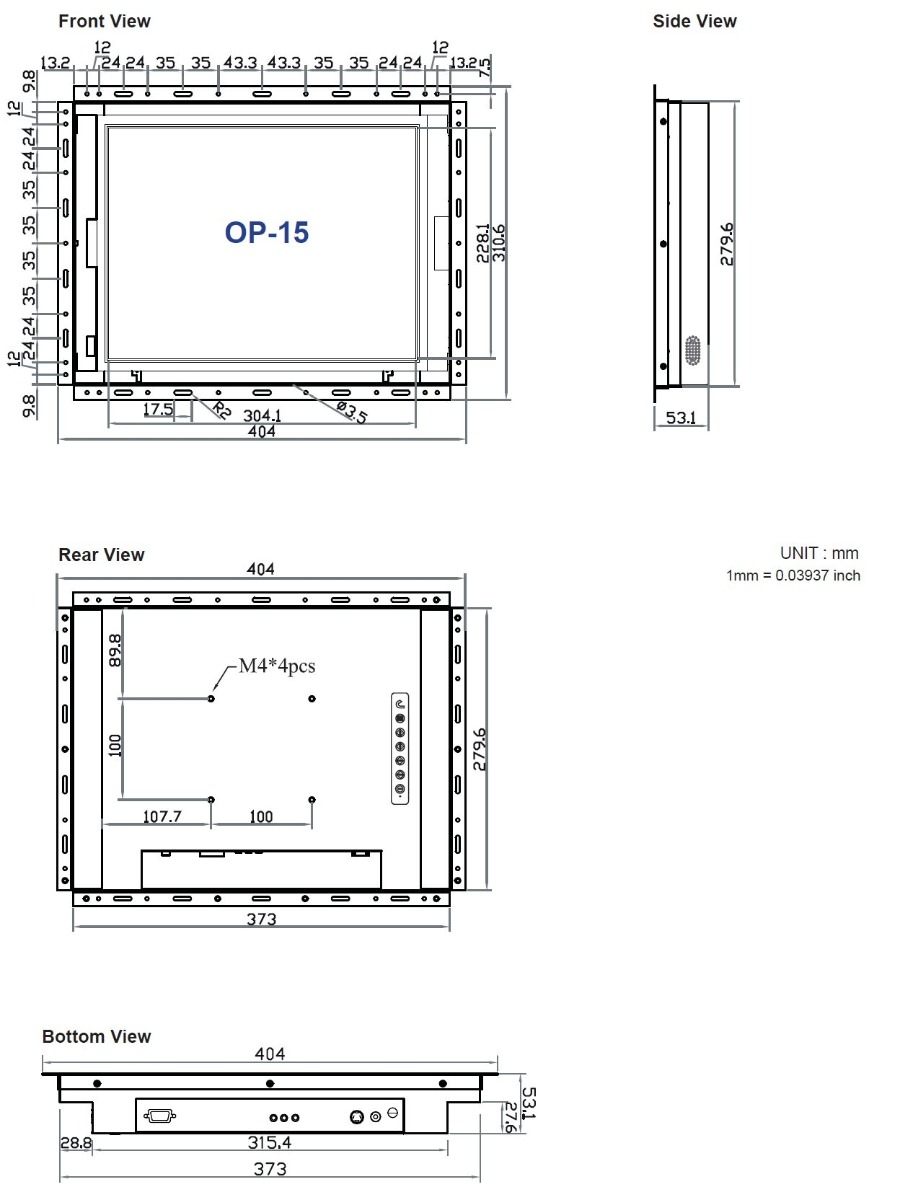

| Physical LCD Frame |
|---|
Product
(W x D X H) |
Millimeters |
404 x 53.1 x 310.6mm |
| Inches |
15.9 X 2.1 X 12.2 inch |
Packing
(W x D X H) |
Millimeters
Inches |
615 x 113 x 523mm
24.2 x 4.4 x 20.6 inch |
Net
weight |
KGs |
3.5 kg |
| LBS |
7.7 lb |
Gross
weight |
KGs |
6.1 kg |
| LBS |
13.4 lb |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|
15" Open Frame Industrial LCD Features
Industrial LCD Panel Options -
- Video: BNC & S-Video
- Audio: Add integrated speakers
- Touchscreen: Resistive or Capacitive
- Tuner: TV - PAL or NTSC Remote Controller
