Special Pricefrom$2,185.00Regular Pricefrom$2,579.00

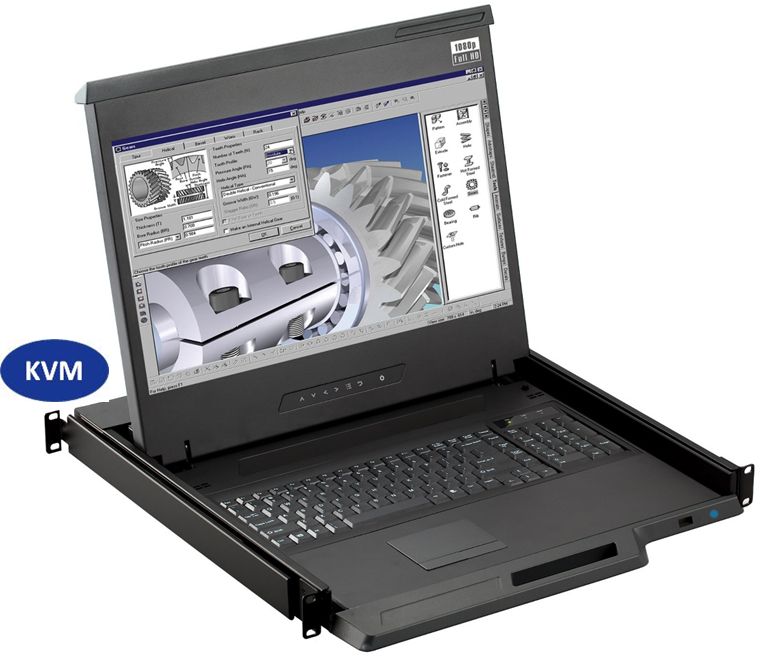

Rackmount Monitor with 16 Port KVM Switch supports 1920 X 1080)
Video Input - VGA Input - Includes 16, 6' VGA KVM Cables
104 Key Notebook Keyboard, Touchpad or Trackball Mouse
Mounting Range - 22.8" to 31.5"
More Information
Console Port
Part# RM-F117
Video Input - VGA + DVI-D single link
KB / MS - COMBO USB or PS/2
VGA Console - (Drawer End - VGA + USB KB/MS)
(Server End - VGA + USB type A)
DVI Console - (Drawer End - DVI-D + DB15 (USB KB/MS
LCD Panel
1920 X 1080
Physical
26" Depth
Mounting Distance
16" to 29" Mounting Depth
Video Option
VGA
DVI
HDMI
SDI
Power
110V
Environment
30 Degrees C
Compliance
FCC, CE
Product Specification
Product Specification
Console Port
Video input
VGA + DVI-D single link
Keyboard and Mouse
USB 2.0 Keyboard & Mouse
DVI console - 6ft cable : or VGA console - 6ft cable :
Drawer end : DB-15(VGA + USB KB/MS) server end: VGA + USB type A
Drawer end : DVI- D + DB-15(USB KB/MS) server end: DVI- D + USB type A
Video Option
Digital
HDMI
HDMI 1.3 / HDCP 1.1
LCD Panel
Panel Size (diagonal)
17.3"
Native resolution
1920 x 1080
Brightness(cd/m²)
400
Contrast ratio (typ.)
600:1
Max Color
16.7 M, 8-bit
Contrast angle(L/R/U/D)
80/80/60/80
Responsive time(ms)
40
Dot pitch (mm)
0.1989
Display area (mm)
381.888H x 214.812V
Surface treatment
Anti- glare. Hard-coating
Surface hardness
3H
Backlight type
LED
MTBF(hrs)
50,000
Power
Input
Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption (console / K/M)
Screen on
Max. 29W / Max. 38W
Power saving mode
Max. 9W / Max. 18W
Power button on
Max. 2W / Nil

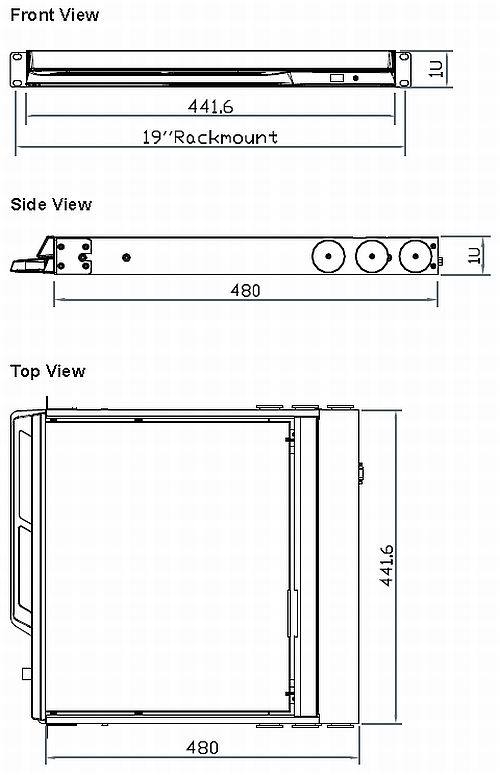

Physical
Product (W x D X H)
Single console
442 x 460 x 44mm 17.4 x 18.1 x 1.73 inch
Console W/ KVM
442 x 580 x 44mm 17.4 x 22.8 x 1.73
Packing (W x D X H)
Single console/ Console W/ KVM
590 x 808 x 140mm 23.2 x 31.8 x 5.5 inch
Net weight
Single console
10.8 kg / 23.8 lb
Console W/ KVM
11.6 kg / 25.5 lb
Gross weight
Single console
15.8kg / 34.8 lb
Console W/ KVM
17.5 kg / 38.5 lb
Environment
Operating temp.
0 to 55°C degree
Strorage temp
-20 to 60°C degree
Operating humidity
20~90%, non-condensing
Storage humidity
5 ~90%, non-condensing
Operating alttiude
16,000 ft
Non-operating attude
40,000 ft
Shock
10G acceleration (11ms duration)
Vibration
10~300Hz .5G RMS randon vibration
Mounting Distance
Single console drawer
470 ~ 700 mm 18.5 ~ 27.6 inch
Console W/ KVM drawer
470 ~ 800mm 18.5 ~ 31.5 inch
Compliance
EMC
FCC & CE certifiled
Safety
CE/ LVD certified
Environment
RoHS2 & REACH compliant
Product Specification
DB-15 KVM Switch
Port # :
8
Connector :
DB-15
Connectivity :
Integrated into 1U Rackmount Monitor
Resolution :
16:10 - max. 1920 x 1200 / 4:3 - max. 1600 x 1200
Local Console
Graphic Connector :
1 x DB-15 VGA
Input device :
2 x USB type A for keyboard & mouse
Resolution :
16:9 - max. 1920 x 1080 / 4:3 - max. 1600 x 1200 / 1920 X 1200
Management
Port switching
OSD, front button & keyboard hotkeys
Expansion
8-level cascade up to 256 servers
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 19W
Compatibility
Hardware
HP / IBM / Dell PC, Server and Blade Server SUN / Mac
