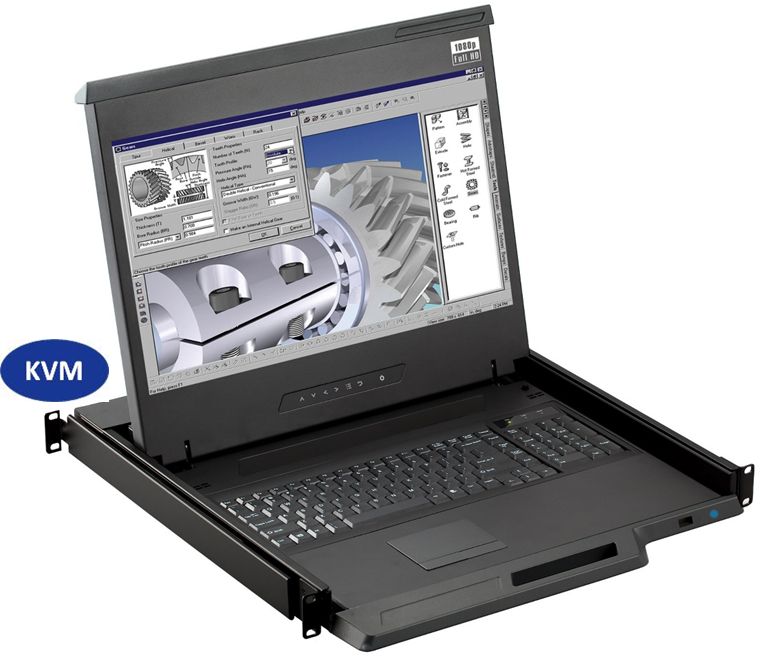

1U 17" 1920 X 1080 Rackmount Monitor + 16 Port Cat5 KVM Switch - (Part# RM-F117-Cat5-16 )
Special Price
from $1,999.00
Regular Price
from $2,298.75
16 Port Cat6 KVM Switch Integrated 104 Key Notebook Keyboard - Touchpad or Trackball Mouse Cat6 Dongles - VGA / DVI / HDMI / DP / USB-C Mounting Range - 18.5" to 31.5" (Physical Chassis Depth - 22.8")
More Information
Console Port
Part# RM-F117
Video Input - VGA + DVI-D single link
KB / MS - COMBO USB or PS/2
VGA Console - (Drawer End - VGA + USB KB/MS)
(Server End - VGA + USB type A)
DVI Console - (Drawer End - DVI-D + DB15 (USB KB/MS
LCD Panel
1920 X 1080
Physical
26" Depth
Mounting Distance
16" to 29" Mounting Depth
Video Option
VGA
DVI
HDMI
SDI
Power
110V
Environment
30 Degrees C
Compliance
FCC, CE
Product Specification
Product Specification
Console Port
Video input
VGA + DVI-D single link
Keyboard and Mouse
USB 2.0 Keyboard & Mouse
DVI console - 6ft cable : or VGA console - 6ft cable :
Drawer end : DB-15(VGA + USB KB/MS)
Drawer end : DVI- D + DB-15(USB KB/MS)
Video Option
Digital
HDMI
HDMI 1.3 / HDCP 1.1
LCD Panel
Panel Size (diagonal)
17.3"
Native resolution
1920 x 1080
Brightness(cd/m²)
400
Contrast ratio (typ.)
600:1
Max Color
16.7 M, 8-bit
Contrast angle(L/R/U/D)
80/80/60/80
Responsive time(ms)
40
Dot pitch (mm)
0.1989
Display area (mm)
381.888H x 214.812V
Surface treatment
Anti- glare. Hard-coating
Surface hardness
3H
Backlight type
LED
MTBF(hrs)
50,000
Power
Input
Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption
Screen on
Max. 29W / Max. 38W
Power saving mode
Max. 9W / Max. 18W
Power button on
Max. 2W / Nil
Physical
Product
Single console
442 x 460 x 44mm
Console W/ KVM
442 x 580 x 44mm
Packing
Single console/
590 x 808 x 140mm
Net
Single console
10.8 kg / 23.8 lb
Console W/ KVM
11.6 kg / 25.5 lb
Gross
Single console
15.8kg / 34.8 lb
Console W/ KVM
17.5 kg / 38.5 lb
Environment
Operating temp.
0 to 55°C degree
Strorage temp
-20 to 60°C degree
Operating humidity
20~90%, non-condensing
Storage humidity
5 ~90%, non-condensing
Operating alttiude
16,000 ft
Non-operating attude
40,000 ft
Shock
10G acceleration (11ms duration)
Vibration
10~300Hz .5G RMS randon vibration
Mounting Distance
Single console drawer
470 ~ 700 mm
Console W/ KVM drawer
470 ~ 800mm
Compliance
EMC
FCC & CE certifiled
Safety
CE/ LVD certified
Environment
RoHS2 & REACH compliant
1920 X 1080 Rack Mounted Monitor W/16 Port Cat6 KVM Switch
1U 17" 1920 X 1080 Rackmount Console with 16 Port Cat6 KVM Switch 104 Key Notebook Keyboard with Touchpad or Trackball Mouse Rack Mount Monitor Chassis With KVM Switch - Depth 22.8" 2 Post Relay Rack Mounting Available PIP & Picture by Picture viewing efficency
Options -
Cat6 Dongles - VGA / DVI / HDMI / DP / USB-C Keyboard: Standard Notebook, MAC Keyboard or SUN Keyboard Power: 12VDC, 24VDC, 48VDC, 125VDC Touchscreen: No Touchscreen -
Download More Info - Rackmount Monitor Specifications
Product Specification
Console Port
Video input
VGA + DVI-D single link
Keyboard and Mouse
USB 2.0 Keyboard & Mouse
DVI console - 6ft cable : or VGA console - 6ft cable :
Drawer end : DB-15(VGA + USB KB/MS)
Drawer end : DVI- D + DB-15(USB KB/MS)
Video Option
Digital
HDMI
HDMI 1.3 / HDCP 1.1
LCD Panel
Panel Size (diagonal)
17.3"
Native resolution
1920 x 1080
Brightness(cd/m²)
400
Contrast ratio (typ.)
600:1
Max Color
16.7 M, 8-bit
Contrast angle(L/R/U/D)
80/80/60/80
Responsive time(ms)
40
Dot pitch (mm)
0.1989
Display area (mm)
381.888H x 214.812V
Surface treatment
Anti- glare. Hard-coating
Surface hardness
3H
Backlight type
LED
MTBF(hrs)
50,000
Power
Input
Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption
Screen on
Max. 29W / Max. 38W
Power saving mode
Max. 9W / Max. 18W
Power button on
Max. 2W / Nil
Physical
Product
Single console
442 x 460 x 44mm
Console W/ KVM
442 x 580 x 44mm
Packing
Single console/
590 x 808 x 140mm
Net
Single console
10.8 kg / 23.8 lb
Console W/ KVM
11.6 kg / 25.5 lb
Gross
Single console
15.8kg / 34.8 lb
Console W/ KVM
17.5 kg / 38.5 lb
Environment
Operating temp.
0 to 55°C degree
Strorage temp
-20 to 60°C degree
Operating humidity
20~90%, non-condensing
Storage humidity
5 ~90%, non-condensing
Operating alttiude
16,000 ft
Non-operating attude
40,000 ft
Shock
10G acceleration (11ms duration)
Vibration
10~300Hz .5G RMS randon vibration
Mounting Distance
Single console drawer
470 ~ 700 mm
Console W/ KVM drawer
470 ~ 800mm
Compliance
EMC
FCC & CE certifiled
Safety
CE/ LVD certified
Environment
RoHS2 & REACH compliant
