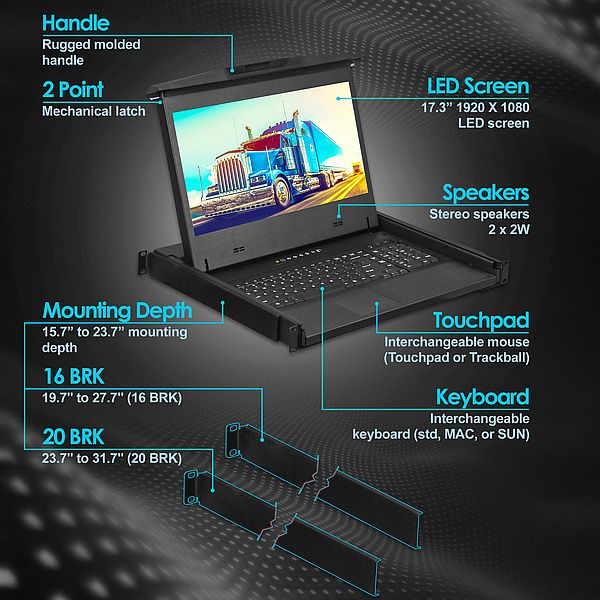

1U 17" 1920 X 1080 Rackmount Monitor with 16 Port Cat5 KVM Switch - (Part#RM-F17USD-Cat5-IP16)
Special Price
from $2,756.00
Regular Price
from $3,100.00
- Rackmount Monitor with 16 Port Cat6 KVM Switch

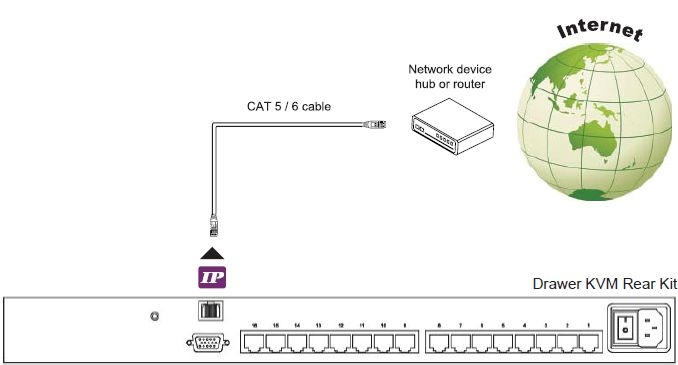

- High Performance IP 1080 Remote Access
- 104 Key Notebook Keyboard, Touchpad or Trackball Mouse
- Mounting Range - 21.3" to 31.5"
- TAA Compliant
More Information
| Product Specification |
Product Specification
| Console Port |
|---|
| Video input |
VGA / DVI / HDMI / Display Port |
| Keyboard and Mouse |
USB 2.0 Keyboard & Mouse |
| DVI console - 6ft cable : or VGA console - 6ft cable : |
Drawer end : DB-15(VGA + USB KB/MS)
server end: VGA + USB type A |
Drawer end : DVI- D + DB-15(USB KB/MS)
server end: DVI- D + USB type A |
| Video Option |
|---|
| Cat5 KVM Switch Dongles - VGA, DVI, HDMI, Display Port |
|
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
17.3" |
| Native resolution |
1920 x 1080 |
| Brightness(cd/m²) |
400 |
| Contrast ratio (typ.) |
600:1 |
| Max Color |
16.7 M, 8-bit |
| Contrast angle(L/R/U/D) |
80/80/60/80 |
| Responsive time(ms) |
40 |
| Dot pitch (mm) |
0.1989 |
| Display area (mm) |
381.888H x 214.812V |
| Surface treatment |
Anti- glare. Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
50,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 29W / Max. 38W |
| Power saving mode |
Max. 9W / Max. 18W |
| Power button on |
Max. 2W / Nil |
| Physical |
|---|
Product
(W x D X H) |
Single console |
442 x 460 x 44mm
17.4 x 18.1 x 1.73 inch |
| Console W/ KVM |
442 x 580 x 44mm
17.4 x 22.8 x 1.73 |
Packing
(W x D X H) |
Single console/
Console W/ KVM |
590 x 808 x 140mm
23.2 x 31.8 x 5.5 inch |
Net
weight |
Single console |
10.8 kg / 23.8 lb |
| Console W/ KVM |
11.6 kg / 25.5 lb |
Gross
weight |
Single console |
15.8kg / 34.8 lb |
| Console W/ KVM |
17.5 kg / 38.5 lb |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Mounting Distance |
|---|
| Single console drawer |
NA |
| Console W/ KVM drawer |
541mm ~ 800
21.3 ~ 31.5 inch
|
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|

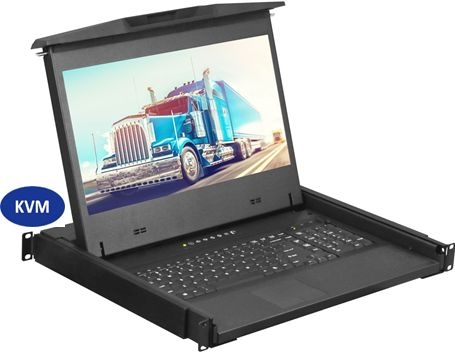

1920 X 1080 Rack Mounted Monitor 16 Port Cat5 KVM Over IP Switch
- 1U 17" 1920 X 1080 LCD Drawer w/VGA Input
- 104 Key Notebook Keyboard with Touchpad or Trackball Mouse
- Rack Mount Monitor Chassis With KVM Switch - Depth 21.3"
- 2 Post Relay Rack Mounting Available
- PIP & Picture by Picture viewing efficency
Options -
Download Rackmount Monitor Info-
Rackmount Monitor Specifications
Rackmount Monitor User Manual
Download Cat5 KVM Switch Info -
Product Specification
| Console Port |
|---|
| Video input |
VGA / DVI / HDMI / Display Port |
| Keyboard and Mouse |
USB 2.0 Keyboard & Mouse |
| DVI console - 6ft cable : or VGA console - 6ft cable : |
Drawer end : DB-15(VGA + USB KB/MS)
server end: VGA + USB type A |
Drawer end : DVI- D + DB-15(USB KB/MS)
server end: DVI- D + USB type A |
| Video Option |
|---|
| Cat5 KVM Switch Dongles - VGA, DVI, HDMI, Display Port |
|
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
17.3" |
| Native resolution |
1920 x 1080 |
| Brightness(cd/m²) |
400 |
| Contrast ratio (typ.) |
600:1 |
| Max Color |
16.7 M, 8-bit |
| Contrast angle(L/R/U/D) |
80/80/60/80 |
| Responsive time(ms) |
40 |
| Dot pitch (mm) |
0.1989 |
| Display area (mm) |
381.888H x 214.812V |
| Surface treatment |
Anti- glare. Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
50,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 29W / Max. 38W |
| Power saving mode |
Max. 9W / Max. 18W |
| Power button on |
Max. 2W / Nil |
| Physical |
|---|
Product
(W x D X H) |
Single console |
442 x 460 x 44mm
17.4 x 18.1 x 1.73 inch |
| Console W/ KVM |
442 x 580 x 44mm
17.4 x 22.8 x 1.73 |
Packing
(W x D X H) |
Single console/
Console W/ KVM |
590 x 808 x 140mm
23.2 x 31.8 x 5.5 inch |
Net
weight |
Single console |
10.8 kg / 23.8 lb |
| Console W/ KVM |
11.6 kg / 25.5 lb |
Gross
weight |
Single console |
15.8kg / 34.8 lb |
| Console W/ KVM |
17.5 kg / 38.5 lb |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Mounting Distance |
|---|
| Single console drawer |
NA |
| Console W/ KVM drawer |
541mm ~ 800
21.3 ~ 31.5 inch
|
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
