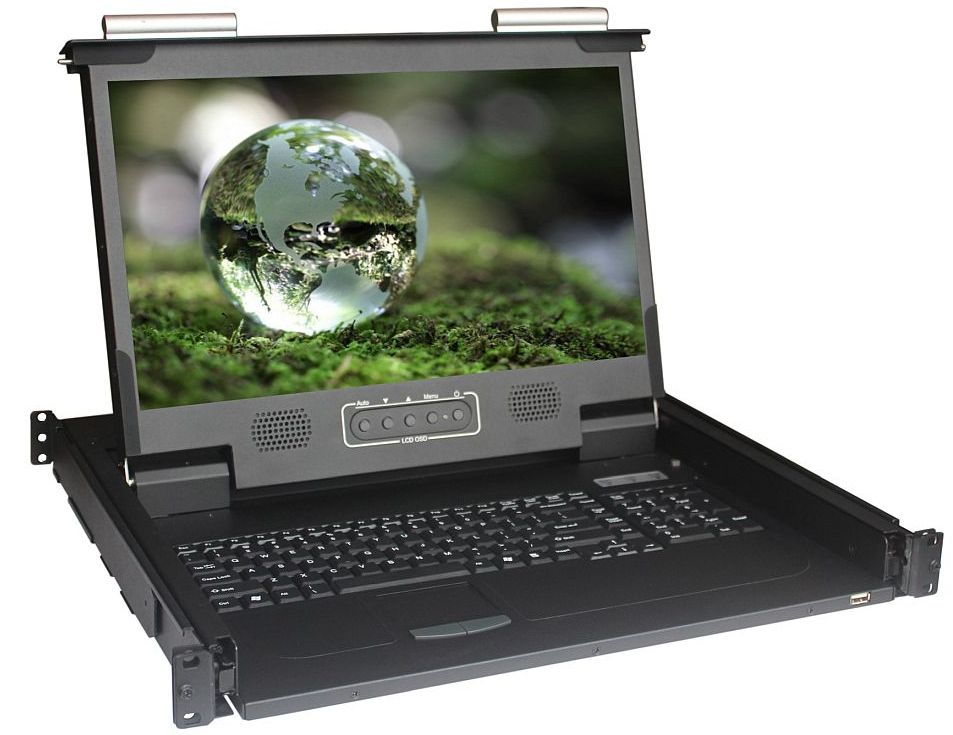

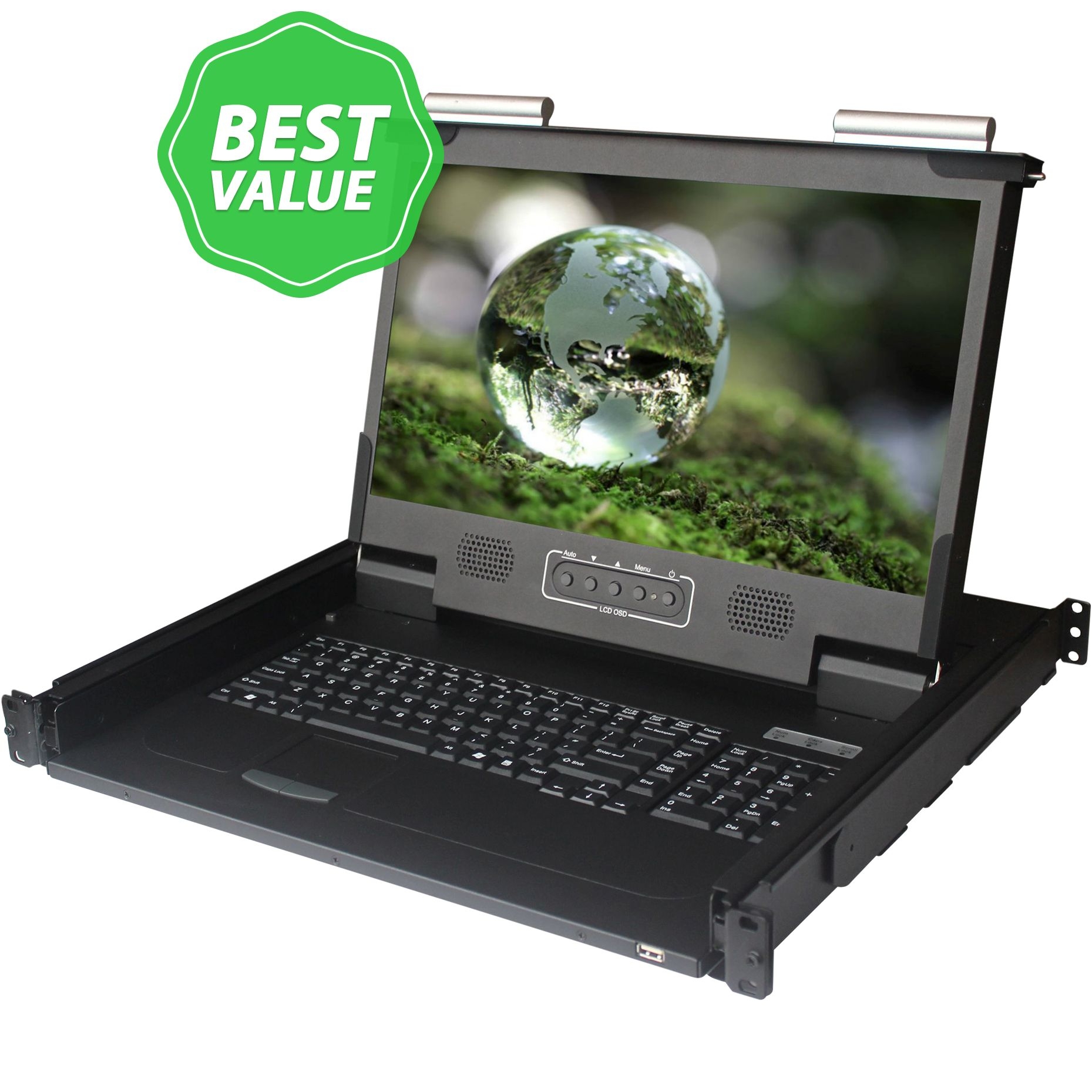

1U 17" 1920 X 1080 Rackmount Monitor Short Depth, 3 USB Accessory HUBS - (Part#RM-F117A-SD)
Special Price
from $1,179.00
Regular Price
from $1,597.00
- Video Input - VGA + DVI
- Resolution - 1920 X 1080 Native, Supports up to 1920 X 1200
- Rugged Mechanical Latches for mobile applications
- 3 USB Accessory HUBS - 1 Front, 2 Back USB HUBS
- Auto Lock Out Slides for easy typing
- Optional - DC Power, High Brightness, PCAP Touchscreen
More Information
| Product Specification |
Product Specification

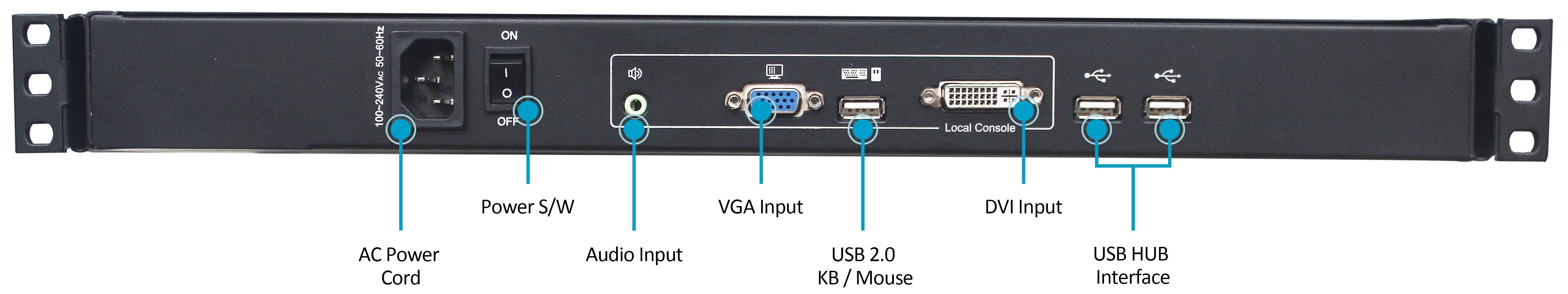

| Console Port |
|---|
| Video input |
VGA + DVI-D single link |
| Keyboard and Mouse |
USB 2.0 Keyboard & Mouse |
| DVI console - 6ft cable : or VGA console - 6ft cable : |
Drawer and Server end : (VGA to VGA) |
Drawer and Server end DVI to DVI
USB 2.0 to USB 2.0 Standard Cable |
| Video Option |
|---|
| Digital |
HDMI |
or Display Port / Composite Video / 3G/HD/SD-SDI Broadcast Grade Input |
| LCD Panel |
|---|
| Panel Size (diagonal) |
17.3" |
| Native resolution |
1920 x 1080 supports 1920 X 1200 |
| Brightness(cd/m²) |
300 |
| Contrast ratio (typ.) |
650:1 |
| Max Color |
262K |
| Contrast angle(L/R/U/D) |
80/80/60/80 |
| Responsive time(ms) |
40 |
| Dot pitch (mm) |
0.1989 |
| Display area (mm) |
381.888H x 214.812V |
| Surface treatment |
Anti- glare. Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
20,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 29W / Max. 38W |
| Power saving mode |
Max. 9W / Max. 18W |
| Power button on |
Max. 2W / Nil |

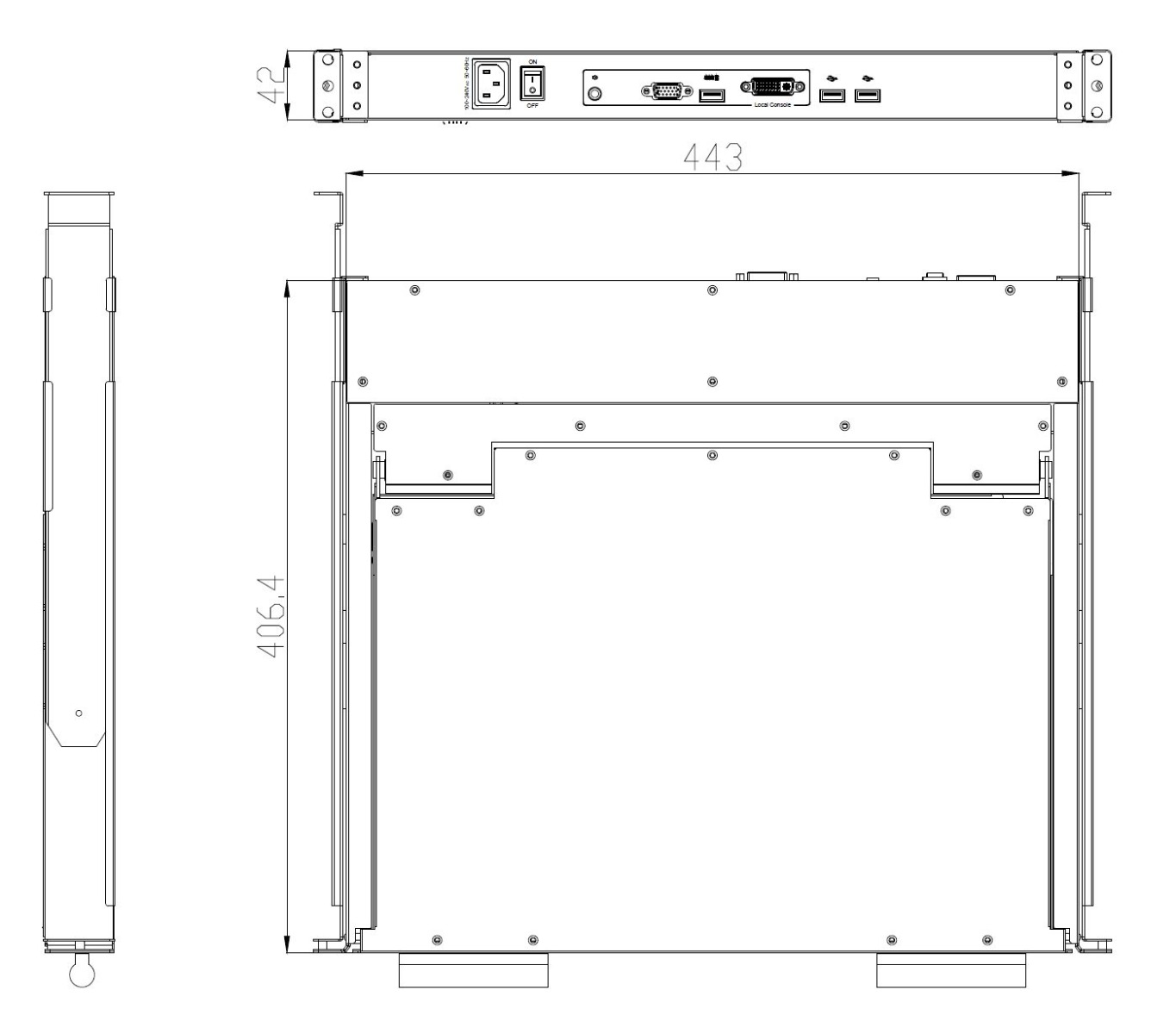

| Physical |
|---|
Product
(W x D X H) |
Single console |
443 x 406 x 42mm
17.45 x 16 x 1.65 inch |
| Console W/ KVM |
Optional
|
Packing
(W x D X H) |
Single console/
Console W/ KVM |
605 x 700 x 168mm
24 x 27.75 x 6.75 inch |
Net
weight |
Single console |
14kg / 31 lb |
| Console W/ KVM |
NA |
Gross
weight |
Single console |
16.3kg / 36 lb |
| Console W/ KVM |
NA |
| Environment |
|---|
| Operating temp. |
0 to 50°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
10~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
17~500Hz 1G PTP |
| Mounting Distance |
|---|
| Single console drawer |
400 ~ 762 mm
15.75 ~ 30.00 inch (Extension Brackets required for 30" Depth) |
| Console W/ KVM drawer |
NA
|
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|

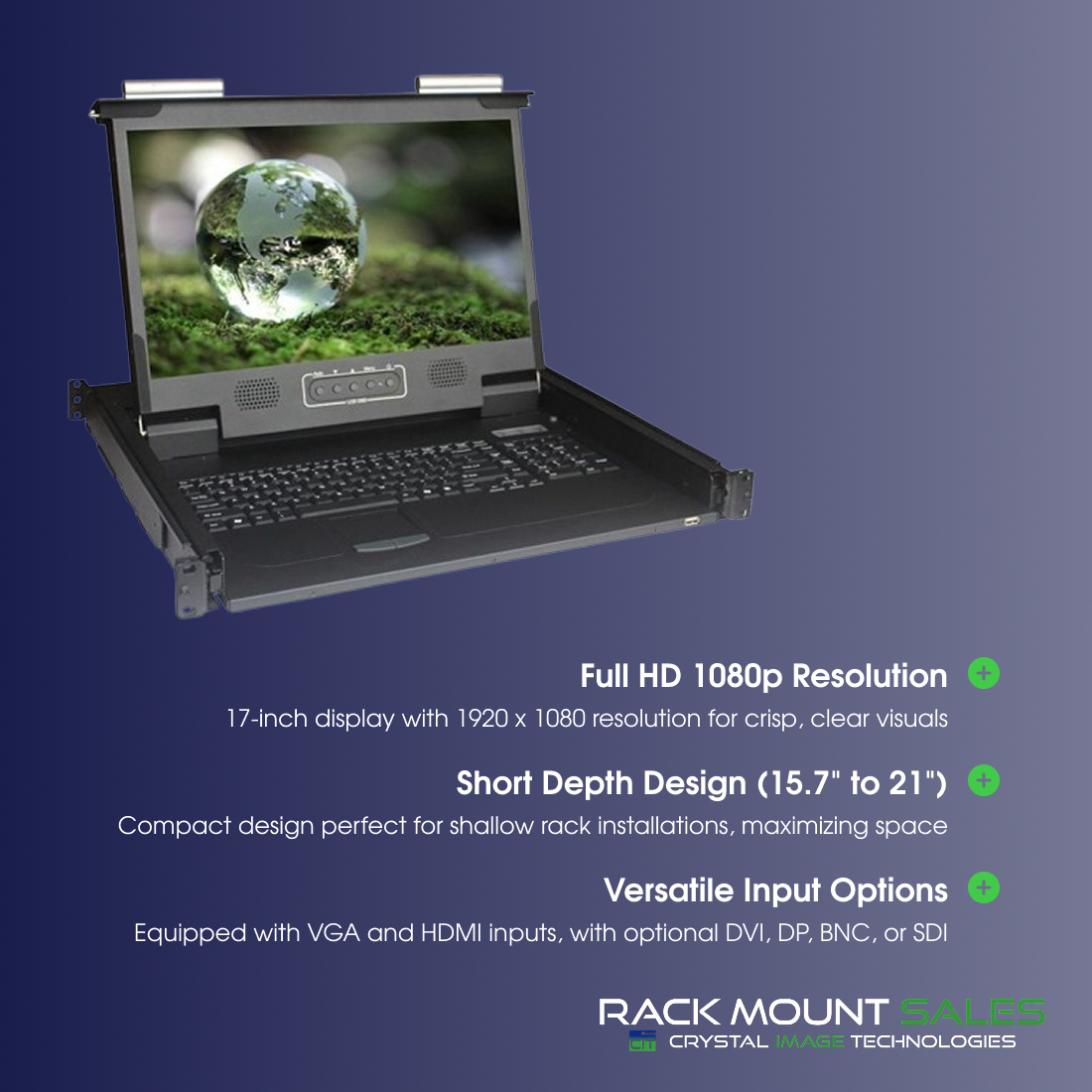

17" High Resolution Short Depth Rackmount Monitor Features
- 1U 17.3" 1920 X 1080 LCD Drawer VGA + DVI Input
- Supports up to 1920 X 1200 resolution
- 104 Key Notebook Keyboard with Touchpad Mouse
- 1 Front USB HUB, 2X Rear USB HUB for peripherals
- Ultra Short Depth Rack Mount Monitor (Chassis Depth 16")
- Rugged Mechanical latches for transit case applications
- 2 x 2 Watts Speakers Included (3.5mm Audio)
- 2 Post Relay Rack Mounting Available
- PIP & Picture by Picture viewing efficiency
Options -
- Video: HDMI, DP

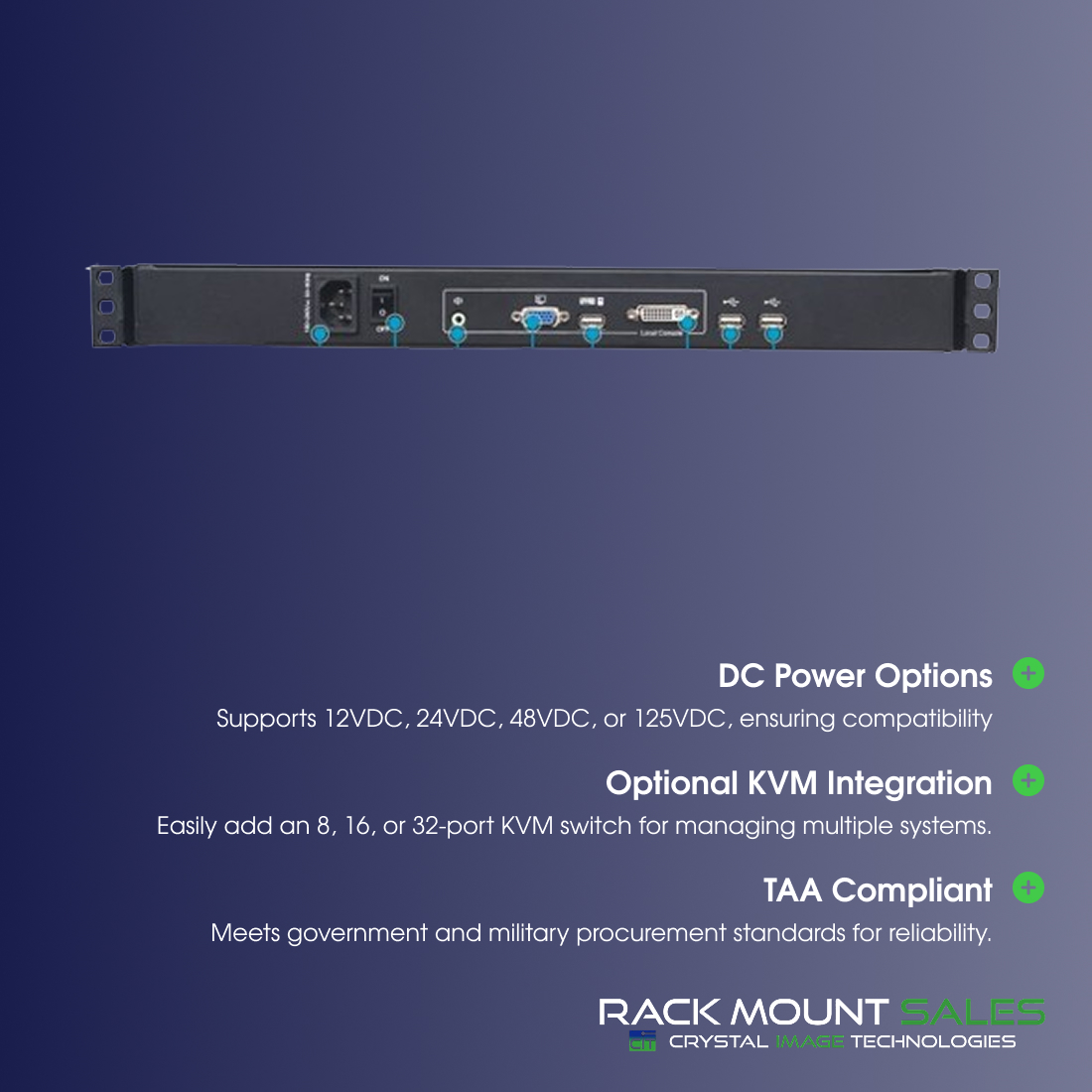

- Power: 9~36V DC Power
- High Brightness (1000 nits)
- PCAP Touchscreen (10 Pt)
Download More Info-
Rackmount Monitor User Manual
