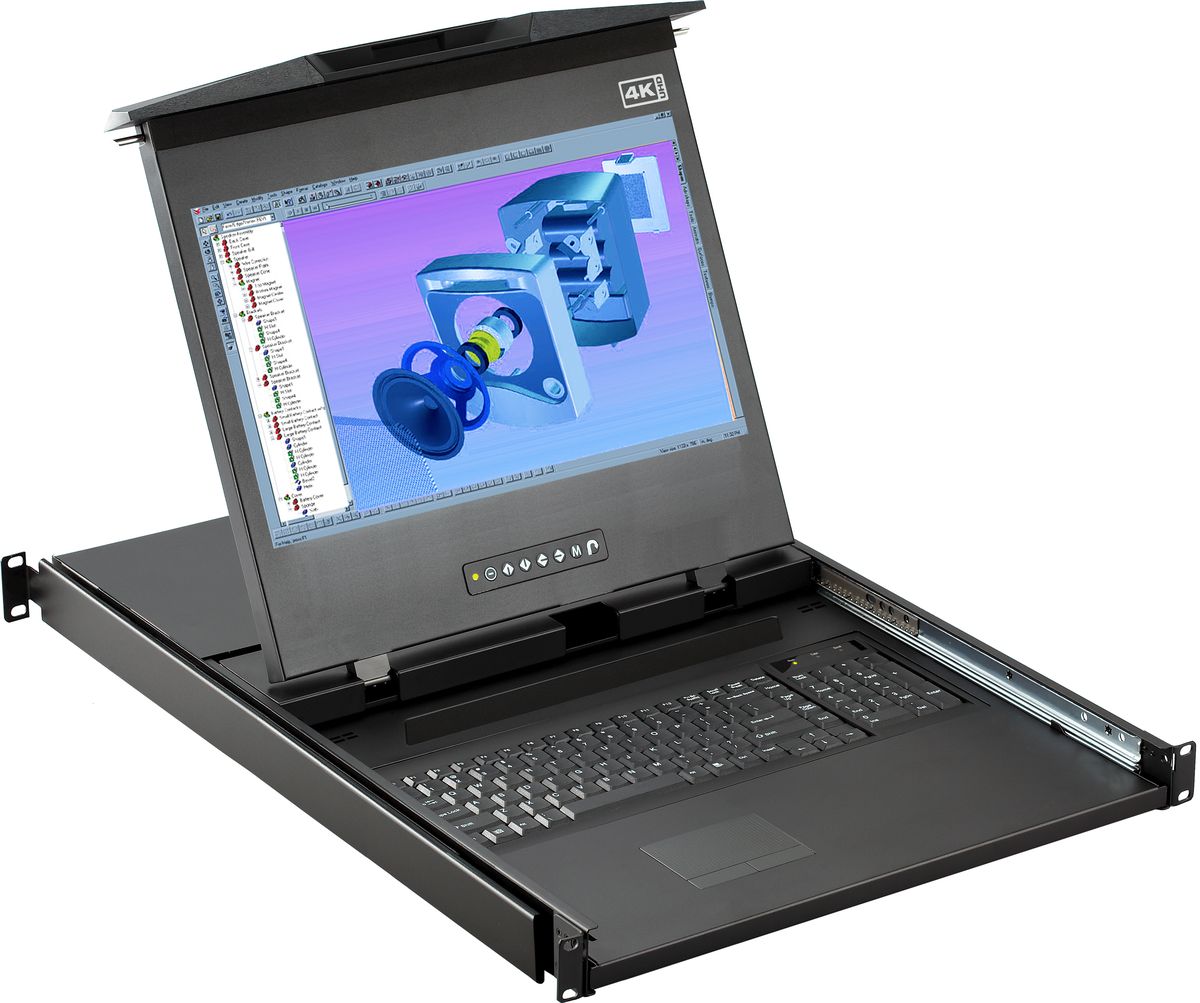

1U 17" Dual Slide 4K Rackmount Monitor with 8 Port 4K KVM Switch (Part#RM-DK17-4K801)
Special Price
from $3,063.00
Regular Price
from $3,535.00
Integrated 8 Port 4K KVM Switch Dual Slide - Keyboard and LCD Slide Independently 4K HDMI or DP Cables 25.6" Chassis Depth - ( 25.6" to 32" Mounting Range
More Information
Console Port
Part# RM-F117
Video Input - VGA + DVI-D single link
KB / MS - COMBO USB or PS/2
VGA Console - (Drawer End - VGA + USB KB/MS)
(Server End - VGA + USB type A)
DVI Console - (Drawer End - DVI-D + DB15 (USB KB/MS
LCD Panel
1920 X 1080
Physical
26" Depth
Mounting Distance
16" to 29" Mounting Depth
Video Option
VGA
DVI
HDMI
SDI
Power
110V
Environment
30 Degrees C
Compliance
FCC, CE

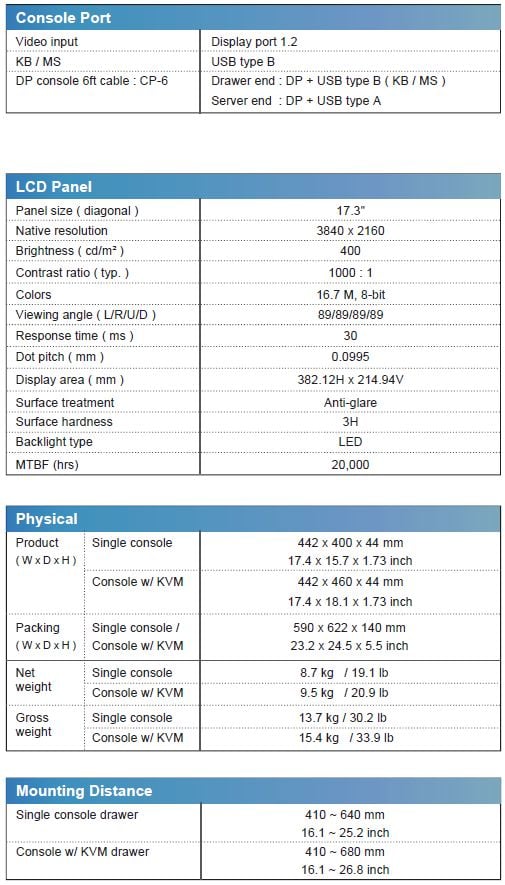

Product Specification
Product Specification
Console Port
Video input
Display port 1.2
Keyboard and Mouse
USB Type B Keyboard & Mouse
DP console - 6ft cable : CP-6 :
Drawer end : DP + USB type B ( KB/MS )
Video Option
Digital
HDMI
HDMI 1.4 / HDCP 1.4
LCD Panel
Panel Size (diagonal)
17.3"
Native resolution
3840 x 2160
Brightness(cd/m²)
400
Contrast ratio (typ.)
1000:1
Max Color
16.7 M, 8-bit
Contrast angle(L/R/U/D)
89/89/89/89
Responsive time(ms)
30
Dot pitch (mm)
0.0995
Display area (mm)
382.12H x 214.94V
Surface treatment
Anti- glare
Surface hardness
3H
Backlight type
LED
MTBF(hrs)
20,000

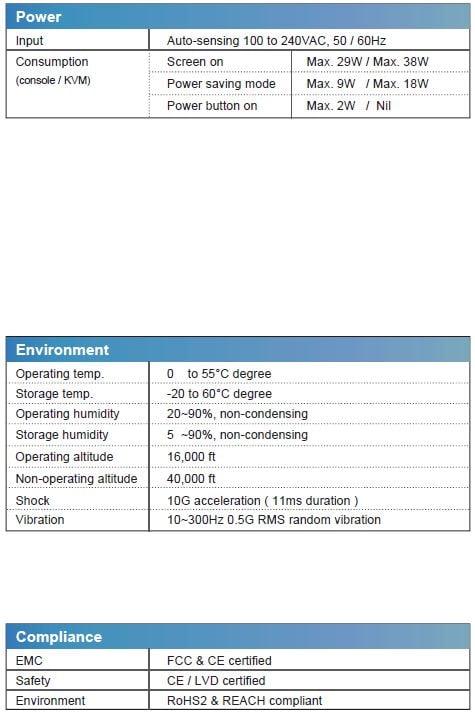

Power
Input
Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption
Screen on
Max. 29W / Max. 38W
Power saving mode
Max. 9W / Max. 18W
Power button on
Max. 2W / Nil
Physical
Product
Single console
469 x 480 x 44mm
Console W/ KVM
442 x 460 x 44mm
Packing
Single console/
590 x 622 x 140mm
Net
Single console
8.7 kg / 24 lb
Console W/ KVM
12 kg / 26 lb
Gross
Single console
15.8 kg / 35 lb
Console W/ KVM
18.1 kg / 39.8 lb
Environment
Operating temp.
0 to 55°C degree
Strorage temp
-20 to 60°C degree
Operating humidity
20~90%, non-condensing
Storage humidity
5 ~90%, non-condensing
Operating alttiude
16,000 ft
Non-operating attude
40,000 ft
Shock
10G acceleration (11ms duration)
Vibration
10~300Hz .5G RMS randon vibration
Mounting Distance
Single console drawer
469 ~ 800 mm
Console W/ KVM drawer
490 ~ 800 mm
Compliance
EMC
FCC & CE certifiled
Safety
CE/ LVD certified
Environment
RoHS2 & REACH compliant

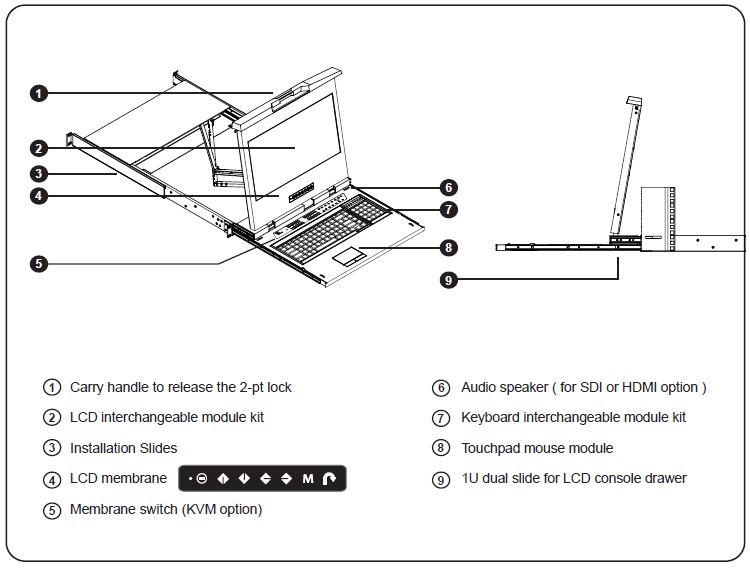

4K Dual Slide Rack Mount Monitor Features
1U 17" 3840 X 2160 Native Resolution - Display Port 1.2 Input 1920 X 1200 & 1920 X 1080 resolution support 104 Key Notebook Keyboard with Touchpad Rack Mount Monitor Chassis Depth 25.6" (Mounting Range 25.6" to 31.5") With 8 Port 4K KVM Switch Integrated

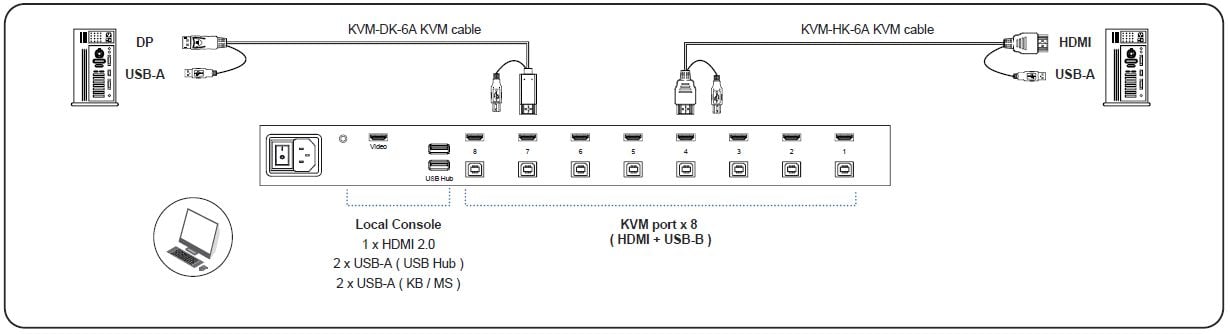

4K KVM Switch
8 Port 4K KVM Switch Accepts Display Port (DP), and HDMI Proprietary Cables Supports 4K, 3840 X 2160 Resolution Hot Pluggable - No Software or Drivers Needed Multi Platform for PC, Server, Blade Server, & SUN / MAC Port Switching via Front Buttons and Keyboard Hotkeys 2 Year Warranty - includes Crystal Care Service Plan
Download More Info -
KVM Switch User Manual Download More Info - 4K Rackmount Monitor Dual Slide User Manual
Product Specification
Console Port
Video input
Display port 1.2
Keyboard and Mouse
USB Type B Keyboard & Mouse
DP console - 6ft cable : CP-6 :
Drawer end : DP + USB type B ( KB/MS )
Video Option
Digital
HDMI
HDMI 1.4 / HDCP 1.4
LCD Panel
Panel Size (diagonal)
17.3"
Native resolution
3840 x 2160
Brightness(cd/m²)
400
Contrast ratio (typ.)
1000:1
Max Color
16.7 M, 8-bit
Contrast angle(L/R/U/D)
89/89/89/89
Responsive time(ms)
30
Dot pitch (mm)
0.0995
Display area (mm)
382.12H x 214.94V
Surface treatment
Anti- glare
Surface hardness
3H
Backlight type
LED
MTBF(hrs)
20,000
Power
Input
Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption
Screen on
Max. 29W / Max. 38W
Power saving mode
Max. 9W / Max. 18W
Power button on
Max. 2W / Nil
Physical
Product
Single console
469 x 480 x 44mm
Console W/ KVM
442 x 460 x 44mm
Packing
Single console/
590 x 622 x 140mm
Net
Single console
8.7 kg / 24 lb
Console W/ KVM
12 kg / 26 lb
Gross
Single console
15.8 kg / 35 lb
Console W/ KVM
18.1 kg / 39.8 lb
Environment
Operating temp.
0 to 55°C degree
Strorage temp
-20 to 60°C degree
Operating humidity
20~90%, non-condensing
Storage humidity
5 ~90%, non-condensing
Operating alttiude
16,000 ft
Non-operating attude
40,000 ft
Shock
10G acceleration (11ms duration)
Vibration
10~300Hz .5G RMS randon vibration
Mounting Distance
Single console drawer
469 ~ 800 mm
Console W/ KVM drawer
490 ~ 800 mm
Compliance
EMC
FCC & CE certifiled
Safety
CE/ LVD certified
Environment
RoHS2 & REACH compliant
