Save $266

1U 17" 4K Rackmount Monitor

3840 × 2160, DP 1.4 & HDMI 2.0 Input with 3 USB Accessory Hubs (16"–31" Mounting Range) (Part# RM-K17USD-A)

Be the first to review this product

Special Price from $1,829.00 Regular Price from $2,095.00 13% OFF

Part

RM-K17USD-A

Product Information

Standard Video Input - Display Port 1.4 & HDMI 2.0
Includes 3 USB Accessory HUBS
Wide Mounting Range - from 16" to 31"
Power Options - DC Power 12V DC to 125V DC

More Information

LCD Panel

1920 X 1080

Physical

26" Depth

Mounting Distance

16" to 29" Mounting Depth

Video Option

VGA DVI HDMI SDI

Power

110V

Environment

30 Degrees C

Compliance

FCC, CE

Product Specification

Console Port
Video input	Display port 1.4
Keyboard and Mouse	USB Type B Keyboard & Mouse
DP console - 6ft cable : CP-6 :
DP console - 6ft cable : CP-6 :	6' DP cable, 6' HDMI cable

Video Option
Digital	NA

LCD Panel
Panel Size (diagonal)	17.3"
Native resolution	3840 x 2160
Brightness(cd/m²)	400
Contrast ratio (typ.)	1000:1
Max Color	16.7 M, 8-bit
Contrast angle(L/R/U/D)	89/89/89/89
Responsive time(ms)	30
Dot pitch (mm)	0.0995
Display area (mm)	382.12H x 214.94V
Surface treatment	Anti- glare
Surface hardness	3H
Backlight type	LED
MTBF(hrs)	20,000

Power
Input	Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption (console / K/M)	Screen on	Max. 29W / Max. 38W
	Power saving mode	Max. 9W / Max. 18W
	Power button on	Max. 2W / Nil

Physical

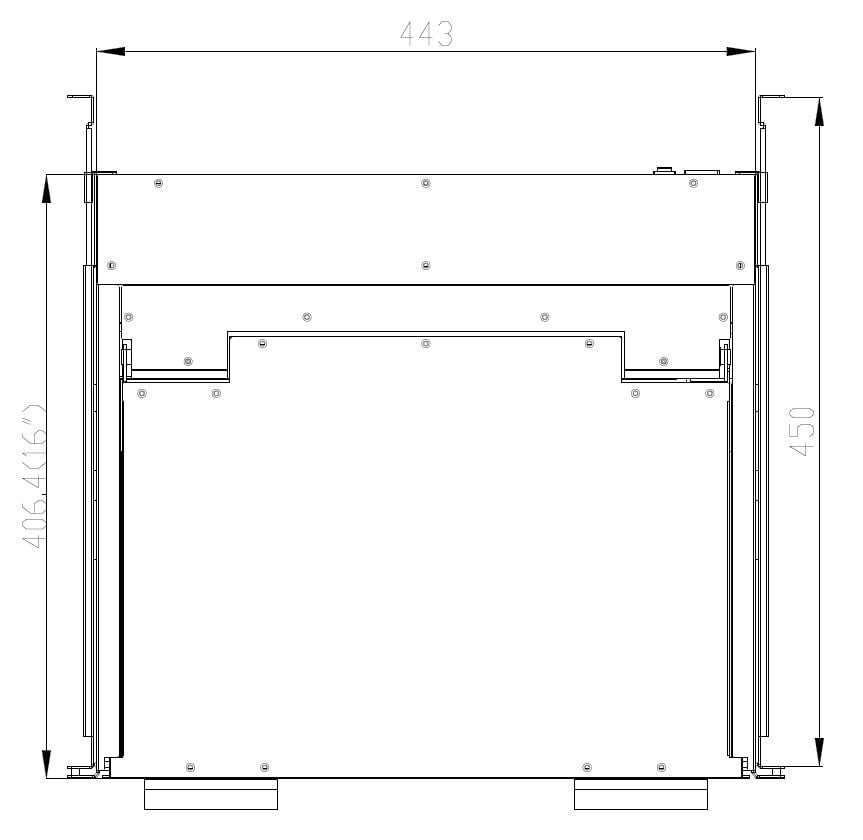

Product (W x D X H)	Single console	442 x 406 x 42mm 17.4 x 16 x 1.73 inch
Product (W x D X H)	Console W/ KVM	442 x 460 x 44mm 17.4 x 18.1 x 1.73
Packing (W x D X H)	Single console/ Console W/ KVM	28 x 24.4 x 7.5 inch
Net weight	Single console	13.5 kg / 29.76 lb
Net weight	Console W/ KVM
Gross weight	Single console	15 kg / 33 lb
Gross weight	Console W/ KVM

Environment
Operating temp.	0 to 50°C degree
Strorage temp	-20 to 60°C degree
Operating humidity	10~90%, non-condensing
Storage humidity	5~90%, non-condensing
Operating alttiude	16,000 ft
Non-operating attude	40,000 ft
Shock	10G acceleration (11ms duration)
Vibration	17~500Hz .1G PTP

Mounting Distance
Single console drawer	410 ~ 787 mm 16.1 ~ 31 inch
Console W/ KVM drawer

Compliance
EMC	FCC & CE certifiled
Safety	CE/ LVD certified
Environment	RoHS2 compliant

Features

Rackmount Monitor Features

Configure Your Unit

Power Supply Options

Touchscreen

Qty

Download technical documents

Rackmount Monitor Specifications

Rackmount Monitor User Manual

24/7 Support

Fast, professional support

Extended Return Period

30 days return policy

Custom Solutions

Skip to the end of the images gallery

Skip to the beginning of the images gallery

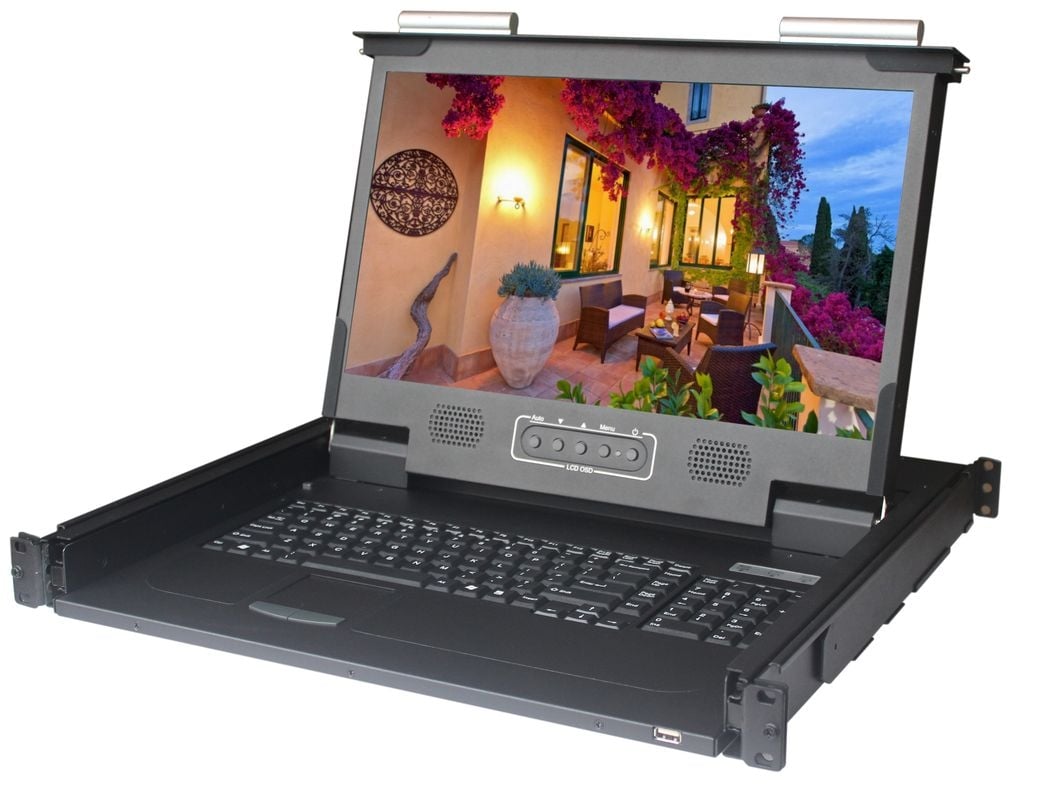

1U 17" Short Depth 4K Rackmount Monitor (Part# RM-K17USD-A)

1 / 4

Product Specification

Console Port
Video input	Display port 1.4
Keyboard and Mouse	USB Type B Keyboard & Mouse
DP console - 6ft cable : CP-6 :
DP console - 6ft cable : CP-6 :	6' DP cable, 6' HDMI cable

Video Option
Digital	NA

LCD Panel
Panel Size (diagonal)	17.3"
Native resolution	3840 x 2160
Brightness(cd/m²)	400
Contrast ratio (typ.)	1000:1
Max Color	16.7 M, 8-bit
Contrast angle(L/R/U/D)	89/89/89/89
Responsive time(ms)	30
Dot pitch (mm)	0.0995
Display area (mm)	382.12H x 214.94V
Surface treatment	Anti- glare
Surface hardness	3H
Backlight type	LED
MTBF(hrs)	20,000

Power
Input	Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption (console / K/M)	Screen on	Max. 29W / Max. 38W
	Power saving mode	Max. 9W / Max. 18W
	Power button on	Max. 2W / Nil

Physical
Product (W x D X H)	Single console	442 x 406 x 42mm 17.4 x 16 x 1.73 inch
Product (W x D X H)	Console W/ KVM	442 x 460 x 44mm 17.4 x 18.1 x 1.73
Packing (W x D X H)	Single console/ Console W/ KVM	28 x 24.4 x 7.5 inch
Net weight	Single console	13.5 kg / 29.76 lb
Net weight	Console W/ KVM
Gross weight	Single console	15 kg / 33 lb
Gross weight	Console W/ KVM

Environment
Operating temp.	0 to 50°C degree
Strorage temp	-20 to 60°C degree
Operating humidity	10~90%, non-condensing
Storage humidity	5~90%, non-condensing
Operating alttiude	16,000 ft
Non-operating attude	40,000 ft
Shock	10G acceleration (11ms duration)
Vibration	17~500Hz .1G PTP

Mounting Distance
Single console drawer	410 ~ 787 mm 16.1 ~ 31 inch
Console W/ KVM drawer

Compliance
EMC	FCC & CE certifiled
Safety	CE/ LVD certified
Environment	RoHS2 compliant

4K Rack Mount Monitor Features

1U 17" 3840 X 2160 Native Resolution - Display Port 1.4 & HDMI 2.0 Input
1920 X 1200 & 1920 X 1080 resolution support
104 Key Notebook Keyboard with Touchpad Mouse
Rack Mount Monitor Chassis Depth 16"
Built In Dual Stereo Speakers, Includes 3 USB Accessory HUBS
Rugged 2 Point Locking Aluminum Handles for secure mobile applications

Options -

Resistive or 10 Point Capacitive Touch Screen
Power: 12VDC, 24VDC, 48VDC, 125V
CUSTOM SOLUTIONS AVAILABLE

Download More Info-

Rackmount Monitor Specifications

Rackmount Monitor User Manual
