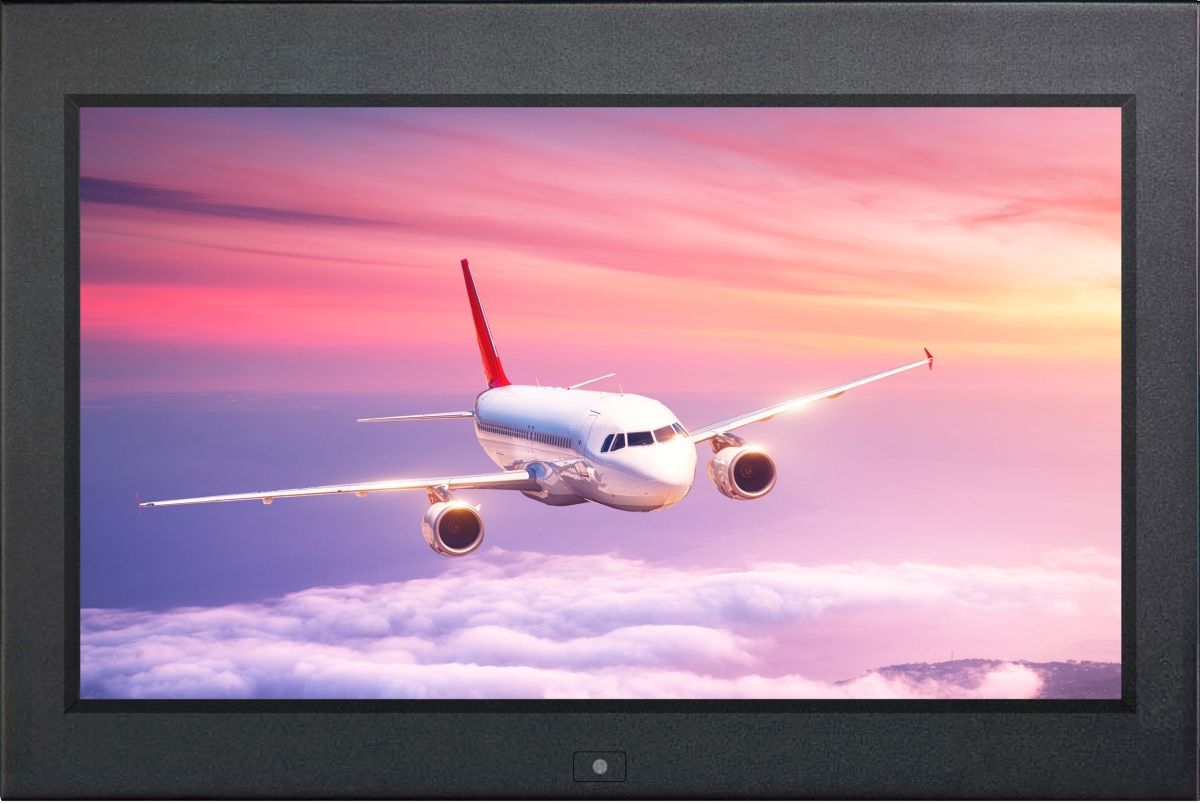

17.3" 4K Industrial LCD Panel - 3840 X 2160 Resolution (Part# LCD-AP-K17)
17.3" 4K Industrial LCD Panel - 3840 X 2160 Resolution (Part# LCD-AP-K17)
Special Price
from $1,715.00
Regular Price
from $2,143.75
- Video Input - Display Port 1.2 + HDMI 1.4 + HDMI 2.0
- Supports 1920 X 1200 & 1920 X 1080 Resolution
- PIP Sub-screen & PBP Dual-screen viewing efficiency
More Information
| Product Specification |
Product Specification
| LCD Panel Video Specs |
|---|
| Video input |
Display port 1.2 + HDMI 1.4 + HDMI 2.0 |
| Video Option |
|---|
| Digital Input Option |
HDMI / SDI |
3G / HD / SD-SDI Broadcast Grade Input
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
17.3" |
| Native resolution |
3840 x 2160 |
| Brightness(cd/m²) |
400 |
| Contrast ratio (typ.) |
1000 :1 |
| Max Color |
16.7 M, 8-bit |
| Contrast angle(L/R/U/D) |
89/89/89/89 |
| Responsive time(ms) |
30 |
| Dot pitch (mm) |
0.0995 |
| Display area (mm) |
382.12H x 214.94V |
| Surface treatment |
Anti- glare |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
20,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 29W |
| Power saving mode |
Max. 9W |
| Power button on |
Max. 2W |

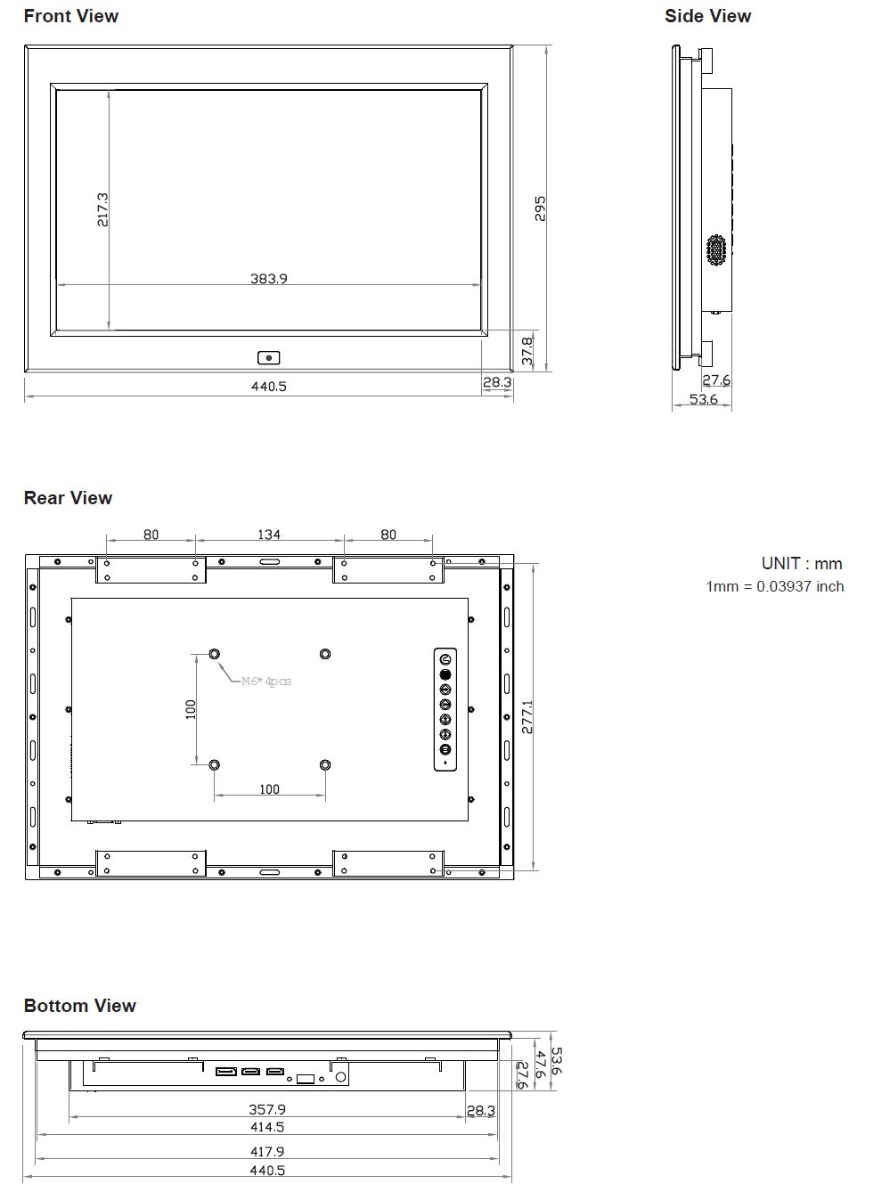

| Physical |
|---|
Product
(W x D X H) |
Millimeters |
440.5 x 56.6 x 295mm |
| Inches |
17.3 X 2.2 X 11.6 inch |
Packing
(W x D X H) |
Millimeters
Inches |
615 x 113 x 523mm
24.2 x 4.4 x 20.6 inch |
Net
weight |
KGs |
5.2 kg |
| LBS |
11.4 lb |
Gross
weight |
KGs |
8 kg |
| LBS |
17.6 lb |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating altitude |
16,000 ft |
| Non-operating altitude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz 1G RMS randon vibration |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|

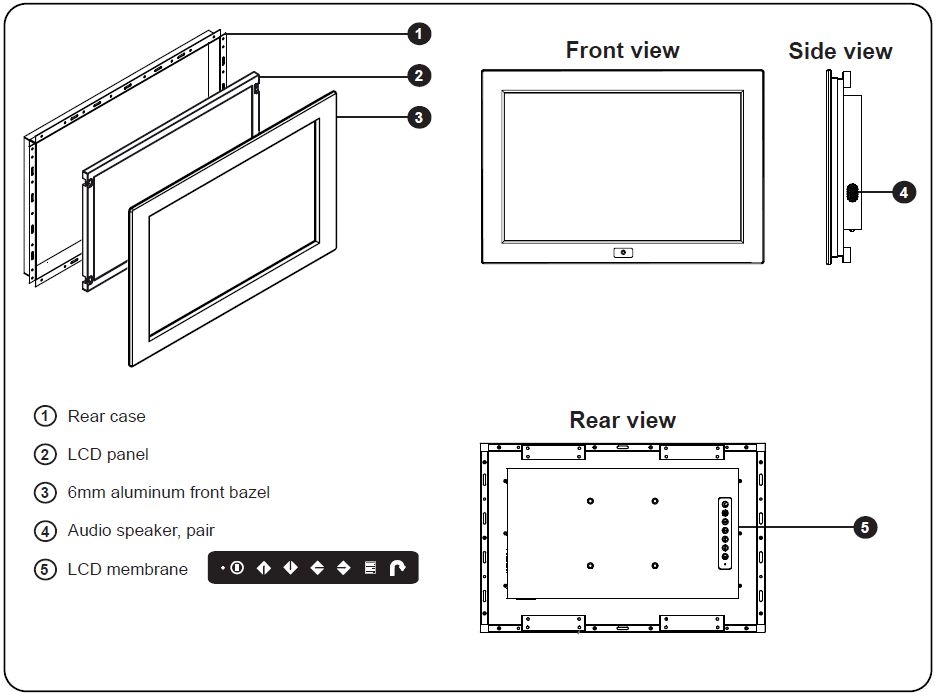

17.3" 4K Industrial LCD Display Features
- 17.3" LCD with 3840 X 2160 UHD Native Resolution
- 1920 X 1080 & 1920 X 1200 resolution support
- DIaplay Port 1.2 + HDMI 1.4 + HDMI 2.0 Video Input
- Rugged Construction against external impact
- 6mm Aluminum Front Bezel
- 2 Year Warranty - includes Crystal Care Service Plan

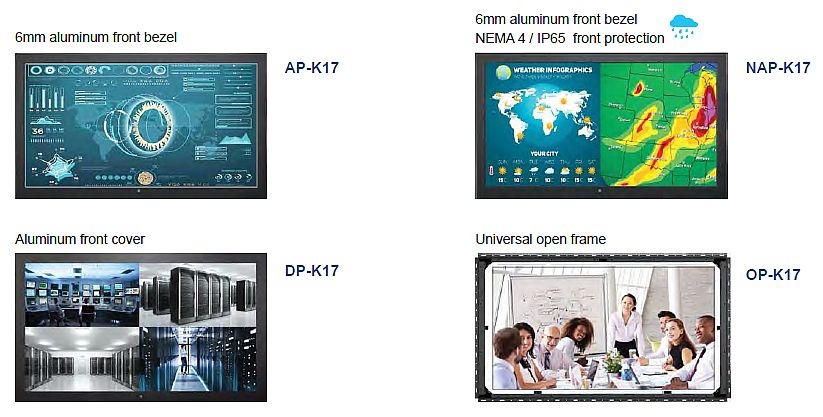

Industrial LCD Panel Options -
- Video Input: BNC & S-Video + Audio + Remote Controller
- Screen Protection: Front NEMA4/ IP65 Protective Glass
- Broadcast: 3G / HD / SD-SDI Broadcast-grade input
- Embedded HDMI Receiver Module & Transmitter
- HDMI Quad Display
- Multi-Display: Multi-display control
- Power:12VDC, 24VDC, 48VDC
- Industrial Touch Screen Monitor: Resistive or Capacitive or 10 Point MULTI-TOUCH
- Connector:Lockable DC Jack, Lockable USB Jack
- MIL-type Connector:MIL-type DC lockable jack, MIL-type VGA lockable jack
Product Specification
| LCD Panel Video Specs |
|---|
| Video input |
Display port 1.2 + HDMI 1.4 + HDMI 2.0 |
| Video Option |
|---|
| Digital Input Option |
HDMI / SDI |
3G / HD / SD-SDI Broadcast Grade Input
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
17.3" |
| Native resolution |
3840 x 2160 |
| Brightness(cd/m²) |
400 |
| Contrast ratio (typ.) |
1000 :1 |
| Max Color |
16.7 M, 8-bit |
| Contrast angle(L/R/U/D) |
89/89/89/89 |
| Responsive time(ms) |
30 |
| Dot pitch (mm) |
0.0995 |
| Display area (mm) |
382.12H x 214.94V |
| Surface treatment |
Anti- glare |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
20,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 29W |
| Power saving mode |
Max. 9W |
| Power button on |
Max. 2W |
| Physical |
|---|
Product
(W x D X H) |
Millimeters |
440.5 x 56.6 x 295mm |
| Inches |
17.3 X 2.2 X 11.6 inch |
Packing
(W x D X H) |
Millimeters
Inches |
615 x 113 x 523mm
24.2 x 4.4 x 20.6 inch |
Net
weight |
KGs |
5.2 kg |
| LBS |
11.4 lb |
Gross
weight |
KGs |
8 kg |
| LBS |
17.6 lb |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating altitude |
16,000 ft |
| Non-operating altitude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz 1G RMS randon vibration |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
