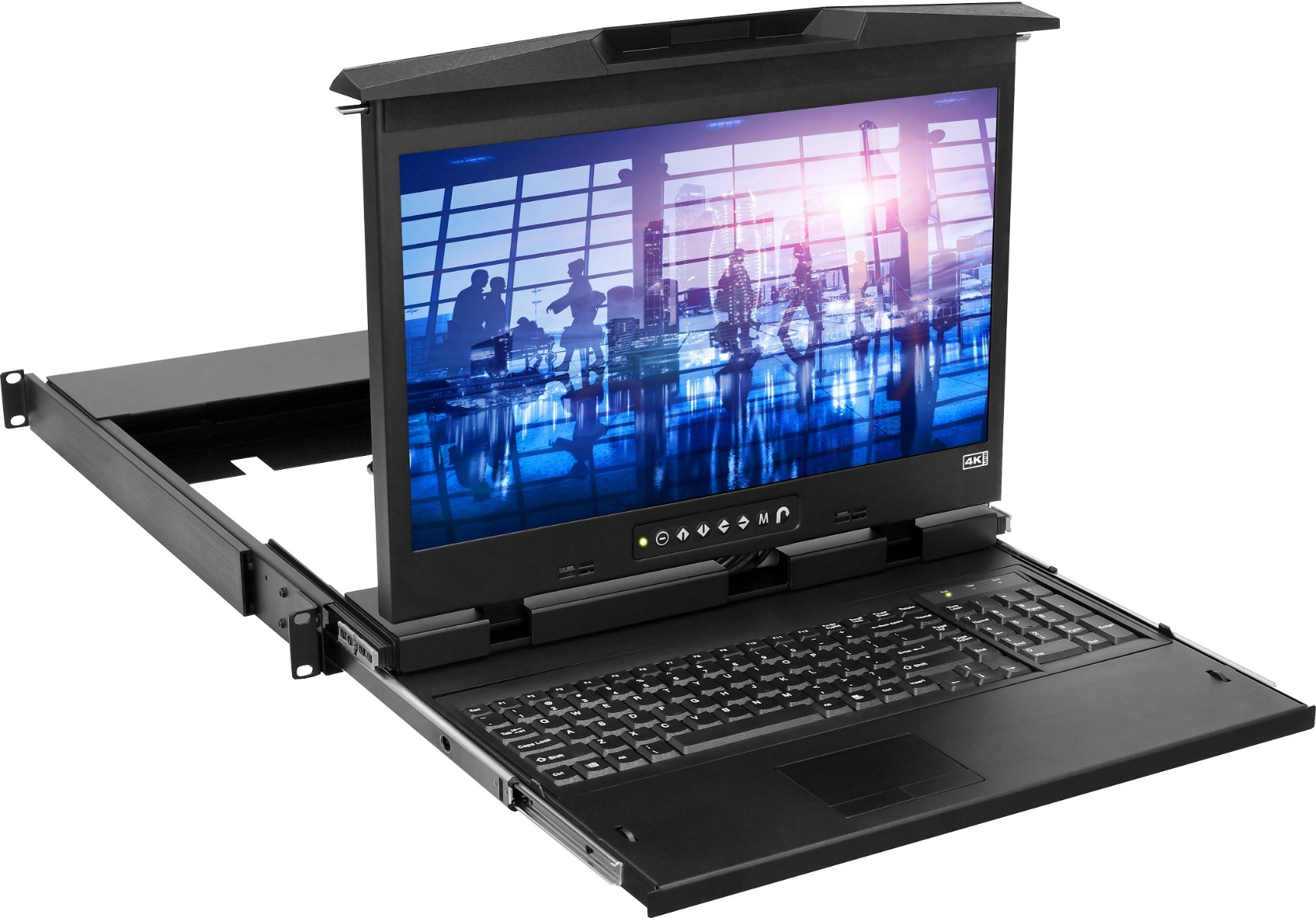

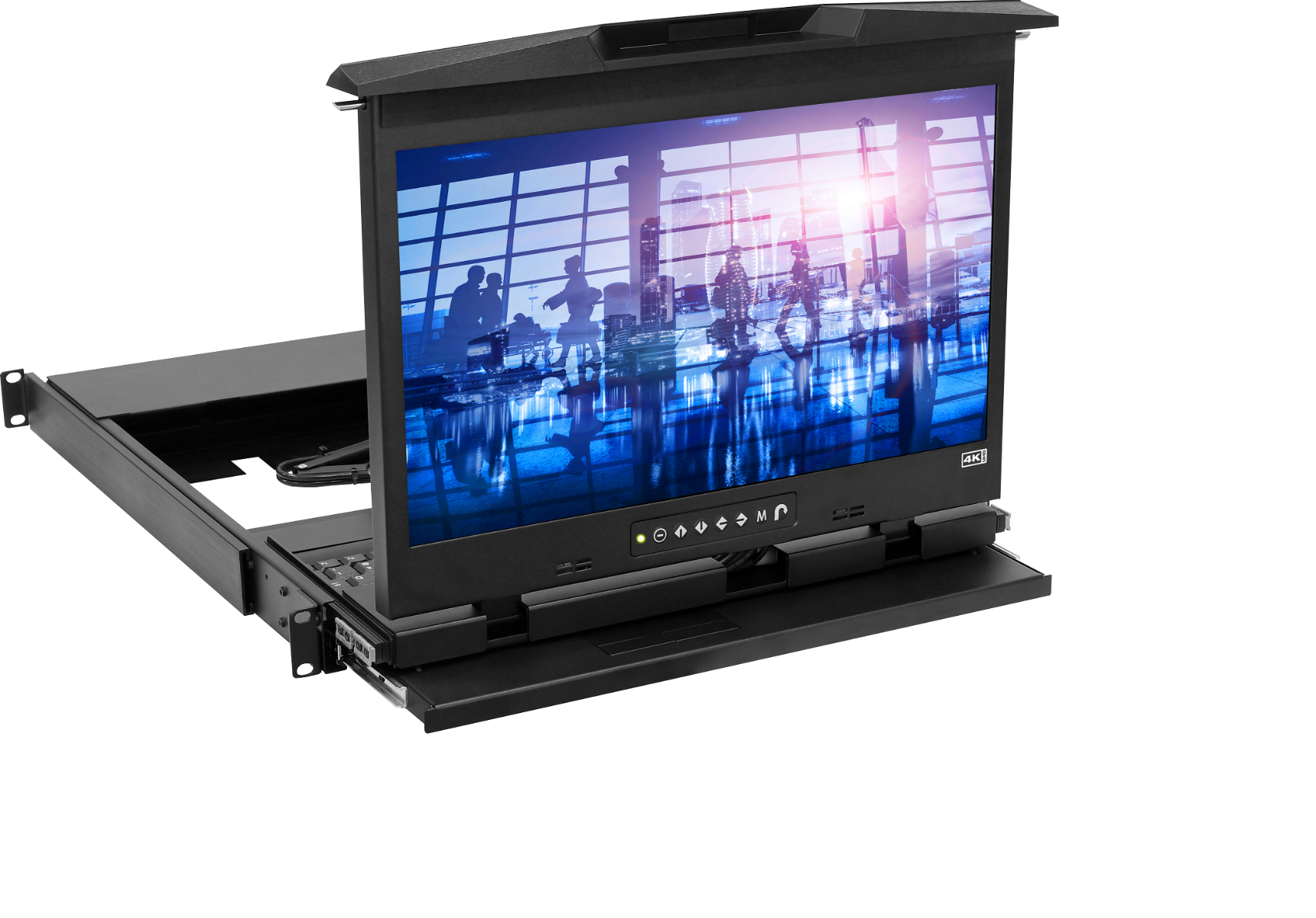

1U 17" 4K Short Depth, Dual Slide Rackmount Monitor - (Part#RM-DSK17)
Special Price
from $2,559.00
Regular Price
from $2,895.00
Standard Video Input - VGA + HDMI 2.0 + DP 1.2 + Audio Dual Slide, Short Depth - LCD and Keyboard slide independently Chassis Depth - 18.9" Video Input Options - 3G / HD / SD-SDI DC Power - 12V, 24V, 48V, 125V DC
More Information
Console Port
Part# RM-F117
Video Input - VGA + DVI-D single link
KB / MS - COMBO USB or PS/2
VGA Console - (Drawer End - VGA + USB KB/MS)
(Server End - VGA + USB type A)
DVI Console - (Drawer End - DVI-D + DB15 (USB KB/MS
LCD Panel
1920 X 1080
Physical
26" Depth
Mounting Distance
16" to 29" Mounting Depth
Video Option
VGA
DVI
HDMI
SDI
Power
110V
Environment
30 Degrees C
Compliance
FCC, CE
Product Specification
Product Specification
Console Port
Video input
Display port 1.2
Keyboard and Mouse
USB Type B Keyboard & Mouse

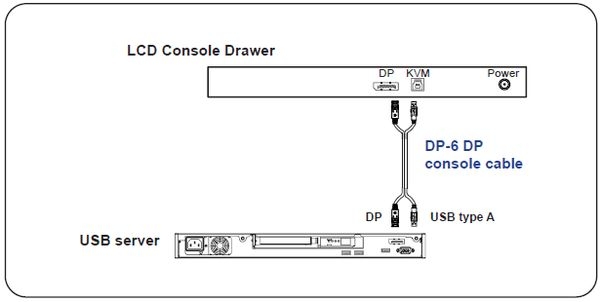

DP console - 6ft cable : CP-6 :
Drawer end : DP + USB type B ( KB/MS )
Video Option
Digital
HDMI
HDMI 1.4 / HDCP 1.4
LCD Panel
Panel Size (diagonal)
17.3"
Native resolution
3840 x 2160
Brightness(cd/m²)
400
Contrast ratio (typ.)
1000:1
Max Color
16.7 M, 8-bit
Contrast angle(L/R/U/D)
89/89/89/89
Responsive time(ms)
30
Dot pitch (mm)
0.0995
Display area (mm)
382.12H x 214.94V
Surface treatment
Anti- glare
Surface hardness
3H
Backlight type
LED
MTBF(hrs)
20,000
Power
Input
Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption
Screen on
Max. 29W / Max. 38W
Power saving mode
Max. 9W / Max. 18W
Power button on
Max. 2W / Nil
Physical
Product
Single console
442 x 650 x 44mm
Console W/ KVM
442 x 650 x 44mm
Packing
Single console/
595 x 860 x 140mm
Net
Single console
12 kg / 26.4 lb
Console W/ KVM
13 kg / 28.6 lb
Gross
Single console
18 kg / 39.6 lb
Console W/ KVM
19 kg / 41.8 lb
Environment
Operating temp.
0 to 55°C degree
Strorage temp
-20 to 60°C degree
Operating humidity
20~90%, non-condensing
Storage humidity
5 ~90%, non-condensing
Operating alttiude
16,000 ft
Non-operating attude
40,000 ft
Shock
10G acceleration (11ms duration)
Vibration
10~300Hz .5G RMS randon vibration
Mounting Distance
Single console drawer
660 ~ 870 mm
Console W/ KVM drawer
660 ~ 870 mm
Compliance
EMC
FCC & CE certifiled
Safety
CE/ LVD certified
Environment
RoHS2 & REACH compliant
4K Short Depth, Dual Slide Rack Mount Monitor Features
1U 17" 3840 X 2160 Native Resolution - VGA + DP + HDMI + Audio 1920 X 1200 & 1920 X 1080 resolution support 104 Key Notebook Keyboard with Touchpad Mouse Rack Mount Monitor Chassis Depth 18.9" 2 Post Relay Rack Mounting Available Built In Dual Stereo Speakers 2 Point Locking Handle for secure mobile applications
Options -
Video: 3G / HD / SD-SDI Broadcast Grade Input Keyboard: MAC Keyboard or SUN Keyboard DC Power: 12V, 24V, 48V, 125V, 250V
Download More Info - 4K Rackmount Monitor User Manual
Product Specification
Console Port
Video input
Display port 1.2
Keyboard and Mouse
USB Type B Keyboard & Mouse
DP console - 6ft cable : CP-6 :
Drawer end : DP + USB type B ( KB/MS )
Video Option
Digital
HDMI
HDMI 1.4 / HDCP 1.4
LCD Panel
Panel Size (diagonal)
17.3"
Native resolution
3840 x 2160
Brightness(cd/m²)
400
Contrast ratio (typ.)
1000:1
Max Color
16.7 M, 8-bit
Contrast angle(L/R/U/D)
89/89/89/89
Responsive time(ms)
30
Dot pitch (mm)
0.0995
Display area (mm)
382.12H x 214.94V
Surface treatment
Anti- glare
Surface hardness
3H
Backlight type
LED
MTBF(hrs)
20,000
Power
Input
Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption
Screen on
Max. 29W / Max. 38W
Power saving mode
Max. 9W / Max. 18W
Power button on
Max. 2W / Nil
Physical
Product
Single console
442 x 650 x 44mm
Console W/ KVM
442 x 650 x 44mm
Packing
Single console/
595 x 860 x 140mm
Net
Single console
12 kg / 26.4 lb
Console W/ KVM
13 kg / 28.6 lb
Gross
Single console
18 kg / 39.6 lb
Console W/ KVM
19 kg / 41.8 lb
Environment
Operating temp.
0 to 55°C degree
Strorage temp
-20 to 60°C degree
Operating humidity
20~90%, non-condensing
Storage humidity
5 ~90%, non-condensing
Operating alttiude
16,000 ft
Non-operating attude
40,000 ft
Shock
10G acceleration (11ms duration)
Vibration
10~300Hz .5G RMS randon vibration
Mounting Distance
Single console drawer
660 ~ 870 mm
Console W/ KVM drawer
660 ~ 870 mm
Compliance
EMC
FCC & CE certifiled
Safety
CE/ LVD certified
Environment
RoHS2 & REACH compliant
