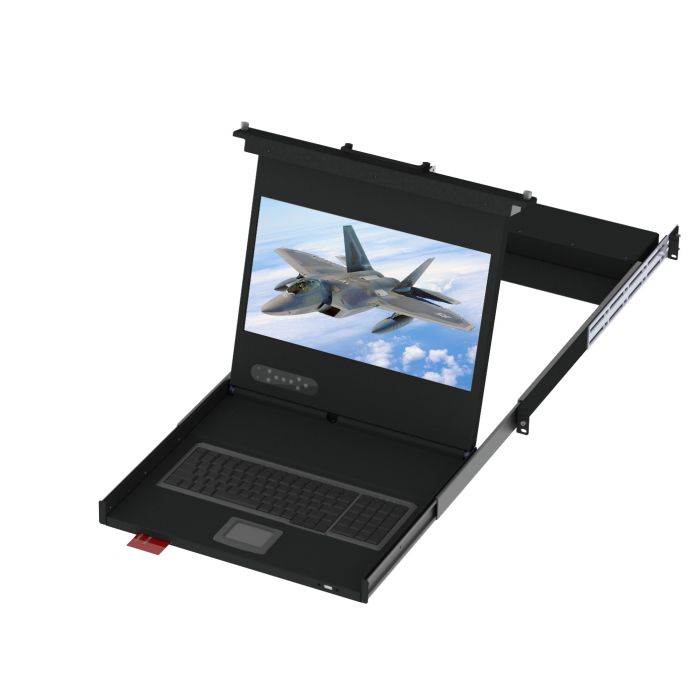

1U 17" Military Rackmount Monitor, CAC Card Reader, 1920 X 1080 - (Part#RM-F117D-MIL-CAC)
Special Price
$4,795.00
Regular Price
$4,900.00
More Information
| Product Specification |
Product Specification
| Console Port |
| Video input |
VGA + DVI-D single link |
| Keyboard and Mouse |
USB 2.0 Keyboard & Mouse |
| DVI console - 6ft cable : or VGA console - 6ft cable : |
Drawer and Server end : (VGA to VGA) |
Drawer and Server end DVI to DVI
USB 2.0 to USB 2.0 Standard Cable |
| Video Option |
| Digital |
HDMI |
or Display Port / Composite Video / 3G/HD/SD-SDI Broadcast Grade Input |
| LCD Panel |
| Panel Size (diagonal) |
17.3" |
| Native resolution |
1920 x 1080 supports |
| Brightness(cd/m²) |
300 |
| Contrast ratio (typ.) |
650:1 |
| Max Color |
262K |
| Contrast angle(L/R/U/D) |
80/80/60/80 |
| Responsive time(ms) |
40 |
| Dot pitch (mm) |
0.1989 |
| Display area (mm) |
381.888H x 214.812V |
| Surface treatment |
Anti- glare. Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
20,000 |
| Power |
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 29W / Max. 38W |
| Power saving mode |
Max. 9W / Max. 18W |
| Power button on |
Max. 2W / Nil |
| Physical |
Product
(W x D X H) |
Single console |
443 x 406 x 42mm
17.45 x 16 x 1.65 inch |
| Console W/ KVM |
Optional
|
Packing
(W x D X H) |
Single console/
Console W/ KVM |
605 x 700 x 168mm
24 x 27.75 x 6.75 inch |
Net
weight |
Single console |
14kg / 31 lb |
| Console W/ KVM |
NA |
Gross
weight |
Single console |
16.3kg / 36 lb |
| Console W/ KVM |
NA |
| Environment |
| Operating temp. |
0 to 50°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
10~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
17~500Hz 1G PTP |
| Mounting Distance |
| Single console drawer |
400 ~ 762 mm
15.75 ~ 30.00 inch (Extension Brackets required for 30" Depth) |
| Console W/ KVM drawer |
NA
|
| Compliance |
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|
1U 17" MIL-STD-810 Compliant Military Rackmount Monitor with Integrated CAC Card Reader
- 1U 17.3" 1920 X 1080 Rackmount LCD Drawer VGA + DP + HDMI Input
- CAC Card Reader
- Wide Operating Temperature
- Locking Power Connector
- MIL-STD 810F/G Compliant
Options -
Contact us with custom requirements
Download More Info-
Military Rackmount Monitor User Manual
