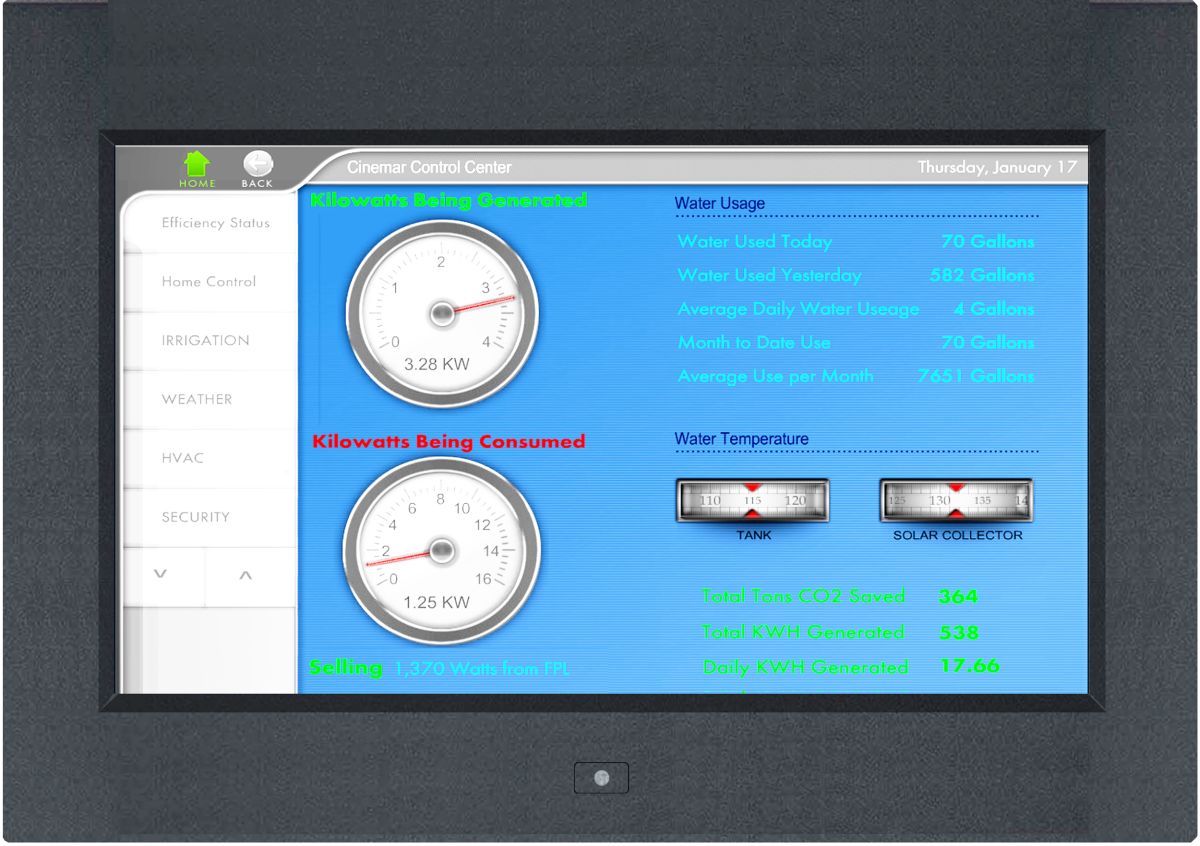

17" Rugged, High Brightness (1000 nits) 1920 X 1080 LCD Aluminum Frame - Industrial LCD Panel (Part# LCD-HNAP-F17)
17" Rugged, High Brightness (1000 nits) 1920 X 1080 LCD Aluminum Frame - Industrial LCD Panel (Part# LCD-HNAP-F17)
Special Price
from $2,249.00
Regular Price
from $2,595.00
- VGA + HDMI Input - High Brightness LCD Panel
- Optional DVI-D, DP, HDMI 2.0, BNC, 3G-SDI, Audio
- NEMA4/IP65 LED Display Panel
- Optional - Resistive or 10 Point MultTouch Capacitive Touchscreen
- Auto-sensing 100 to 240 VAC, 50/60Hz
- Optional 12VDC / 24VDC / 48VDC / 125VDC
More Information
| Product Specification |
Product Specification
| LCD Panel Video Specs |
|---|
| Video input |
VGA + DVI-D single link |
| Video Option |
|---|
| Digital / Analog |
HDMI / SDI / Composite |
HDMI 1.3 / HDCP 1.1
3G / HD / SD-SDI Broadcast Grade Input
S-Video (4-pin) + Composite (BNC)
NTSC & PAL
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
17.3" |
| Native resolution |
1920 x 1080 |
| Brightness(cd/m²) |
400 |
| Contrast ratio (typ.) |
600:1 |
| Max Color |
16.7 M, 8-bit |
| Contrast angle(L/R/U/D) |
89/89/89/89 |
| Responsive time(ms) |
40 |
| Dot pitch (mm) |
0.1989 |
| Display area (mm) |
381.888H x 214.812V |
| Surface treatment |
Anti- glare. Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
50,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 25W |
| Power saving mode |
Max. 4W |
| Power button on |
Max. 1W |

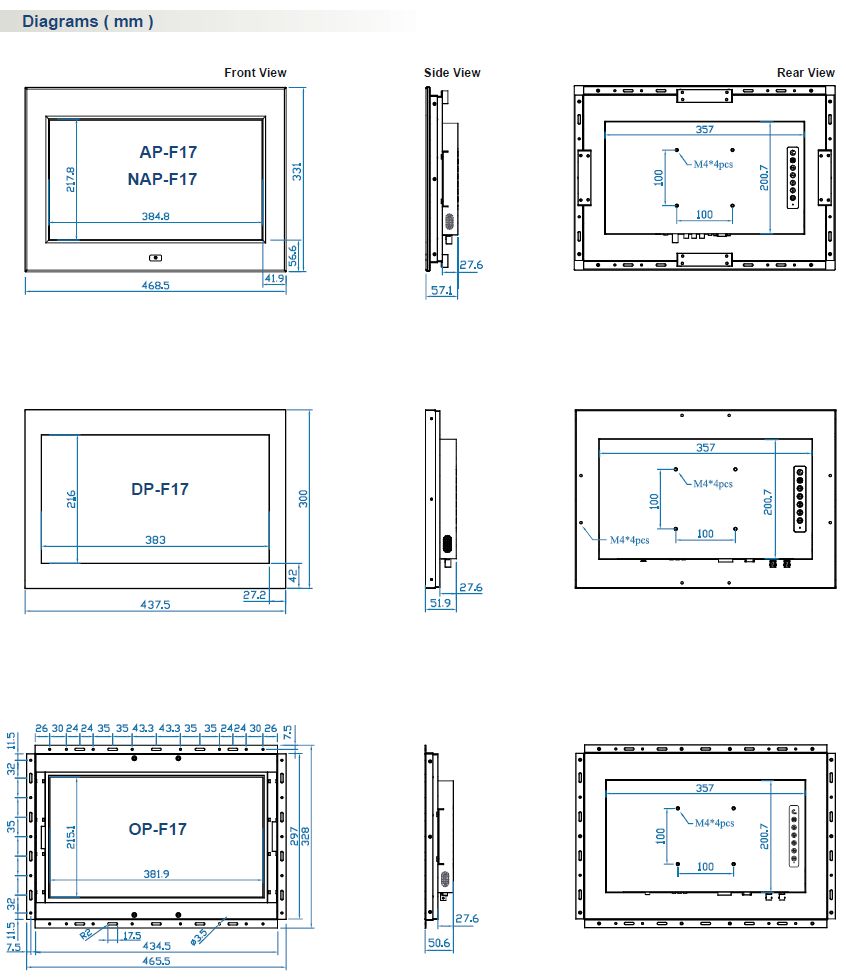

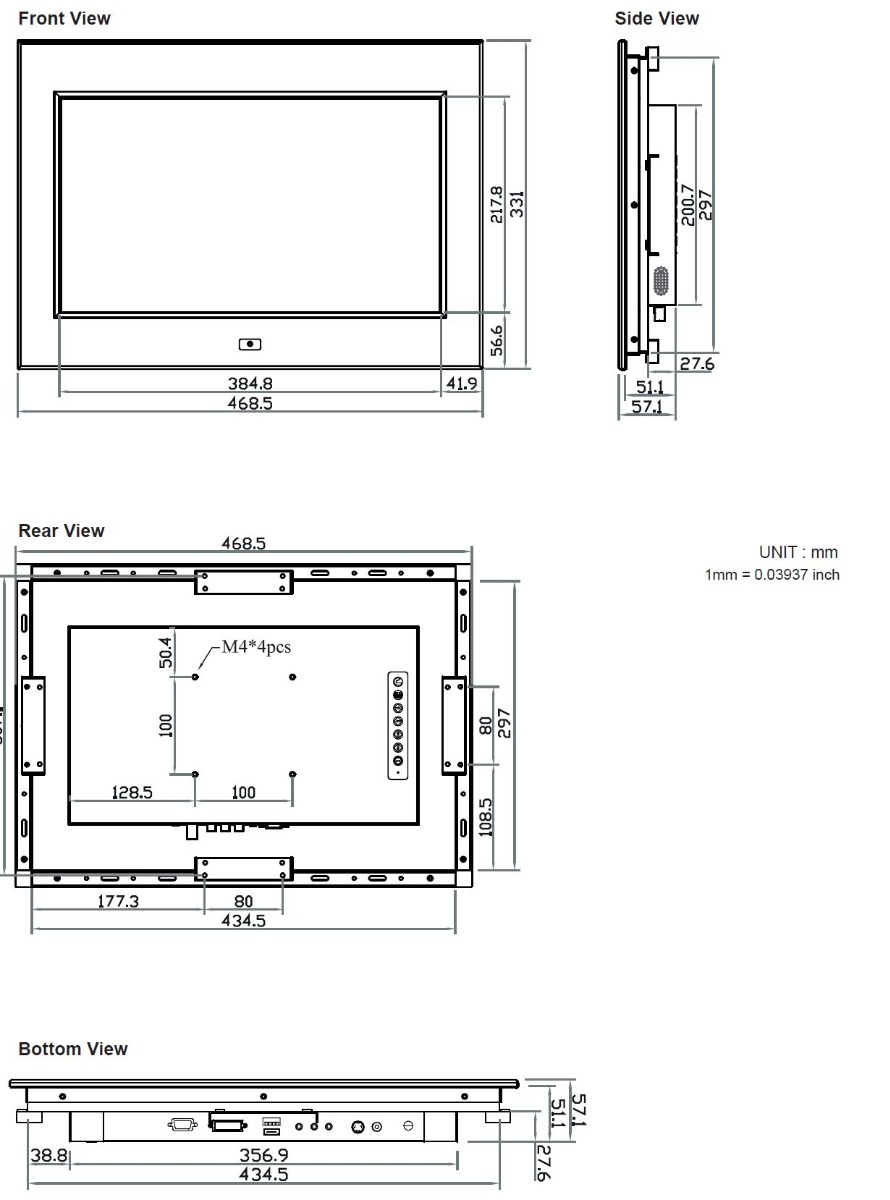

| Physical |
|---|
Product
(W x D X H) |
Millimeters |
468.5 x 57.1 x 331mm |
| Inches |
18.4 X 2.2 X 13 inch |
Packing
(W x D X H) |
Millimeters
Inches |
615 x 113 x 523mm
24.2 x 4.4 x 20.6 inch |
Net
weight |
KGs |
5.2 kg |
| LBS |
11.4 lb |
Gross
weight |
KGs |
8 kg |
| LBS |
17.6 lb |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|

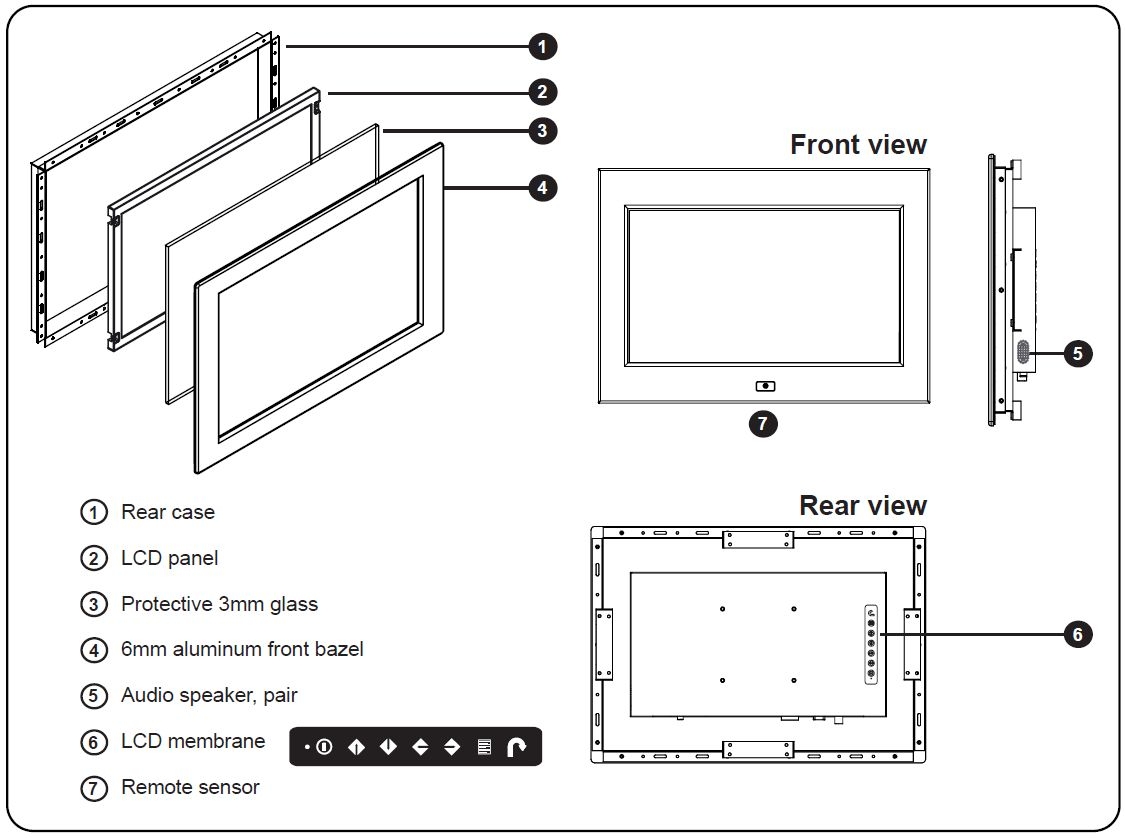

17" High Brightness Industrial LCD Display Features
- 17" LCD with 1920 X 1080 Resolution, VGA + HDMI
- NEMA4 / IP65 Front Protection
- Rugged Construction against external impact
- 6mm Aluminum Front Bezel
- 2 Year Warranty - includes Crystal Care Service Plan

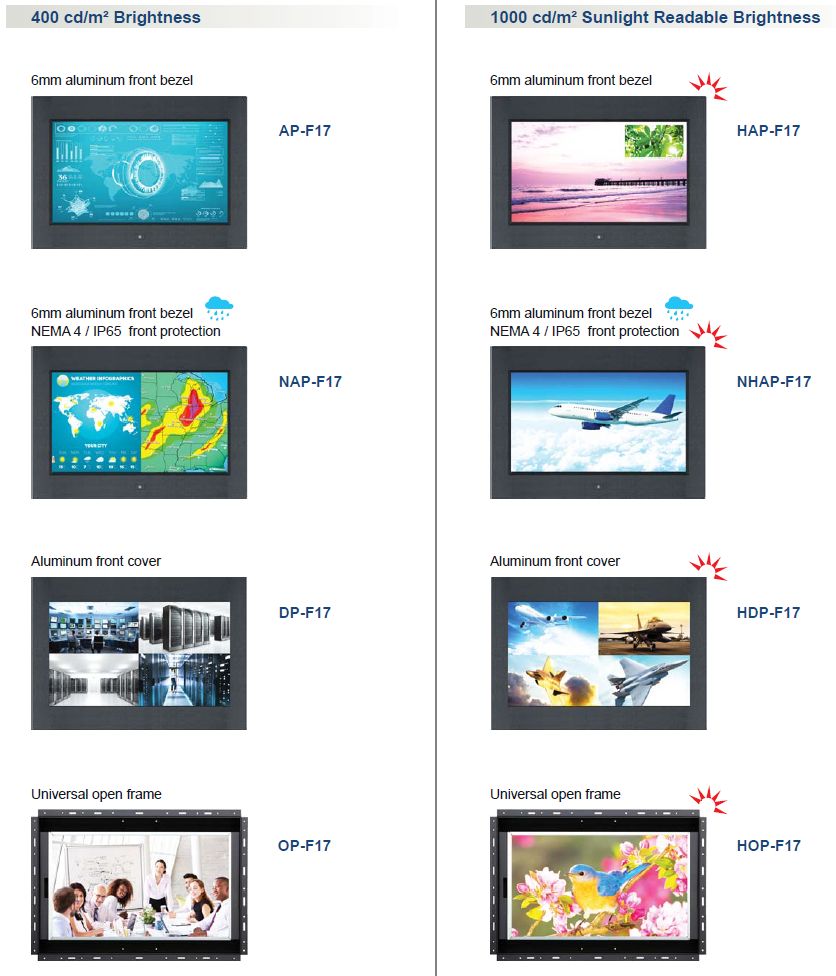

Industrial LCD Panel Options -
- Video Input Option - DVI-D, DP, BNC, 3G-SDI, Audio
- Screen Protection:Protective Glass
- Broadcast: 3G / HD / SD-SDI Broadcast-grade input
- Multi-Display: Multi-display control
- Power:12VDC, 24VDC, 48VDC
- Industrial Touch Screen Monitor: Resistive or Capacitive or MULTI-TOUCH
- Connector:Lockable DC Jack, Lockable USB Jack
- MIL-type Connector:MIL-type DC lockable jack, MIL-type VGA lockable jack
