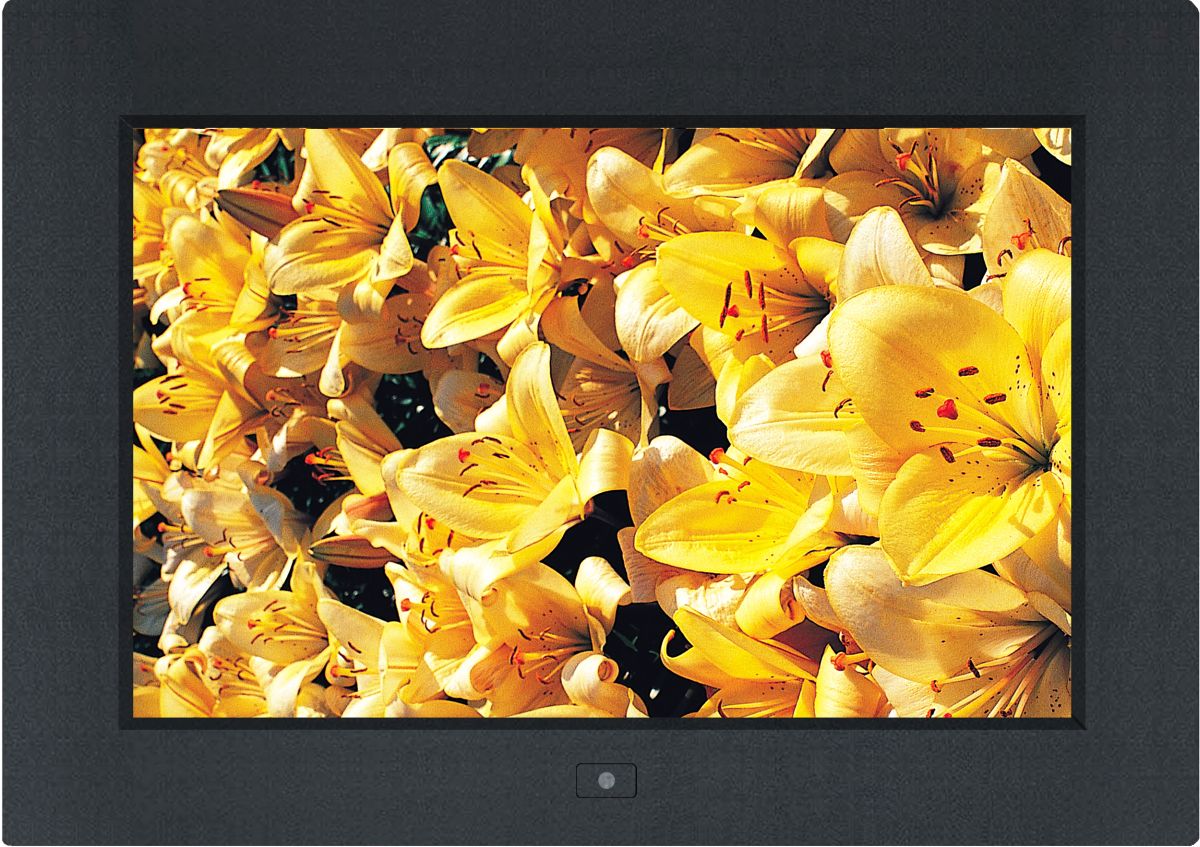

17" 1920 X 1200, LCD Aluminum Frame - Industrial LCD Panel (Part# LCD-AP-X17)
Special Price
$1,760.00
Regular Price
$2,200.00
- VGA & DVI-D Input - Optional BNC & S-Video + Audio + HDMI
- 3MM Protective Glass - Optional NEMA4/IP65 LED Display Panel
- Optional - Resistive or 10 Point MultTouch Capacitive Touchscreen
- Auto-sensing 100 to 240 VAC, 50/60Hz - Optional 12VDC / 24VDC / 48VDC / 125VDC
More Information
| Product Specification |
Product Specification
| LCD Video Input |
|---|
| Video input |
VGA + DVI-D + HDMI 1.3 (HDCP 1.3) |
| |
|
| |
|
| |
| Video Option |
|---|
| SDI |
|
3G HD SD-SDI |
| LCD Panel |
|---|
| Panel Size (diagonal) |
16.2" |
| Native resolution |
1920 x 1200 |
| Brightness(cd/m²) |
300 |
| Contrast ratio (typ.) |
800:1 |
| Max Color |
16.7 M, 8-bit |
| Contrast angle(L/R/U/D) |
89/89/89/89 |
| Responsive time(ms) |
30 |
| Dot pitch (mm) |
0.191 |
| Display area (mm) |
343.8H x 214.9V |
| Surface treatment |
Anti- glare. Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
20,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
|
Screen on |
Max. 34W / Max. 34W |
| Power saving mode |
Max. 4W / Max. 4W |
| Power button off |
Max. 1W / Nil |

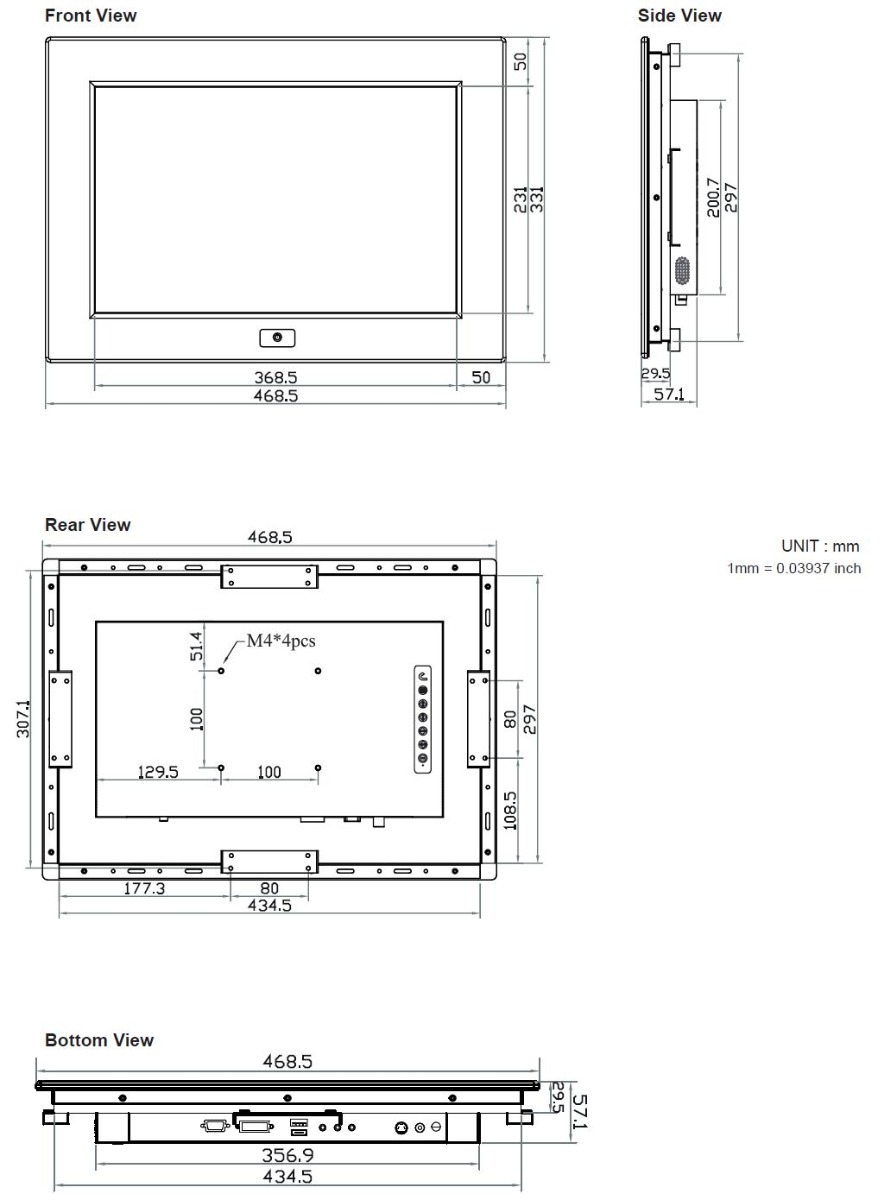

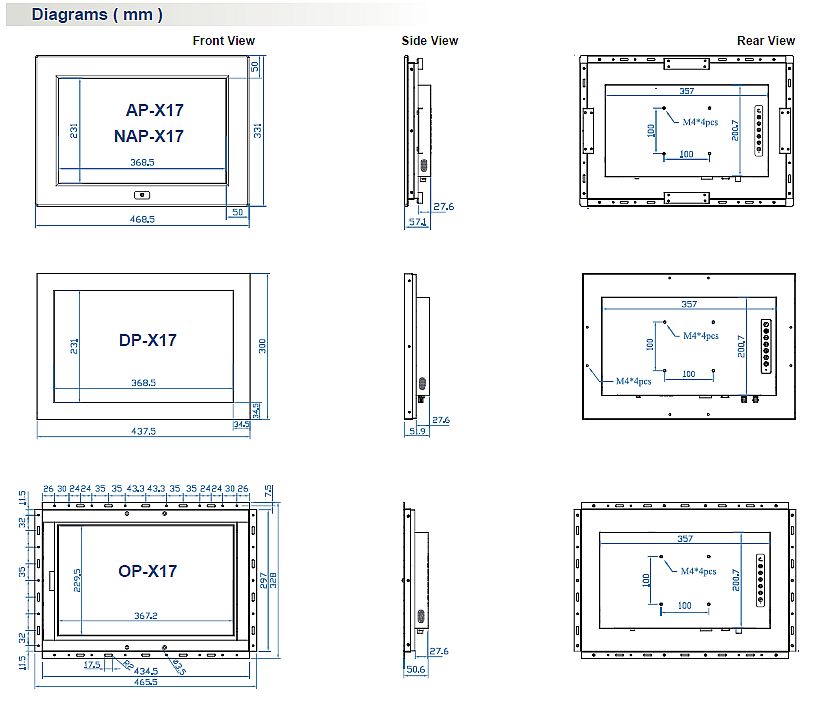

| Physical |
|---|
Product
(W x D X H) |
LCD Panel |
468.5 x 57.1 x 331mm
18.4 x 2.2 x 13 inch |
| |
|
Packing
(W x D X H) |
LCD Panel |
615 x 113 x 523mm
24.2 x 4.4 x 20.6 inch |
Net
weight |
LCD Panel |
4.9 kg / 10.8 lb |
| |
|
Gross
weight |
LCD Panel |
7.7kg /16.9 lb |
| |
|
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|

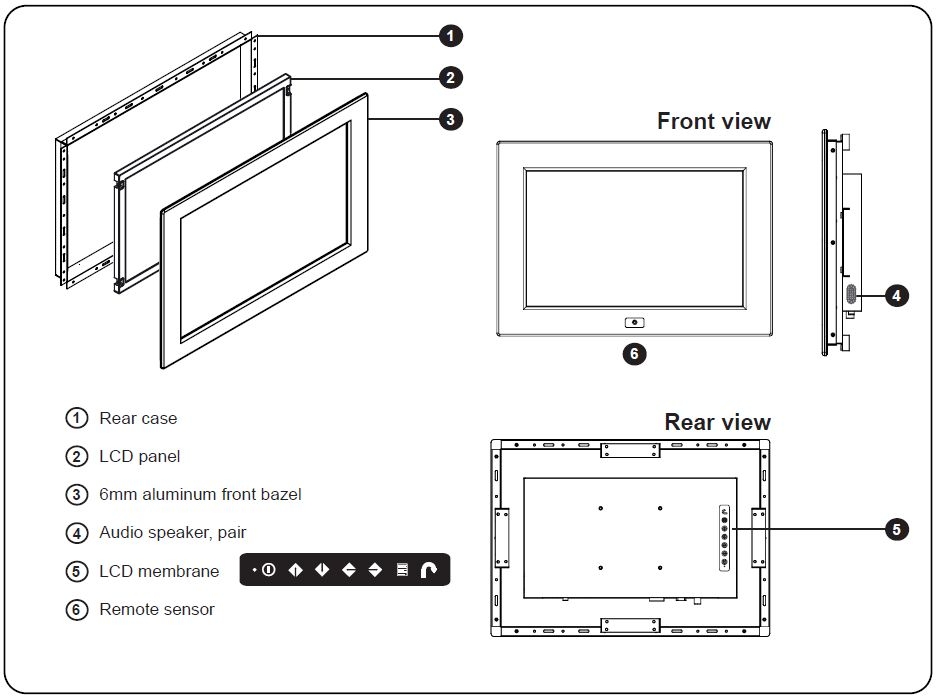

17" High Resolution Industrial LCD Features

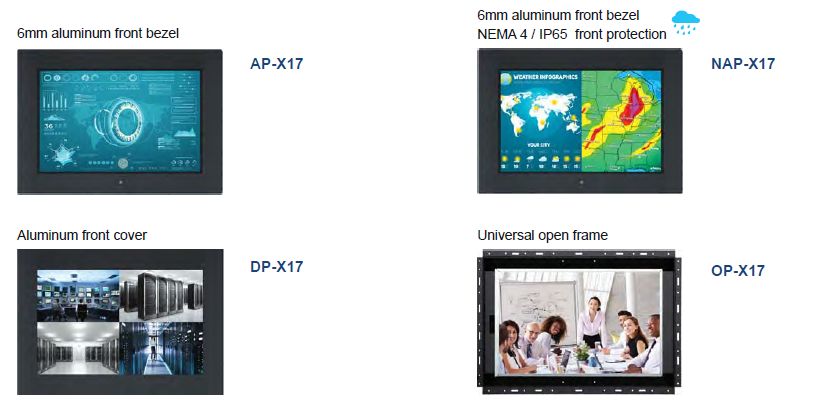

Industrial LCD Panel Options -
- Screen Protection: Protective Glass
- Broadcast: 3G / HD / SD-SDI Broadcast-grade input
- Multi-Display: Multi-display control
- Power:12VDC, 24VDC, 48VDC
- Touchscreen: Resistive or Capacitive
- Connector:Lockable DC Jack, Lockable USB Jack
