1U 19" 1920 X 1080 Rackmount Monitor + 8 Port 2 Console Cat5 KVM Switch - (Part# RM-F119-Cat5-08R)

Special Price from $2,686.00 Regular Price from $2,897.00

8 Port Cat6 KVM Switch - 2 Console KVM Switch
104 Key Notebook Keyboard - Touchpad or Trackball Mouse
Cat6 Dongles - VGA / DVI / HDMI / DP / USB-C
Mounting Range - 18.5" to 31.5" (Physical Chassis Depth - 22.8")

More Information

Console Port

Part# RM-F117 Video Input - VGA + DVI-D single link KB / MS - COMBO USB or PS/2 VGA Console - (Drawer End - VGA + USB KB/MS) (Server End - VGA + USB type A) DVI Console - (Drawer End - DVI-D + DB15 (USB KB/MS

LCD Panel

1920 X 1080

Physical

26" Depth

Mounting Distance

16" to 29" Mounting Depth

Video Option

VGA DVI HDMI SDI

Power

110V

Environment

30 Degrees C

Compliance

FCC, CE

Product Specification

Console Port
Video input	VGA + DVI-D single link
Keyboard and Mouse	USB 2.0 Keyboard & Mouse
DVI console - 6ft cable : or VGA console - 6ft cable :	Drawer end : DB-15(VGA + USB KB/MS) server end: VGA + USB type A
DVI console - 6ft cable : or VGA console - 6ft cable :	Drawer end : DVI- D + DB-15(USB KB/MS) server end: DVI- D + USB type A

Video Option
Digital	HDMI	HDMI 1.3 / HDCP 1.1

LCD Panel
Panel Size (diagonal)	17.3"
Native resolution	1920 x 1080
Brightness(cd/m²)	400
Contrast ratio (typ.)	600:1
Max Color	16.7 M, 8-bit
Contrast angle(L/R/U/D)	80/80/60/80
Responsive time(ms)	40
Dot pitch (mm)	0.1989
Display area (mm)	381.888H x 214.812V
Surface treatment	Anti- glare. Hard-coating
Surface hardness	3H
Backlight type	LED
MTBF(hrs)	50,000

Power
Input	Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption (console / K/M)	Screen on	Max. 29W / Max. 38W
	Power saving mode	Max. 9W / Max. 18W
	Power button on	Max. 2W / Nil

Physical
Product (W x D X H)	Single console	442 x 460 x 44mm 17.4 x 18.1 x 1.73 inch
Product (W x D X H)	Console W/ KVM	442 x 580 x 44mm 17.4 x 22.8 x 1.73
Packing (W x D X H)	Single console/ Console W/ KVM	590 x 808 x 140mm 23.2 x 31.8 x 5.5 inch
Net weight	Single console	10.8 kg / 23.8 lb
Net weight	Console W/ KVM	11.6 kg / 25.5 lb
Gross weight	Single console	15.8kg / 34.8 lb
Gross weight	Console W/ KVM	17.5 kg / 38.5 lb

Environment
Operating temp.	0 to 55°C degree
Strorage temp	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating alttiude	16,000 ft
Non-operating attude	40,000 ft
Shock	10G acceleration (11ms duration)
Vibration	10~300Hz .5G RMS randon vibration

Mounting Distance
Single console drawer	470 ~ 700 mm 18.5 ~ 27.6 inch
Console W/ KVM drawer	470 ~ 800mm 18.5 ~ 31.5 inch

Compliance
EMC	FCC & CE certifiled
Safety	CE/ LVD certified
Environment	RoHS2 & REACH compliant

Keyboard Options

USB Accessory HUB

Power Supply Options

Warranty

Qty

Add to Wish List Compare Products

Skip to the end of the images gallery

Skip to the beginning of the images gallery

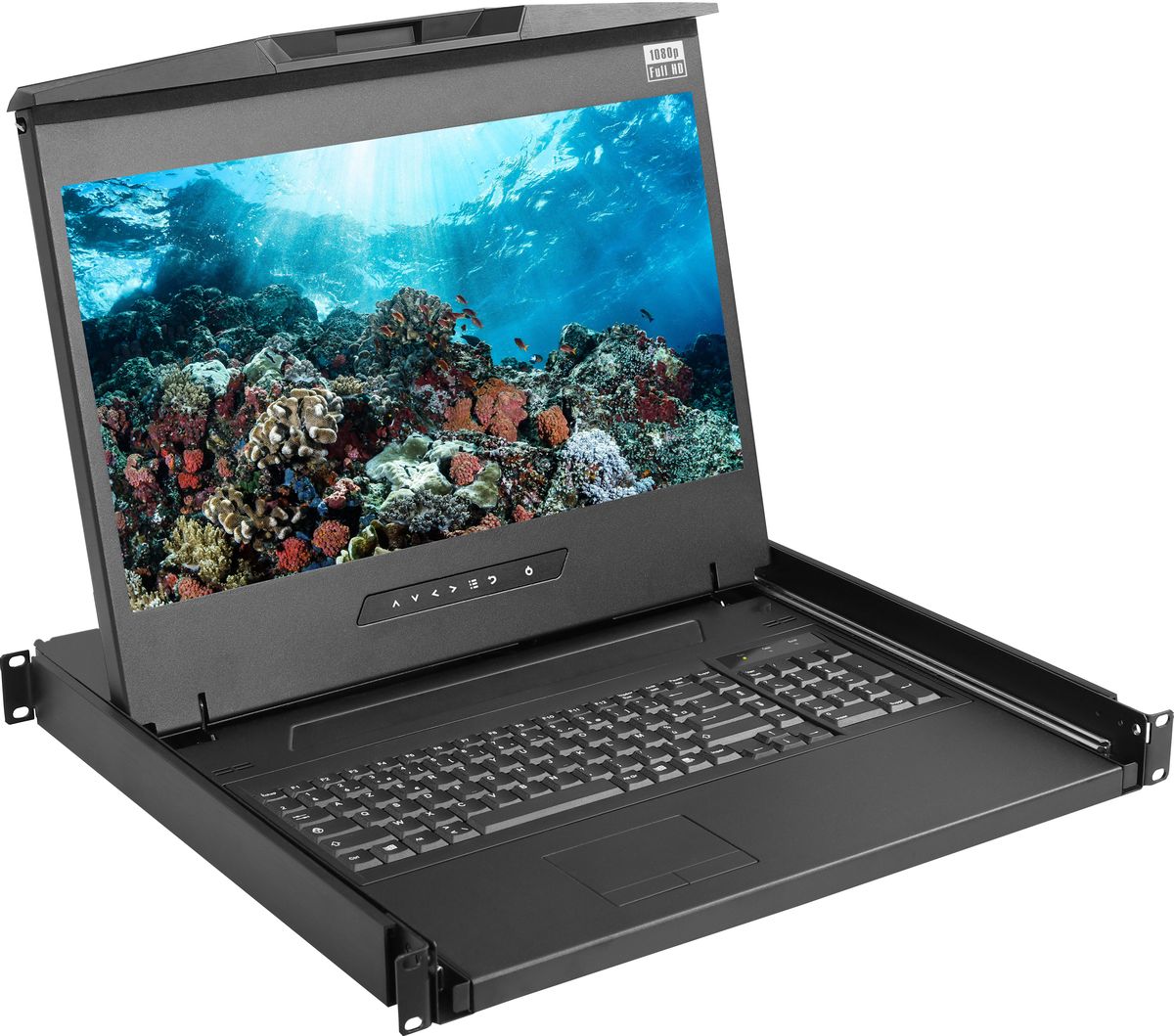

1U 19" 1920 X 1080 Rack Mount Monitor W/8 Port Cat5 KVM Switch

1U 17" 1920 X 1080 LCD Drawer w/VGA Input
104 Key Notebook Keyboard with Touchpad or Trackball Mouse
Rack Mount Monitor Chassis With KVM Switch - Depth 22.8"

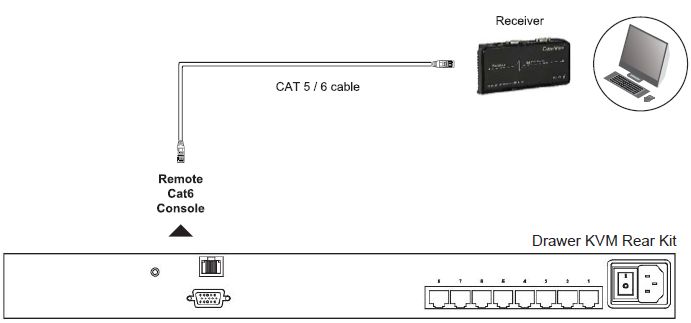

Integrated 8 Port 2 Console KVM Switch, 1 local Console, 1 Remote Cat5 Console
PIP & Picture by Picture viewing efficency
KVM Switch Specifications Click HERE

Options -

Audio: Add integrated speakers (3.5mm Audio)
Keyboard: Standard Notebook, MAC Keyboard or SUN Keyboard
Power: 12VDC, 24VDC, 48VDC, 125VDC
Touchscreen: No Touchscreen -

Download More Info-

19" Rackmount Monitor Specifications

Rackmount Monitor User Manual

8 Port Cat5 KVM Switch Specifications

Cat5 KVM Switch User Manual

Product Specification

Console Port
Video input	VGA + DVI-D single link
Keyboard and Mouse	USB 2.0 Keyboard & Mouse
DVI console - 6ft cable : or VGA console - 6ft cable :	Drawer end : DB-15(VGA + USB KB/MS) server end: VGA + USB type A
DVI console - 6ft cable : or VGA console - 6ft cable :	Drawer end : DVI- D + DB-15(USB KB/MS) server end: DVI- D + USB type A

Video Option
Digital	HDMI	HDMI 1.3 / HDCP 1.1

LCD Panel
Panel Size (diagonal)	17.3"
Native resolution	1920 x 1080
Brightness(cd/m²)	400
Contrast ratio (typ.)	600:1
Max Color	16.7 M, 8-bit
Contrast angle(L/R/U/D)	80/80/60/80
Responsive time(ms)	40
Dot pitch (mm)	0.1989
Display area (mm)	381.888H x 214.812V
Surface treatment	Anti- glare. Hard-coating
Surface hardness	3H
Backlight type	LED
MTBF(hrs)	50,000

Power
Input	Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption (console / K/M)	Screen on	Max. 29W / Max. 38W
	Power saving mode	Max. 9W / Max. 18W
	Power button on	Max. 2W / Nil

Physical
Product (W x D X H)	Single console	442 x 460 x 44mm 17.4 x 18.1 x 1.73 inch
Product (W x D X H)	Console W/ KVM	442 x 580 x 44mm 17.4 x 22.8 x 1.73
Packing (W x D X H)	Single console/ Console W/ KVM	590 x 808 x 140mm 23.2 x 31.8 x 5.5 inch
Net weight	Single console	10.8 kg / 23.8 lb
Net weight	Console W/ KVM	11.6 kg / 25.5 lb
Gross weight	Single console	15.8kg / 34.8 lb
Gross weight	Console W/ KVM	17.5 kg / 38.5 lb

Environment
Operating temp.	0 to 55°C degree
Strorage temp	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating alttiude	16,000 ft
Non-operating attude	40,000 ft
Shock	10G acceleration (11ms duration)
Vibration	10~300Hz .5G RMS randon vibration
