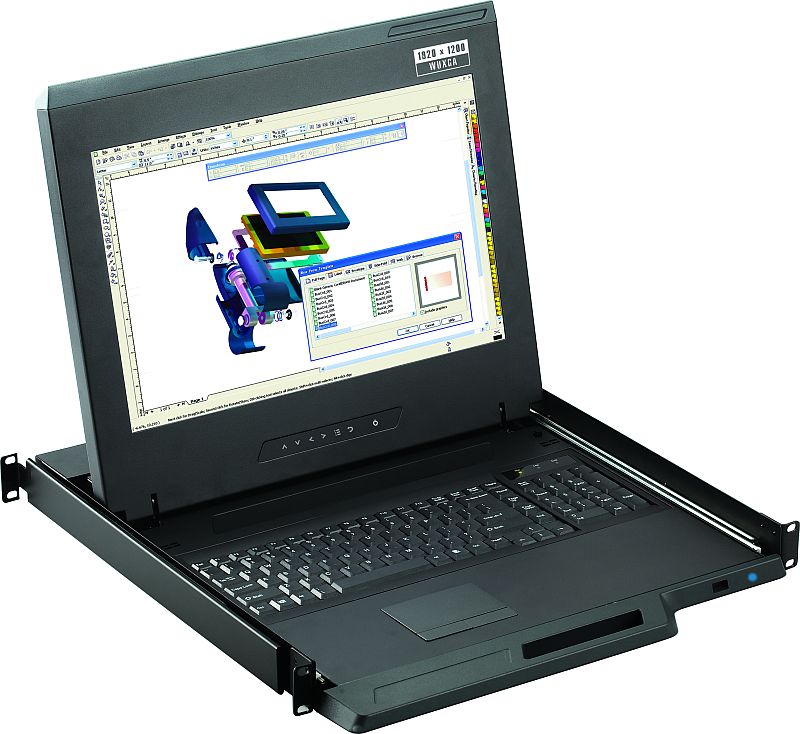

1U 17" Rackmount Monitor, (1920 X 1200 Resolution) - (Part#RM-111-X17)

Be the first to review this product
Special Price from $2,019.00 Regular Price from $2,249.00
  • Standard Video Input - VGA + DVI-D + HDMI
  • Includes 6' IEC power cord, 6' USB/DVI video cable or USB/VGA or USB HDMI video cable
  • Video Option - HDMI w/Speaker & SDI Input
  • 104 Key Notebook Keyboard, Touchpad or Trackball Mouse
  • Mounting Range - 18.1" to 29.5"

More Information

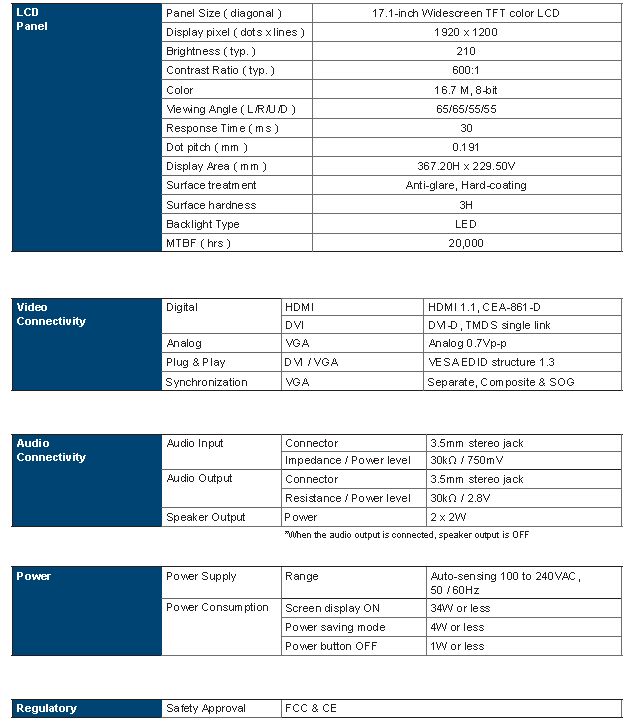

Product Specification

Product Specification

Console Port
Video input VGA + DVI-D + HDMI 1.4 single link
Keyboard and Mouse USB 2.0 Keyboard & Mouse

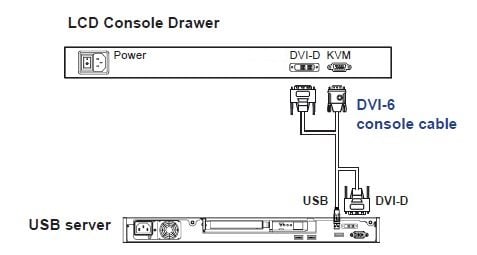

DVI console - 6ft cable :  or VGA console - 6ft cable :  Drawer end : DB-15(VGA + USB KB/MS)
server end: VGA + USB type A
Drawer end : DVI- D + DB-15(USB KB/MS)
server end: DVI- D + USB type A
Video Option
SDI    3G HD SD-SDI
LCD Panel
Panel Size (diagonal) 16.2"
Native resolution 1920 x 1200
Brightness(cd/m²) 300
Contrast ratio (typ.) 800:1
Max Color 16.7 M, 8-bit
Contrast angle(L/R/U/D) 89/89/89/89
Responsive time(ms) 30
Dot pitch (mm) 0.191
Display area (mm) 343.8H x 214.9V
Surface treatment Anti- glare. Hard-coating
Surface hardness 3H
Backlight type LED
MTBF(hrs) 20,000
Power
Input Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption
(console / KVM)		 Screen on Max. 34W / Max. 59W
Power saving mode Max. 4W / Max. 29W
Power button off Max. 1W / Nil
Physical
Product
(W x D X H)		 Single console 442 x 460 x 44mm
17.4 x 18.1 x 1.73 inch
Console W/ KVM 442 x 580 x 44mm
17.4 x 22.8 x 1.73
Packing
(W x D X H)		 Single console/
Console W/ KVM		 590 x 808 x 140mm
23.2 x 31.8 x 5.5 inch
Net
weight		 Single console 10.8 kg / 23.8 lb
Console W/ KVM 11.6 kg / 25.5 lb
Gross
weight		 Single console 15.8kg / 34.8 lb
Console W/ KVM 17.5 kg / 38.5 lb

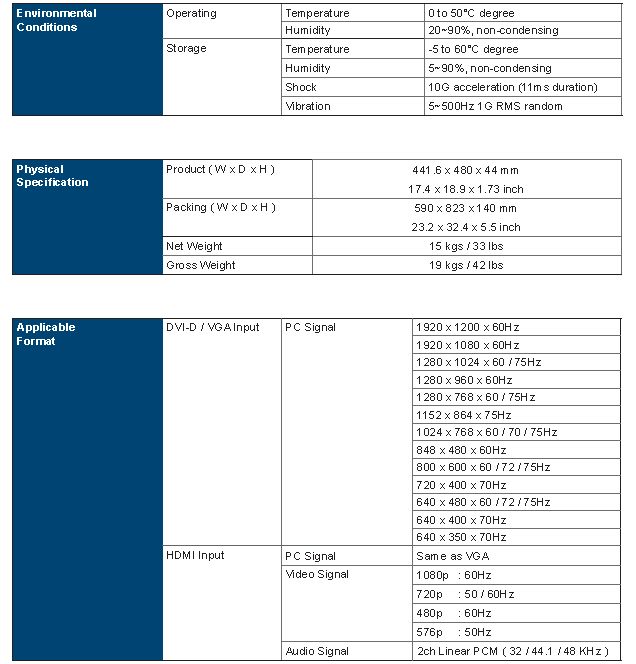

Environment
Operating temp. 0 to 55°C degree
Strorage temp -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating alttiude 16,000 ft
Non-operating attude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz .5G RMS randon vibration
Mounting Distance
Single console drawer 470 ~ 700 mm
18.5 ~ 27.6 inch
Console W/ KVM drawer

470 ~ 800mm
18.5 ~ 31.5 inch
Compliance
EMC FCC & CE certifiled
Safety CE/ LVD certified
Environment RoHS2 & REACH compliant
Add to Wish List Compare Products
main product photo
  • Product Specification
  • Ask a Question (0)
  • Reviews

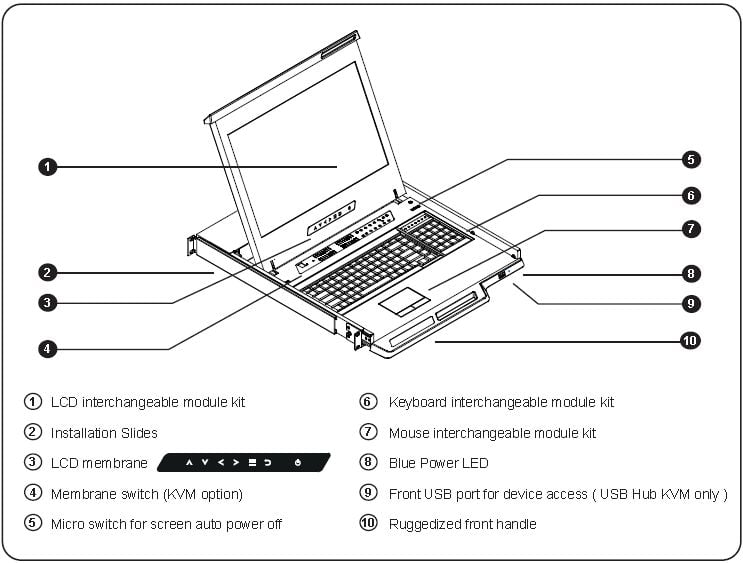

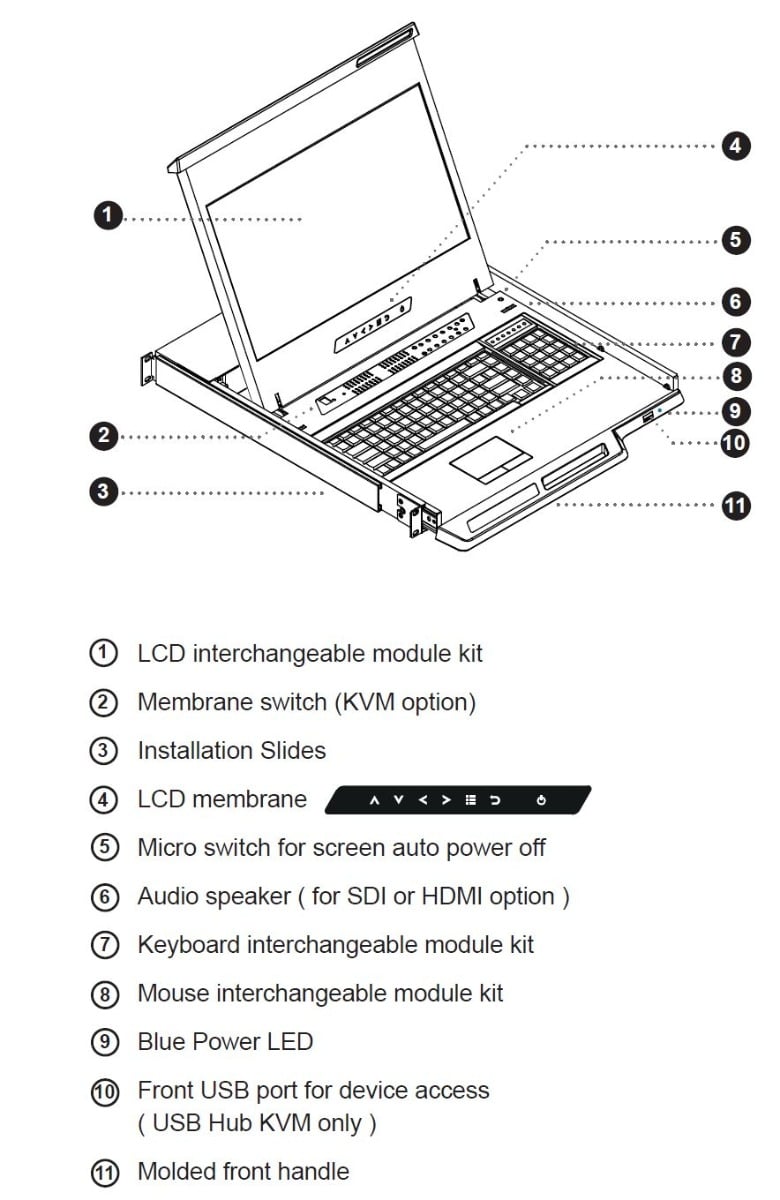

High Resolution Rackmount Monitor Features
  • 1U 17" 1920 X 1200 LCD Drawer w/VGA, DVI-D, HDMI & Audio
  • 104 Key Notebook Keyboard with Touchpad or Trackball Mouse
  • Rack Mount Monitor Chassis Depth 18.9"
  • 2 Post Relay Rack Mounting Available
  • PIP & Picture by Picture viewing efficency
Options -
  • Video:   3G / HD / SD-SDI Broadcast Grade Input
  • Audio:   Add integrated speakers for VGA & DVI-D
  • Keyboard:  MAC Keyboard or SUN Keyboard
  • Power:   12VDC, 24VDC, 48VDC
  • Touchscreen: No Touchscreen -
Download More Info -

Rackmout Monitor User ManualRackmount Monitor User Manual
