Save $390

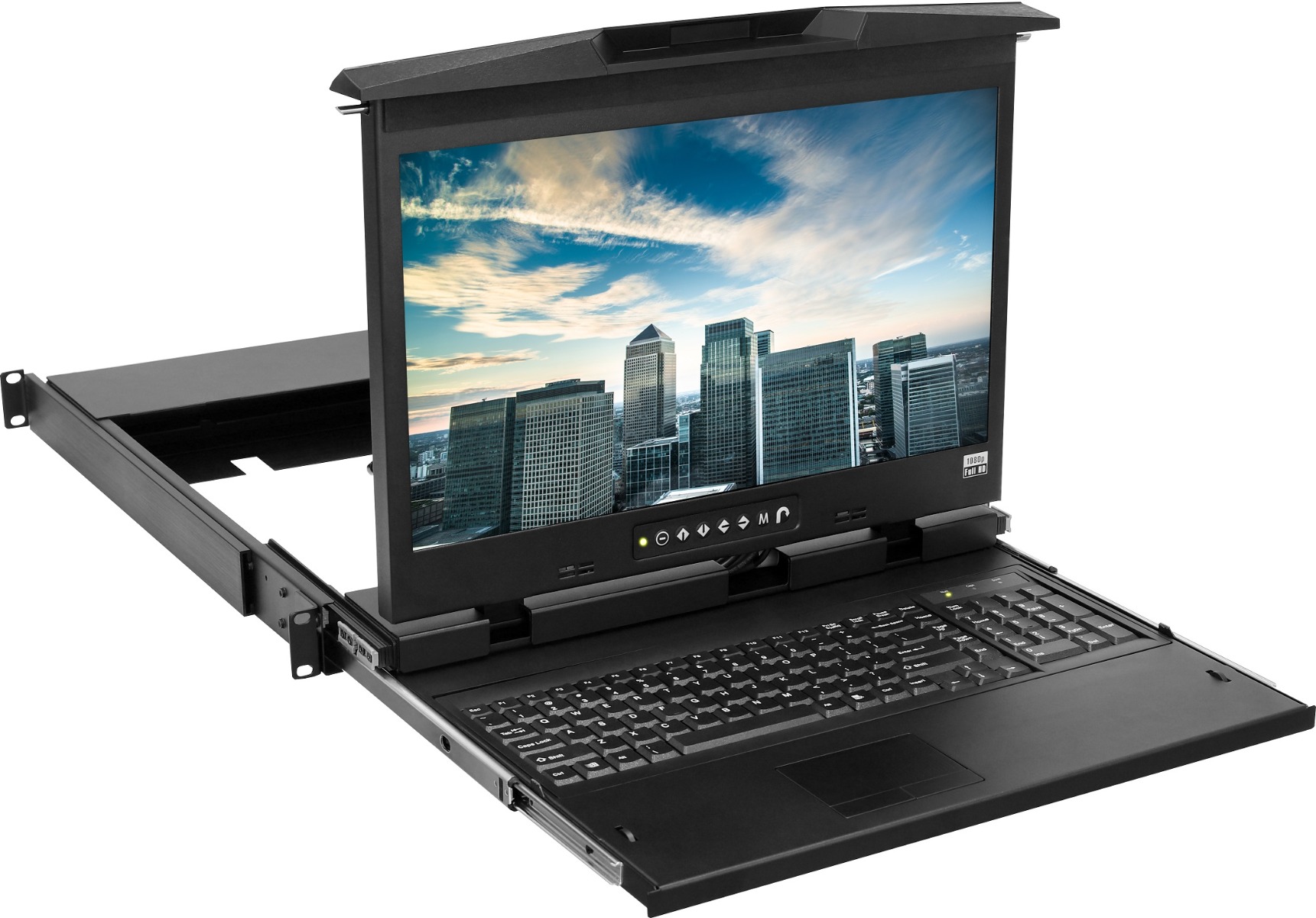

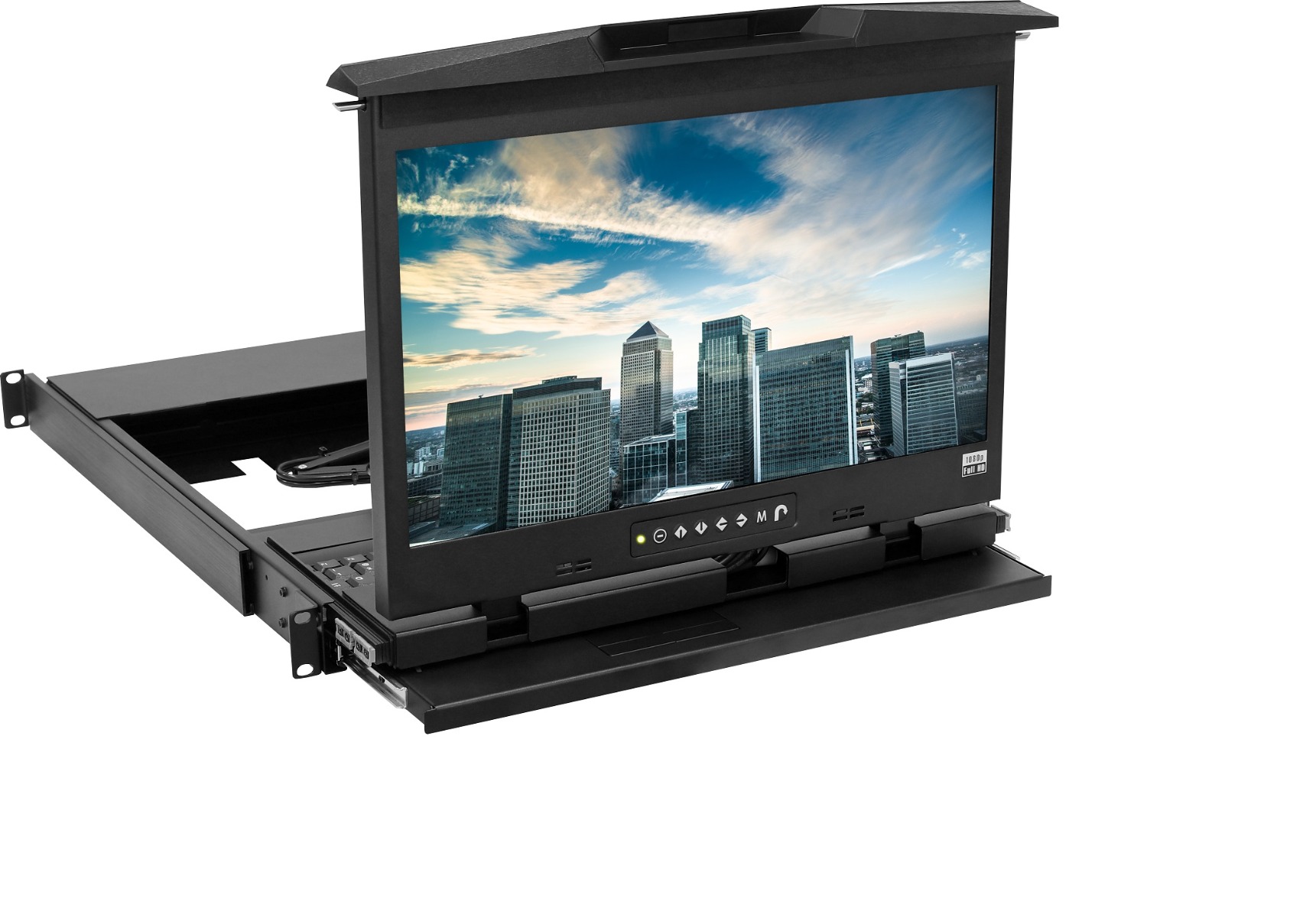

1U 17" Short Depth Dual Slide Rackmount Monitor
1920 × 1080 Resolution
Special Price
from $2,005.00
Regular Price
from $2,395.00
16% OFF
Part
RM-DSF17
Product Information
- Standard Video Input - VGA + DVI-D + HDMI + Audio IN
- Rackmount Monitor Chassis Depth - 18.9"
- Video Input Options - 3G / HD / SD-SDI
- DC Power 12V, 24V, 48V, 125V DC Power Options
| Product Specification | Product Specification
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Product Specification
| 1U Dual Slide Console Port | |
|---|---|
| Video input | VGA + HMDI + DP |
| Keyboard and Mouse | USB 2.0 Keyboard & Touchpad Mouse |
| HDMI console - 6ft cable : or VGA console - 6ft cable : | Drawer end : HDMI + USB type A |
| Drawer end : HDMI + USB type A | |
| Video Option | ||
|---|---|---|
| Digital | SDI | DVI-D |
| 1U Dual Slide LCD Panel | |
|---|---|
| Panel Size (diagonal) | 17.3" |
| Native resolution | 1920 x 1080 |
| Brightness(cd/m²) | 400 |
| Contrast ratio (typ.) | 600:1 |
| Max Color | 16.7 M, 8-bit |
| Contrast angle(L/R/U/D) | 80/80/60/80 |
| Responsive time(ms) | 40 |
| Dot pitch (mm) | 0.1989 |
| Display area (mm) | 381.888H x 214.812V |
| Surface treatment | Anti- glare. Hard-coating |
| Surface hardness | 3H |
| Backlight type | LED |
| MTBF(hrs) | 50,000 |
| Power | ||
|---|---|---|
| Input | Input Auto-sensing 100 to 240 VAC, 50/60Hz | |
| Consumption (console / K/M) |
Screen on | Max. 29W / Max. 38W |
| Power saving mode | Max. 9W / Max. 18W | |
| Power button on | Max. 2W / Nil | |
| Physical | ||
|---|---|---|
| Product (W x D X H) |
Single console | 442 x 650 x 44mm 17.4 x 25.6 x 1.73 inch |
| Console W/ KVM | 442 x 650 x 44mm 17.4 x 25.6 x 1.73 |
|
| Packing (W x D X H) |
Single console/ Console W/ KVM |
595 x 860 x 140mm 23.4 x 33.9 x 5.5 inch |
| Net weight |
Single console | 11.9 kg / 26.2 lb |
| Console W/ KVM | 12.9 kg / 28.4 lb | |
| Gross weight |
Single console | 17.9kg / 39.4 lb |
| Console W/ KVM | 18.9 kg / 41.6 lb | |
| Environment | |
|---|---|
| Operating temp. | 0 to 55°C degree |
| Strorage temp | -20 to 60°C degree |
| Operating humidity | 20~90%, non-condensing |
| Storage humidity | 5 ~90%, non-condensing |
| Operating alttiude | 16,000 ft |
| Non-operating attude | 40,000 ft |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 10~300Hz .5G RMS randon vibration |
| Mounting Distance | |
|---|---|
| Single console drawer | 660 ~ 870 mm 26 ~ 34.3 inch |
| Console W/ KVM drawer |
660 ~ 870mm |
| Compliance | |
|---|---|
| EMC | FCC & CE certifiled |
| Safety | CE/ LVD certified |
| Environment | RoHS2 & REACH compliant |
