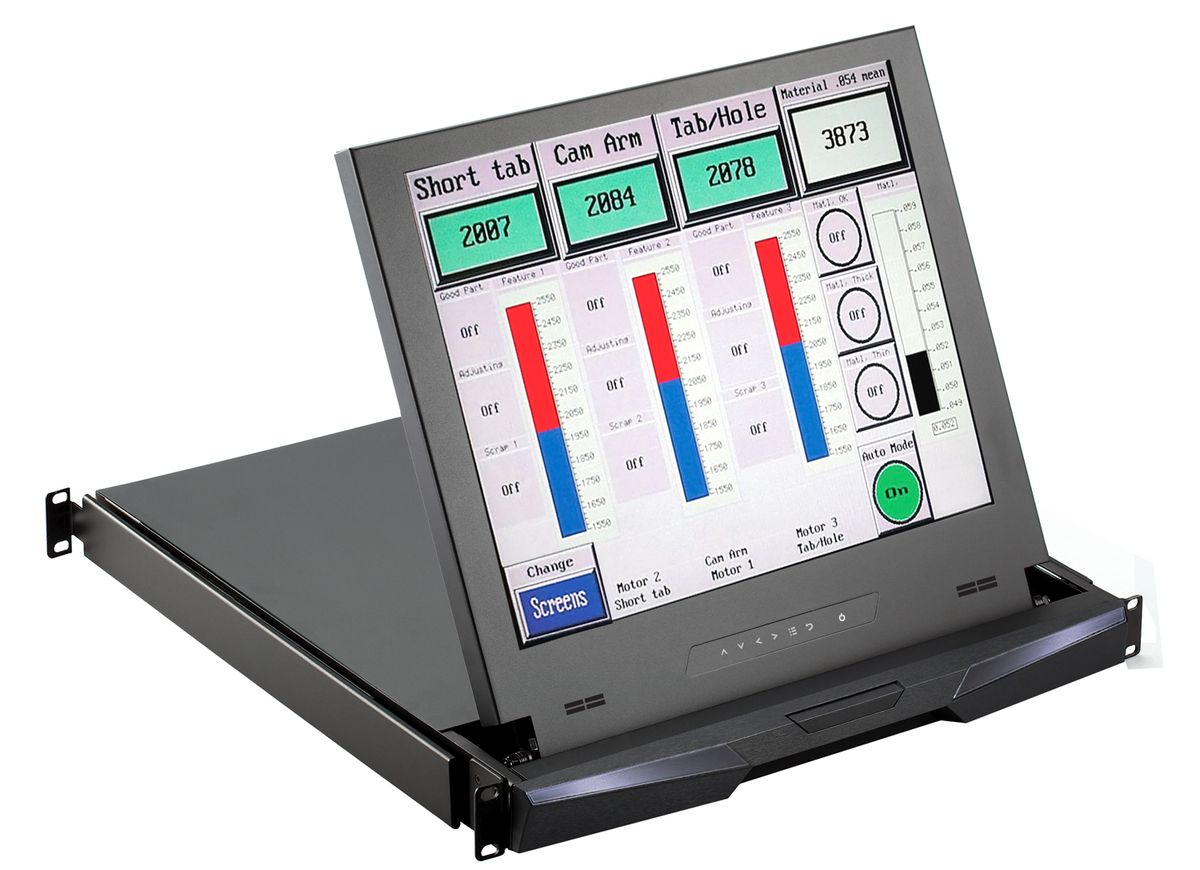

1U 17" 1280 X 1024, Rack Mount LCD Drawer (Part#RMD-151-17)
1U 17" 1280 X 1024, Rack Mount LCD Drawer (Part#RMD-151-17)
Special Price
from $923.00
Regular Price
from $1,071.25
- VGA & DVI-D Input
- 19.75" Chassis Depth
- 2 Point Latch System
- Optional - Touchscreen / 12VDC / 24VDC / 48VDC / 125VDC Power
More Information
| Product Specification |
Product Specification
| 1U LCD Drawer Video Specs |
|---|
| Video input |
VGA + DVI-D single link |
| Video Option |
|---|
| Digital / Analog |
HDMI / SDI / Composite |
HDMI 1.2
S-Video (4-pin) + Composite (BNC)
NTSC & PAL
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
17" |
| Native resolution |
1280 x 1024 |
| Brightness(cd/m²) |
250 |
| Contrast ratio (typ.) |
1000:1 |
| Max Color |
16.7 M |
| Contrast angle(L/R/U/D) |
85/85/80/80 |
| Responsive time(ms) |
5 |
| Dot pitch (mm) |
0.264 |
| Display area (mm) |
337.92H x 270.33V |
| Surface treatment |
Haze 25%,. Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
30,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 25W |
| Power saving mode |
Max. 4W |
| Power button on |
Max. 1W |

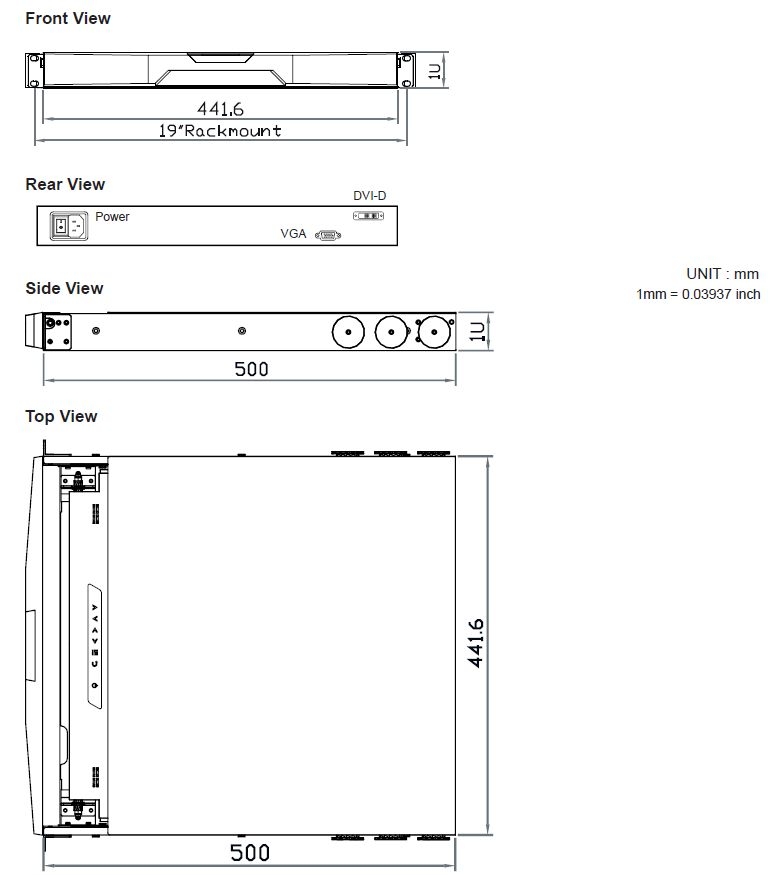

| Physical LCD Drawer |
|---|
Product
(W x D X H) |
Millimeters |
442 x 500 x 44mm |
| Inches |
17.4 X 18.9 X 1.73 inch |
Packing
(W x D X H) |
Millimeters
Inches |
588 x 758 x 120mm
23.1 x 29.8 x 4.7 inch |
Net
weight |
KGs |
10.5 kg |
| LBS |
23.1 lb |
Gross
weight |
KGs |
16.5 kg |
| LBS |
36.3 lb |

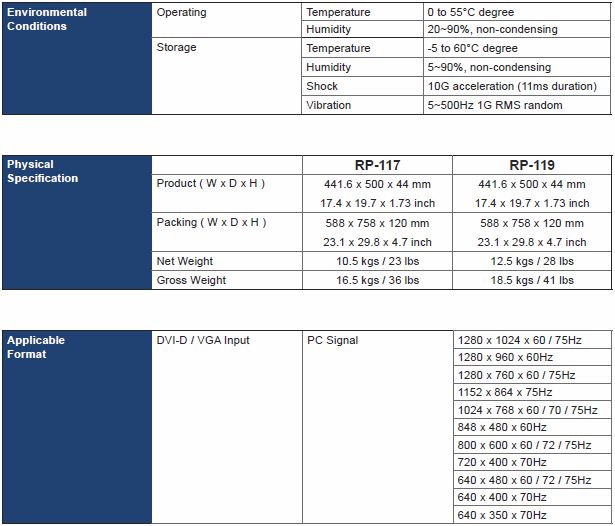

| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|

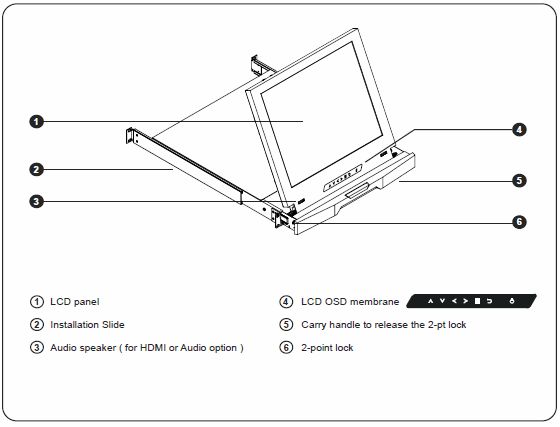

17" Rackmount LCD Drawer Features
- 1U 17" Rackmount Console w/VGA + DVI-D
- Max Resolution 1280 X 1024
- Chassis Depth 19.7"
- Mounting Depth Range 19.7" to 29.5"
- Auto Sensing 100 to 240VAC, 50 / 60Hz
- 2 Year Warranty - includes Crystal Care Service Plan
Rackmount LCD Drawer Options -
- Video: VGA + DVI-D + BNC & S-Video
- Video 2: VGA + HDMI w/Speaker
- Audio: VGA + DVI-D + Audio
- Power: 12VDC, 24VDC, 48VDC
- Warranty: Extended 3 Year Warranty
