Save $306

1U 17" Rackmount LCD Monitor

1280 × 1024 with 104-Key Notebook Keyboard, UL Certified

Be the first to review this product

Special Price from $1,069.00 Regular Price from $1,375.00 22% OFF

Part

RM-111-17

Product Information

Standard Video Input - VGA
Video Options - DVI-D, HDMI w/Speaker & SDI Input
104 Key Notebook Keyboard, Touchpad or Trackball Mouse
Includes 2 Year Warranty
Mounting Range - 18.1" to 29.5"
Chassis Depth is 20.9" when adding DVI-D + HDMI + Audio

More Information

Console Port

Resolution - 1280 X 1024

Brightness - 250 nits

Backlight - LED

Colors 16.7 M
Contrast Ratio 1000:1
Viewing Angle 170 X 160

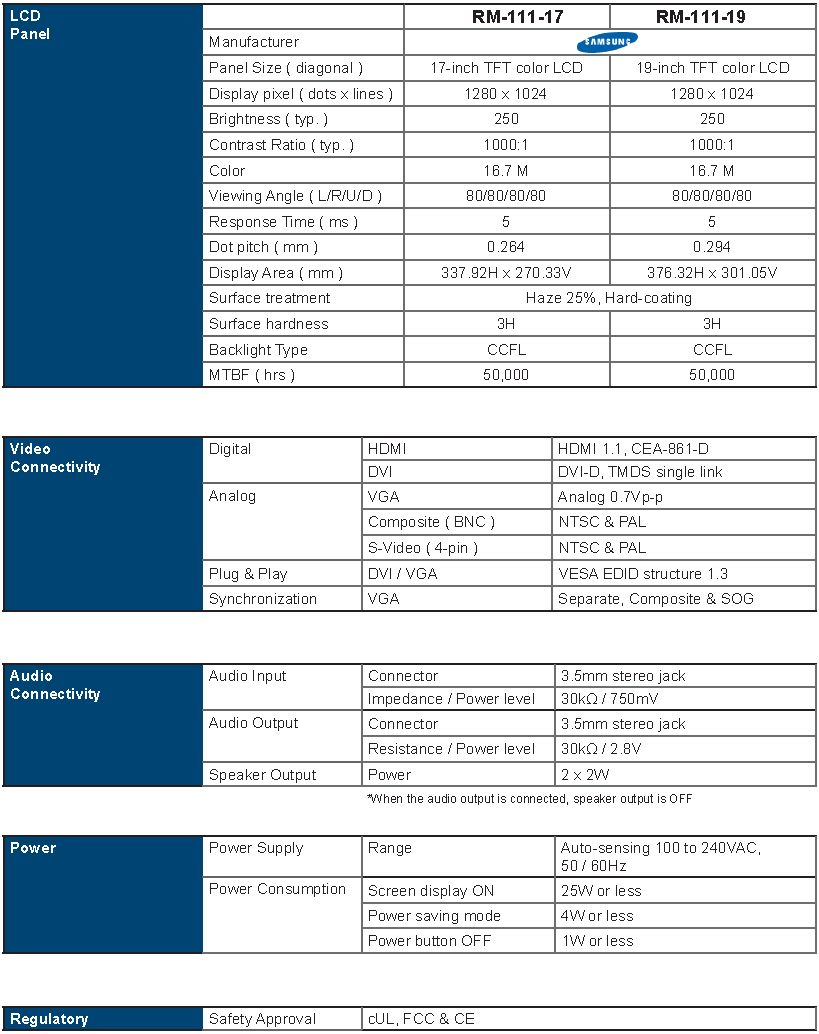

Product Specification

Console Port
Video input	VGA
KB/MS	Combo(USB or PS2)

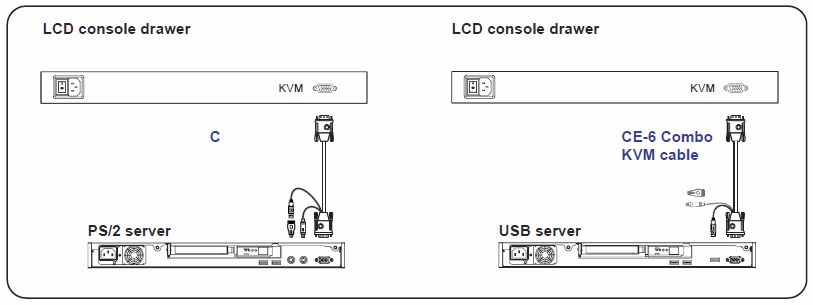

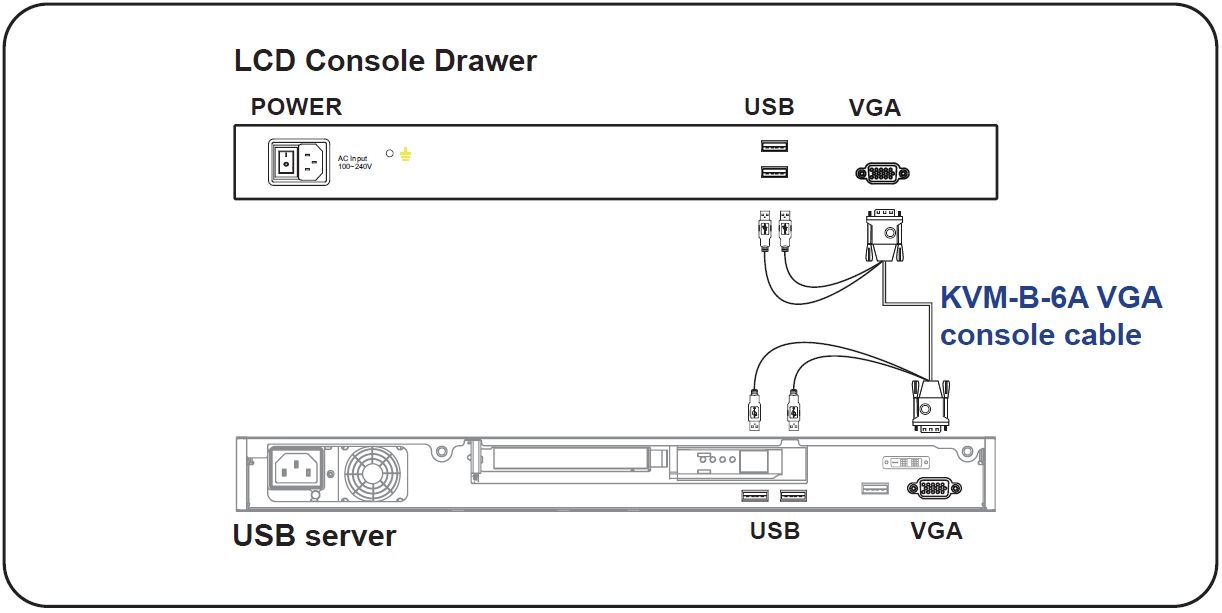

VGA console 6ft cable : CB-6	Drawer end : DB-15 ( VGA + USB KB / MS ) Server end : VGA + USB type A

Video Option
Digital	DVI	DVI-D single link
Digital	HDMI	HDMI 1.2 / HDCP 1.1
Analog	S-Video ( 4-pin )	NTSC & PAL
Analog	Composite ( BNC )	NTSC & PAL

LCD Panel	RM-111-17	RM-111-19
Panel size ( diagonal )	17"	19"
Native resolution	1280 x 1024	1280 x 1024
Brightness ( cd/m² )	250	250
Contrast ratio ( typ. )	1000 : 1	1000 : 1
Colors	16.7 M	16.7 M
Viewing angle ( L/R/U/D )	85/85/80/80	85/85/80/80
Panel Response time ( ms )	5	5
Dot pitch ( mm )	0.264	0.294
Display area ( mm )	337.92H x 270.33V	376.32H x 270.33V
Surface treatment	Haze 25%, Hard-coating
Surface hardness	3H
Backlight type	LED
MTBF (hrs)	30,000

Audio Option
Input	Connector	3.5mm stereo jack
Input	Impedance / Power level	30kQ / 750mV
Output	Connector	3.5mm stereo jack
Output	Resistance / Power level	30kQ / 2.8V
Speaker	Dual stereo	2W x 2

Power
Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption (console / KVM)	Screen on	Max. 25W / Max. 55W
	Power saving mode	Max. 4W / Max. 34W
	Power button on	Max. 1W / Nil

Physical		RM-111-17	RM-111-19
Product ( W x D x H )	Single console	442 x 460 x 44 mm 17.4 x 18.1 x 1.73 inch	442 x 500 x 44 mm 17.4 x 19.7 x 1.73 inch
Product ( W x D x H )	Console w/ KVM	442 x 580 x 44 mm 17.4 x 22.8 x 1.73 inch	442 x 620 x 44 mm 17.4 x 24.4 x 1.73 inch
Packing ( W x D x H )	Single console / Console w/ KVM	590 x 808 x 140 mm 23.2 x 31.8 x 5.5 inch	590 x 808 x 140 mm 23.2 x 31.8 x 5.5 inch
Net weight	Single console	12 kg / 26.4 lb	12.7 kg / 27.9 lb
Net weight	Console w/ KVM	13 kg / 28.6 lb	13.7 kg / 30.1 lb
Gross weight	Single console	16.6 kg / 36.5 lb	17.3 kg / 38.1 lb
Gross weight	Console w/ KVM	19 kg / 41.8 lb	19.7 kg / 43.3 lb

Environment
Operating temp.	-20 to 65°C degree
Strorage temp	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating alttiude	16,000 ft
Non-operating attude	40,000 ft
Shock	10G acceleration ( 11ms duration )
Vibration	10~300Hz 0.5G RMS random vibration

Mounting Distance	RM-111-17	RM-111-19
Single console drawer	470 ~ 700 mm 18.5 ~ 27.6 inch	510 ~ 740 mm 20.1 ~ 29.1 inch
Console w/ KVM drawer	470 ~ 800 mm 18.5 ~ 31.5 inch	510 ~ 840 mm 20.1 ~ 33.1 inch

Compliance
EMC	FCC, CE & CCC certified
Safety	c UL us, CE / LVD & CCC certified
Environment	RoHS2 & REACH compliant

Configure Your Unit

Keyboard Options

Video Options

Chassis Mounting Depth

Touch Screen

Power Supply Options

Front USB Accessory HUB

Warranty

Qty

Download technical documents

Rackmount Monitor Specifications

Rackmount Monitor User Manual

24/7 Support

Fast, professional support

Extended Return Period

30 days return policy

Custom Solutions

Skip to the end of the images gallery

Skip to the beginning of the images gallery

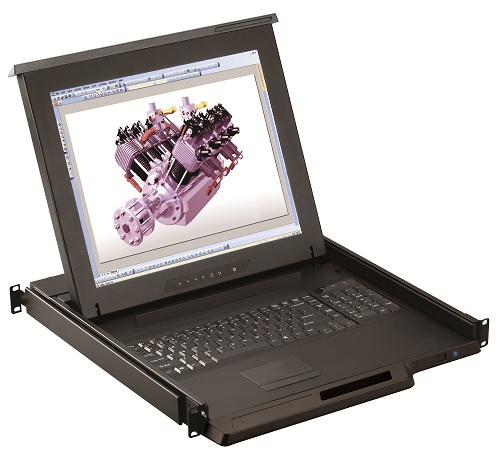

1U 17" LCD Rackmount Monitor, Touchpad or Trackball - UL Certified (Part#RM-111-17)

1 / 8

Product Specification

Console Port
Video input	VGA
KB/MS	Combo(USB or PS2)
VGA console 6ft cable : CB-6	Drawer end : DB-15 ( VGA + USB KB / MS ) Server end : VGA + USB type A

Video Option
Digital	DVI	DVI-D single link
Digital	HDMI	HDMI 1.2 / HDCP 1.1
Analog	S-Video ( 4-pin )	NTSC & PAL
Analog	Composite ( BNC )	NTSC & PAL

LCD Panel	RM-111-17	RM-111-19
Panel size ( diagonal )	17"	19"
Native resolution	1280 x 1024	1280 x 1024
Brightness ( cd/m² )	250	250
Contrast ratio ( typ. )	1000 : 1	1000 : 1
Colors	16.7 M	16.7 M
Viewing angle ( L/R/U/D )	85/85/80/80	85/85/80/80
Panel Response time ( ms )	5	5
Dot pitch ( mm )	0.264	0.294
Display area ( mm )	337.92H x 270.33V	376.32H x 270.33V
Surface treatment	Haze 25%, Hard-coating
Surface hardness	3H
Backlight type	LED
MTBF (hrs)	30,000

Audio Option
Input	Connector	3.5mm stereo jack
Input	Impedance / Power level	30kQ / 750mV
Output	Connector	3.5mm stereo jack
Output	Resistance / Power level	30kQ / 2.8V
Speaker	Dual stereo	2W x 2

Power
Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption (console / KVM)	Screen on	Max. 25W / Max. 55W
	Power saving mode	Max. 4W / Max. 34W
	Power button on	Max. 1W / Nil

Physical		RM-111-17	RM-111-19
Product ( W x D x H )	Single console	442 x 460 x 44 mm 17.4 x 18.1 x 1.73 inch	442 x 500 x 44 mm 17.4 x 19.7 x 1.73 inch
Product ( W x D x H )	Console w/ KVM	442 x 580 x 44 mm 17.4 x 22.8 x 1.73 inch	442 x 620 x 44 mm 17.4 x 24.4 x 1.73 inch
Packing ( W x D x H )	Single console / Console w/ KVM	590 x 808 x 140 mm 23.2 x 31.8 x 5.5 inch	590 x 808 x 140 mm 23.2 x 31.8 x 5.5 inch
Net weight	Single console	12 kg / 26.4 lb	12.7 kg / 27.9 lb
Net weight	Console w/ KVM	13 kg / 28.6 lb	13.7 kg / 30.1 lb
Gross weight	Single console	16.6 kg / 36.5 lb	17.3 kg / 38.1 lb
Gross weight	Console w/ KVM	19 kg / 41.8 lb	19.7 kg / 43.3 lb

Environment
Operating temp.	-20 to 65°C degree
Strorage temp	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating alttiude	16,000 ft
Non-operating attude	40,000 ft
Shock	10G acceleration ( 11ms duration )
Vibration	10~300Hz 0.5G RMS random vibration

Mounting Distance	RM-111-17	RM-111-19
Single console drawer	470 ~ 700 mm 18.5 ~ 27.6 inch	510 ~ 740 mm 20.1 ~ 29.1 inch
Console w/ KVM drawer	470 ~ 800 mm 18.5 ~ 31.5 inch	510 ~ 840 mm 20.1 ~ 33.1 inch

Compliance
EMC	FCC, CE & CCC certified
Safety	c UL us, CE / LVD & CCC certified
Environment	RoHS2 & REACH compliant

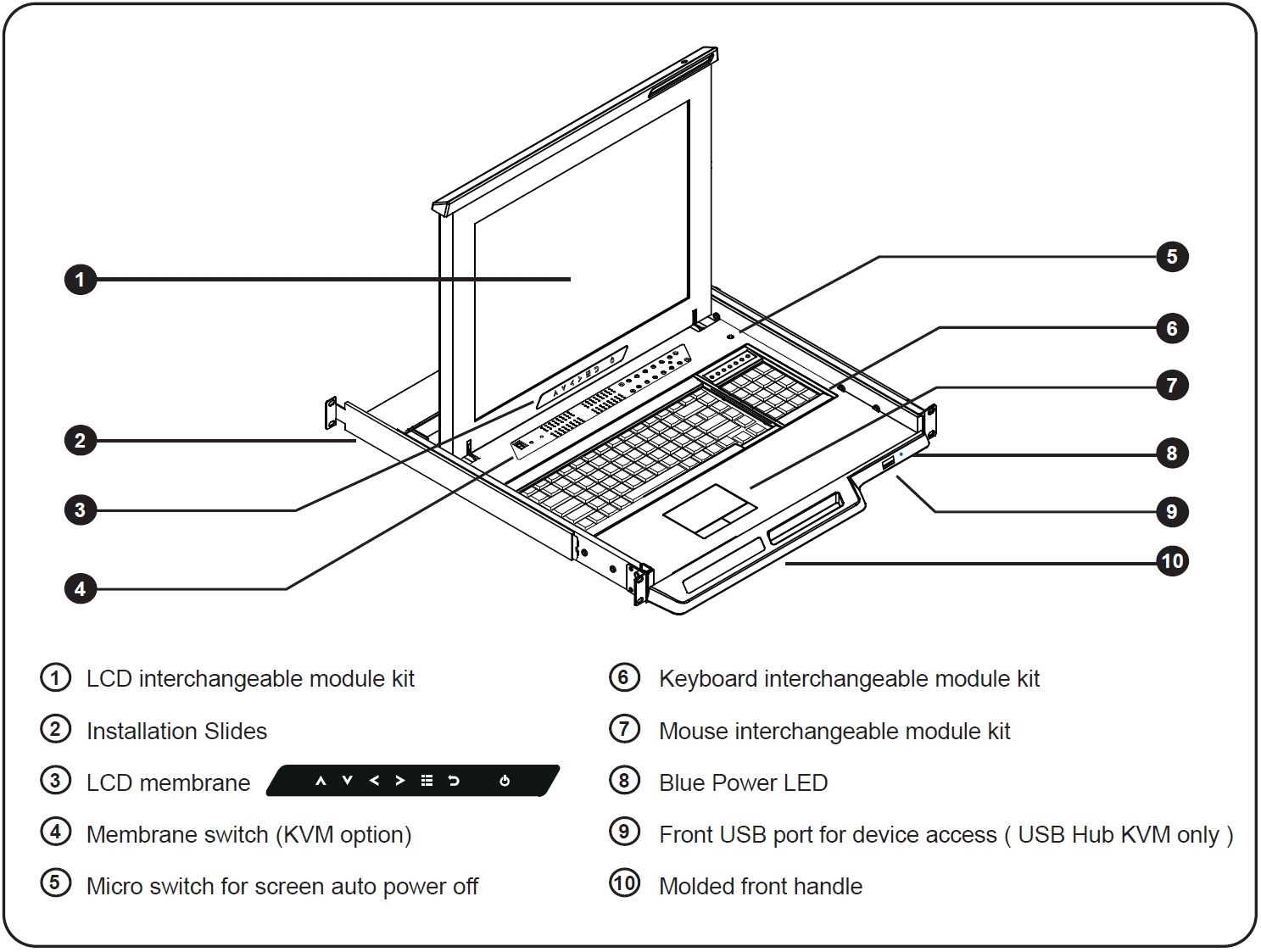

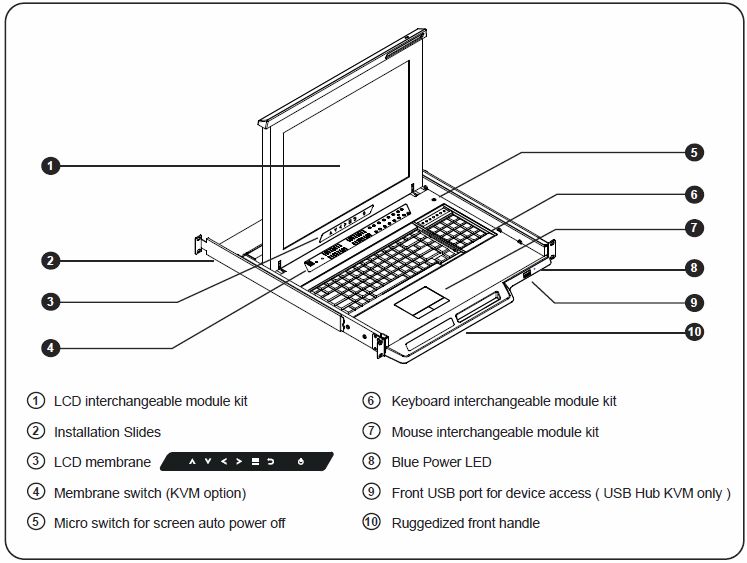

Rack Mount Monitor Features

1U 17" 1280 X 1024 LCD Rackmount Monitor Drawer
104 Key Notebook Keyboard with Touchpad or Trackball Mouse
Rack Mount Monitor Chassis Depth 18.1"
(Chassis Depth exends to 20.9" with VGA + HDMI + DVI + Audio)
Mounting Range 18.1" to 30" Depth
2 Post Relay Rack Mounting Available
Front USB port for peripherals (with USB HUB KVM Switch)
2 Year Warranty
Rackmount LCD Options -

Video: DVI-D + HDMI + Audio
Power: 12VDC, 24VDC, 48VDC
Touchscreen: Resistive or Capacitive (1.5U Chassis )
Warranty: Extended 3 Year Warranty

Rackmount Monitor Specifications

Rackmount Monitor User Manual
