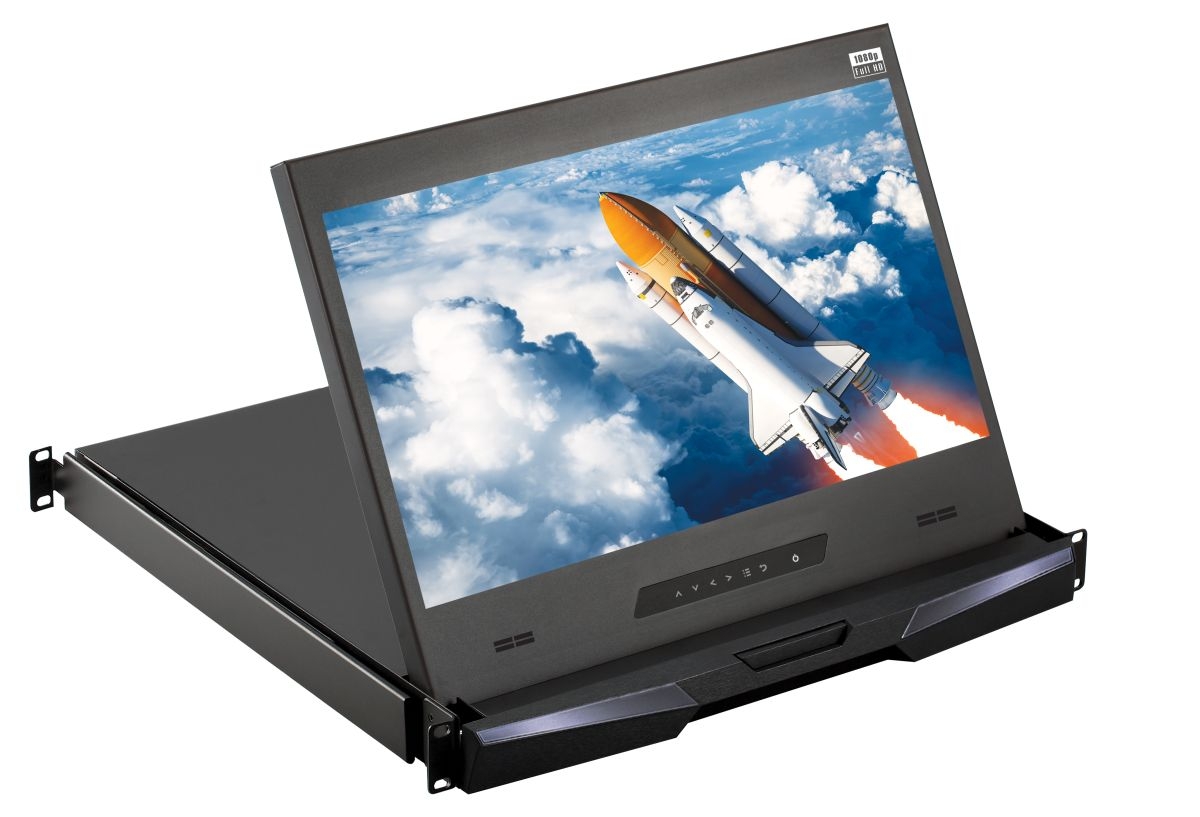

1U 17" High Resolution (1920 X 1080) LCD Rackmount Drawer - (Part#RMD-151-F17)
Special Price
from $1,091.00
Regular Price
from $1,363.75
- 18.9" Chassis Depth (17.5" Mounting Depth)
- VGA + HDMI Video Input
- Option - DVI-D, DP, BNC + Audio IN, 3G-SDI
- Option - Resistive Touchscreen
More Information

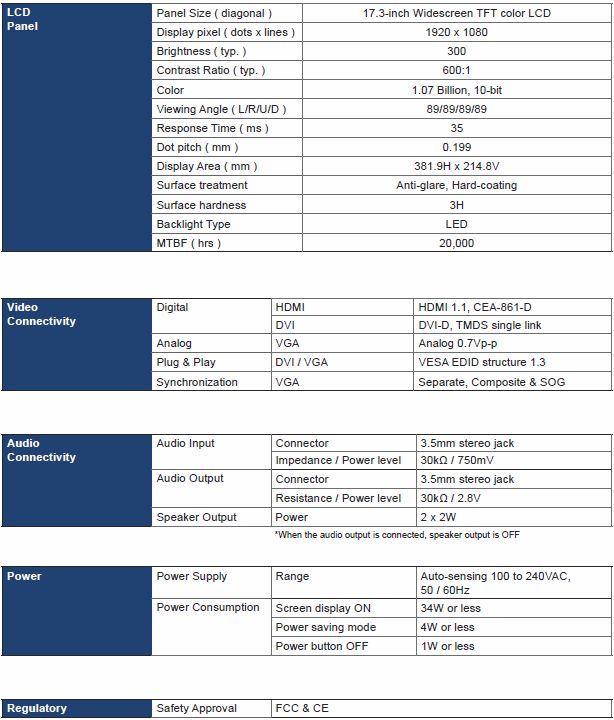

| Product Specification |
Product Specification
| LCD Drawer Video Input |
|---|
| Video input |
VGA + DVI-D single link |
| Optional |
3G / HD / SD-SDI Broadcast Grade Input |
| VGA Cable - 6ft cable : or DVI - 6ft cable : |
6' VGA Cable (default cable) |
| 6' DVI Cable (optional) |
| Video Option |
|---|
| Digital |
HDMI |
HDMI 1.3 / HDCP 1.1 |
| LCD Panel |
|---|
| Panel Size (diagonal) |
17.3" |
| Native resolution |
1920 x 1080 |
| Brightness(cd/m²) |
400 |
| Contrast ratio (typ.) |
600:1 |
| Max Color |
16.7 M, 8-bit |
| Contrast angle(L/R/U/D) |
80/80/60/80 |
| Responsive time(ms) |
40 |
| Dot pitch (mm) |
0.1989 |
| Display area (mm) |
381.888H x 214.812V |
| Surface treatment |
Anti- glare. Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
50,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 29W / Max. 38W |
| Power saving mode |
Max. 9W / Max. 18W |
| Power button on |
Max. 2W / Nil |

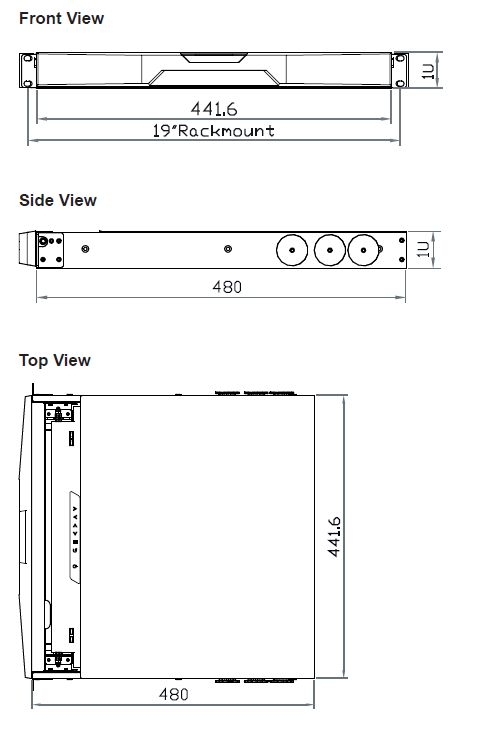

| Physical |
|---|
Product
(W x D X H) |
1U LCD Drawer |
442 x 480 x 44mm
17.4 x 18.9 x 1.73 inch |
| No KVM Option |
|
Packing
(W x D X H) |
1U LCD Drawer |
588 x 758 x 120mm
23.1 x 29.8 x 4.7 inch |
Net
weight |
1U LCD Drawer |
11 kg / 24.2 lb |
| |
|
Gross
weight |
1U LCD Drawer |
15 kg / 33 lb |
| |
|
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Mounting Distance |
|---|
| Single console drawer |
470 ~ 700 mm
18.5 ~ 27.6 inch |
| Console W/ KVM drawer |
470 ~ 800mm
18.5 ~ 31.5 inch
|
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|

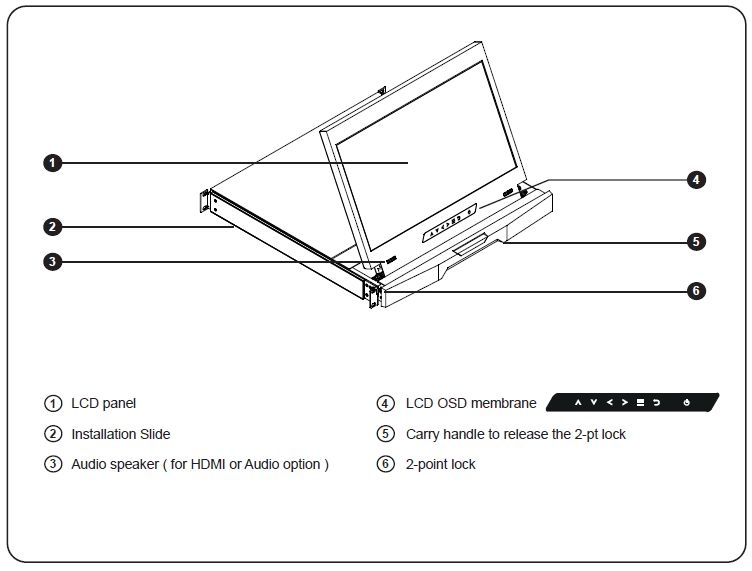

High Resolution Rackmount LCD Drawer Features
- 1U 17" Wide Screen Console VGA + HDMI
- PIP & Picture by Picture viewing efficiency
- Resolution 1920 X 1080
- Green LED Backlit Panel Technology
- Chassis Depth 18.9"
- 2 Year Warranty - includes Crystal Care Service Plan
Options -
- Video: DVI-D, DP, BNC + Audio IN
- Broadcast: 3G / HD / SD-SDI Broadcast Grade Input
- Power: 12VDC, 24VDC, 48VDC
- Touchscreen: Resistive only
- Warranty: Extended 3 Year Warranty
Rear Chassis With VGA + DVI-D + HDMI + Audio -
