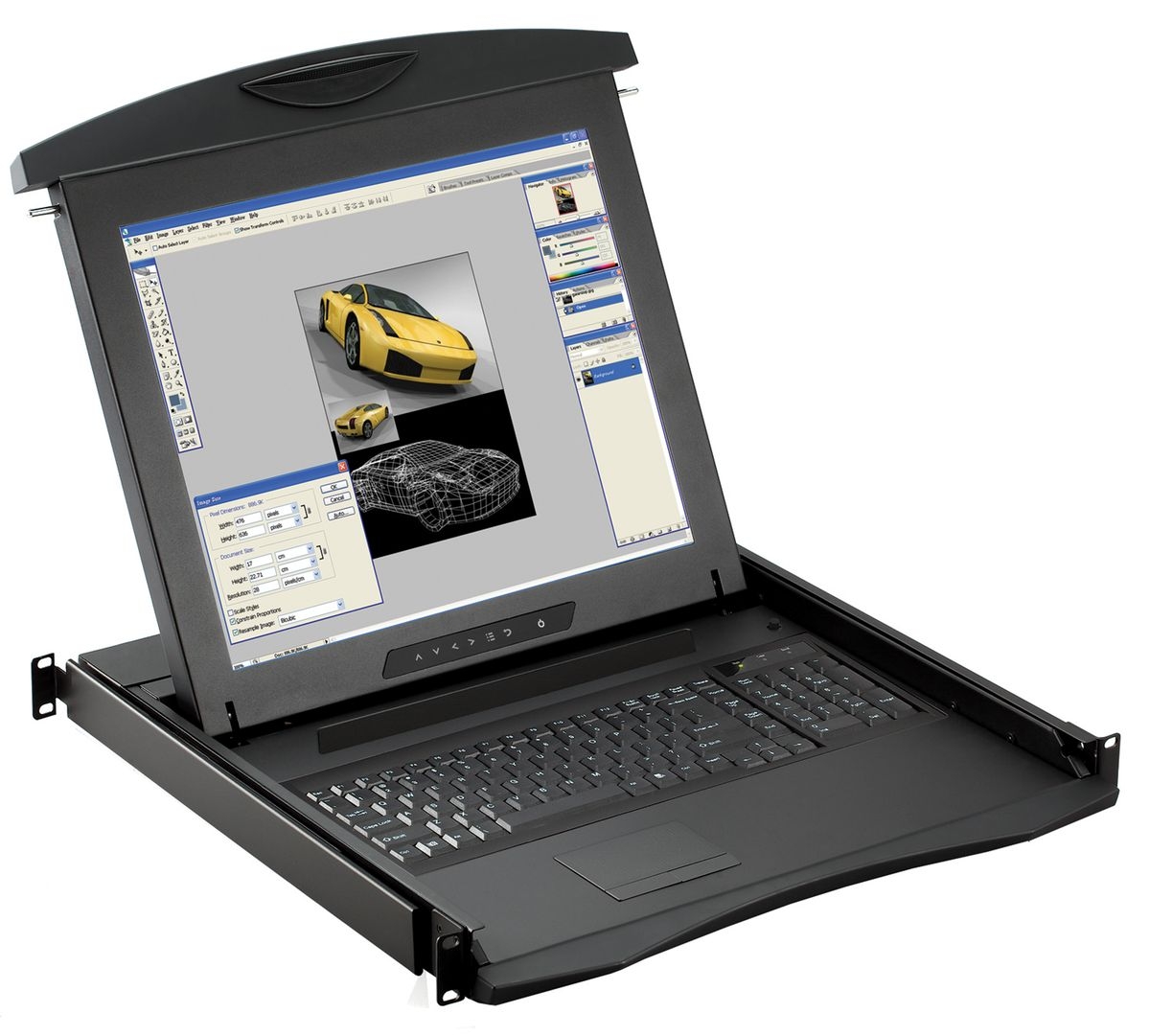

1U 19" Diamond Series Rackmount Monitor with 8 Port USB KVM Switch, SUN & iMAC Compatible (Part#DS-148-19-801)
Special Price
$1,698.00
Regular Price
$1,829.00
- 1280 X 1024 Resolution - VGA Input
- 104 Key Notebook Keyboard - Touchpad or Trackball Mouse

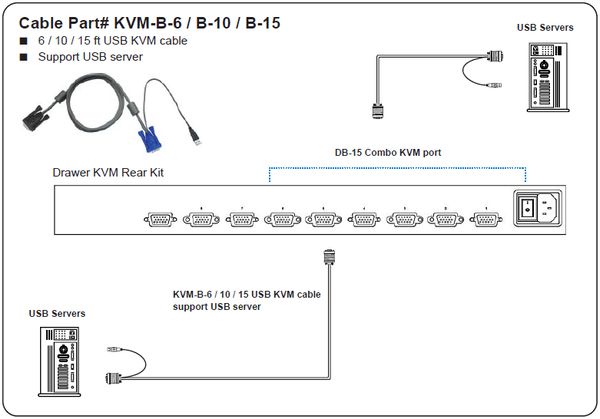

- Integrated 8 Port USB KVM Switch, includes 8, 6' VGA / USB Cables, Optional 16 Port
- Mounting Range - 20.1" to 33.1" (Physical Chassis Depth - 24.4")
More Information
Product Specification |
Product Specification
Console Port |
Video input |
VGA |
KB/MS |
Combo(USB or PS2) |
VGA console 6ft cable : CB-6 |
Drawer end : DB-15 ( VGA + USB KB / MS ) Server end : VGA + USB type A |
Video Option |
Digital |
DVI |
DVI-D single link |
HDMI |
HDMI 1.2 / HDCP 1.1 |
Analog |
S-Video ( 4-pin ) |
NTSC & PAL |
Composite ( BNC ) |
NTSC & PAL |
LCD Panel | DS-111-17 | DS-111-19 |
Panel size ( diagonal ) |
17" |
19" |
Native resolution |
1280 x 1024 |
1280 x 1024 |
Brightness ( cd/m² ) |
250 |
250 |
Contrast ratio ( typ. ) |
1000 : 1 |
1000 : 1 |
Colors |
16.7 M |
16.7 M |
Viewing angle ( L/R/U/D ) |
85/85/80/80 |
85/85/80/80 |
Panel Response time ( ms ) |
5 |
5 |
Dot pitch ( mm ) |
0.264 |
0.294 |
Display area ( mm ) |
337.92H x 270.33V |
376.32H x 270.33V |
Surface treatment |
Haze 25%, Hard-coating |
Surface hardness |
3H |
Backlight type |
LED |
MTBF (hrs) |
30,000 |
Audio Option |
Input |
Connector |
3.5mm stereo jack |
Impedance / Power level |
30kQ / 750mV |
Output |
Connector |
3.5mm stereo jack |
Resistance / Power level |
30kQ / 2.8V |
Speaker |
Dual stereo |
2W x 2 |
Power |
Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
Consumption (console / KVM) |
Screen on |
Max. 25W / Max. 55W |
Power saving mode |
Max. 4W / Max. 34W |
Power button on |
Max. 1W / Nil |
Physical | DS-111-17 | DS-111-19 |
Product ( W x D x H ) |
Single console |
442 x 500 x 44 mm 17.4 x 19.7 x 1.73 inch |
442 x 500 x 44 mm 17.4 x 19.7 x 1.73 inch |
Console w/ KVM |
442 x 620 x 44 mm 17.4 x 24.4 x 1.73 inch |
442 x 620 x 44 mm 17.4 x 24.4 x 1.73 inch |
Packing ( W x D x H ) |
Single console / Console w/ KVM |
590 x 808 x 140 mm 23.2 x 31.8 x 5.5 inch |
590 x 808 x 140 mm 23.2 x 31.8 x 5.5 inch |
Net weight |
Single console |
12.3 kg / 27.1 lb |
12.5 kg / 27.5 lb |
Console w/ KVM |
13.3 kg / 29.2 lb |
13.5 kg / 29.7 lb |
Gross weight |
Single console |
16.8 kg / 37 lb |
17 kg / 37.4 lb |
Console w/ KVM |
18.2 kg / 40 lb |
18.4 kg / 40.5 lb |
Environment |
Operating temp. |
-20 to 65°C degree |
Strorage temp |
-20 to 60°C degree |
Operating humidity |
20~90%, non-condensing |
Storage humidity |
5 ~90%, non-condensing |
Operating alttiude |
16,000 ft |
Non-operating attude |
40,000 ft |
Shock |
10G acceleration ( 11ms duration ) |
Vibration |
10~300Hz 0.5G RMS random vibration |
Mounting Distance | DS-111-17 | DS-111-19 |
Single console drawer |
510 ~ 740 mm 20.1 ~ 29.1 inch |
510 ~ 740 mm 20.1 ~ 29.1 inch |
Console w/ KVM drawer |
470 ~ 800 mm 20.1 ~ 33.1 inch |
510 ~ 840 mm 20.1 ~ 33.1 inch |
Compliance |
EMC |
FCC, CE & CCC certified |
Safety |
c UL us, CE / LVD & CCC certified |
Environment |
RoHS2 & REACH compliant |
|
1U 19" Diamond Series Rackmount Monitor Features
19" Rackmount LCD Options -
- Video: DVI-D or HDMI, BNC & S-Video
- Audio: Add integrated speakers
- Power: 12VDC, 24VDC, 48VDC
- Touchscreen: Resistive or Capacitive
- Warranty: Extended 3 Year Warranty
8 Port KVM Switch Features
- Includes 8, 6' USB / PS/2 / VGA to DB-15 Cables
- Supports up to 1600 X 1200 Resolution
- Supports native SUN 1152 X 900 Resolution
- Mix PC's, SUN and Mac G3 / G4 Mac / iMac / Windows 7 / Vista / 2003 / Linux / Unix
KVM Switch Specifications
KVM Switch User Manual
