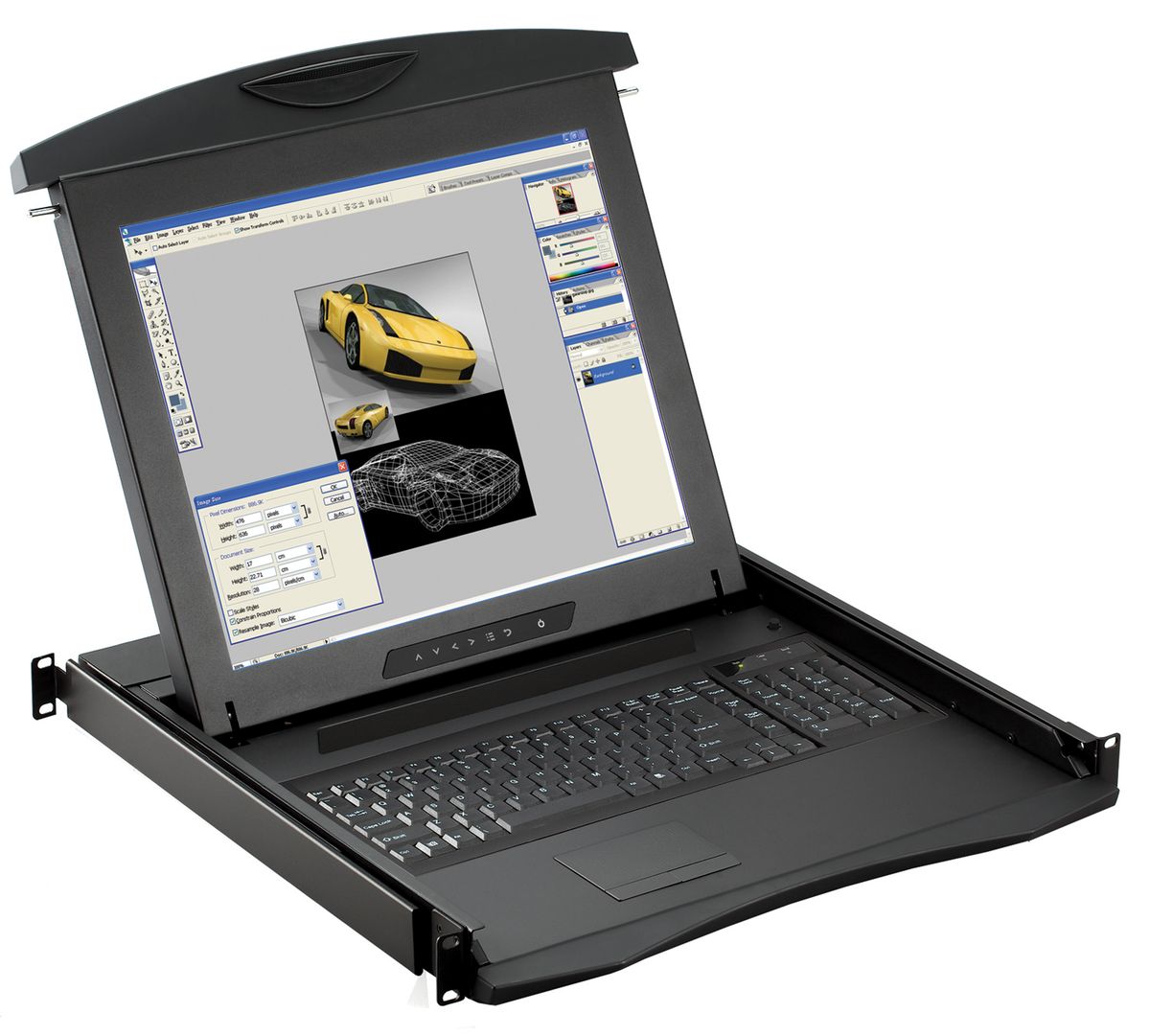

1U 19" Diamond Series Rackmount Monitor with Cat5 KVM over IP (Part#DS-147-19-Cat5-IP16)
- 1U 19" Rackmount Monitor with 16 Port Cat6 KVM Switch
- 1280 X 1024 Resolution
- 1 Local Console, 1 Remote KVM Over IP Console
- Select VGA, DVI, HDMI, DP, or USB-C Cat5 Dongles
- Includes Exclusive Crystal Care Service Plan
- Click Here for Cat5 KVM Switch Dongles
Rackmount Monitor Features
1U 19" 1280 X 1024 LCD Rackmount Monitor Drawer
104 Key Notebook Keyboard with Touchpad or Trackball Mouse
Single person mounting slides for quick easy installation. Rack Mount Monitor Chassis Depth 25.6"
Rugged molded front handle with 2 pt quick release latch
All Rackmount LCD Mounting hardware included
KVM Switch Features

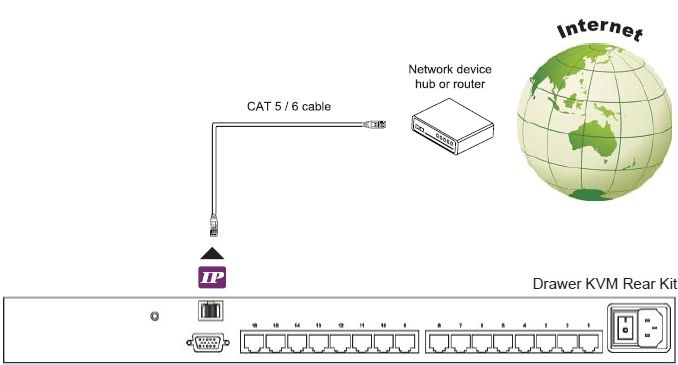

16 Port Cat5 IP KVM Switch Integrated into 1U Rackmount Monitor chassis
1 Local Console, 1 Remote KVM Over IP Console
MAC, SUN, IBM, DELL, HP Compatible
Power - 100 ~ 240VAC, 50 / 60Hz via IEC type cord
Options - Downloads -
Video Option: DVI-D : BNC & S-Video KVM Switch Specifications
Audio Option: Add integrated speakers Rackmount Monitor Specifications
Power Option: 12VDC, 24VDC, 48VDC
Touchscreen: Resistive Touchscreen (USB)
Dongles - Cat5 KVM Switch Dongles ordered seperately
