Save $171

1U 19" LCD Rackmount Monitor

With Real Optical Mini Mouse

Be the first to review this product

Special Price from $1,434.00 Regular Price from $1,605.00 11% OFF

Part

RM-114-19

Product Information

Standard Video Input - VGA
Video Option - DVI-D, HDMI w/Speaker & SDI Input
104 Key Notebook Keyboard with USB Optical Mouse
Includes 2 Year Warranty
Mounting Range - 25.6" to 34.3"

More Information

Product Specification

Console Port
Video input	VGA
KB/MS	True Optical Mouse

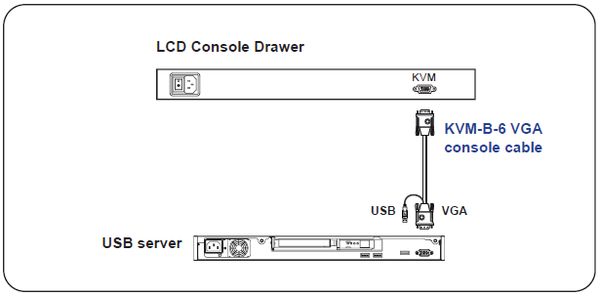

VGA console 6ft cable : CB-6	Drawer end : DB-15 ( VGA + USB KB / MS ) Server end : VGA + USB type A

Video Option
Digital	DVI	DVI-D single link
Digital	HDMI	HDMI 1.2 / HDCP 1.1
Analog	S-Video ( 4-pin )	NTSC & PAL
Analog	Composite ( BNC )	NTSC & PAL

LCD Panel	RM-114-17	RM-114-19
Panel size ( diagonal )	17"	19"
Native resolution	1280 x 1024	1280 x 1024
Brightness ( cd/m² )	250	250
Contrast ratio ( typ. )	1000 : 1	1000 : 1
Colors	16.7 M	16.7 M
Viewing angle ( L/R/U/D )	85/85/80/80	85/85/80/80
Panel Response time ( ms )	5	5
Dot pitch ( mm )	0.264	0.294
Display area ( mm )	337.92H x 270.33V	376.32H x 270.33V
Surface treatment	Haze 25%, Hard-coating
Surface hardness	3H
Backlight type	LED
MTBF (hrs)	30,000

Audio Option
Input	Connector	3.5mm stereo jack
Input	Impedance / Power level	30kQ / 750mV
Output	Connector	3.5mm stereo jack
Output	Resistance / Power level	30kQ / 2.8V
Speaker	Dual stereo	2W x 2

Power
Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption (console / KVM)	Screen on	Max. 25W / Max. 55W
	Power saving mode	Max. 4W / Max. 34W
	Power button on	Max. 1W / Nil

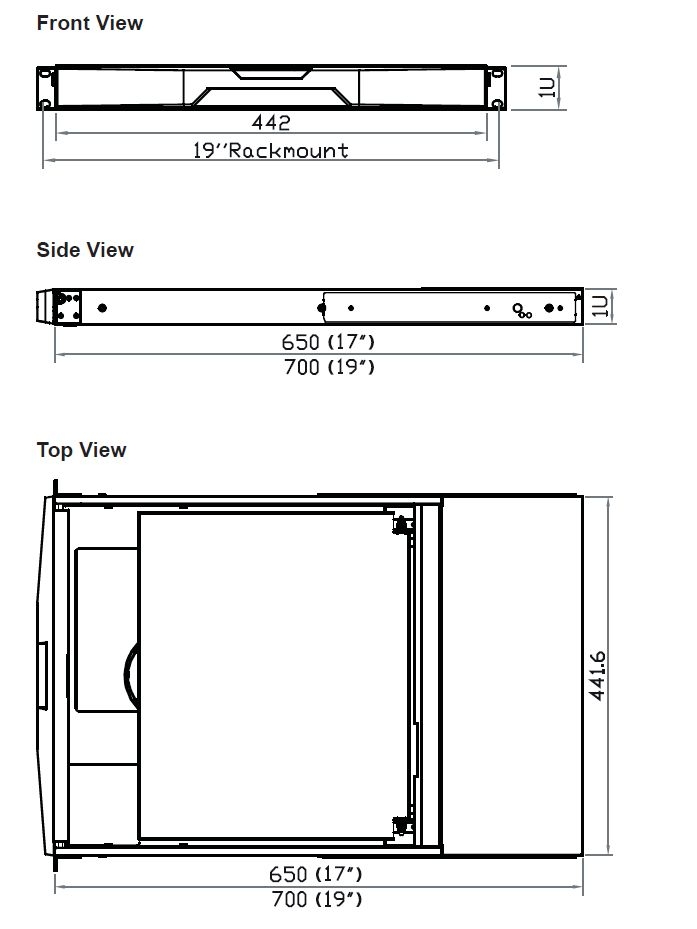

Physical		RM-114-17	RM-114-19
Product ( W x D x H )	Single console	442 x 650 x 44 mm 17.4 x 25.6 x 1.73 inch	442 x 700 x 44 mm 17.4 x 27.6 x 1.73 inch
Product ( W x D x H )	Console w/ KVM	442 x 580 x 44 mm 17.4 x 25.6 x 1.73 inch	442 x 620 x 44 mm 17.4 x 27.6 x 1.73 inch
Packing ( W x D x H )	Single console / Console w/ KVM	595 x 860 x 140 mm 23.4 x 33.9 x 5.5 inch	595 x 860 x 140 mm 23.4 x 33.9 x 5.5 inch
Net weight	Single console	14.3 kg / 31.5 lb	15.3 kg / 33.7 lb
Net weight	Console w/ KVM	19.1 kg / 42 lb	20.1 kg / 44.2 lb
Gross weight	Single console	15.3 kg / 33.7 lb	16.3 kg / 35.9 lb
Gross weight	Console w/ KVM	21.1 kg / 46.4 lb	22.1 kg / 48.6 lb

Environment
Operating temp.	-20 to 65°C degree
Strorage temp	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating alttiude	16,000 ft
Non-operating attude	40,000 ft
Shock	10G acceleration ( 11ms duration )
Vibration	10~300Hz 0.5G RMS random vibration

Mounting Distance	RM-114-17	RM-114-19
Single console drawer	660 ~ 870 mm 26 ~ 34.3 inch	710 ~ 920 mm 28 ~ 36.2 inch
Console w/ KVM drawer	660 ~ 870 mm 26 ~ 34.3 inch	710 ~ 920 mm 28 ~ 36.2 inch

Compliance
EMC	FCC, CE & CCC certified
Safety	c UL us, CE / LVD & CCC certified
Environment	RoHS2 & REACH compliant

Configure Your Unit

Video Options

Warranty

Power Supply Options

Qty

Download technical documents

Rackmount Monitor Specifications

Rackmount Monitor User Manual

24/7 Support

Fast, professional support

Extended Return Period

30 days return policy

Custom Solutions

Skip to the end of the images gallery

Skip to the beginning of the images gallery

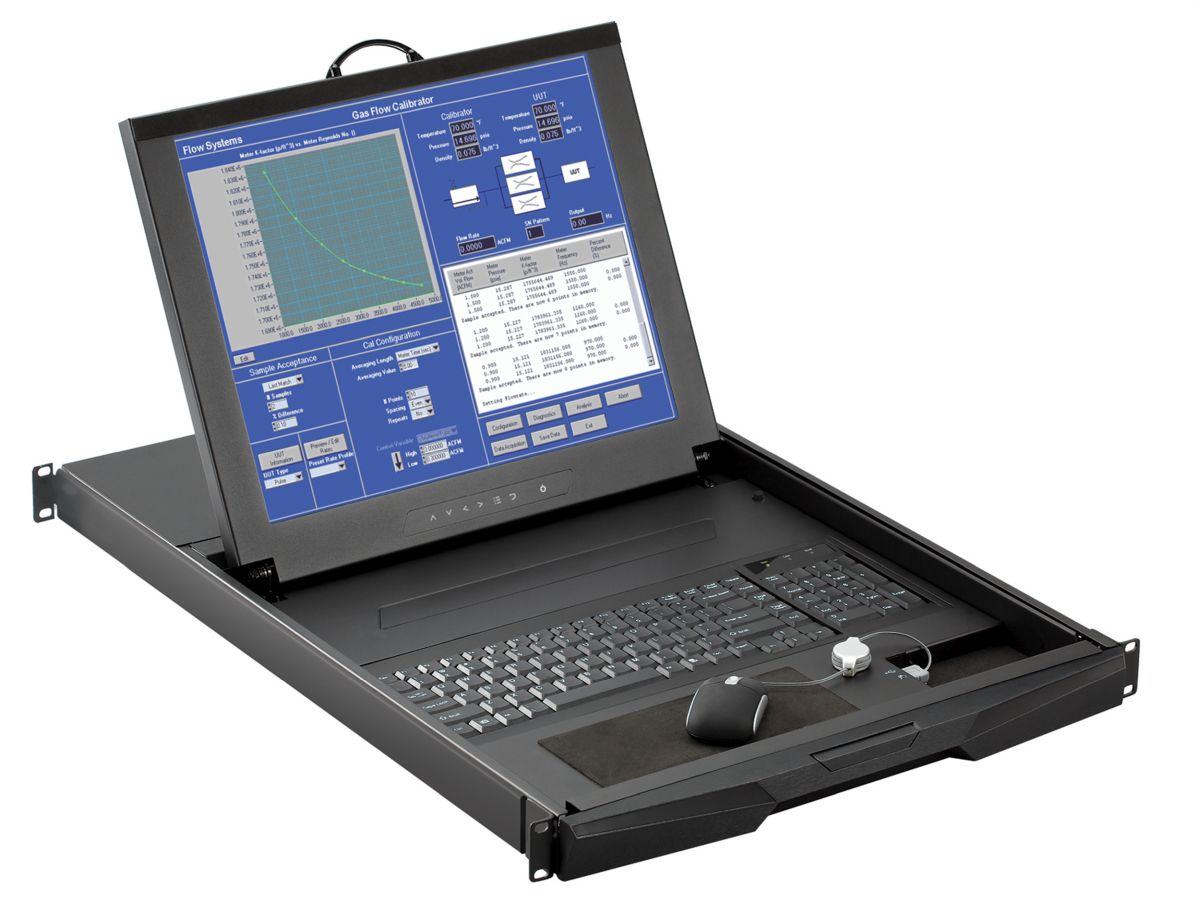

1U 19" Rackmount Monitor with Optical Mouse

1 / 5

Product Specification

Console Port
Video input	VGA
KB/MS	True Optical Mouse
VGA console 6ft cable : CB-6	Drawer end : DB-15 ( VGA + USB KB / MS ) Server end : VGA + USB type A

Video Option
Digital	DVI	DVI-D single link
Digital	HDMI	HDMI 1.2 / HDCP 1.1
Analog	S-Video ( 4-pin )	NTSC & PAL
Analog	Composite ( BNC )	NTSC & PAL

LCD Panel	RM-114-17	RM-114-19
Panel size ( diagonal )	17"	19"
Native resolution	1280 x 1024	1280 x 1024
Brightness ( cd/m² )	250	250
Contrast ratio ( typ. )	1000 : 1	1000 : 1
Colors	16.7 M	16.7 M
Viewing angle ( L/R/U/D )	85/85/80/80	85/85/80/80
Panel Response time ( ms )	5	5
Dot pitch ( mm )	0.264	0.294
Display area ( mm )	337.92H x 270.33V	376.32H x 270.33V
Surface treatment	Haze 25%, Hard-coating
Surface hardness	3H
Backlight type	LED
MTBF (hrs)	30,000

Audio Option
Input	Connector	3.5mm stereo jack
Input	Impedance / Power level	30kQ / 750mV
Output	Connector	3.5mm stereo jack
Output	Resistance / Power level	30kQ / 2.8V
Speaker	Dual stereo	2W x 2

Power
Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption (console / KVM)	Screen on	Max. 25W / Max. 55W
	Power saving mode	Max. 4W / Max. 34W
	Power button on	Max. 1W / Nil

Physical		RM-114-17	RM-114-19
Product ( W x D x H )	Single console	442 x 650 x 44 mm 17.4 x 25.6 x 1.73 inch	442 x 700 x 44 mm 17.4 x 27.6 x 1.73 inch
Product ( W x D x H )	Console w/ KVM	442 x 580 x 44 mm 17.4 x 25.6 x 1.73 inch	442 x 620 x 44 mm 17.4 x 27.6 x 1.73 inch
Packing ( W x D x H )	Single console / Console w/ KVM	595 x 860 x 140 mm 23.4 x 33.9 x 5.5 inch	595 x 860 x 140 mm 23.4 x 33.9 x 5.5 inch
Net weight	Single console	14.3 kg / 31.5 lb	15.3 kg / 33.7 lb
Net weight	Console w/ KVM	19.1 kg / 42 lb	20.1 kg / 44.2 lb
Gross weight	Single console	15.3 kg / 33.7 lb	16.3 kg / 35.9 lb
Gross weight	Console w/ KVM	21.1 kg / 46.4 lb	22.1 kg / 48.6 lb

Environment
Operating temp.	-20 to 65°C degree
Strorage temp	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating alttiude	16,000 ft
Non-operating attude	40,000 ft
Shock	10G acceleration ( 11ms duration )
Vibration	10~300Hz 0.5G RMS random vibration

Mounting Distance	RM-114-17	RM-114-19
Single console drawer	660 ~ 870 mm 26 ~ 34.3 inch	710 ~ 920 mm 28 ~ 36.2 inch
Console w/ KVM drawer	660 ~ 870 mm 26 ~ 34.3 inch	710 ~ 920 mm 28 ~ 36.2 inch

Compliance
EMC	FCC, CE & CCC certified
Safety	c UL us, CE / LVD & CCC certified
Environment	RoHS2 & REACH compliant

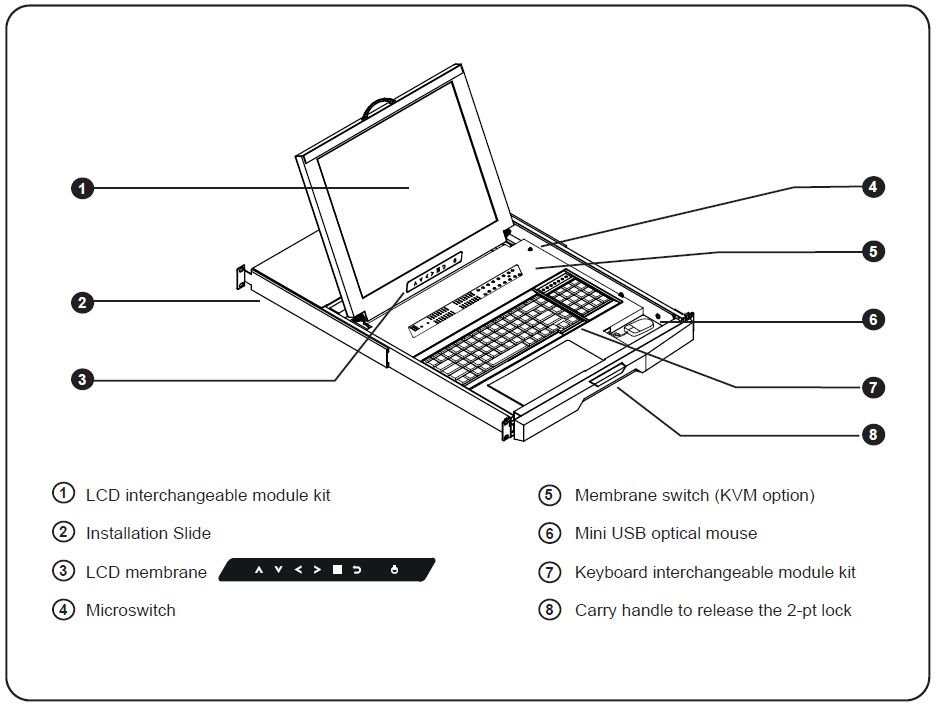

Rackmount Monitor With Mini USB Optical Mouse Features

1U 19" Samsung 1280 X 1024 LCD Rackmount Monitor Drawer
Built in mouse pad for USB Mouse
Rack Mount Monitor Chassis Depth 27.6"
Mounting Range 27.6" to 32.5" Depth
USB Wired Mini Mouse
2 Year Warranty - includes Crystal Care Service Plan

Options -

Video: DVI-D or HDMI, BNC & S-Video
Audio: Add integrated speakers
Power: 12VDC, 24VDC, 48VDC
Mouse: Wireless USB Mouse
Warranty: Extended 3 Year Warranty

Rackmount Monitor Specifications

Rackmount Monitor User Manual
