1U 19" LCD Rackmount Monitor, Touchpad or Trackball (Part#RKP119e)
Special Price
from $1,023.00
Regular Price
from $1,278.75
- Standard Video Input - VGA
- Video Option - DVI-D, HDMI w/Speaker & SDI Input
- 104 Key Notebook Keyboard, Touchpad or Trackball Mouse
- Mounting Range - 19.7" to 30.5"
More Information

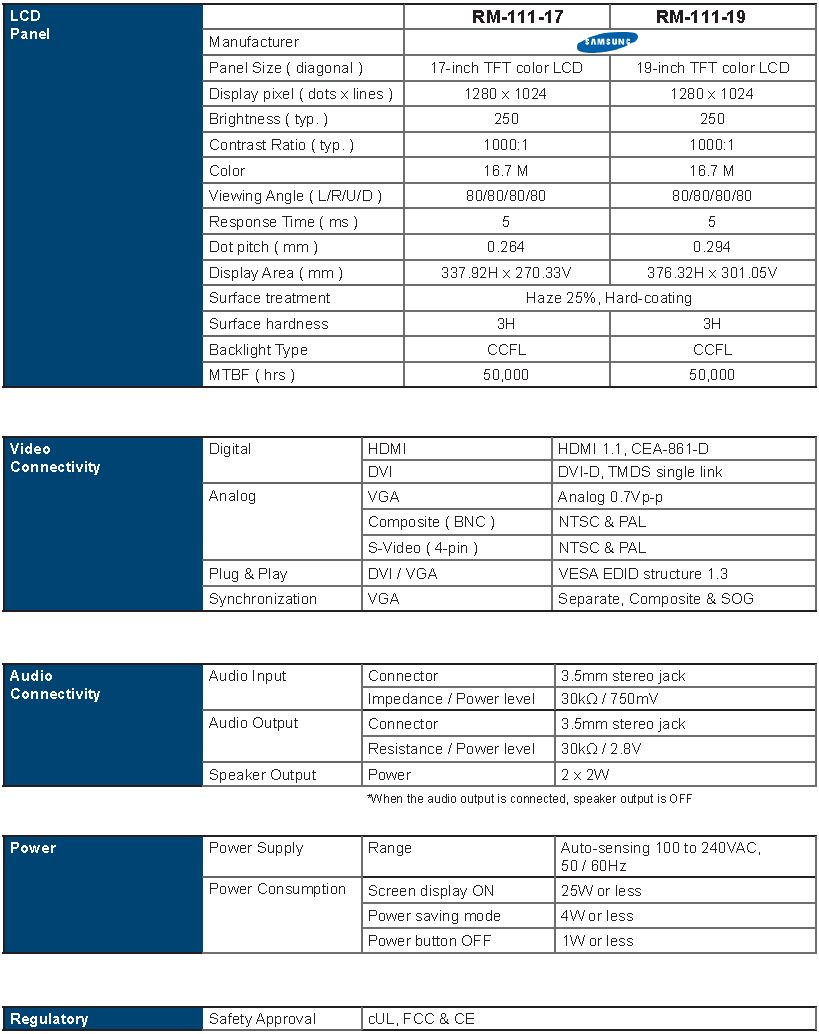

| Product Specification |
Product Specification
| Console Port |
|---|
| Video input |
VGA |
| KB/MS |
Combo(USB or PS2) |

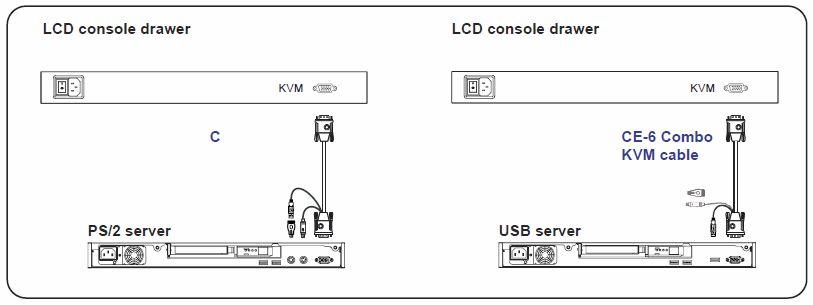

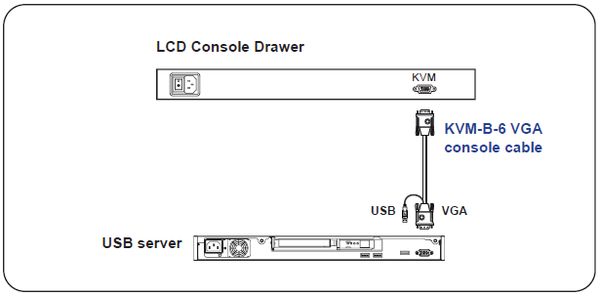

| VGA console 6ft cable : CB-6 |
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A |
| Video Option |
|---|
| Digital |
DVI |
DVI-D single link |
| HDMI |
HDMI 1.2 / HDCP 1.1 |
| Analog |
S-Video ( 4-pin ) |
NTSC & PAL |
| Composite ( BNC ) |
NTSC & PAL |
| LCD Panel | RM-111-17 | RM-111-19 |
|---|
| Panel size ( diagonal ) |
17" |
19" |
| Native resolution |
1280 x 1024 |
1280 x 1024 |
| Brightness ( cd/m² ) |
250 |
250 |
| Contrast ratio ( typ. ) |
1000 : 1 |
1000 : 1 |
| Colors |
16.7 M |
16.7 M |
| Viewing angle ( L/R/U/D ) |
85/85/80/80 |
85/85/80/80 |
| Panel Response time ( ms ) |
5 |
5 |
| Dot pitch ( mm ) |
0.264 |
0.294 |
| Display area ( mm ) |
337.92H x 270.33V |
376.32H x 270.33V |
| Surface treatment |
Haze 25%, Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF (hrs) |
30,000 |
| Audio Option |
|---|
| Input |
Connector |
3.5mm stereo jack |
Impedance /
Power level |
30kQ / 750mV |
| Output |
Connector |
3.5mm stereo jack |
Resistance /
Power level |
30kQ / 2.8V |
| Speaker |
Dual stereo |
2W x 2 |
| Power |
|---|
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
Consumption
(console / KVM) |
Screen on |
Max. 25W / Max. 55W |
| Power saving mode |
Max. 4W / Max. 34W |
| Power button on |
Max. 1W / Nil |
| Physical | RM-111-17 | RM-111-19 |
|---|
Product
( W x D x H ) |
Single console |
442 x 460 x 44 mm
17.4 x 18.1 x 1.73 inch |
442 x 500 x 44 mm
17.4 x 19.7 x 1.73 inch |
| Console w/ KVM |
442 x 580 x 44 mm
17.4 x 22.8 x 1.73 inch |
442 x 620 x 44 mm
17.4 x 24.4 x 1.73 inch |
Packing
( W x D x H ) |
Single console /
Console w/ KVM |
590 x 808 x 140 mm
23.2 x 31.8 x 5.5 inch |
590 x 808 x 140 mm
23.2 x 31.8 x 5.5 inch |
Net
weight |
Single console |
12 kg / 26.4 lb |
12.7 kg / 27.9 lb |
| Console w/ KVM |
13 kg / 28.6 lb |
13.7 kg / 30.1 lb |
Gross
weight |
Single console |
16.6 kg / 36.5 lb |
17.3 kg / 38.1 lb |
| Console w/ KVM |
19 kg / 41.8 lb |
19.7 kg / 43.3 lb |
| Environment |
|---|
| Operating temp. |
-20 to 65°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration ( 11ms duration ) |
| Vibration |
10~300Hz 0.5G RMS random vibration |
| Mounting Distance | RM-111-17 | RM-111-19 |
|---|
| Single console drawer |
470 ~ 700 mm
18.5 ~ 27.6 inch |
510 ~ 740 mm
20.1 ~ 29.1 inch |
| Console w/ KVM drawer |
470 ~ 800 mm
18.5 ~ 31.5 inch |
510 ~ 840 mm
20.1 ~ 33.1 inch |
| Compliance |
|---|
| EMC |
FCC, CE & CCC certified |
| Safety |
c UL us, CE / LVD & CCC certified |
| Environment |
RoHS2 & REACH compliant |
|

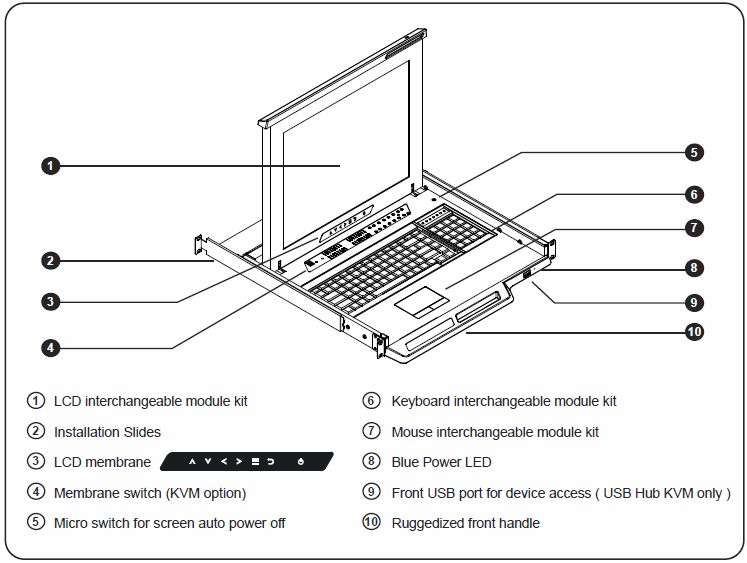

| Features |
 |
Product Specification
| Console Port |
|---|
| Video input |
VGA |
| KB/MS |
Combo(USB or PS2) |
| VGA console 6ft cable : CB-6 |
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A |
| Video Option |
|---|
| Digital |
DVI |
DVI-D single link |
| HDMI |
HDMI 1.2 / HDCP 1.1 |
| Analog |
S-Video ( 4-pin ) |
NTSC & PAL |
| Composite ( BNC ) |
NTSC & PAL |
| LCD Panel | RM-111-17 | RM-111-19 |
|---|
| Panel size ( diagonal ) |
17" |
19" |
| Native resolution |
1280 x 1024 |
1280 x 1024 |
| Brightness ( cd/m² ) |
250 |
250 |
| Contrast ratio ( typ. ) |
1000 : 1 |
1000 : 1 |
| Colors |
16.7 M |
16.7 M |
| Viewing angle ( L/R/U/D ) |
85/85/80/80 |
85/85/80/80 |
| Panel Response time ( ms ) |
5 |
5 |
| Dot pitch ( mm ) |
0.264 |
0.294 |
| Display area ( mm ) |
337.92H x 270.33V |
376.32H x 270.33V |
| Surface treatment |
Haze 25%, Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF (hrs) |
30,000 |
| Audio Option |
|---|
| Input |
Connector |
3.5mm stereo jack |
Impedance /
Power level |
30kQ / 750mV |
| Output |
Connector |
3.5mm stereo jack |
Resistance /
Power level |
30kQ / 2.8V |
| Speaker |
Dual stereo |
2W x 2 |
| Power |
|---|
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
Consumption
(console / KVM) |
Screen on |
Max. 25W / Max. 55W |
| Power saving mode |
Max. 4W / Max. 34W |
| Power button on |
Max. 1W / Nil |
| Physical | RM-111-17 | RM-111-19 |
|---|
Product
( W x D x H ) |
Single console |
442 x 460 x 44 mm
17.4 x 18.1 x 1.73 inch |
442 x 500 x 44 mm
17.4 x 19.7 x 1.73 inch |
| Console w/ KVM |
442 x 580 x 44 mm
17.4 x 22.8 x 1.73 inch |
442 x 620 x 44 mm
17.4 x 24.4 x 1.73 inch |
Packing
( W x D x H ) |
Single console /
Console w/ KVM |
590 x 808 x 140 mm
23.2 x 31.8 x 5.5 inch |
590 x 808 x 140 mm
23.2 x 31.8 x 5.5 inch |
Net
weight |
Single console |
12 kg / 26.4 lb |
12.7 kg / 27.9 lb |
| Console w/ KVM |
13 kg / 28.6 lb |
13.7 kg / 30.1 lb |
Gross
weight |
Single console |
16.6 kg / 36.5 lb |
17.3 kg / 38.1 lb |
| Console w/ KVM |
19 kg / 41.8 lb |
19.7 kg / 43.3 lb |
| Environment |
|---|
| Operating temp. |
-20 to 65°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration ( 11ms duration ) |
| Vibration |
10~300Hz 0.5G RMS random vibration |
| Mounting Distance | RM-111-17 | RM-111-19 |
|---|
| Single console drawer |
470 ~ 700 mm
18.5 ~ 27.6 inch |
510 ~ 740 mm
20.1 ~ 29.1 inch |
| Console w/ KVM drawer |
470 ~ 800 mm
18.5 ~ 31.5 inch |
510 ~ 840 mm
20.1 ~ 33.1 inch |
| Compliance |
|---|
| EMC |
FCC, CE & CCC certified |
| Safety |
c UL us, CE / LVD & CCC certified |
| Environment |
RoHS2 & REACH compliant |
Rackmount Monitor User Manual
