Save $635

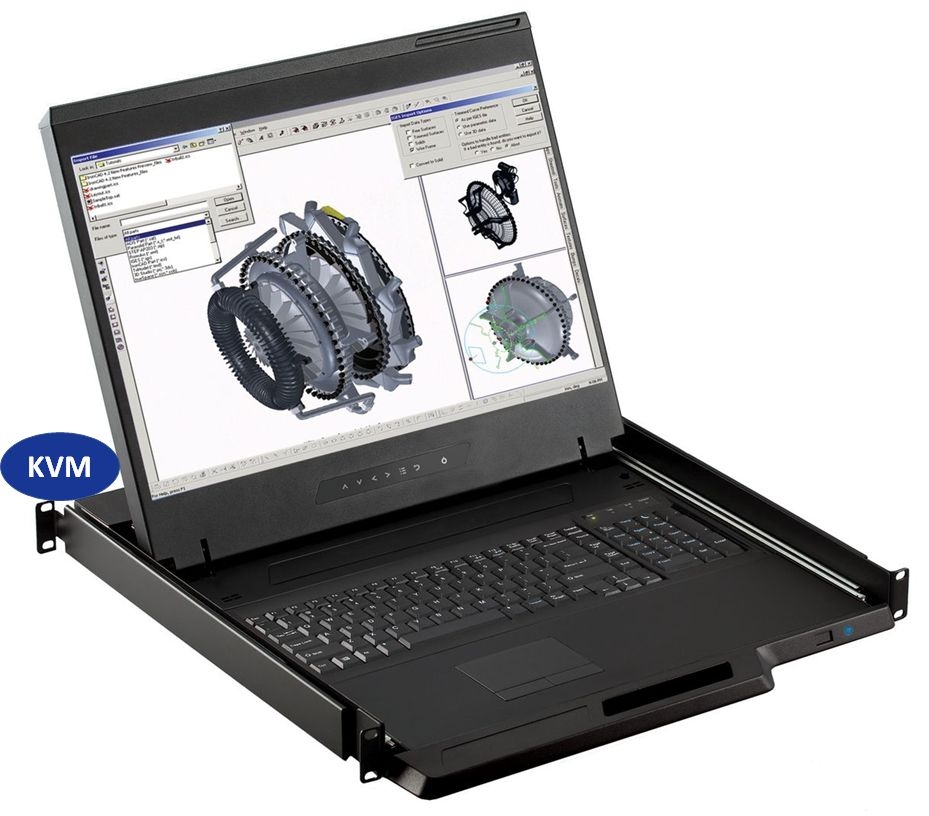

1U 19" LCD Rackmount Monitor
16 Port KVM Over IP, SUN & iMAC Compatible
Special Price
from $2,540.00
Regular Price
from $3,175.00
20% OFF
Part
RM-141-19W-1601
Product Information
- 1440 X 900 Resolution - VGA Input
- 104 Key Notebook Keyboard - Touchpad or Trackball Mouse

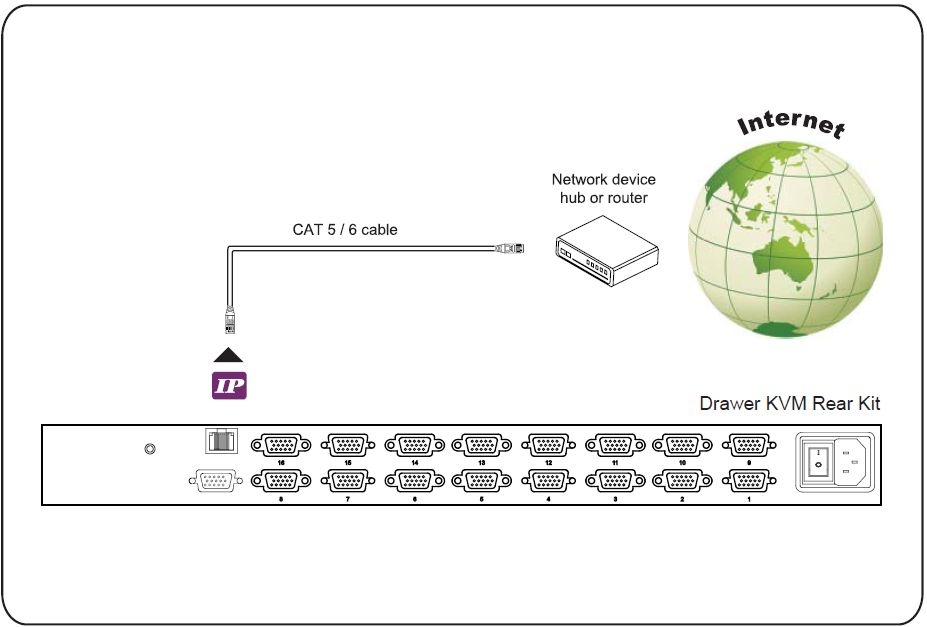

- 16 Port KVM Switch Integrated with 1 Local Console and 1 KVM Over IP Console
- Includes 16, 6' USB / VGA KVM Cables
- Mounting Range - 18.5" to 31.5" (Physical Chassis Depth - 22.8")
| Product Specification | Product Specification
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Product Specification
| Console Port | |
|---|---|
| Video input | VGA + DVI-D |
| KB/MS | (USB) |
| VGA console 6ft cable : CB-6 or DVI-X | Drawer end : DB-15 ( VGA + USB KB / MS ) Server end : VGA or DVI + USB type A |
| Video Option | ||
|---|---|---|
| Digital | DVI | DVI-D single link |
| HDMI | HDMI 1.2 / HDCP 1.1 | |
| Analog | S-Video ( 4-pin ) | NTSC & PAL |
| Composite ( BNC ) | NTSC & PAL | |
| LCD Panel | RM-111-19WH | |
|---|---|---|
| Panel size ( diagonal ) | 19" | |
| Native resolution | 1440 x 900 | |
| Brightness ( cd/m² ) | 300 | |
| Contrast ratio ( typ. ) | 1000 : 1 | |
| Colors | 16.7 M | |
| Viewing angle ( L/R/U/D ) | 80/80/80/80 | |
| Panel Response time ( ms ) | 5 | |
| Dot pitch ( mm ) | 0.2835 | |
| Display area ( mm ) | 408.24H x 255.15V | |
| Surface treatment | Haze 25%, Hard-coating | |
| Surface hardness | 3H | |
| Backlight type | CCFL | |
| MTBF (hrs) | 50,000 | |
| Audio Option | ||
|---|---|---|
| Input | Connector | 3.5mm stereo jack |
| Impedance / Power level |
30kQ / 750mV | |
| Output | Connector | 3.5mm stereo jack |
| Resistance / Power level |
30kQ / 2.8V | |
| Speaker | Dual stereo | 2W x 2 |
| Power | ||
|---|---|---|
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | |
| Consumption (console / KVM) |
Screen on | Max. 25W / Max. 55W |
| Power saving mode | Max. 4W / Max. 34W | |
| Power button on | Max. 1W / Nil | |
| Physical | RM-111-19WH | ||
|---|---|---|---|
| Product ( W x D x H ) |
Single console | 442 x 460 x 44 mm 17.4 x 18.1 x 1.73 inch |
|
| Console w/ KVM | 442 x 580 x 44 mm 17.4 x 22.8 x 1.73 inch |
||
| Packing ( W x D x H ) |
Single console / Console w/ KVM |
590 x 808 x 140 mm 23.2 x 31.8 x 5.5 inch |
|
| Net weight |
Single console | 11.5 kg / 25.3 lb | |
| Console w/ KVM | 12.5 kg / 28 lb | ||
| Gross weight |
Single console | 16 kg / 35,2 lb | |
| Console w/ KVM | 18.1 kg / 39.8 lb | ||
| Environment | |
|---|---|
| Operating temp. | -20 to 65°C degree |
| Strorage temp | -20 to 60°C degree |
| Operating humidity | 20~90%, non-condensing |
| Storage humidity | 5 ~90%, non-condensing |
| Operating alttiude | 16,000 ft |
| Non-operating attude | 40,000 ft |
| Shock | 10G acceleration ( 11ms duration ) |
| Vibration | 10~300Hz 0.5G RMS random vibration |
| Mounting Distance | RM-111-19WH | |
|---|---|---|
| Single console drawer | 470 ~ 700 mm 18.5 ~ 27.6 inch |
|
| Console w/ KVM drawer | 470 ~ 800 mm 18.5 ~ 31.5 inch |
| Compliance | |
|---|---|
| EMC | FCC, CE & CCC certified |
| Safety | c UL us, CE / LVD & CCC certified |
| Environment | RoHS2 & REACH compliant |
