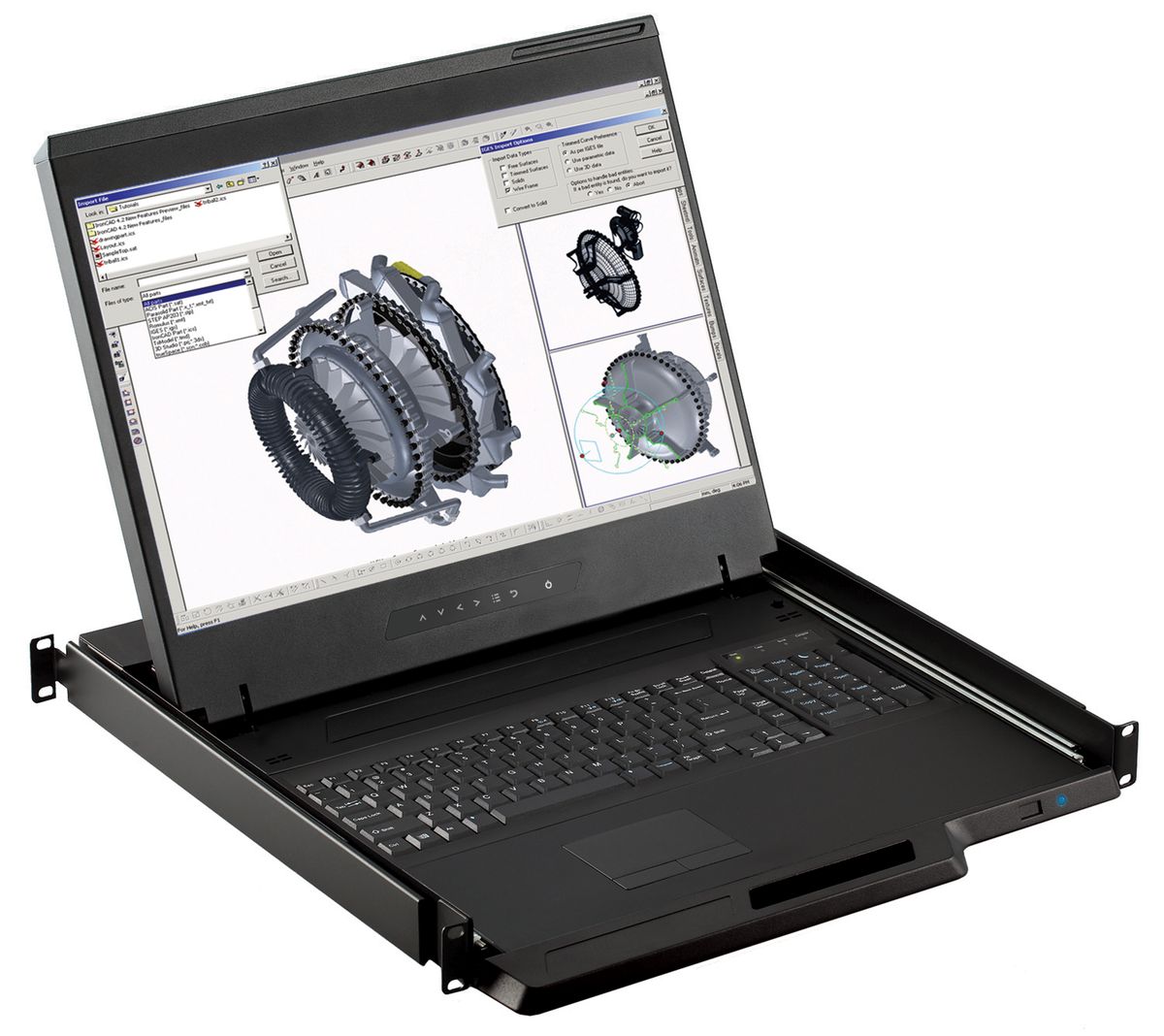

1U 19" Short Depth (17.3") 1440 X 900 Console Drawer, UL Certified (Part#RM-111-19WHSD)
Special Price
from $1,098.00
Regular Price
from $1,298.75
- Standard Video Input - VGA & DVI-D
- Video Option - HDMI w/Speaker & SDI Input
- 104 Key Notebook Keyboard, Touchpad or Trackball Mouse
- Mounting Range - 17.3" to 28.5"
- TAA Compliant
More Information
| Product Specification |
Product Specification
| Console Port |
|---|
| Video input |
VGA + DVI-D |
| KB/MS |
(USB) |

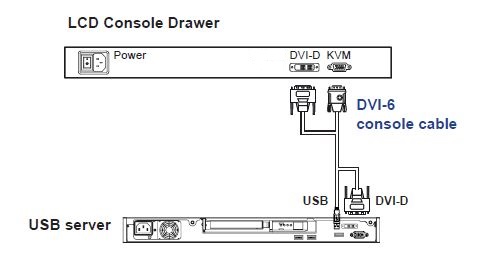

| VGA console 6ft cable : CB-6 or DVI-X |
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA or DVI + USB type A |
| Video Option |
|---|
| Digital |
DVI |
DVI-D single link |
| HDMI |
HDMI 1.2 / HDCP 1.1 |
| Analog |
S-Video ( 4-pin ) |
NTSC & PAL |
| Composite ( BNC ) |
NTSC & PAL |
| LCD Panel | | RM-111-19WH |
|---|
| Panel size ( diagonal ) |
|
19" |
| Native resolution |
|
1440 x 900 |
| Brightness ( cd/m² ) |
|
300 |
| Contrast ratio ( typ. ) |
|
1000 : 1 |
| Colors |
|
16.7 M |
| Viewing angle ( L/R/U/D ) |
|
80/80/80/80 |
| Panel Response time ( ms ) |
|
5 |
| Dot pitch ( mm ) |
|
0.2835 |
| Display area ( mm ) |
|
408.24H x 255.15V |
| Surface treatment |
Haze 25%, Hard-coating |
| Surface hardness |
3H |
| Backlight type |
CCFL |
| MTBF (hrs) |
50,000 |
| Audio Option |
|---|
| Input |
Connector |
3.5mm stereo jack |
Impedance /
Power level |
30kQ / 750mV |
| Output |
Connector |
3.5mm stereo jack |
Resistance /
Power level |
30kQ / 2.8V |
| Speaker |
Dual stereo |
2W x 2 |
| Power |
|---|
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
Consumption
(console / KVM) |
Screen on |
Max. 25W / Max. 55W |
| Power saving mode |
Max. 4W / Max. 34W |
| Power button on |
Max. 1W / Nil |
| Physical | | RM-111-19WH |
|---|
Product
( W x D x H ) |
Single console |
|
442 x 460 x 44 mm
17.4 x 18.1 x 1.73 inch |
| Console w/ KVM |
|
442 x 580 x 44 mm
17.4 x 22.8 x 1.73 inch |
Packing
( W x D x H ) |
Single console /
Console w/ KVM |
|
590 x 808 x 140 mm
23.2 x 31.8 x 5.5 inch |
Net
weight |
Single console |
|
11.5 kg / 25.3 lb |
| Console w/ KVM |
|
12.5 kg / 28 lb |
Gross
weight |
Single console |
|
16 kg / 35,2 lb |
| Console w/ KVM |
|
18.1 kg / 39.8 lb |
| Environment |
|---|
| Operating temp. |
-20 to 65°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration ( 11ms duration ) |
| Vibration |
10~300Hz 0.5G RMS random vibration |
| Mounting Distance | | RM-111-19WH |
|---|
| Single console drawer |
|
440 ~ 700 mm
17.3 ~ 27.6 inch |
| Console w/ KVM drawer |
|
470 ~ 800 mm
18.5 ~ 31.5 inch |
| Compliance |
|---|
| EMC |
FCC, CE & CCC certified |
| Safety |
c UL us, CE / LVD & CCC certified |
| Environment |
RoHS2 & REACH compliant |
|

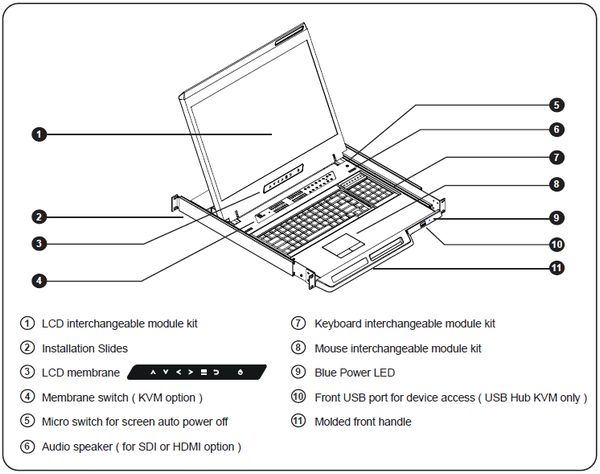

Wide Screen Rackmount Monitor Features
- 1U 19" Wide Screen Samsung 1440 X 900 LCD Rackmount Monitor Drawer
- VGA & DVI-D Standard Video Input
- 104 Key Notebook Keyboard with Touchpad or Trackball Mouse
- Rack Mount Monitor Chassis Depth 17.3"
- Mounting Range 17.3" to 30" Depth
- 2 Year Warranty - includes Crystal Care Service Plan
Rackmount LCD Drawer Options -
- Audio: Add integrated speakers
- Power: 12VDC, 24VDC, 48VDC
- Warranty: Extended 3 Year Warranty
Download More Info-
Rackmount Monitor User Manual
