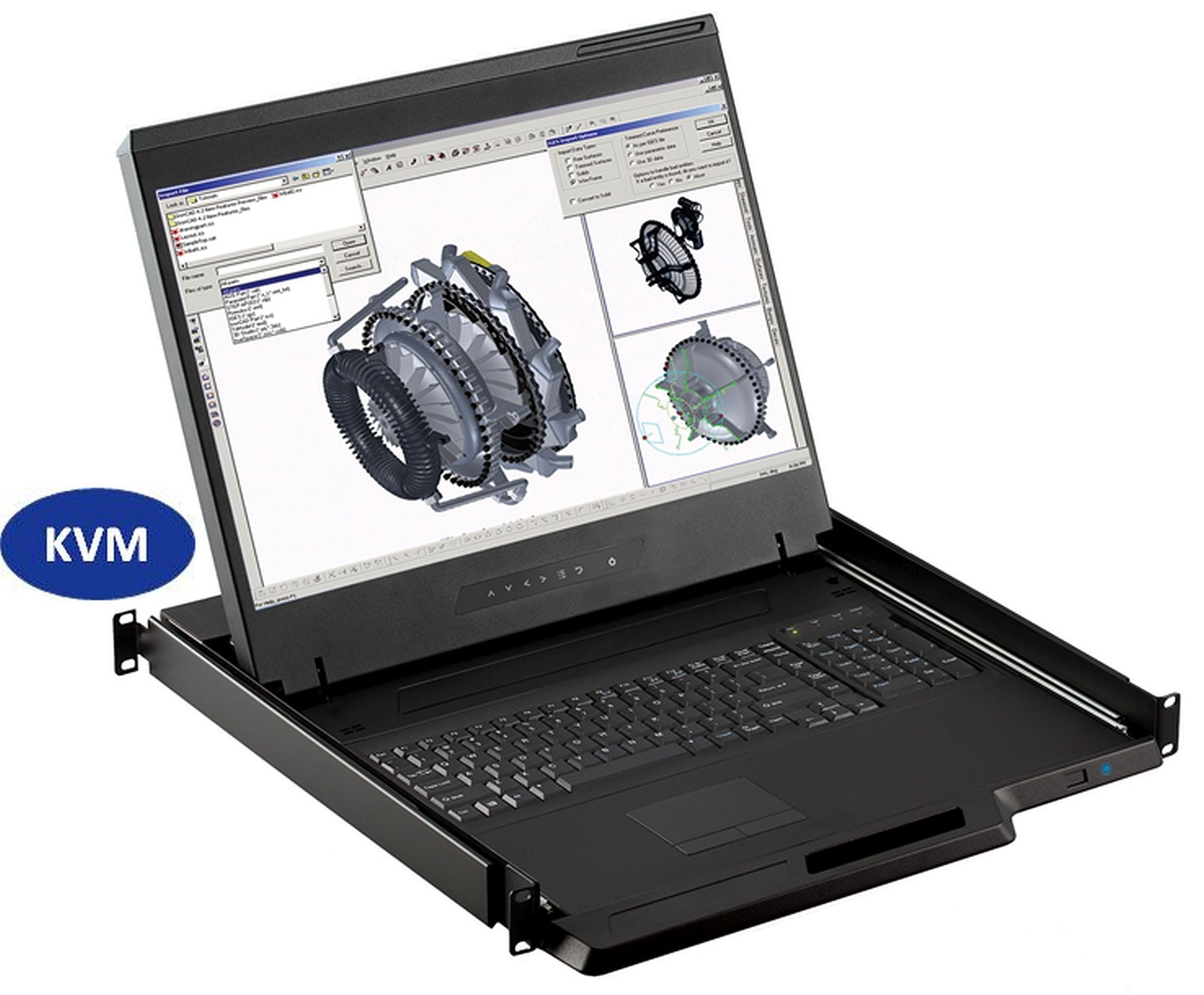

1U 19" Rackmount Monitor - 16 Port Cat6 KVM Switch (Part#RM-147-19W-Cat5-16)
Special Price
from $1,898.00
Regular Price
from $2,295.00
- 16 Port Cat6 KVM Switch Integrated
- 104 Key Notebook Keyboard - Touchpad or Trackball Mouse
- Cat6 Dongles - VGA / DVI / HDMI / DP / USB-C
- Mounting Range - 18.5" to 31.5" (Physical Chassis Depth - 22.8")
More Information
| Product Specification |
Product Specification
| Console Port |
|---|
| Video input |
VGA/USB Integrated KVM Switch |
| KB/MS |
Integrated KVM Switch |
| VGA console 6ft cable : KVM-B-6 |
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A |
| Console Video Option |
|---|
| Digital |
DVI Additional Video Console Input |
DVI-D Single Link |
| HDMI Additional Video Console Input |
HDMI 1.2 / HDCP 1.1 |
| Analog |
S-Video ( 4-pin ) |
NTSC & PAL |
| Composite ( BNC ) |
NTSC & PAL |
| LCD Panel | | RM-111-19WH |
|---|
| Panel size ( diagonal ) |
|
19" |
| Native resolution |
|
1440 x 900 |
| Brightness ( cd/m² ) |
|
300 |
| Contrast ratio ( typ. ) |
|
1000 : 1 |
| Colors |
|
16.7 M |
| Viewing angle ( L/R/U/D ) |
|
80/80/80/80 |
| Panel Response time ( ms ) |
|
5 |
| Dot pitch ( mm ) |
|
0.2835 |
| Display area ( mm ) |
|
408.24H x 255.15V |
| Surface treatment |
Haze 25%, Hard-coating |
| Surface hardness |
3H |
| Backlight type |
CCFL |
| MTBF (hrs) |
50,000 |
| Audio Option |
|---|
| Input |
Connector |
3.5mm stereo jack |
Impedance /
Power level |
30kQ / 750mV |
| Output |
Connector |
3.5mm stereo jack |
Resistance /
Power level |
30kQ / 2.8V |
| Speaker |
Dual stereo |
2W x 2 |
| Power |
|---|
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
Consumption
(console / KVM) |
Screen on |
Max. 25W / Max. 55W |
| Power saving mode |
Max. 4W / Max. 34W |
| Power button on |
Max. 1W / Nil |
| Physical | | RM-111-19WH |
|---|
Product
( W x D x H ) |
Single console |
|
442 x 460 x 44 mm
17.4 x 18.1 x 1.73 inch |
| Console w/ KVM |
|
442 x 580 x 44 mm
17.4 x 22.8 x 1.73 inch |
Packing
( W x D x H ) |
Single console /
Console w/ KVM |
|
590 x 808 x 140 mm
23.2 x 31.8 x 5.5 inch |
Net
weight |
Single console |
|
11.5 kg / 25.3 lb |
| Console w/ KVM |
|
12.5 kg / 28 lb |
Gross
weight |
Single console |
|
16 kg / 35,2 lb |
| Console w/ KVM |
|
18.1 kg / 39.8 lb |
| Environment |
|---|
| Operating temp. |
-20 to 65°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration ( 11ms duration ) |
| Vibration |
10~300Hz 0.5G RMS random vibration |
| Mounting Distance | | RM-111-19WH |
|---|
| Single console drawer |
|
470 ~ 700 mm
18.5 ~ 27.6 inch |
| Console w/ KVM drawer |
|
470 ~ 800 mm
18.5 ~ 31.5 inch |
| Compliance |
|---|
| EMC |
FCC, CE & CCC certified |
| Safety |
c UL us, CE / LVD & CCC certified |
| Environment |
RoHS2 & REACH compliant |
Product Specification

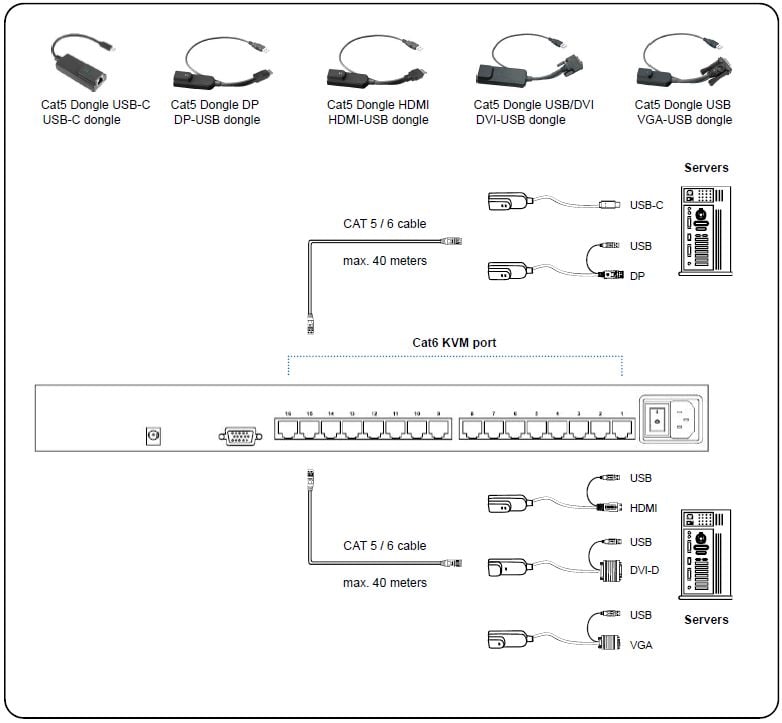

| Cat5 KVM Port (suffix "Cat5-16") |
|---|
| Port # : |
16 |
| Connector : |
RJ-45 |
| Connectivity : |
DP / HDMI / DVI-D / VGA dongle via Cat6 / Cat5 cable
to server up to 40 meters (132 feet) |
| Resolution : |
1440 X 900 |
| Local Console |
|---|
| Graphic Connector : |
1 x DB-15 VGA |
| Input device : |
2 x USB type A for keyboard & mouse |
| Resolution : |
1440 X 900 |
| Management |
|---|
| Port switching |
OSD, front button & keyboard hotkeys |
| Expansion |
8-level cascade up to 256 servers |
| Power |
|---|
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption |
Max. 34W |
| Compatibility |
|---|
| Hardware |
HP / IBM / Dell PC, Server and Blade Server
SUN / Mac |
| OS support |
Windows / Linux / Unix / Mac OS |
| Compliance |
|---|
| Safety |
cUL, FCC & CE certified |
| Environment |
RoHS2 & REACH compliant |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Storage temp. |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating altitude |
16,000 ft |
| Non-operating altitude |
40,000 ft |
| Shock |
10G acceleration ( 11ms duration ) |
| Vibration |
10~300Hz 0.5G RMS random vibration |
| Physical |
|---|
| Product (W x D x H) |
443 x 171 x 44 mm
17.4 x 6.7 x 1.73 inch |
| Packing (W x D x H) |
500 x 400 x 90 mm
19.7 x 15.7 x 3.5 inch |
| Weight |
Net |
3 kg / 6.6 lb |
| Gross |
5 kg / 11 lb |
| Chassis color |
Dark |
| Chassis materials |
Steel |
|
19" Wide Screen Rackmount Monitor Features
- 1U 19" Wide Screen 1440 X 900 LCD Rackmount Monitor Drawer
- 104 Key Notebook Keyboard with Touchpad or Trackball Mouse
- Rack Mount Monitor Chassis Depth 22.8"
- Mounting Range 22.8" to 29.5" Depth
- Rugged Molded Front Handle
- 2 Year Warranty - includes Crystal Care Service Plan
Rackmount LCD Options -
- Video:
- Audio:
- Power: 12VDC, 24VDC, 48VDC
- Warranty: Extended 3 Year Warranty
16 Port Cat6 KVM Switch Features -
- Console: 1 Local Console
- Cat5 Distance: Cat5 / Cat6 Cable Distance - Up to 130ft
- Dongle: VGA / DVI / HDMI / DP / USB-C
- Compatibility: PCs, SUN, Mac G3 / G4 Mac / iMac- Windows, Unix, Linux
