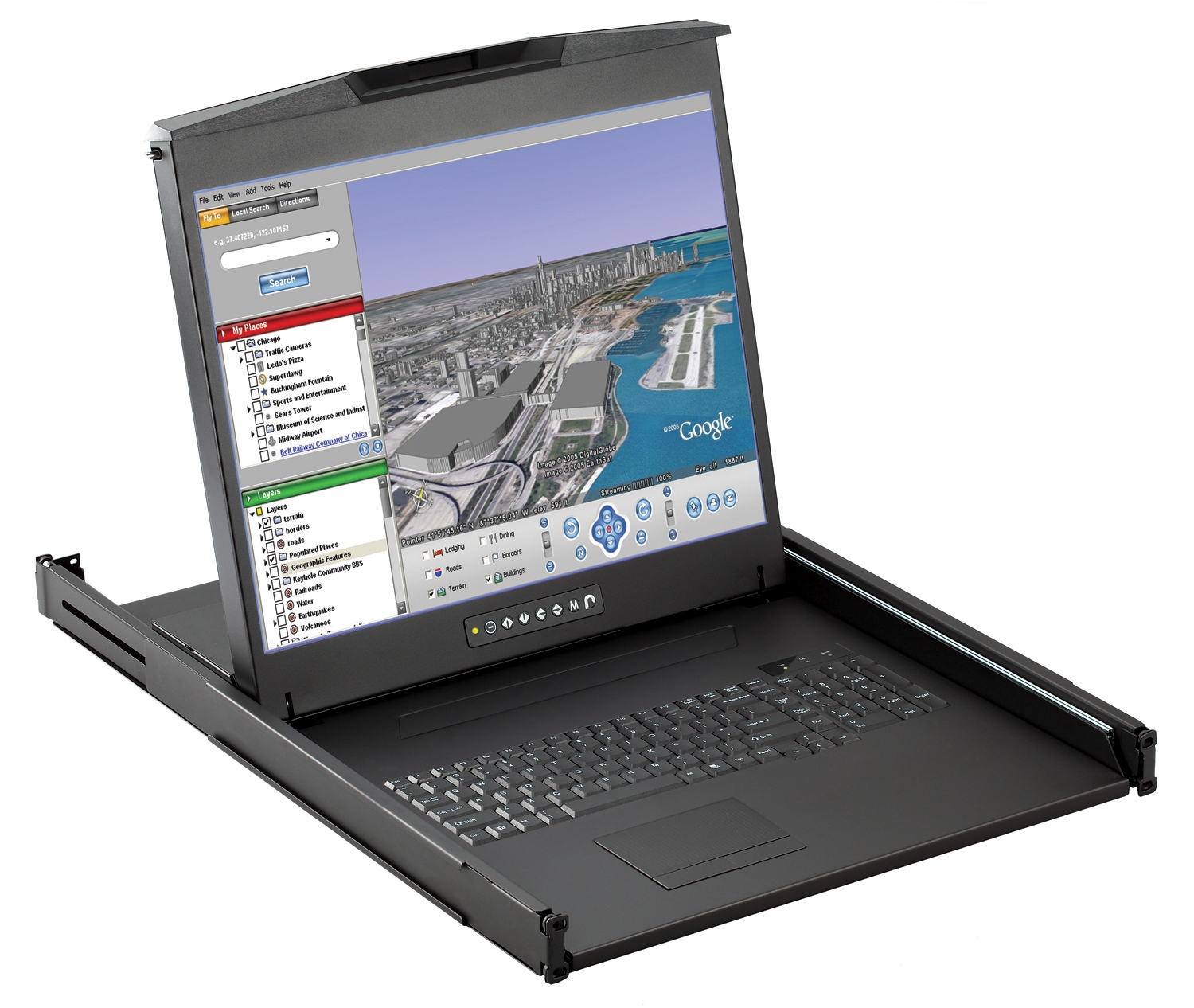

1U 20" LCD Rackmount Monitor, (1600 X 1200), Touchpad (Part#RM-116-1U)
Special Price
from $1,904.00
Regular Price
from $2,172.00
- Standard Video Input - VGA
- Video Options - DVI-D, HDMI w/Speaker & SDI Input
- 104 Key Notebook Keyboard, Touchpad Mouse
- Includes 2 Year Warranty
- Mounting Range - 25.6" to 34"
More Information
| Video Option |
https://www.youtube.com/embed/NJBjdkWHhZU |

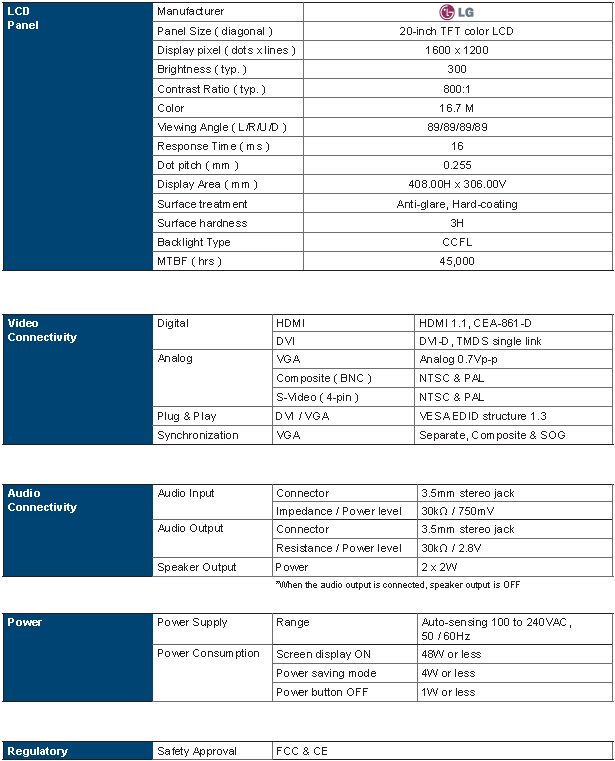

| Product Specification |
Product Specification
| Console Port |
|---|
| Video input |
VGA |
| KB/MS |
(USB ) |
| VGA console 6ft cable : CB-6 |
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A x 2 |
| Video Option |
|---|
| Digital |
DVI |
DVI-D single link |
| HDMI |
HDMI 1.2 |
| Analog |
S-Video ( 4-pin ) |
NTSC & PAL |
| Composite ( BNC ) |
NTSC & PAL |
| LCD Panel | RM-116-1U | |
|---|
| Panel size ( diagonal ) |
20" |
|
| Native resolution |
1600 X 1200 |
|
| Brightness ( cd/m² ) |
300 |
|
| Contrast ratio ( typ. ) |
800 : 1 |
|
| Colors |
16.7 M |
|
| Viewing angle ( L/R/U/D ) |
178 x 178 |
|
| Panel Response time ( ms ) |
16 |
|
| Dot pitch ( mm ) |
0.255 |
|
| Display area ( mm ) |
408.00H x 306.00V |
|
| Surface treatment |
Anti-glare, Hard Coating |
| Surface hardness |
3H |
| Backlight type |
CCFL |
| MTBF (hrs) |
45,000 |
| Audio Option |
|---|
| Input |
Connector |
3.5mm stereo jack |
Impedance /
Power level |
30kQ / 750mV |
| Output |
Connector |
3.5mm stereo jack |
Resistance /
Power level |
30kQ / 2.8V |
| Speaker |
Dual stereo |
2W x 2 |
| Power |
|---|
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
Consumption
(console / KVM) |
Screen on |
Max. 48W |
| Power saving mode |
Max. 4W |
| Power button on |
Max. 1W |
| Physical | RM-111-16-1U | |
|---|
Product
( W x D x H ) |
Single console |
439.5 x 650 x 44 mm
17.3 x 25.6 x 1.73 inch |
|
| Console w/ KVM |
Same |
|
Packing
( W x D x H ) |
Single console /
Console w/ KVM |
595 x 860 x 140 mm
23.4 x 33.9 x 5.5 inch |
|
Net
weight |
Single console |
14.5 kg / 31.9 lb |
|
| Console w/ KVM |
|
|
Gross
weight |
Single console |
22 kg / 48.4 lb |
|
| Console w/ KVM |
|
|
| Environment |
|---|
| Operating temp. |
-0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration ( 11ms duration ) |
| Vibration |
10~300Hz 0.5G RMS random vibration |
| Mounting Distance | RM-116-1U | |
|---|
| Single console drawer |
650 ~ 700 mm
25.6 ~ 33 inch |
|
| Console w/ KVM drawer |
|
|
| Compliance |
|---|
| EMC |
FCC, CE |
| Safety |
FCC, CE |
| Environment |
RoHS2 & REACH compliant |
|
Rackmount Monitor Features
- 1U 20" Samsung 1600 X 1200 LCD Rackmount Monitor Drawer
- 104 Key Notebook Keyboard with Touchpad Mouse
- Rack Mount Monitor Chassis Depth 25.6"
- Mounting Range 25.6" to 32" Depth

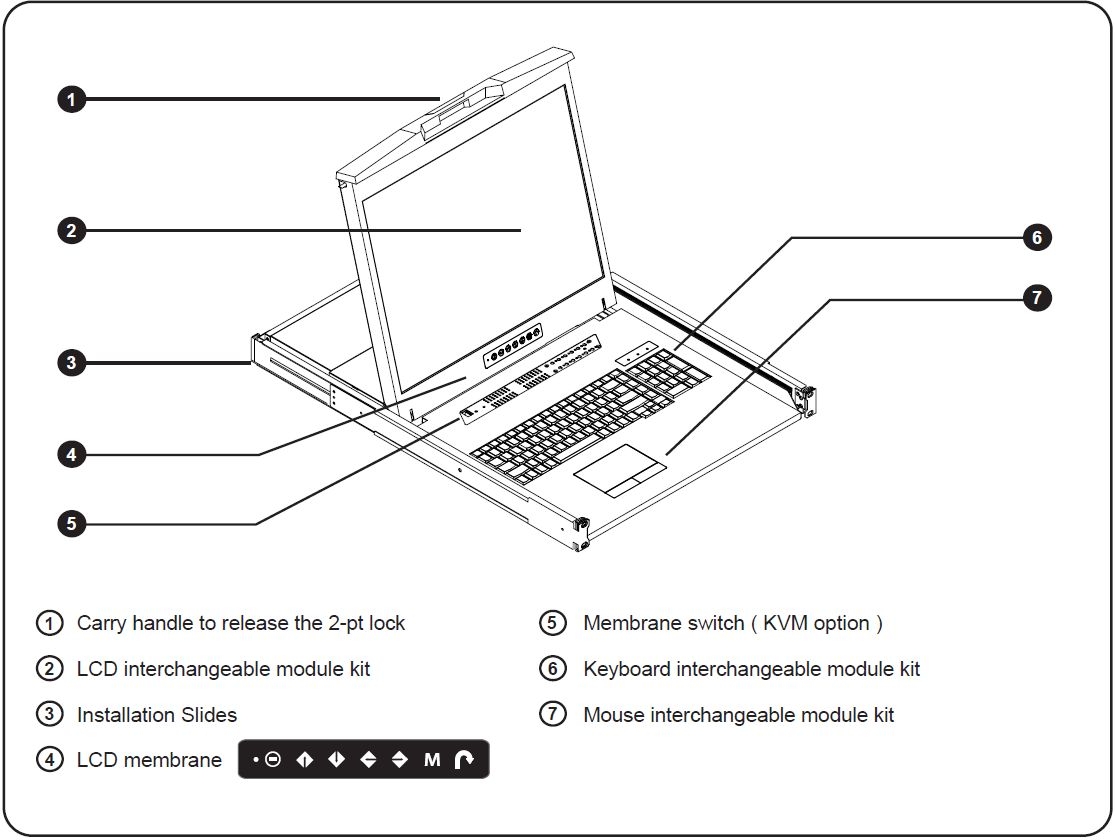

- 2 Point Locking Front Handle Design
- 2 Year Warranty - includes Crystal Care Service Plan
Rackmount Monitor Options -
- Video: DVI-D or HDMI, BNC & S-Video
- Audio: Add integrated speakers
- Power: 12VDC, 24VDC, 48VDC
- Warranty: Extended 3 Year Warranty
Download More Info-
