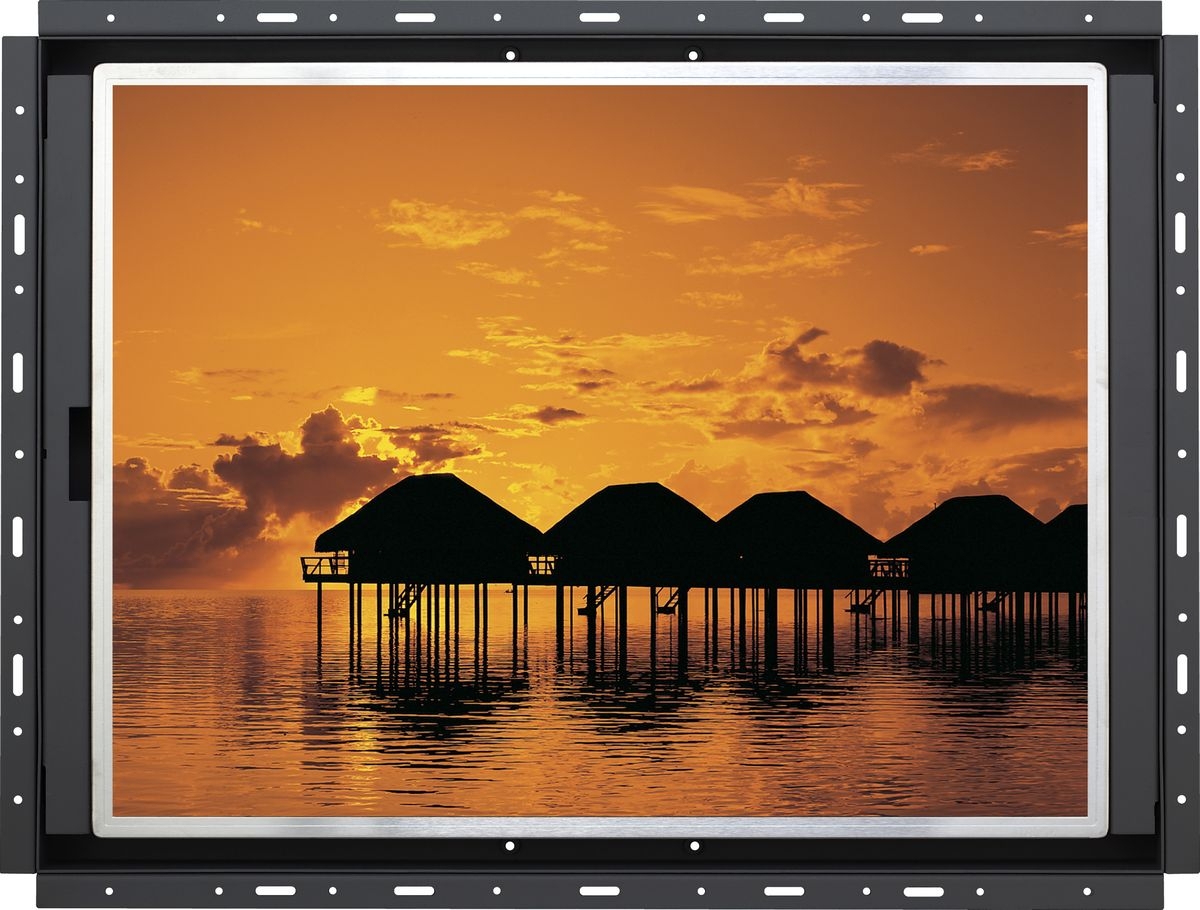

20" Rugged LCD Aluminum Frame, 1600 X 1200 - Industrial LCD Panel (Part# LCD-OP20)
20" Rugged LCD Aluminum Frame, 1600 X 1200 - Industrial LCD Panel (Part# LCD-OP20)
Special Price
from $1,365.00
Regular Price
from $1,706.25
- VGA & DVI-D Input - Optional BNC & S-Video + Audio + HDMI
- 3MM Protective Glass - Optional NEMA4/IP65 LED Display Panel
- Optional - Resistive Touchscreen
- Auto-sensing 100 to 240 VAC, 50/60Hz - Optional 12VDC / 24VDC / 48VDC / 125VDC
More Information
| Product Specification |
Product Specification
| 20" LCD Panel Video Specs |
|---|
| Video input |
VGA + DVI-D single link |
| Video Option |
|---|
| Digital / Analog |
HDMI / SDI / Composite |
HDMI 1.2
3G / HD / SD-SDI Broadcast Grade Input
S-Video (4-pin) + Composite (BNC)
NTSC & PAL
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
20.1" |
| Native resolution |
1600 x 1200 |
| Brightness(cd/m²) |
300 |
| Contrast ratio (typ.) |
800:1 |
| Max Color |
16.7 M |
| Contrast angle(L/R/U/D) |
89/89/89/89 |
| Responsive time(ms) |
16 |
| Dot pitch (mm) |
0.255 |
| Display area (mm) |
408H x 306V |
| Surface treatment |
Anti-Glare Hard-coating |
| Surface hardness |
3H |
| Backlight type |
CCFL |
| MTBF(hrs) |
45,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 48W |
| Power saving mode |
Max. 4W |
| Power button on |
Max. 1W |

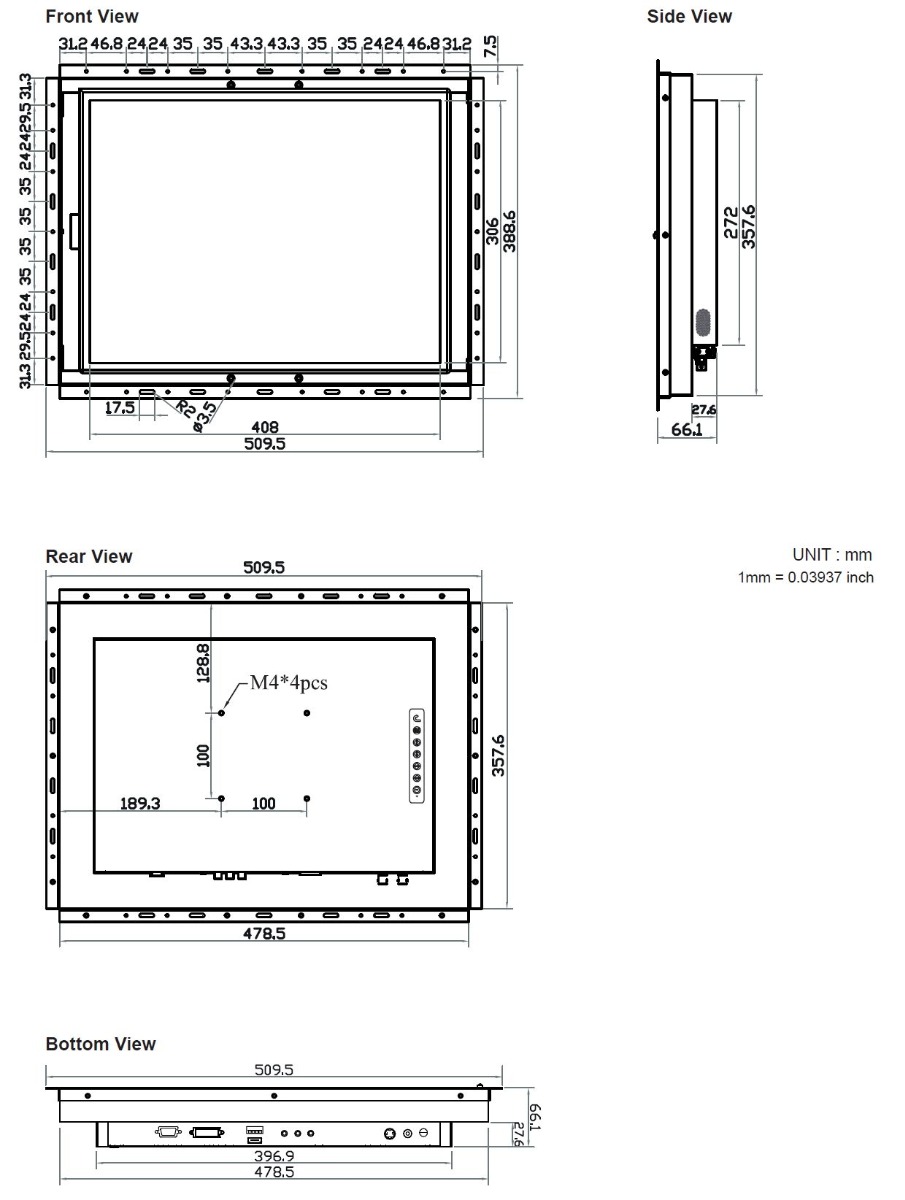

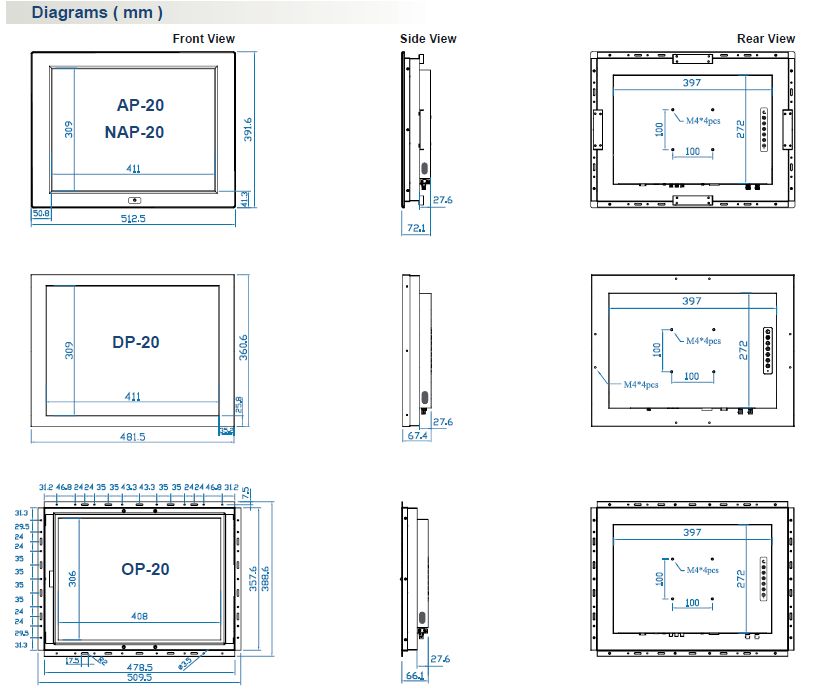

| Physical Rackmount LCD Frame |
|---|
Product
(W x D X H) |
Millimeters |
512.5 x 72.1 x 391.6mm |
| Inches |
20.0 X 2.8 X 15.4 inch |
Packing
(W x D X H) |
Millimeters
Inches |
651 x 124 x 597mm
25.6 x 4.9 x 23.5 inch |
Net
weight |
KGs |
7 kg |
| LBS |
15.4 lb |
Gross
weight |
KGs |
9 kg |
| LBS |
19.8 lb |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|

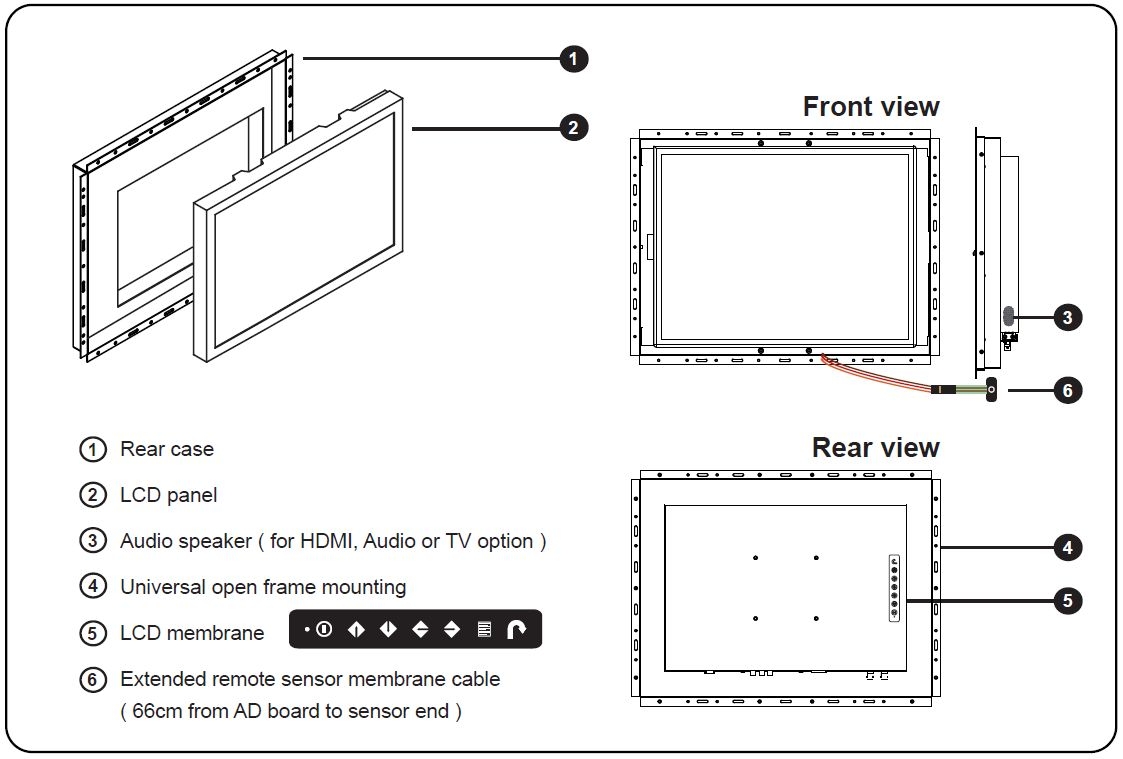

20" Industrial Open Frame LCD Features

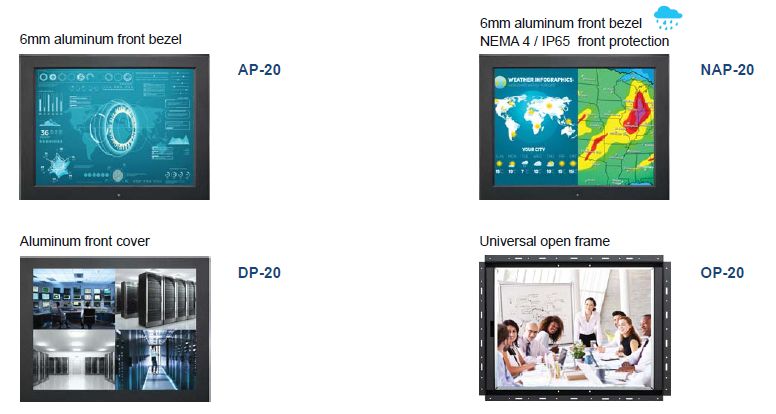

Industrial LCD Panel Options -
- Video: VGA + HDMI + BNC & S-Video + Audio
- Broadcast: 3G / HD / SD-SDI Broadcast-grade input
- Multi-Display: Multi-display control
- Touchscreen: Resistive or Capacitive
- Tuner: TV - PAL or NTSC Remote Controller
