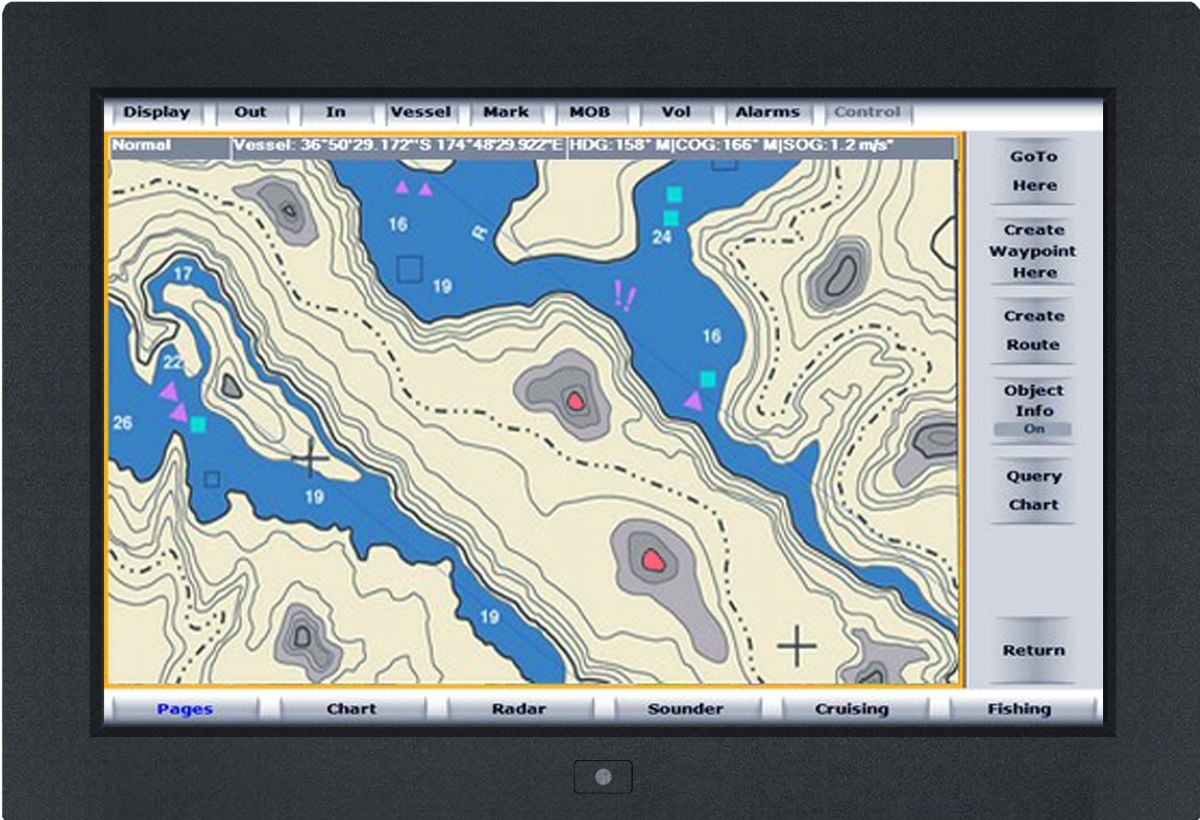

24" Industrial LCD Panel, 1920 X 1200 Resolution - VGA + DVI-D, + HDMI Input (Part# LCD-AP-X24)
24" Industrial LCD Panel, 1920 X 1200 Resolution - VGA + DVI-D, + HDMI Input (Part# LCD-AP-X24)
Special Price
from $1,597.00
Regular Price
from $1,943.75
- VGA + DVI-D + HDMI + Speaker Input
- Optional - BNC, DP, SDI Input
- 6mm Aluminum Bezel - Rugged Construction
- Features Panel Mount & VESA Mount
- Optional - Resistive Touchscreen / DC Power
More Information
| Product Specification |
Product Specification
| LCD Panel Video Specs |
|---|
| Video input |
VGA + DVI-D + HDMI 1.3 + RCA + S-Video + Audio + Remote Controller |
| Video Option |
|---|
| Digital |
/ SDI |
3G / HD / SD-SDI Broadcast Grade Input
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
24.1" |
| Native resolution |
1920 x 1200 |
| Brightness(cd/m²) |
300 |
| Contrast ratio (typ.) |
1000:1 |
| Max Color |
16.7 M |
| Viewing angle (L/R/U/D) |
89/89/89/89 |
| Responsive time(ms) |
14 |
| Dot pitch (mm) |
0.27 |
| Display area (mm) |
518.4H x 324V |
| Surface treatment |
Anti-Glare. Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
30,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 40W |
| Power saving mode |
Max. 5W |
| Power button on |
Max. 1W |
| Physical |
|---|
Product
(W x D X H) |
Millimeters |

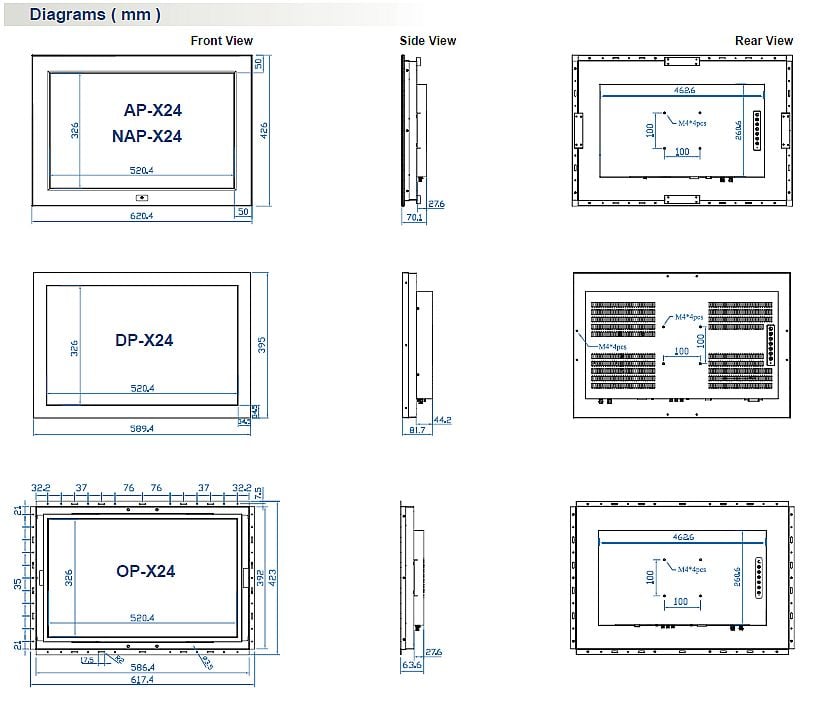

620.4 x 70.1 x 426 mm |
| Inches |
24.4 X 2.8 X 16.8 inch |
Packing
(W x D X H) |
Millimeters
Inches |
701 x 121 x 685 mm
27.6 x 4.8 x 27 inch |
Net
weight |
KGs |
10.9 kg |
| LBS |
24 lb |
Gross
weight |
KGs |
14.7 kg |
| LBS |
32.3 lb |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|

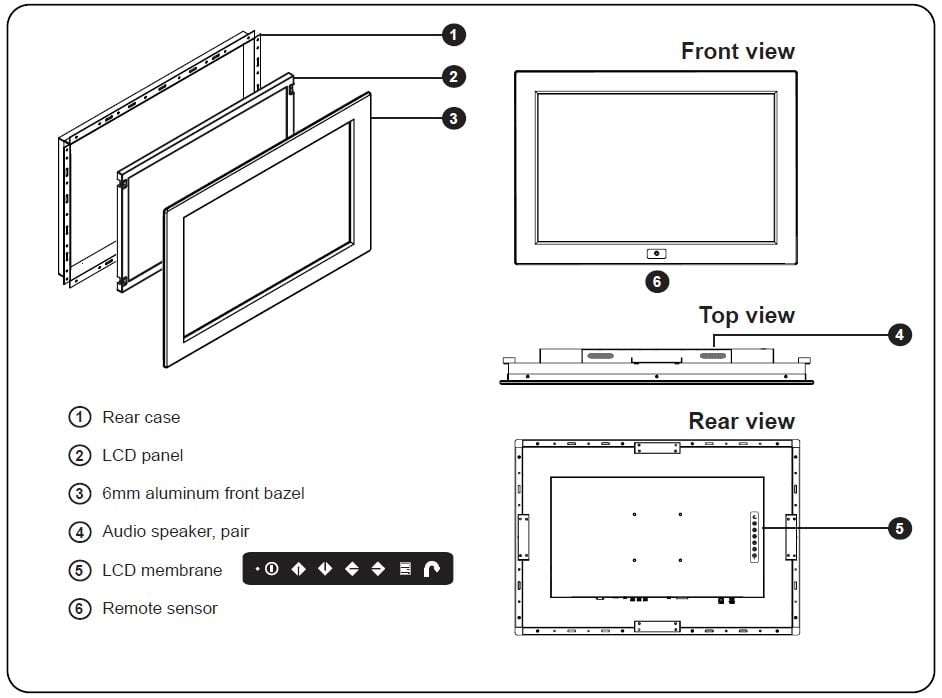

24" High Resolution Industrial LCD Features

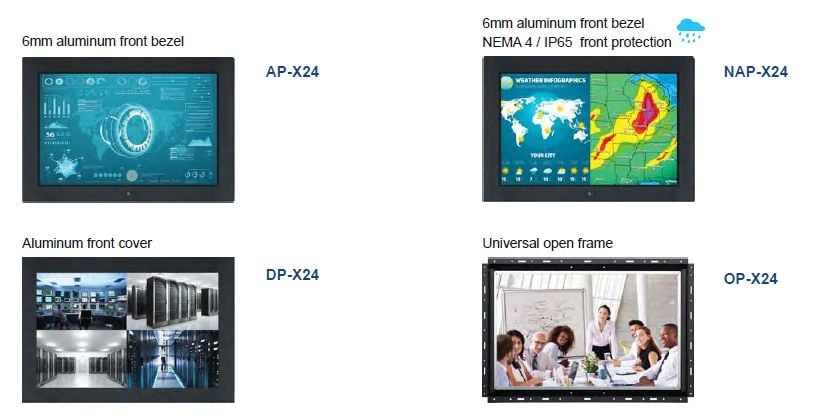

Industrial LCD Panel Options -
- Screen Protection: Protective Glass
- Broadcast: 3G / HD / SD-SDI Broadcast-grade input
- Multi-Display: Multi-display control
- Power:12VDC, 24VDC, 48VDC, 125VDC
- Touchscreen: Resistive
- Connector:Lockable DC Jack, Lockable USB Jack
- MIL-type Connector:MIL-type DC lockable jack, MIL-type VGA lockable jack
