2U 17" Triple LCD Display Drawer, (1080p) No Keyboard - (Part#RMD-F17-3)
Special Price
from $4,998.00
Regular Price
from $5,697.00
- Rugged construction for mobility & durability
- Video Input - VGA & DVI-D x 3 (SDI Optional)
- Default Resolution - 1920 X 1080
- 22" to 30" Mounting Depth (contact us for custom mounting)
More Information
| Product Specification |
Product Specification
| 2U Triple LCD Drawer Specifications |
|---|
| Video input |
VGA & DVI-D (x3) |
| Keyboard and Mouse |
No Keyboard |
| VGA or DVI - 6ft cable : |
6ft VGA Cable x3 |
| 6' DVI Cable x3 |
| Video Option |
|---|
| Digital |
VGA + DVI-D + 3G / HD / SD-SDI |
|
| (3X) 4K LCD Panel |
|---|
| Panel Size (diagonal) |
17.3" |
| Native resolution |
1920 X 1080 |
| Brightness(cd/m²) |
400 |
| Contrast ratio (typ.) |
600:1 |
| Max Color |
16.7 M, 8-bit |
| Contrast angle(L/R/U/D) |
80/80/60/80 |
| Responsive time(ms) |
40 |
| Dot pitch (mm) |
0.1989 |
| Display area (mm) |
381.888H x 214.812V |
| Surface treatment |
Anti- glare |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
50,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 25W / Max. 25W |
| Power saving mode |
Max. 4W / Max. 4W |
| Power button off |
Max. 1W / Nil |
| Physical |
|---|

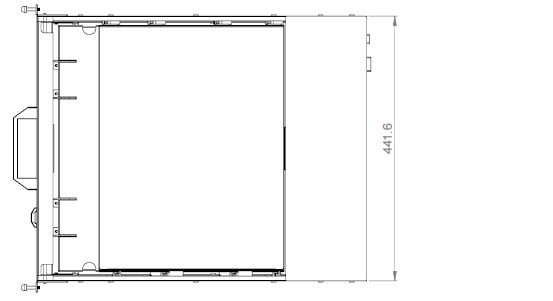

Product
(W x D X H) |
Single console |
441.6 x 550 x 88mm
17.4 x 21.7 x 3.5 inch |
| NO KVM |
|
Packing
(W x D X H) |
Single console/
NO KVM |
23 X 24.4 X 7.5 inch |
Net
weight |
Single console |
24.1 kg / 53 lb |
| NO KVM |
|
Gross
weight |
Single console |
29.1 kg / 64 lb |
| NO KVM |
|
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Mounting Distance |
|---|
| Single console drawer |
558 ~ 760 mm
22 ~ 30 inch |
| |
|
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|
1080p Triple LCD Drawer Features
- 2U - Triple 17" 1920 X 1080 Console Drawer
- Video Inputs - VGA & DVI-D X 3 Video Input
- LED Backlit Panel Technology
- Chassis Depth 21.65" (Mounting Depth 22" to 31")
- 2 Year Warranty - includes Crystal Care Service Plan
Options -
- Broadcast: 3G / HD / SD-SDI Broadcast Grade Input
- Touchscreen eResistive or Projective Capacitive 17" Touchscreen w/USB Controller
- Warranty: Extended 2 or 3 Year Warranty
