Save $500

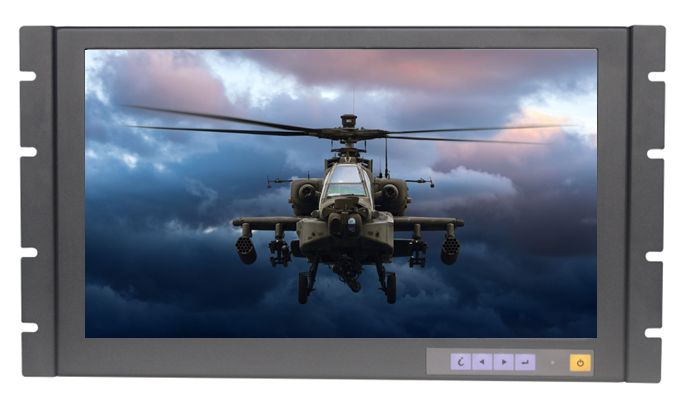

6U 4K 17.3" Rackmount LCD Panel
DisplayPort 1.2 + HDMI 2.0 + SDI, MIL-STD-810F Compliant
Special Price
from $2,697.00
Regular Price
from $3,197.00
16% OFF
Part
RMP-161-17KA-HDMI2-SDI-MIL
Product Information
- Supports 4K, 1920 X 1200 & 1920 X 1080 Resolutions

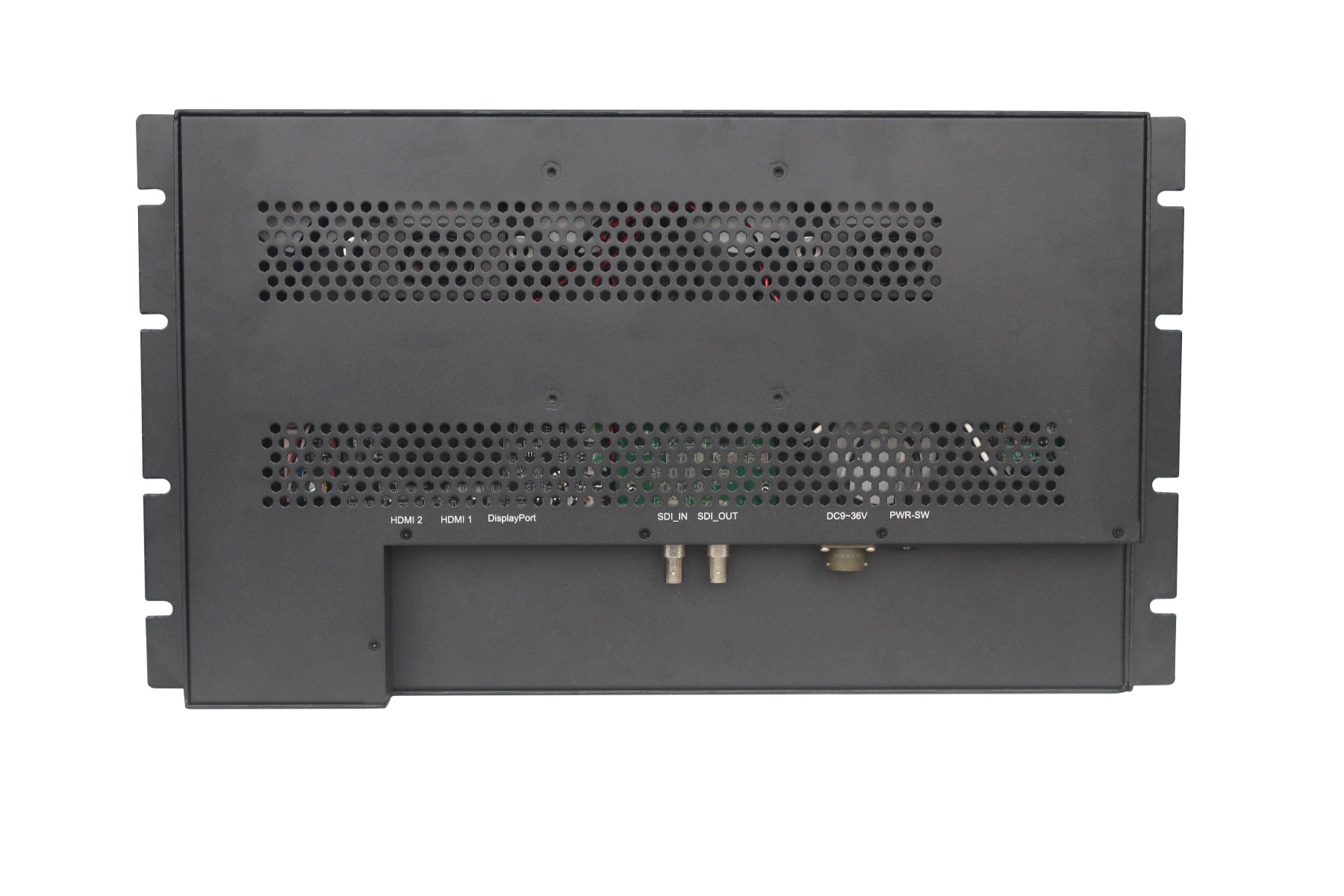

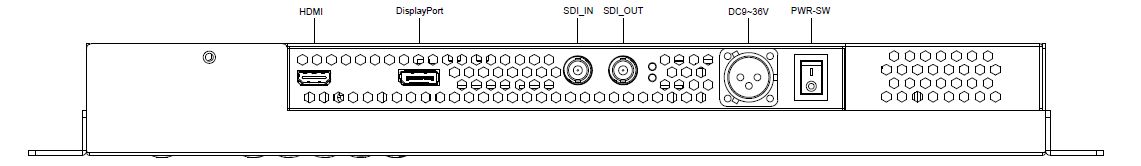

- Video Input - Display port 1.2 + HDMI 2.0 + SDI + Dual Stereo Speakers
- NEMA4/IP65 Protection with Hardness Glass
- MIL-STD-810F Compliant, with Locking MIL Connector, 9~36V DC Power
| Console Port | Video Input - Display Port 1.2 + HDMI 2.0 + SDI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LCD Panel | Panel Size (diagonal) - 17.3" Native Resolution - 3840 X 2160 Brightness (cd/m2) - 400 Contrast Ratio - 1000 : 1 Colors - 16.7M, 8-bit Viewing Angle(L/R/U/D) - 89/89/89/89 Response time (ms) - 30 Dot pitch (mm) - .0995 Display area (mm) - 382.12H X 214.94V Surface Treatment - Anti-glare Surface Hardness - 3H Backlight type - LED MTBF (hrs) - 20,000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Specification | Product SpecificationThe 6U 4K 17.3" Rackmount LCD Panel delivers high-resolution monitoring and rugged protection for military, defense, and industrial systems. Its 17.3-inch UHD display provides 3840 × 2160 resolution, while MIL-STD-810F compliance and NEMA4/IP65 protection support demanding operating environments. With DisplayPort 1.2, HDMI 2.0, and SDI connectivity, this 4K Rackmount LCD Panel integrates with compatible video equipment. Choose optional touchscreen controls and power configurations to suit your application, giving your team clear visuals and reliable access to critical information.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Faq Content |
Frequently Asked QuestionsNo. MIL-STD-810F compliance relates to defined environmental test conditions, not unrestricted operation in every military setting. Review the applicable test documentation and published shock, vibration, and temperature limits to confirm suitability for your application.
Yes, for applications where a compact display and high pixel density are priorities. The 4K resolution supports detailed imagery and technical interfaces, but very small text can be difficult to read without appropriate display scaling. Consider operator viewing distance and interface design before selecting your screen size.
Its combination of MIL-STD-810F compliance, NEMA4/IP65 protection, and 4K resolution makes it a strong candidate for compatible military monitoring systems. It delivers detailed visuals while addressing environmental requirements that standard commercial monitors may not meet.
Yes. DisplayPort 1.2, HDMI 2.0, and SDI inputs support connectivity with compatible computers, video processors, and professional monitoring equipment. This flexibility helps simplify integration across different video systems.
Its anti-glare surface helps reduce distracting reflections from surrounding lighting. Combined with 400 cd/m² brightness, it supports more comfortable viewing in suitable indoor control rooms, testing facilities, and industrial workstations.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Specification
The 6U 4K 17.3" Rackmount LCD Panel delivers high-resolution monitoring and rugged protection for military, defense, and industrial systems. Its 17.3-inch UHD display provides 3840 × 2160 resolution, while MIL-STD-810F compliance and NEMA4/IP65 protection support demanding operating environments.
With DisplayPort 1.2, HDMI 2.0, and SDI connectivity, this 4K Rackmount LCD Panel integrates with compatible video equipment. Choose optional touchscreen controls and power configurations to suit your application, giving your team clear visuals and reliable access to critical information.
| LCD Panel Video Specs | |
|---|---|
| Video input | Display port 1.2 + HDMI 2.0 x |
| Video Option | ||
|---|---|---|
| Digital Input Option | HDMI / SDI |
|
| LCD Panel | |
|---|---|
| Panel Size (diagonal) | 17.3" |
| Native resolution | 3840 x 2160 |
| Brightness(cd/m²) | 400 |
| Contrast ratio (typ.) | 1000 :1 |
| Max Color | 16.7 M, 8-bit |
| Contrast angle(L/R/U/D) | 8/89/89/89 |
| Responsive time(ms) | 30 |
| Dot pitch (mm) | 0.0995 |
| Display area (mm) | 382.12H x 214.94V |
| Surface treatment | Anti- glare |
| Surface hardness | 3H |
| Backlight type | LED |
| MTBF(hrs) | 30,000 |
| Power | ||
|---|---|---|
| Input | Input Auto-sensing 100 to 240 VAC, 50/60Hz | |
| Consumption (console / K/M) |
Screen on | Max. 29W |
| Power saving mode | Max. 9W | |
| Power button on | Max. 2W | |
| Physical | ||
|---|---|---|

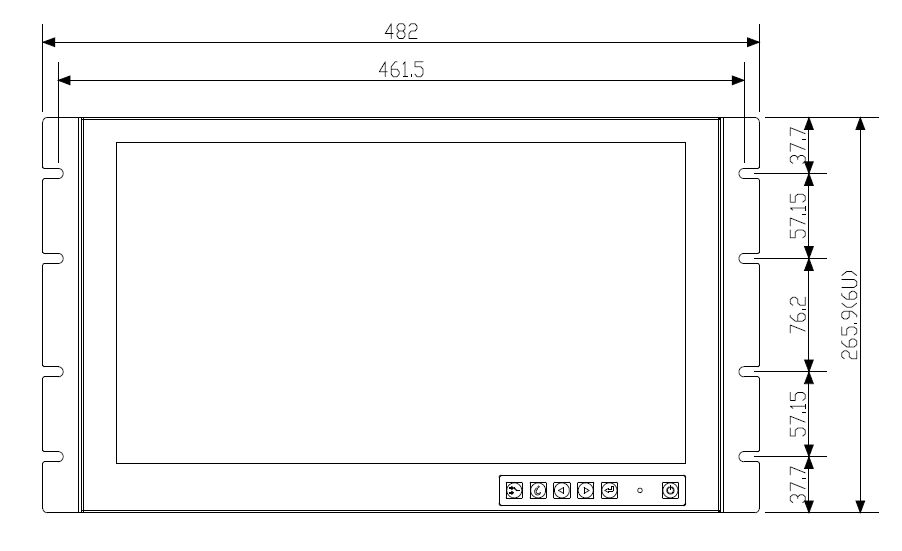

| Product (W x D X H) |
Millimeters | 482 x 62 x 310mm |
| Inches | 18.97 X 2.44 X 12.2 inch | |
| Packing (W x D X H) |
Millimeters Inches |
620 x 210 x 400mm 24.4 x 8.26 x 15.74 inch |
| Net weight |
KGs | 7 kg |
| LBS | 15.43 lb | |
| Gross weight |
KGs | 9 kg |
| LBS | 19.84 lb | |
| Environment | |
|---|---|
| Operating temp. | 0 to 50°C degree |
| Strorage temp | -20 to 60°C degree |
| Operating humidity | 5~95%, non-condensing |
| Storage humidity | 5~95%, non-condensing |
| Operating alttiude | 16,000 ft |
| Non-operating attude | 40,000 ft |
| Shock | 15G acceleration (11ms peak) |
| Vibration | 5~500Hz .1G RMS PTP |
| Compliance | |
|---|---|
| EMC | FCC & CE certifiled |
| Safety | CE/ LVD certified |
| Environment | RoHS2 & REACH compliant |
Frequently Asked Questions
No. MIL-STD-810F compliance relates to defined environmental test conditions, not unrestricted operation in every military setting. Review the applicable test documentation and published shock, vibration, and temperature limits to confirm suitability for your application.
Yes, for applications where a compact display and high pixel density are priorities. The 4K resolution supports detailed imagery and technical interfaces, but very small text can be difficult to read without appropriate display scaling. Consider operator viewing distance and interface design before selecting your screen size.
Its combination of MIL-STD-810F compliance, NEMA4/IP65 protection, and 4K resolution makes it a strong candidate for compatible military monitoring systems. It delivers detailed visuals while addressing environmental requirements that standard commercial monitors may not meet.
Yes. DisplayPort 1.2, HDMI 2.0, and SDI inputs support connectivity with compatible computers, video processors, and professional monitoring equipment. This flexibility helps simplify integration across different video systems.
Its anti-glare surface helps reduce distracting reflections from surrounding lighting. Combined with 400 cd/m² brightness, it supports more comfortable viewing in suitable indoor control rooms, testing facilities, and industrial workstations.
