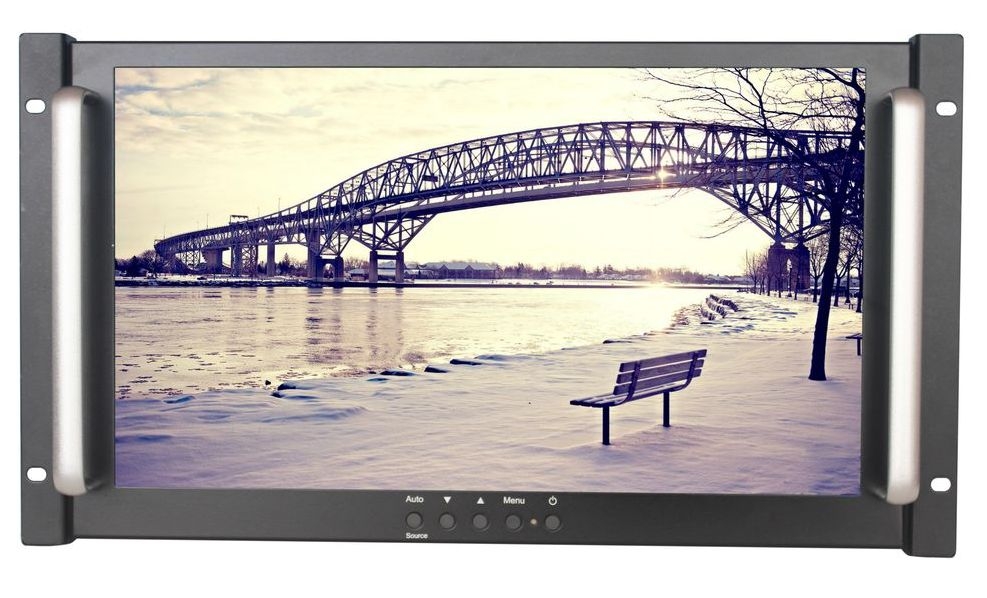

7U 4K 17" PIVOT Rackmount LCD Panel, Display Port 1.2 + 2 X HDMI + HDMI 2.0 VESA & Rackmount (Part# RMP-161-17KA)
7U 4K 17" PIVOT Rackmount LCD Panel, Display Port 1.2 + 2 X HDMI + HDMI 2.0 VESA & Rackmount (Part# RMP-161-17KA)
Special Price
from $1,409.00
Regular Price
from $1,595.00
- Supports 4K, 1920 X 1200 & 1920 X 1080 Resolutions
- Video Input - Display port 1.2 & 2 x HDMI 2.0 + Dual Stereo Speakers

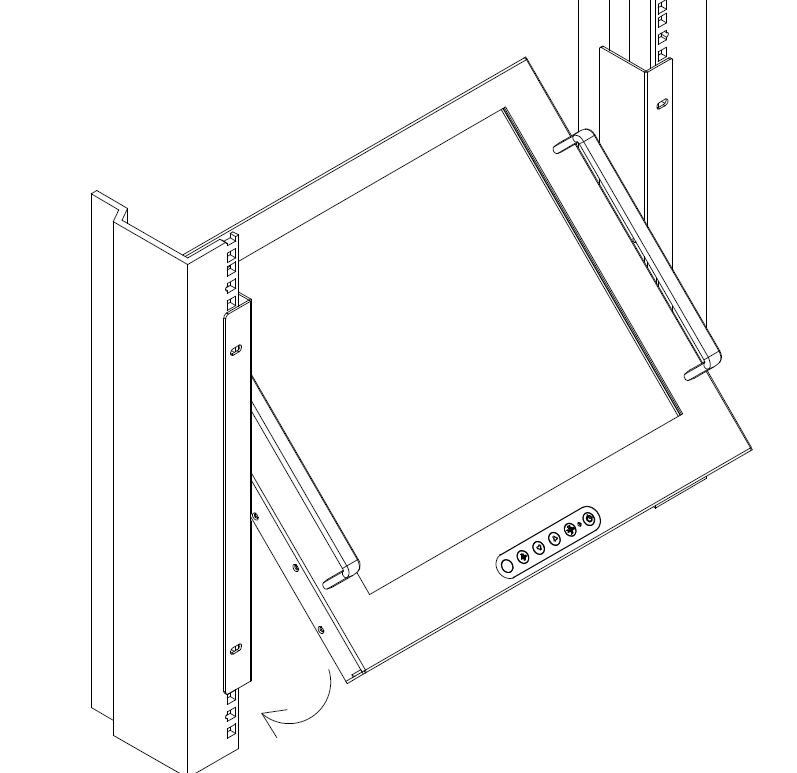

- 90 Degree Pivot Mount for viewing angle adjustment
- Optional - Touchscreen - Resistive or 10 Point Multi-Touch
More Information
| Console Port |
Video Input - Display Port 1.2 + HDMI 2.0 |
| LCD Panel |
Panel Size (diagonal) - 17.3"
Native Resolution - 3840 X 2160
Brightness (cd/m2) - 400
Contrast Ratio - 1000 : 1
Colors - 16.7M, 8-bit
Viewing Angle(L/R/U/D) - 89/89/89/89
Response time (ms) - 30
Dot pitch (mm) - .0995
Display area (mm) - 382.12H X 214.94V
Surface Treatment - Anti-glare
Surface Hardness - 3H
Backlight type - LED
MTBF (hrs) - 20,000 |
| Product Specification |
Product Specification
| LCD Panel Video Specs |
|---|
| Video input |
Display port 1.2 + HDMI 2.0 x |
| Video Option |
|---|
| Digital Input Option |
HDMI / SDI |
3G / HD / SD-SDI Broadcast Grade Input
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
17.3" |
| Native resolution |
3840 x 2160 |
| Brightness(cd/m²) |
400 |
| Contrast ratio (typ.) |
1000 :1 |
| Max Color |
16.7 M, 8-bit |
| Contrast angle(L/R/U/D) |
8/89/89/89 |
| Responsive time(ms) |
30 |
| Dot pitch (mm) |
0.0995 |
| Display area (mm) |
382.12H x 214.94V |
| Surface treatment |
Anti- glare |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
30,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 29W |
| Power saving mode |
Max. 9W |
| Power button on |
Max. 2W |
| Physical |
|---|
Product
(W x D X H) |
Millimeters |
482 x 62 x 310mm |
| Inches |
18.97 X 2.44 X 12.2 inch |
Packing
(W x D X H) |
Millimeters
Inches |
620 x 210 x 400mm
24.4 x 8.26 x 15.74 inch |
Net
weight |
KGs |
7 kg |
| LBS |
15.43 lb |
Gross
weight |
KGs |
9 kg |
| LBS |
19.84 lb |
| Environment |
|---|
| Operating temp. |
0 to 50°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
5~95%, non-condensing |
| Storage humidity |
5~95%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
15G acceleration (11ms peak) |
| Vibration |
5~500Hz .1G RMS PTP |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|
17.3" 4K PIVOT Rackmount Display Panel
- 7U 17.3" LCD Panel (3840 X 2160 Resolution)
- 400 cd/m2 Brightness
- Video Input - Display Port 1.2 + HDMI 2.0 x 2
- Supports 1920 x 1200 & 1920 x 1080 resolution
- Pivot Mount for angle adjustment
- Rackmount and VESA Mount
- Built in dual stereo speakers
Download More Info -
Product Specification
| LCD Panel Video Specs |
|---|
| Video input |
Display port 1.2 + HDMI 2.0 x |
| Video Option |
|---|
| Digital Input Option |
HDMI / SDI |
3G / HD / SD-SDI Broadcast Grade Input
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
17.3" |
| Native resolution |
3840 x 2160 |
| Brightness(cd/m²) |
400 |
| Contrast ratio (typ.) |
1000 :1 |
| Max Color |
16.7 M, 8-bit |
| Contrast angle(L/R/U/D) |
8/89/89/89 |
| Responsive time(ms) |
30 |
| Dot pitch (mm) |
0.0995 |
| Display area (mm) |
382.12H x 214.94V |
| Surface treatment |
Anti- glare |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
30,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 29W |
| Power saving mode |
Max. 9W |
| Power button on |
Max. 2W |
| Physical |
|---|
Product
(W x D X H) |
Millimeters |
482 x 62 x 310mm |
| Inches |
18.97 X 2.44 X 12.2 inch |
Packing
(W x D X H) |
Millimeters
Inches |
620 x 210 x 400mm
24.4 x 8.26 x 15.74 inch |
Net
weight |
KGs |
7 kg |
| LBS |
15.43 lb |
Gross
weight |
KGs |
9 kg |
| LBS |
19.84 lb |
| Environment |
|---|
| Operating temp. |
0 to 50°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
5~95%, non-condensing |
| Storage humidity |
5~95%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
15G acceleration (11ms peak) |
| Vibration |
5~500Hz .1G RMS PTP |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
