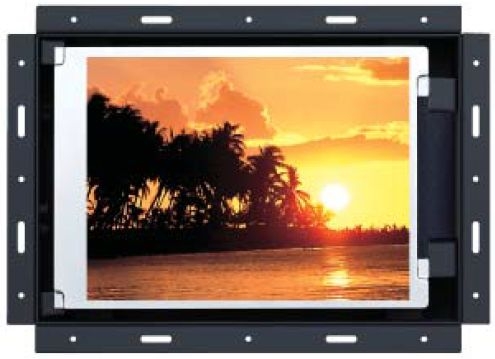

8.4" Rugged LCD, 800 X 600, Universal Open Frame LCD Panel (Part# LCD-OP8)
8.4" Rugged LCD, 800 X 600, Universal Open Frame LCD Panel (Part# LCD-OP8)
Special Price
from $406.00
Regular Price
from $449.00
- Standard VGA Input - Optional BNC & S-Video, + Audio + Remote Controller
- 3MM Protective Glass - Optional NEMA4/IP65 LED Display Panel
- Optional - Resistive or Capacitive Touchscreen
- Auto-sensing 100 to 240 VAC, 50/60Hz - Optional 12VDC/24VDC/48VDC/125VDC
More Information
| Product Specification |
Product Specification
| LCD Panel Video Specs |
|---|
| Video input |
VGA |
| Video Option |
|---|
| Analog / Digital |
Composite / DVI / HDMI |
S-Video (4-pin) + Composite (BNC) + Audio
+ Remote Controller - HTSC & PAL
DVI-D Single Link, HDMI 1.3 / HDCP 1.3
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
8.4" |
| Native resolution |
800 x 600 |
| Brightness(cd/m²) |
250 |
| Contrast ratio (typ.) |
600 :1 |
| Max Color |
262 K |
| Contrast angle(L/R/U/D) |
80/80/80/60 |
| Responsive time(ms) |
30 |
| Dot pitch (mm) |
0.213 |
| Display area (mm) |
170.4H x 125.8V |
| Surface treatment |
Anti-glare |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
30,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 14W |
| Power saving mode |
Max. 4W |
| Power button on |
Max. 1W |

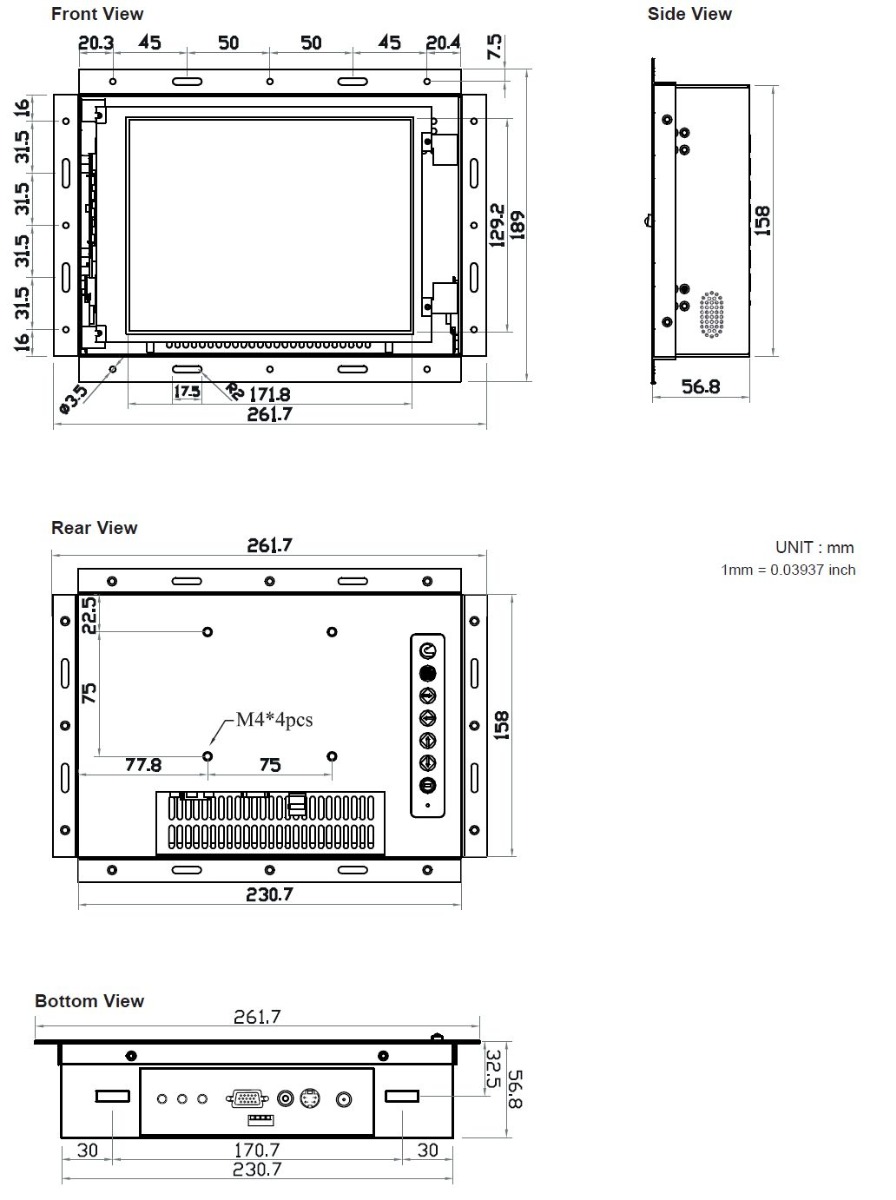

| Physical LCD Frame |
|---|
Product
(W x D X H) |
Millimeters |
264.7 x 62.8 x 192mm |
| Inches |
10.4 X 2.5 X 7.6 inch |
Packing
(W x D X H) |
Millimeters
Inches |
515 x 117 x 429mm
20.3 x 4.6 x 16.9 inch |
Net
weight |
KGs |
2.4 kg |
| LBS |
5.3 lb |
Gross
weight |
KGs |
4.3 kg |
| LBS |
9.5 lb |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|

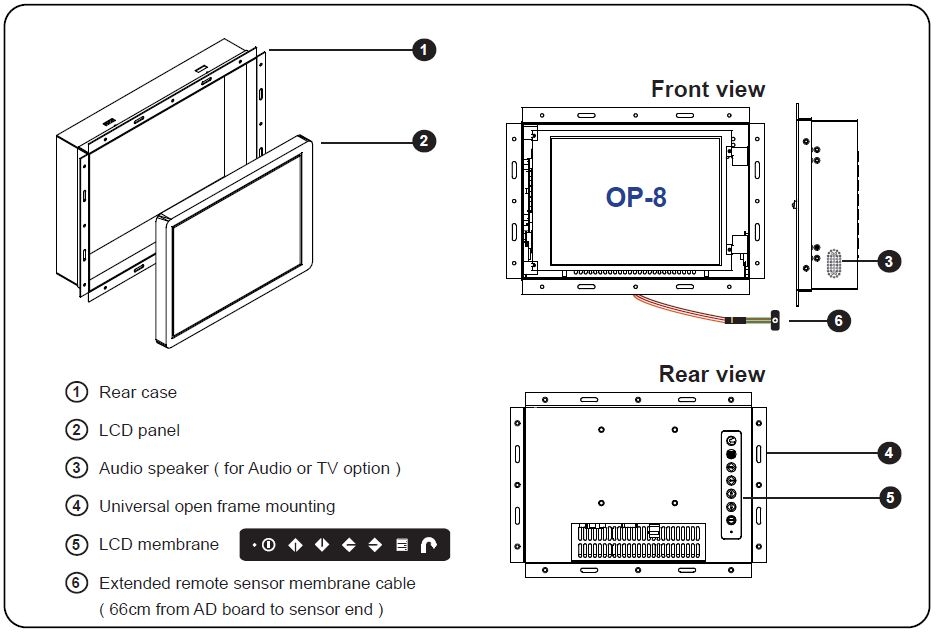

8.4" Open Frame Industrial LCD Features
Industrial LCD Panel Options -
- Video: BNC & S-Video
- Audio: Add integrated speakers
- Touchscreen: Resistive or Capacitive
- Tuner: TV - PAL or NTSC Remote Controller
