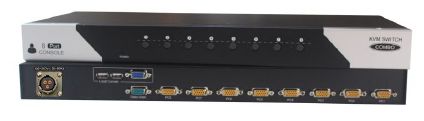

8 Port Military Grade KVM Switch, Supports up to 1920 X 1200, Single Console (Part#KVM-S8-MIL)
8 Port Military Grade KVM Switch, Supports up to 1920 X 1200, Single Console (Part#KVM-S8-MIL)
Special Price
from $1,097.00
Regular Price
from $1,295.00
- Includes 8, 6' USB/VGA KVM Cables
- Supports up to 1920 X 1200 Resolution
- MIL-STD-810F/G Compliant
- -30C ~ 50C Operating Temperature
- MIL TYPE 3 Pin Locking Connector
More Information
| Product Specification |
Product Specification
| DB-15 KVM Switch |
|---|
| Port # : |
8 |
| Connector : |
DB-15 |
| Connectivity : |
1 x DB-15 VGA |
| Resolution : |
16:10 - max. 1920 x 1200 / 4:3 - max. 1600 x 1200 |
| Local Console |
|---|
| Graphic Connector : |
1 x DB-15 VGA |
| Input device : |
2 x USB type A for keyboard & mouse |
| Resolution : |
16:9 - max. 1920 x 1080 / 4:3 - max. 1600 x 1200 / 1920 X 1200 |
| Management |
|---|
| Port switching |
OSD, front button & keyboard hotkeys |
| Expansion |
8-level cascade up to 256 servers |
| Power |
|---|
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption |
Max. 19W |
| Compatibility |
|---|
| Hardware |
HP / IBM / Dell PC, Server and Blade Server
SUN / Mac |
| OS support |
Windows / Linux / Unix / Mac OS |
| Compliance |
|---|
| Safety |
cUL, FCC & CE certified |
| Environment |
RoHS2 & REACH compliant |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Storage temp. |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating altitude |
16,000 ft |
| Non-operating altitude |
40,000 ft |
| Shock |
10G acceleration ( 11ms duration ) |
| Vibration |
10~300Hz 0.5G RMS random vibration |
| Physical |
|---|
| Product (W x D x H) |
443 x 171 x 44 mm
17.4 x 6.7 x 1.73 inch |
| Packing (W x D x H) |
500 x 400 x 90 mm
19.7 x 15.7 x 3.5 inch |
| Weight |
Net |
3 kg / 6.6 lb |
| Gross |
5 kg / 11 lb |
| Chassis color |
Dark |
| Chassis materials |
Steel |
|
Military Grade DB-15 - USB/VGA 8 Port KVM Switch Features
- 8 Port USB KVM Switch - DB-15 Single Console KVM
- Includes 8, 6' USB / VGA (Server) to DB-15 (KVM Switch) Cables
- Supports up to 1920 X 1440 Resolution
- Hot Pluggable - No Software or Drivers Needed
- Mix PC's, SUN and Mac G3 / G4 Mac / iMac / Windows 7 / Vista / 2003 / Linux / Unix
8 Port KVM Switch USB Options -
- Cables: Add 10' or 15' Cables
- Power: 12VDC, 24VDC, 48VDC
- Warranty: Extended 3 Year Warranty
Download More Info -
KVM Switch User Manual
