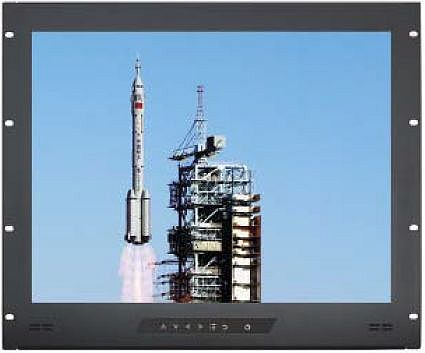

9U 20" 1600 X 1200 Rackmount LCD Panel (RMP-161-20)
9U 20" 1600 X 1200 Rackmount LCD Panel (RMP-161-20)
Special Price
from $1,568.00
Regular Price
from $1,990.00

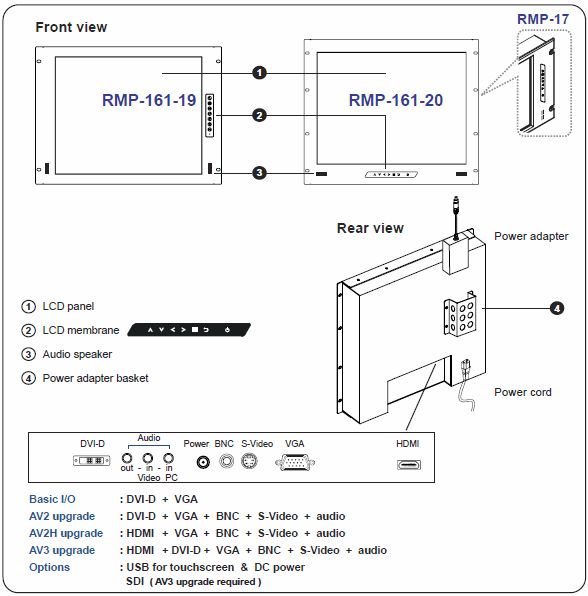

- Video Input - VGA + HDMI (Option - DVI-D, BNC + Audio IN, SDI)
- 20" 4:3 1600 X 1200 Resolution
- Touchscreen - (Option - Resistive Touchscreen)
- DC Power - 12VDC, 24VDC, 48VDC, 125VDC
More Information

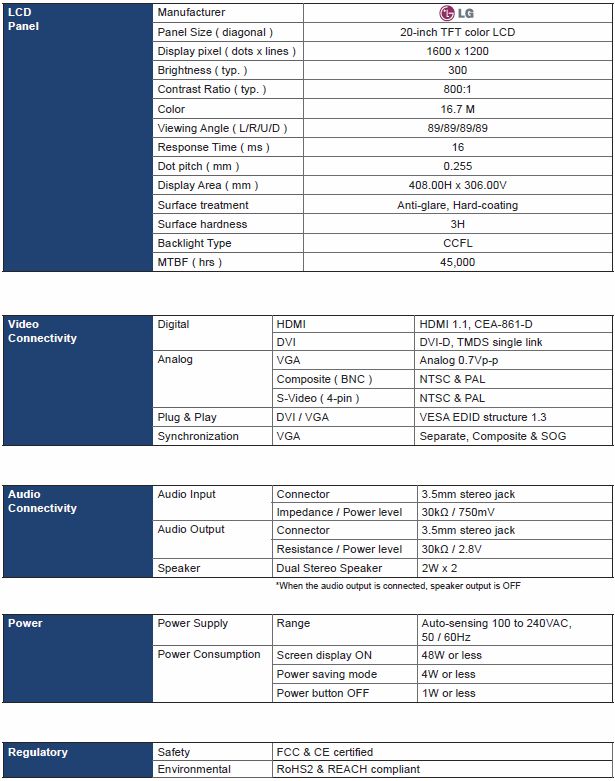

| Product Specification |
Product Specification
| 20" LCD Panel Video Specs |
|---|
| Video input |
VGA + DVI-D single link |
| Video Option |
|---|
| Digital / Analog |
HDMI / SDI / Composite |
HDMI 1.2
3G / HD / SD-SDI Broadcast Grade Input
S-Video (4-pin) + Composite (BNC)
NTSC & PAL
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
20.1" |
| Native resolution |
1600 x 1200 |
| Brightness(cd/m²) |
300 |
| Contrast ratio (typ.) |
800:1 |
| Max Color |
16.7 M |
| Contrast angle(L/R/U/D) |
89/89/89/89 |
| Responsive time(ms) |
16 |
| Dot pitch (mm) |
0.255 |
| Display area (mm) |
408H x 306V |
| Surface treatment |
Anti-Glare Hard-coating |
| Surface hardness |
3H |
| Backlight type |
CCFL |
| MTBF(hrs) |
45,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 48W |
| Power saving mode |
Max. 4W |
| Power button on |
Max. 1W |
| Physical Rackmount LCD Frame |
|---|
Product
(W x D X H) |
Millimeters |
480 x 64 x 399mm |
| Inches |
18.9 X 2.5 X 15.7 inch |
Packing
(W x D X H) |
Millimeters
Inches |
583 x 124 x 529mm
23 x 4.9 x 20.8 inch |
Net
weight |
KGs |
8.9 kg |
| LBS |
18.7 lb |
Gross
weight |
KGs |
11 kg |
| LBS |
24.2 lb |

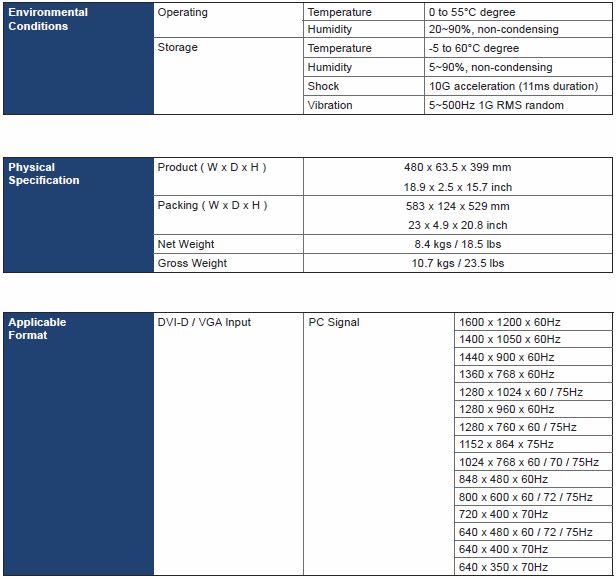

| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|
Rackmount 20" LCD Panel Features
- 9U 20" Rackmount LCD Panel (1600 X 1200 LCD)
- Video Input - VGA + HDMI
- Ideal for CCTV security & industrial control
- 2 Year Warranty - includes Crystal Care Service Plan
LCD Console Options -
- Video: DVI-D, BNC + Audio IN
- Display: MCS - Multi Display Control (RS232 Controller)
- Locking: MIL Type Connector (DC Power & VGA)
- Power: 12VDC, 24VDC, 48VDC
- Touchscreen: Resistive only
- Warranty: Extended 3 Year Warranty
