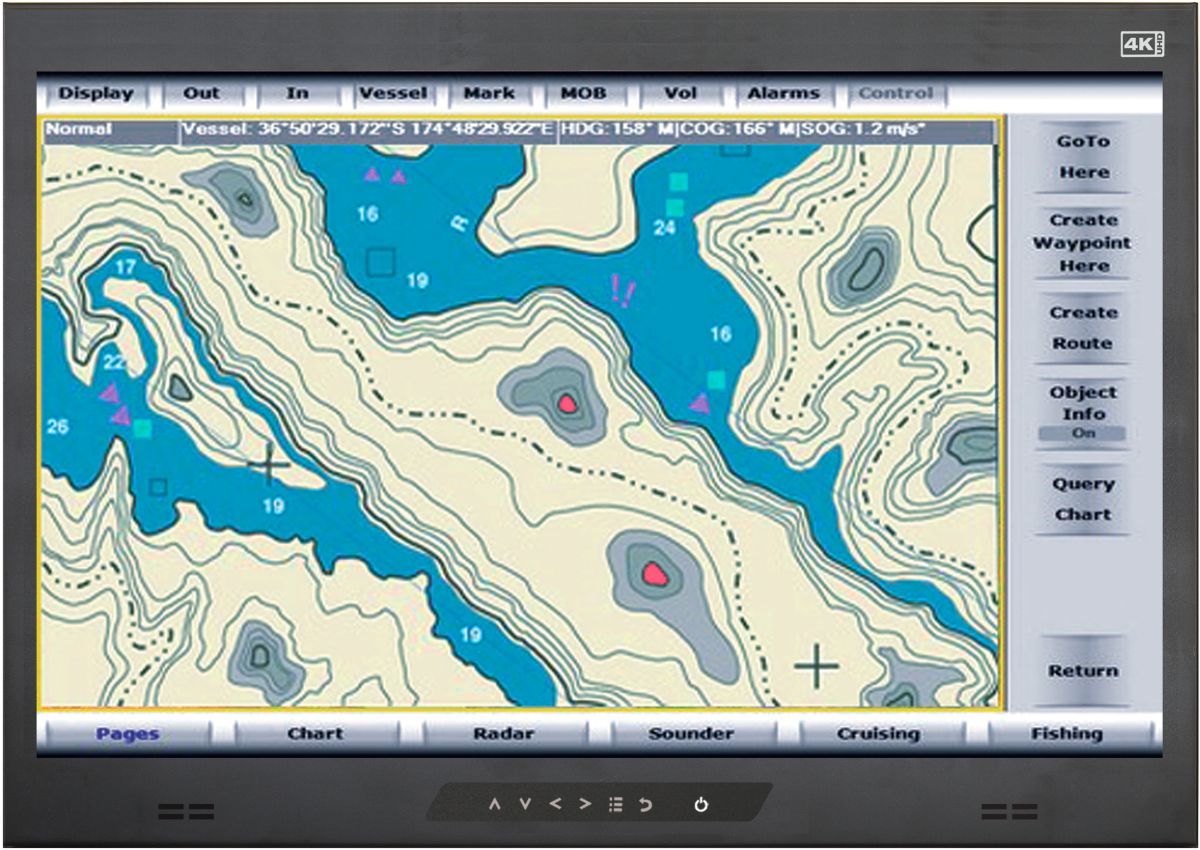

9U 4K 23.8" Rackmount LCD Panel, DP 1.2 + HDMI 1.4 + HDMI 2.0 Input (Part# RMP-161-24K)
9U 4K 23.8" Rackmount LCD Panel, DP 1.2 + HDMI 1.4 + HDMI 2.0 Input (Part# RMP-161-24K)
Special Price
from $1,979.00
Regular Price
from $2,330.00
- 3840 X 2160 Native Resolution / 16.7M colors (8-bit)
- Supports 1920 X 1080 & 1920 X 1200
- PIP Sub-Screen & PBP Dual-screen Viewing
- Built in dual stereo speakers
More Information
| Console Port |
Video Input - Display Port 1.2 + HDMI 1.4 |
| Product Specification |

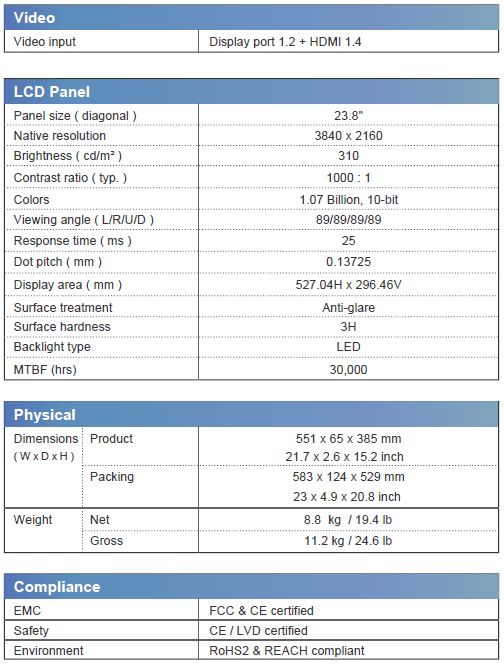

Product Specification
| 4K LCD Panel Video Specs |
|---|
| Video input |
Display port 1.2 + HDMI 1.4 |
| Video Option |
|---|
| Digital Input Option |
HDMI / SDI |
HDMI 2.0 / HDCP 2.2
3G / HD / SD-SDI Broadcast Grade Input
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
23.8" |
| Native resolution |
3840 x 2160 |
| Brightness(cd/m²) |
310 |
| Contrast ratio (typ.) |
1000 :1 |
| Max Color |
1.07 Billion, 10-bit |
| Contrast angle(L/R/U/D) |
8/89/89/89 |
| Responsive time(ms) |
25 |
| Dot pitch (mm) |
0.13725 |
| Display area (mm) |
527.04H x 296.46V |
| Surface treatment |
Anti- glare |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
30,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 45W |
| Power saving mode |
Max. 9W |
| Power button on |
Max. 2W |

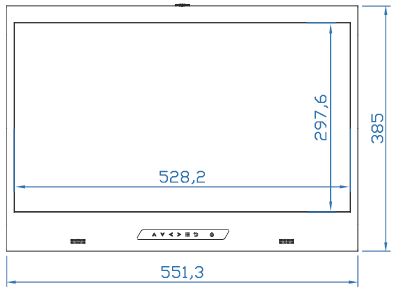

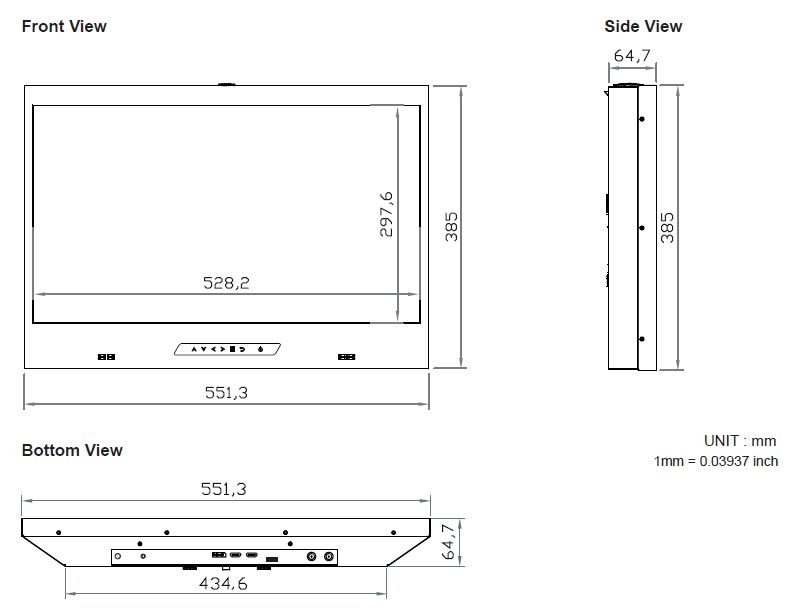

| Physical |
|---|
Product
(W x D X H) |
Millimeters |
551 x 65 x 385mm |
| Inches |
21.7 X 2.6 X 15.2 inch |
Packing
(W x D X H) |
Millimeters
Inches |
583 x 124 x 529mm
23 x 4.9 x 20.8 inch |
Net
weight |
KGs |
8.8 kg |
| LBS |
19.4 lb |
Gross
weight |
KGs |
11.2 kg |
| LBS |
24.6 lb |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |

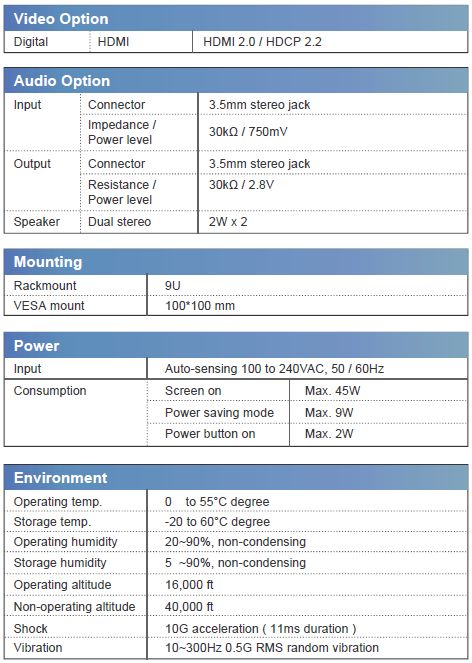

| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|
23.8" 4K Rackmount Display Panel
- 9U 23.8" LCD Panel (3840 X 2160 Resolution)
- 310 cd/m2 Brightness
- Video Input - Display Port 1.2 + HDMI 1.4
- Supports 1920 x 1200 & 1920 x 1080 resolution
- PIP Sub-Screen & PBP Dual-screen viewing efficiency
- Standard 2 Year Warranty (upgradable to 5 years)
- Built in dual stereo speakers
