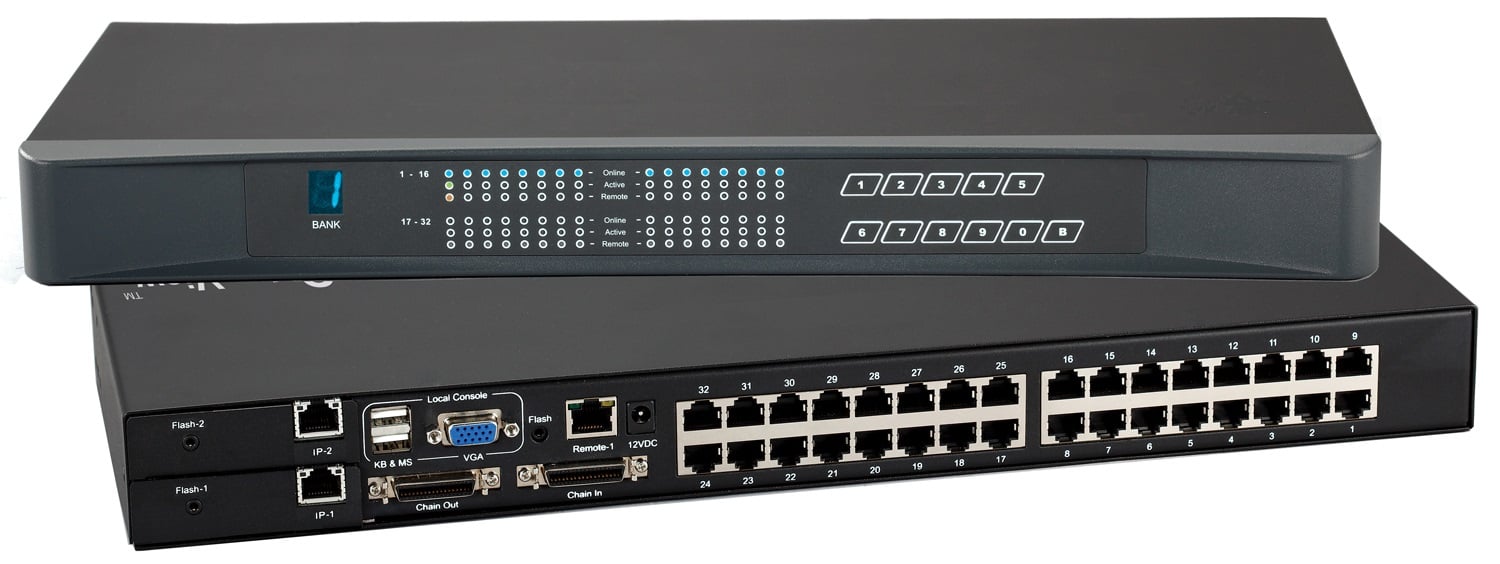

16 Port Cat5 KVM Switch (Part#Cat5-16)
Special Price
from $670.00
Regular Price
from $837.50
16 Port Cat5 / Cat6 KVM Switch supports up to 1920 X 1200 Resolution
More Information
| Product Specification |
Product Specification
| Cat5 KVM Port |
|---|
| Port # : |
8 |
| Connector : |
RJ-45 |
| Connectivity : |
DP / HDMI / DVI-D / VGA dongle via Cat6 / Cat5 cable
to server up to 40 meters (132 feet) |
| Resolution : |
16:9 - max. 1920 x 1080 / 4:3 - max. 1600 x 1200 / 1920 X 1200 |
| Local Console |
|---|
| Graphic Connector : |
1 x DB-15 VGA |
| Input device : |
2 x USB type A for keyboard & mouse |
| Resolution : |
16:9 - max. 1920 x 1080 / 4:3 - max. 1600 x 1200 / 1920 X 1200 |
| Management |
|---|
| Port switching |
OSD, front button & keyboard hotkeys |
| Expansion |
8-level cascade up to 256 servers |
| Power |
|---|
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption |
Max. 34W |
| Compatibility |
|---|
| Hardware |
HP / IBM / Dell PC, Server and Blade Server
SUN / Mac |
| OS support |
Windows / Linux / Unix / Mac OS |
| Compliance |
|---|
| Safety |
cUL, FCC & CE certified |
| Environment |
RoHS2 & REACH compliant |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Storage temp. |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating altitude |
16,000 ft |
| Non-operating altitude |
40,000 ft |
| Shock |
10G acceleration ( 11ms duration ) |
| Vibration |
10~300Hz 0.5G RMS random vibration |
| Physical |
|---|
| Product (W x D x H) |
443 x 171 x 44 mm
17.4 x 6.7 x 1.73 inch |
| Packing (W x D x H) |
500 x 400 x 90 mm
19.7 x 15.7 x 3.5 inch |
| Weight |
Net |
3 kg / 6.6 lb |
| Gross |
5 kg / 11 lb |
| Chassis color |
Dark |
| Chassis materials |
Steel |
|
16 Port KVM Switch Cat5 / Cat6 Features -
- Console: 1 Local Console
- Distance: Up to 130ft between servers and KVM Ports
- Compatibility: PCs, SUN, Mac G3 / G4 Mac / iMac- Windows, Unix, Linux
- Resolution: 1600 X 1200 - Supports SUN 1152 X 900
- Power:Auto Sensing - 100 to 240VAC, 50 / 60Hz
- KVM Navigation:Front Buttons or OSD Menu & Hot Keys
- Warranty:2 Year Warranty, Includes Crystal Care Service Plan
KVM 16 Port Cat5 Switch Options -
- Power:12VDC, 24VDC, 48VDC
- IntegrationIntegrate into 17", 19" or 20" 1U Rack Mount Monitor
- ExansionUpgrade to 16 Port, 32 Port, and IP (BIOS Level) Remote Access
- Warranty3 Year Extended Warranty
