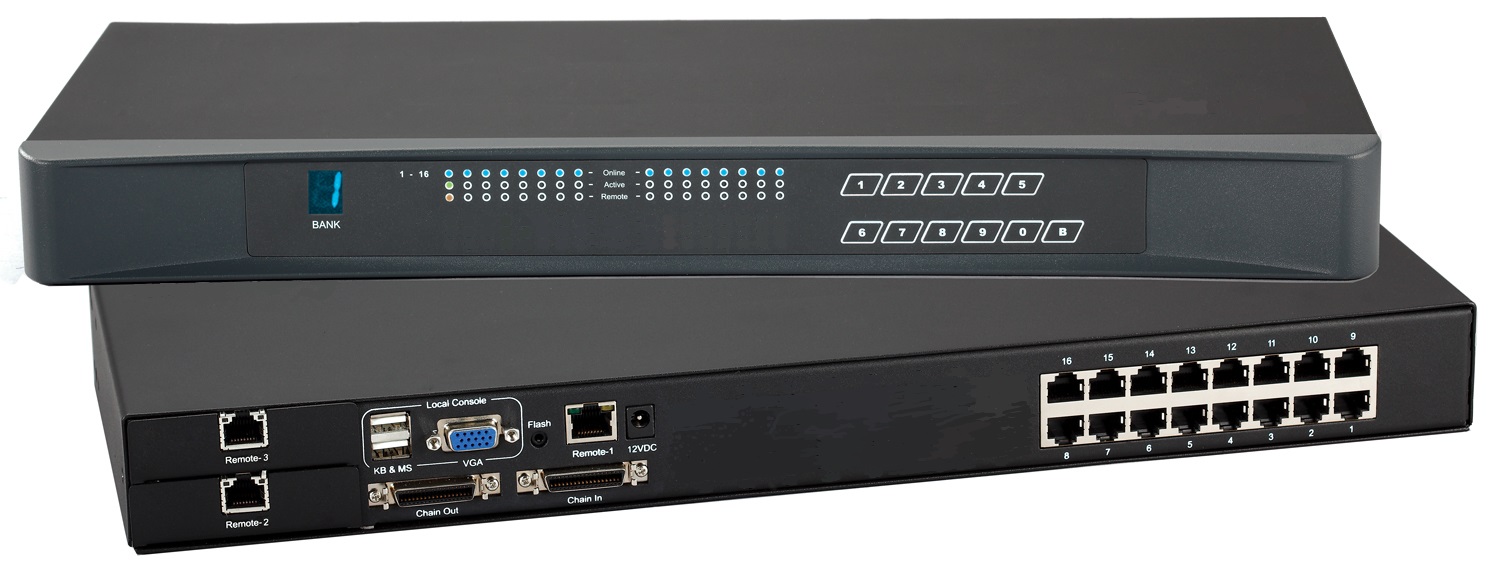

Cat5 Multi-User 16 Port 4 Console KVM Switch (Part#Cat5M-1604)
Special Price
from $2,097.00
Regular Price
from $2,621.25
More Information
Product Specification |
Product Specification
KVM Port |
Port # : |
16 or 32 |
Connector : |
RJ-45 |
Connectivity : |
DP / HDMI / DVI-D / VGA dongle via Cat6 / Cat5 cable to server up to 40 meters (132 feet) |
Resolution : |
16:9 - max. 1920 x 1080 / 4:3 - max. 1600 x 1200 |
Local Console |
Graphic Connector : |
1 x DB-15 VGA |
Input device : |
2 x USB type A for keyboard & mouse |
Resolution : |
16:9 - max. 1920 x 1080 / 4:3 - max. 1600 x 1200 |
IP Console |
Connector : |
N/A |
User management : |
N/A |
Network protocol : |
N/A |
Security : |
N/A |
Browser : |
N/A |
Resolution : |
N/A |
Matrix Cat5 KVM Switches with IP Connectivity Available |
Remote Cat5 / Cat6 Console |
Connector : |
RJ45 |
Connection : |
via Cat5 / Cat6 cable to receiver box |
Receiver box I/O : |
VGA + 2 x USB type A for keyboard & mouse |
Receiver box
|
16:9 - max. 1920 x 1080 ( Max. 50 meters Cat6 cable ) |
16:10 - max. 1440 x 900 ( Max. 100 meters Cat6 cable ) |
4:3 - max. 1600 x 1200 ( Max. 100 meters Cat6 cable ) |
4:3 - max. 1280 x 1024 ( Max. 150 meters Cat6 cable ) |
Management |
Port switching |
OSD, front button & keyboard hotkeys |
Expansion |
8-level cascade up to 256 servers |
Power |
Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
Consumption |
Max. 34W |
Compatibility |
Hardware |
HP / IBM / Dell PC, Server and Blade Server SUN / Mac |
OS support |
Windows / Linux / Unix / Mac OS |
Compliance |
Safety |
cUL, FCC & CE certified |
Environment |
RoHS2 & REACH compliant |
Environment |
Operating temp. |
0 to 55°C degree |
Storage temp. |
-20 to 60°C degree |
Operating humidity |
20~90%, non-condensing |
Storage humidity |
5 ~90%, non-condensing |
Operating altitude |
16,000 ft |
Non-operating altitude |
40,000 ft |
Shock |
10G acceleration ( 11ms duration ) |
Vibration |
10~300Hz 0.5G RMS random vibration |
Physical |
Product (W x D x H) |
443 x 171 x 44 mm 17.4 x 6.7 x 1.73 inch |
Packing (W x D x H) |
500 x 400 x 90 mm 19.7 x 15.7 x 3.5 inch |
Weight |
Net |
3 kg / 6.6 lb |
Gross |
5 kg / 11 lb |
Chassis color |
Dark |
Chassis materials |
Steel |
|
16 Port Multi-User Cat5 KVM Switch Features -

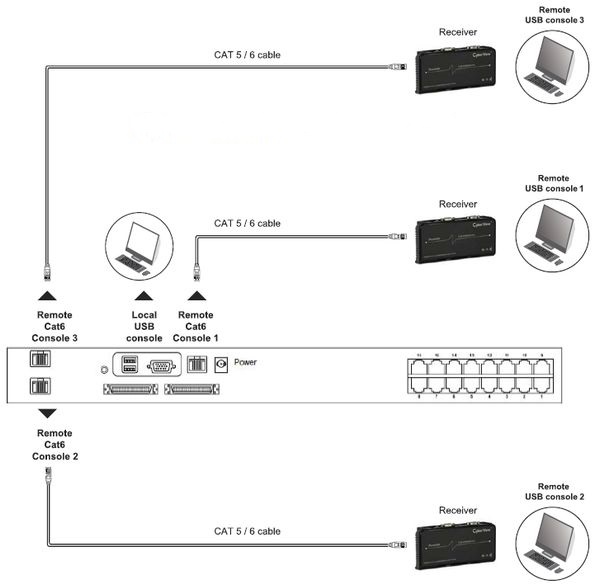

- Console: 1 Local Console, 3 Remote Cat5 Consoles
- Distance: Cat5 / Cat6 Cable up to 130ft between servers and KVM Ports
- Dongle: Supports VGA/USB Dongle, DVI/USB Dongle, VGA/PS2 Dongle
- Compatibility: PCs, SUN, Mac G3 / G4 Mac / iMac- Windows, Unix, Linux
- Resolution: 1600 X 1200 - Supports SUN 1152 X 900
- Security:SSL v3, RSA, AES, HTTP / HTTPs / CSR
- Power:Auto Sensing - 100 to 240VAC, 50 / 60Hz

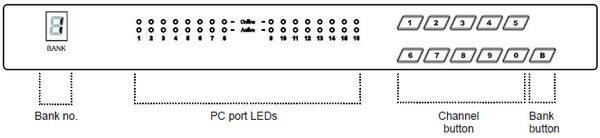

- KVM Navigation:Front Buttons or OSD Menu & Hot Keys
- Warranty:2 Year Warranty, Includes Crystal Care Service Plan
16 Port Cat5 KVM Over IP Switch Options -
- Power:12VDC, 24VDC, 48VDC
- IntegrationIntegrate into 17", 19" or 20" 1U Rack Mount Monitor
- ExansionUpgrade to 16 Port or 32 Port
- Warranty3 Year Extended Warranty
