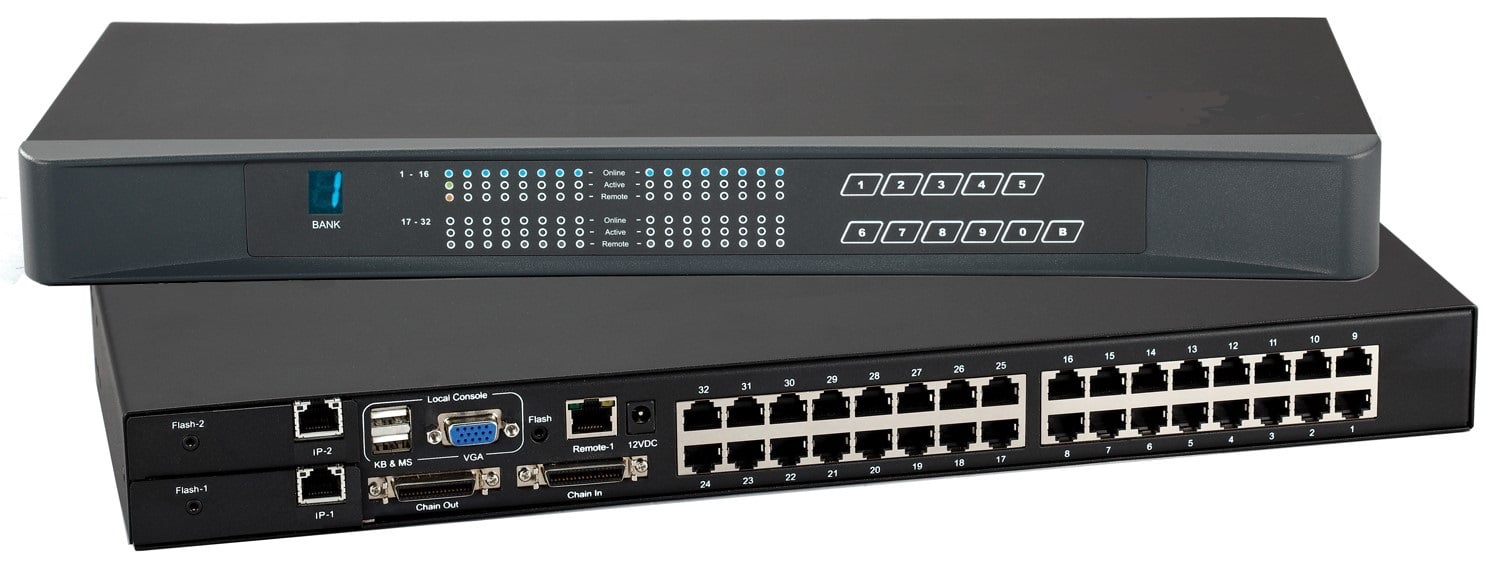

Cat5 4 Console 32 Port IP KVM Switch (Part#Cat5M-IP232-4)
Special Price
from $2,897.00
Regular Price
from $3,621.25

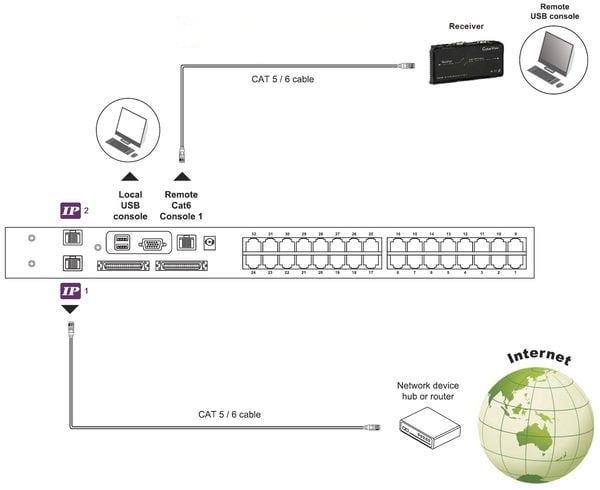

4 Console KVM Switch, 1 Local Console, 1 Cat5 Remote Console, 2 KVM Over IP Consoles - supports up to 1920 X 1200 Resolution (1920 X 1080 IP resolution)
More Information
Product Specification
Product Specification
KVM Port
Port # :
16 or 32
Connector :
RJ-45
Connectivity :
DP / HDMI / DVI-D / VGA dongle via Cat6 / Cat5 cable
Resolution :
16:9 - max. 1920 x 1080 / 4:3 - max. 1600 x 1200
Local Console
Graphic Connector :
1 x DB-15 VGA
Input device :
2 x USB type A for keyboard & mouse
Resolution :
16:9 - max. 1920 x 1080 / 4:3 - max. 1600 x 1200
IP Console
Connector :
RJ45
User management :
1 x active user, 15-user login
Network protocol :
DHCP / BOOTP / DNS
Security :
SSL v3, RSA, AES, HTTP / HTTPs, CSR
Browser :
Internet Explorer
Resolution :
4:3 - max. 1600 x 1200
IP console upgrade option for resolution support 1920 x 1080
Remote Console
Connector :
RJ45
Connection :
via Cat5 / Cat6 cable to receiver box
Receiver box I/O :
VGA + 2 x USB type A for keyboard & mouse
Receiver box
16:9 - max. 1920 x 1080 ( Max. 50 meters Cat6 cable )
16:10 - max. 1440 x 900 ( Max. 100 meters Cat6 cable )
4:3 - max. 1600 x 1200 ( Max. 100 meters Cat6 cable )
4:3 - max. 1280 x 1024 ( Max. 150 meters Cat6 cable )
Management
Port switching
OSD, front button & keyboard hotkeys
Expansion
8-level cascade up to 256 servers
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 34W
Compatibility
Hardware
HP / IBM / Dell PC, Server and Blade Server
OS support
Windows / Linux / Unix / Mac OS
Compliance
Safety
cUL, FCC & CE certified
Environment
RoHS2 & REACH compliant
Environment
Operating temp.
0 to 55°C degree
Storage temp.
-20 to 60°C degree
Operating humidity
20~90%, non-condensing
Storage humidity
5 ~90%, non-condensing
Operating altitude
16,000 ft
Non-operating altitude
40,000 ft
Shock
10G acceleration ( 11ms duration )
Vibration
10~300Hz 0.5G RMS random vibration
Physical
Product (W x D x H)
443 x 171 x 44 mm
Packing (W x D x H)
500 x 400 x 90 mm
Weight
Net
3 kg / 6.6 lb
Gross
5 kg / 11 lb
Chassis color
Dark
Chassis materials
Steel
32 Port KVM Over IP Multi-User Cat5 KVM Switch Features -
Console: 1 Local Console, 1 Remote Cat5 Console & 2 IP Remote Consoles Distance: Cat5 / Cat6 Cable up to 130ft between servers and KVM Ports Dongle: VGA / DVI / HDMI / DP / USB-C Compatibility: PCs, SUN, Mac G3 / G4 Mac / iMac- Windows, Unix, Linux Resolution: 1600 X 1200 - Supports SUN 1152 X 900 Security:SSL v3, RSA, AES, HTTP / HTTPs / CSR Power:Auto Sensing - 100 to 240VAC, 50 / 60Hz KVM Navigation:Front Buttons or OSD Menu & Hot Keys Warranty:2 Year Warranty, Includes Crystal Care Service Plan
32 Port Cat5 KVM Over IP Switch Options -
Power:12VDC, 24VDC, 48VDC IntegrationIntegrate into 17", 19" or 20" 1U Rack Mount Monitor ExansionUpgrade to 16 Port or 32 Port Warranty3 Year Extended Warranty
