Save $302

KVM over IP 8 Port VGA USB KVM Switch

Be the first to review this product

Special Price from $1,207.00 Regular Price from $1,508.75 20% OFF

Part

KVM-IP8

Product Information

Includes 8, 6' VGA UBS KVM Cables
1 Local Console, 1 Remote KVM Over IP Cosole (BIOS level access)
Supports Resolutions up to 1920 X 1200 (1920 X 1080 for IP Console)

More Information

Product Specification

DB-15 KVM Over IP Switch
Port # :	8
Connector :	RJ45 (IP Console)
Connectivity :	1 x DB-15 VGA
Resolution :	16:10 - max. 1920 x 1200 / 4:3 - max. 1600 x 1200

Network Protocol - DHCP / BOOTP / DNS
Security - SSL v3, RSA, AES, HTTP, HTTPs, CSR
Browser - Internet Explorer
User Management - 1 x active user, 15 user login

Local Console / IP Console
Graphic Connector :	1 x DB-15 VGA
Input device :	2 x USB type A for keyboard & mouse
Resolution :	16:9 - max. 1920 x 1080 / 4:3 - max. 1600 x 1200 / 1920 X 1200 / (IP Console 4:3 - 1600 X 1200)

Management
Port switching	OSD, front button & keyboard hotkeys
Expansion	8-level cascade up to 256 servers

Power
Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption	Max. 19W

Compatibility
Hardware	HP / IBM / Dell PC, Server and Blade Server SUN / Mac
OS support	Windows / Linux / Unix / Mac OS

Compliance
Safety	cUL, FCC & CE certified
Environment	RoHS2 & REACH compliant

Environment
Operating temp.	0 to 55°C degree
Storage temp.	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating altitude	16,000 ft
Non-operating altitude	40,000 ft
Shock	10G acceleration ( 11ms duration )
Vibration	10~300Hz 0.5G RMS random vibration

Physical
Product (W x D x H)		443 x 171 x 44 mm 17.4 x 6.7 x 1.73 inch
Packing (W x D x H)		500 x 400 x 90 mm 19.7 x 15.7 x 3.5 inch
Weight	Net	3 kg / 6.6 lb
Weight	Gross	5 kg / 11 lb
Chassis color		Dark
Chassis materials		Steel

Configure Your Unit

Warranty

Qty

Download technical documents

KVM Switch Specifications

KVM Switch User Manual

24/7 Support

Fast, professional support

Extended Return Period

30 days return policy

Custom Solutions

Skip to the end of the images gallery

Skip to the beginning of the images gallery

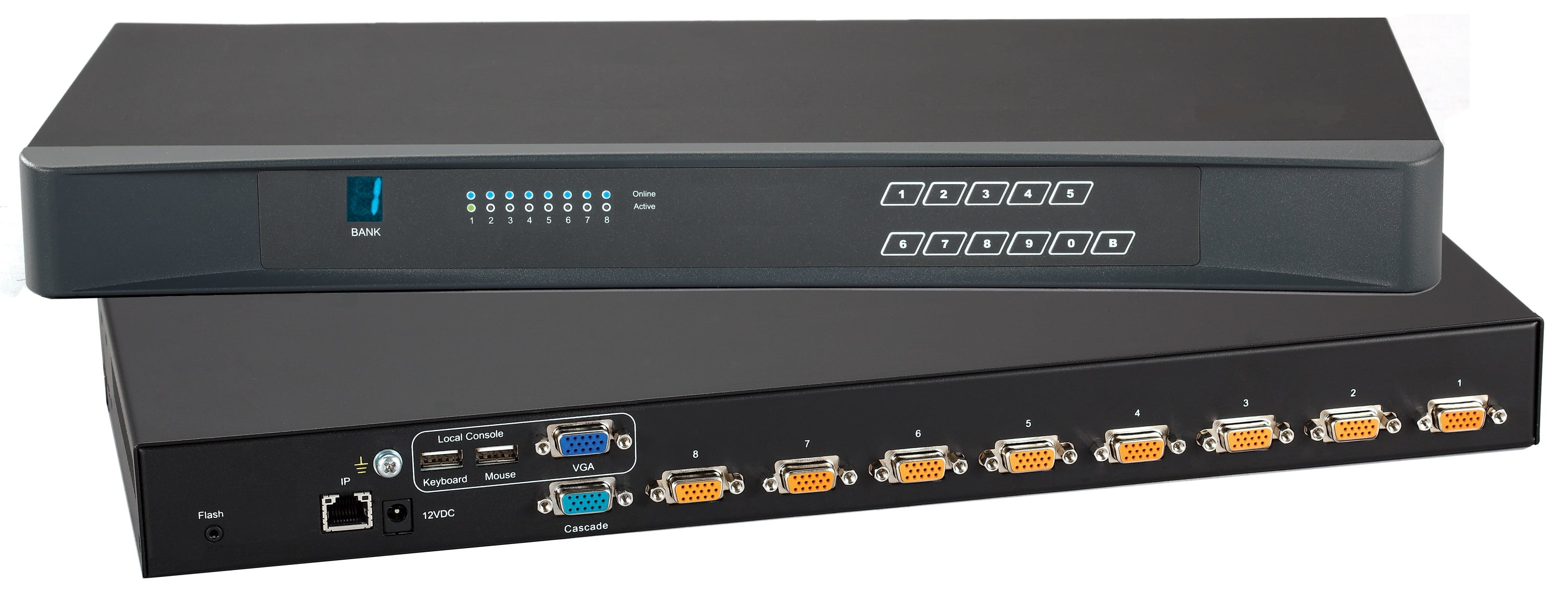

KVM over IP 8 Port KVM Switch (Part#KVM-IP8)

1 / 2

Product Specification

DB-15 KVM Over IP Switch
Port # :	8
Connector :	RJ45 (IP Console)
Connectivity :	1 x DB-15 VGA
Resolution :	16:10 - max. 1920 x 1200 / 4:3 - max. 1600 x 1200

Network Protocol - DHCP / BOOTP / DNS
Security - SSL v3, RSA, AES, HTTP, HTTPs, CSR
Browser - Internet Explorer
User Management - 1 x active user, 15 user login

Local Console / IP Console
Graphic Connector :	1 x DB-15 VGA
Input device :	2 x USB type A for keyboard & mouse
Resolution :	16:9 - max. 1920 x 1080 / 4:3 - max. 1600 x 1200 / 1920 X 1200 / (IP Console 4:3 - 1600 X 1200)

Management
Port switching	OSD, front button & keyboard hotkeys
Expansion	8-level cascade up to 256 servers

Power
Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption	Max. 19W

Compatibility
Hardware	HP / IBM / Dell PC, Server and Blade Server SUN / Mac
OS support	Windows / Linux / Unix / Mac OS

Compliance
Safety	cUL, FCC & CE certified
Environment	RoHS2 & REACH compliant

Environment
Operating temp.	0 to 55°C degree
Storage temp.	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating altitude	16,000 ft
Non-operating altitude	40,000 ft
Shock	10G acceleration ( 11ms duration )
Vibration	10~300Hz 0.5G RMS random vibration

Physical
Product (W x D x H)		443 x 171 x 44 mm 17.4 x 6.7 x 1.73 inch
Packing (W x D x H)		500 x 400 x 90 mm 19.7 x 15.7 x 3.5 inch
Weight	Net	3 kg / 6.6 lb
Weight	Gross	5 kg / 11 lb
Chassis color		Dark
Chassis materials		Steel

IP KVM 8 Port Over IP Switch Features -

Console: 1 Local Console, 1 Remote IP KVM Switch (BIOS level access)
Cables: Includes 8, 6' USB KVM Switches / PS/2 Cables
Length:6', 10', and 15' lengths
Compatibility: PCs, SUN, Mac G3 / G4 Mac / iMac- Windows, Unix, Linux
Resolution: 1600 X 1200 - Supports SUN 1152 X 900
Security:SSL v3, RSA, AES, HTTP / HTTPs / CSR
Power:Auto Sensing - 100 to 240VAC, 50 / 60Hz
KVM Navigation:Front Buttons or OSD Menu & Hot Keys
Warranty:2 Year Warranty, Includes Crystal Care Service Plan

8 Port KVM Over IP Switch Options -

Power:12VDC, 24VDC, 48VDC
Warranty3 Year Extended Warranty

KVM Switch Specifications

KVM Switch User Manual
