Rugged Portable Display - 17" LCD, 1920 X 1080, 1000 Nits, MIL-STD-810F/G Compliant, USB Accessory HUBS - (Part#PD-F117A-MIL)
Special Price
from $3,397.00
Regular Price
from $3,997.00
More Information
| Product Specification |
Product Specification
| Console Port |
| Video input |
VGA + DVI-D + HDMI |
| Keyboard and Mouse |
USB 2.0 Keyboard & Mouse |
| DVI console - 6ft cable : or VGA console - 6ft cable : |
Drawer and Server end : (VGA to VGA) |
Drawer and Server end DVI to DVI and HDMI to HDMI
USB 2.0 to USB 2.0 Standard Cable |
| Video Option |
| Digital |
HDMI |
or Display Port / 3G/HD/SD-SDI Broadcast Grade Input |
| LCD Panel |
| Panel Size (diagonal) |
17.3" |
| Native resolution |
1920 x 1080 supports 1920 X 1200 |
| Brightness(cd/m²) |
1000 |
| Contrast ratio (typ.) |
650:1 |
| Max Color |
262K |
| Contrast angle(L/R/U/D) |
80/80/60/80 |
| Responsive time(ms) |
40 |
| Dot pitch (mm) |
0.1989 |
| Display area (mm) |
381.888H x 214.812V |
| Surface treatment |
Anti- glare. Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
20,000 |
| Power |
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 29W / Max. 38W |
| Power saving mode |
Max. 9W / Max. 18W |
| Power button on |
Max. 2W / Nil |
| Physical |

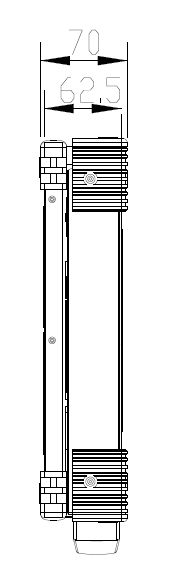

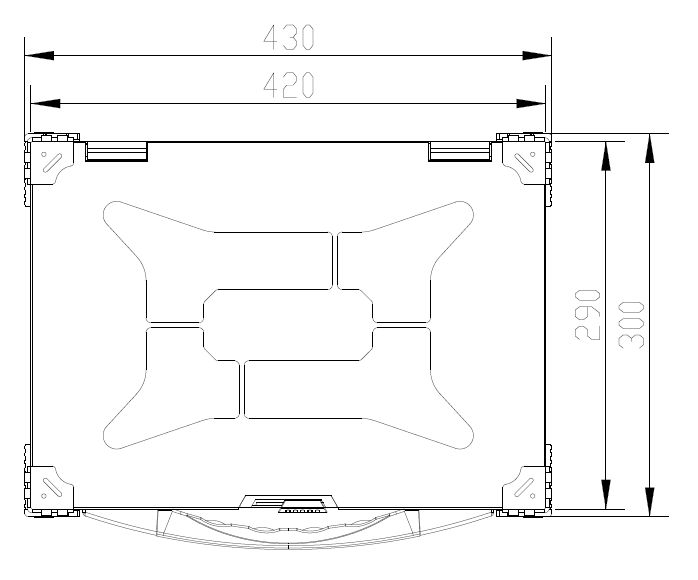

Product
(W x D X H) |
Rugged Portable Console |
430 x 340 x 70mm
16.92 x 13.38 x 2.75 inch |
| Console W/ KVM |
NA
|
Packing
(W x D X H) |
Single console/
Console W/ KVM |
|
Net
weight |
Rugged Portable Console |
5kg / 11 lb |
| Console W/ KVM |
NA |
Gross
weight |
Single console |
|
| Console W/ KVM |
NA |
| Environment |
| Operating temp. |
0 to 50°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
10~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
17~500Hz 1G PTP |
| Mounting Distance |
| Single console drawer |
NA |
| Console W/ KVM drawer |
NA
|
| Compliance |
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|

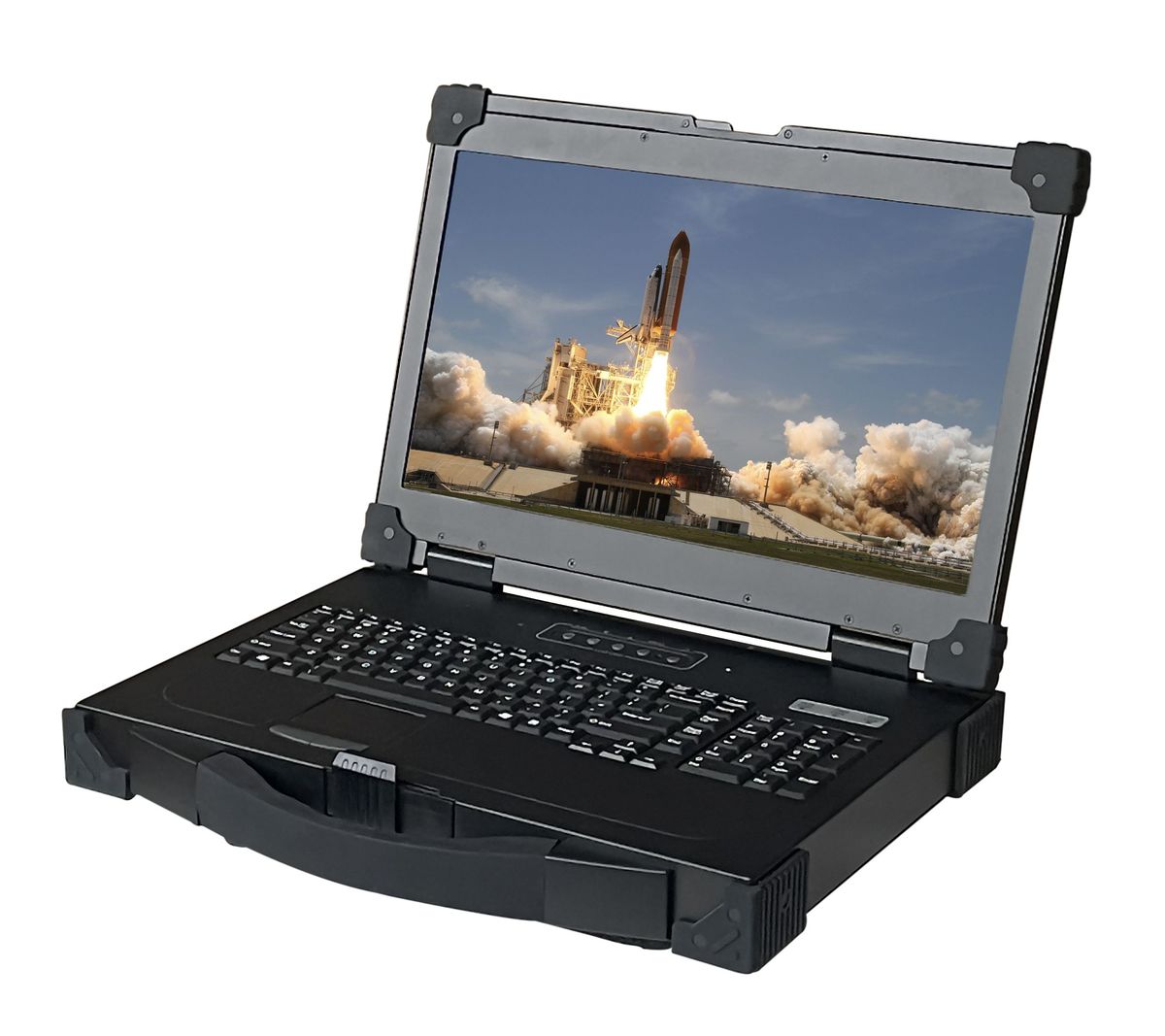

17" MIL-STD-810F/G Compliant Portable Rugged Display with Keyboard
- 1U 17.3" 1920 X 1080 / 1920 X 1200 LCD w/VGA + DVI-D + HDMI
- Supports FHD with 1080p resolution
- 104 Key Sealed Silicone IP65 Backlight Keyboard with Touchpad Mouse

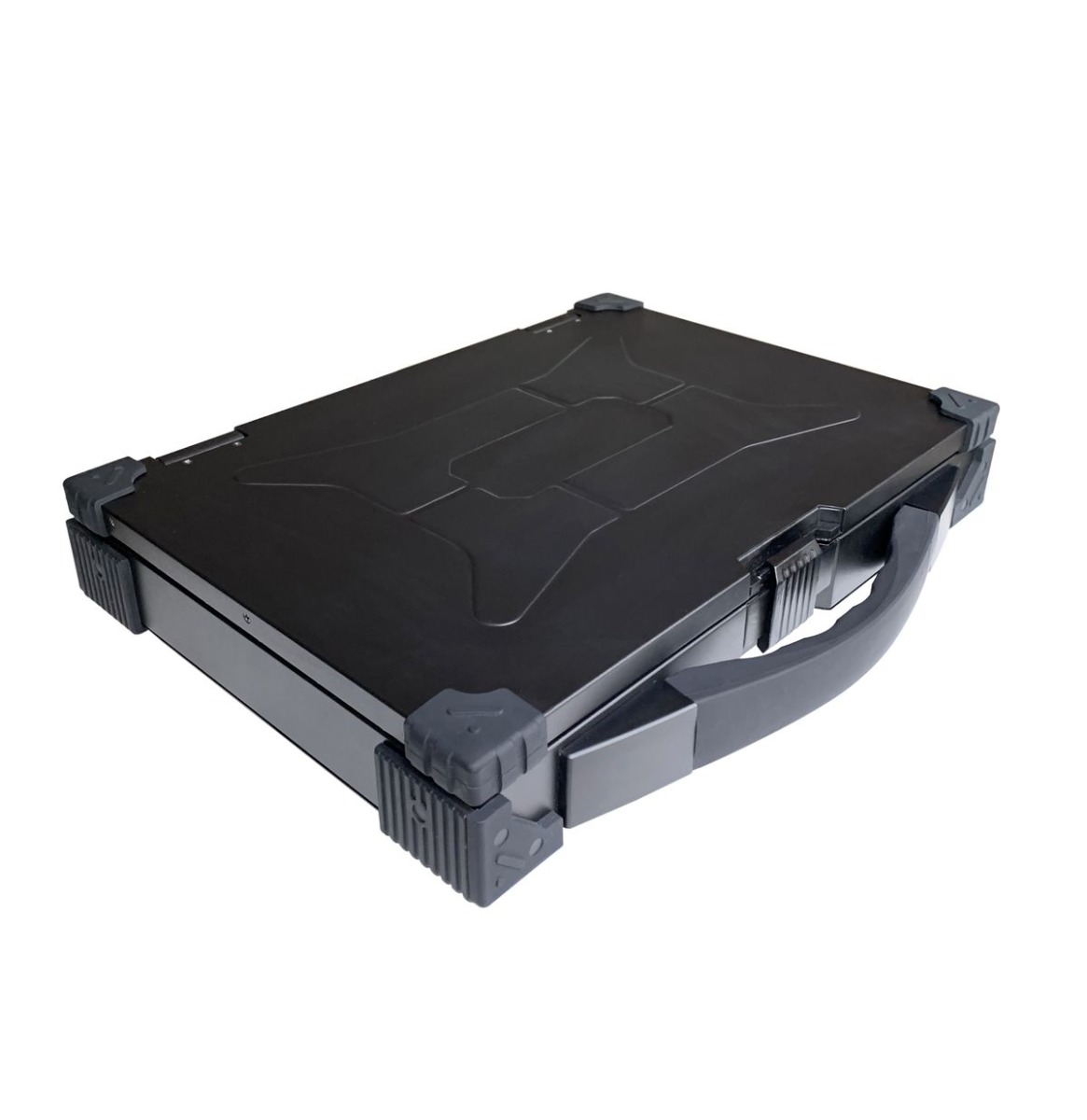

- Rugged construction with rubber corner bumpers
- MIL-STD-810F/G Compliant

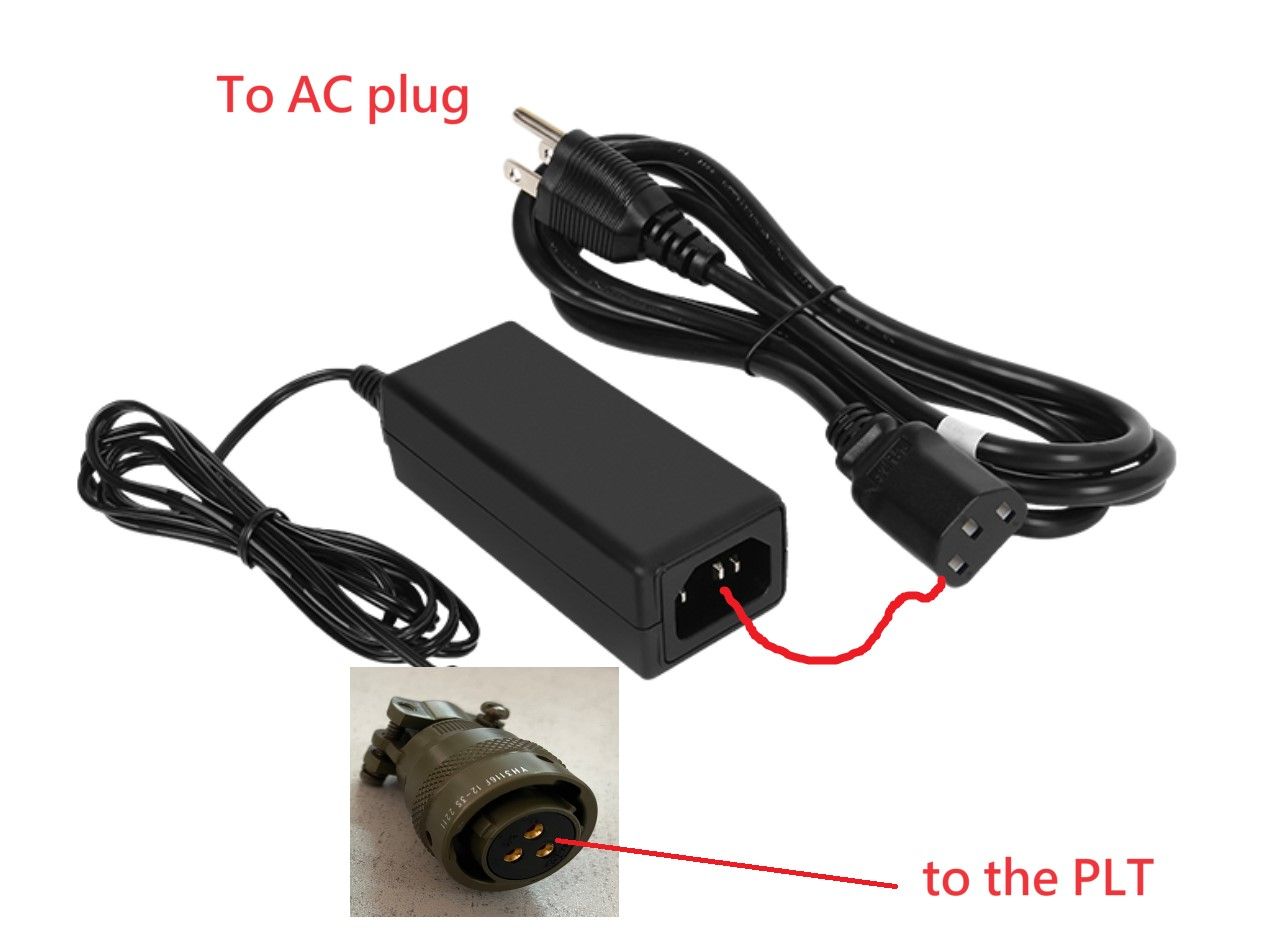

- MIL Type Power Connector

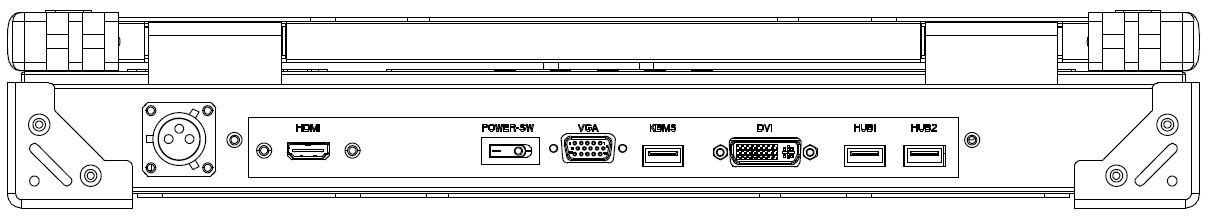

- 2X Rear USB HUBS for peripherals
- Ultra Light Weight (11 lbs)
Options -
- Video: 3G / HD / SD-SDI Broadcast Grade Input, Display Port
- Power: 9~36V DC Power
- Touchscreen
